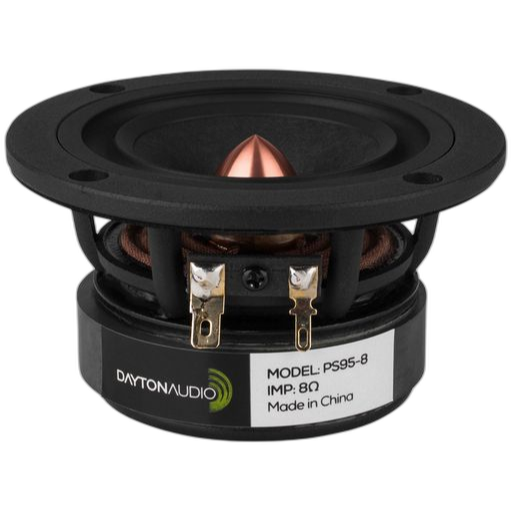

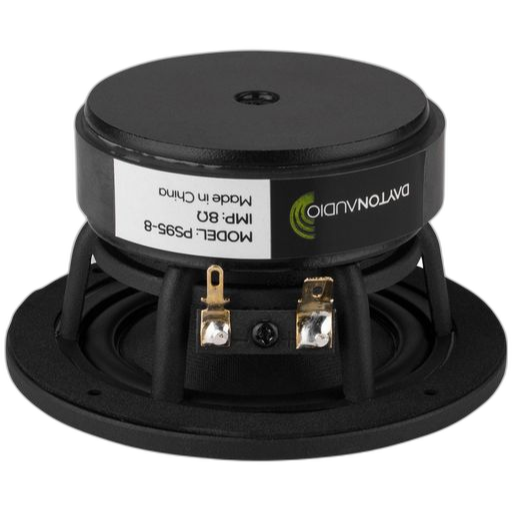

Dayton Audio - 3.5" Full Range - PS95-8
Dayton Audio - 3.5" Full Range - PS95-8
Description:
Dayton Audio's PS95-8 3-1/2" point source full range driver delivers the full spectrum of sound, including clear, natural highs with excellent detail and articulation. The copper-anodised aluminium phase plug provides enhanced dispersion and eliminates the resonance from a conventional dust cap
The PS95-8 model features a lightweight, curved-profile paper cone made of 100% natural fibers, for dynamic and articulate sound that extends from a punchy, detailed bass to the highest treble. The compact 3-1/2" size enables great sonic performance in small satellite speakers on the desktop, or in narrow "needle"-style tower cabinets for filling a larger room. The copper-anodised aluminium phase plug of the PS95-8 is more than just beautiful – it provides enhanced dispersion and eliminates the resonance from a conventional dust cap. And the optimised, high-strength ferrite magnet structure features a copper pole cap that reduces resolution-sapping inductance and lowers distortion.
Features:
- Detailed, natural sounding full-range audio performance without distortion
- Classy copper-anodised phase plug spreads dispersion and avoids resonance
- Non-resonant cast frame enhances clarity and dynamics
- Low-mass voice coil and paper cone produce detailed, non-fatiguing sound
- Copper pole cap in motor assembly reduces inductance and distortion
Specifications:
Code | PS95-8 |
Description | 3½ POINT SOURCE Full Range DRIVER - DAYTON AUDIO |
Type | Full Range |
Size | 3.5" |
Power | 10W |
Coil | 20mmØ |
Impedance | 8Ω (Re 7.1Ω) |
Depth | 52mm |
Sens. | 85.56dB |
Re | 7.1Ω |
Qms | 7.33 |
Qes | 0.8 |
Qts | 0.72 |
Vas | 0.94L |
Sd | 28.3cm² |
Cms | 0.79mm/N |
Fs | 119.8Hz |
Mms | 2.2g |
Zn | 8Ω |
Le | 0.63mH |
Diam. | 98mmØ |
Manufacturer | Dayton Audio |
Impedance (Ohm) | 8 ohm |
Power (RMS) | 0-50 Watt |
Series | Point Source |
Hole | 77mmØ |
Prms | 10W |
Inch | 3.5 |
Price Type | each |
