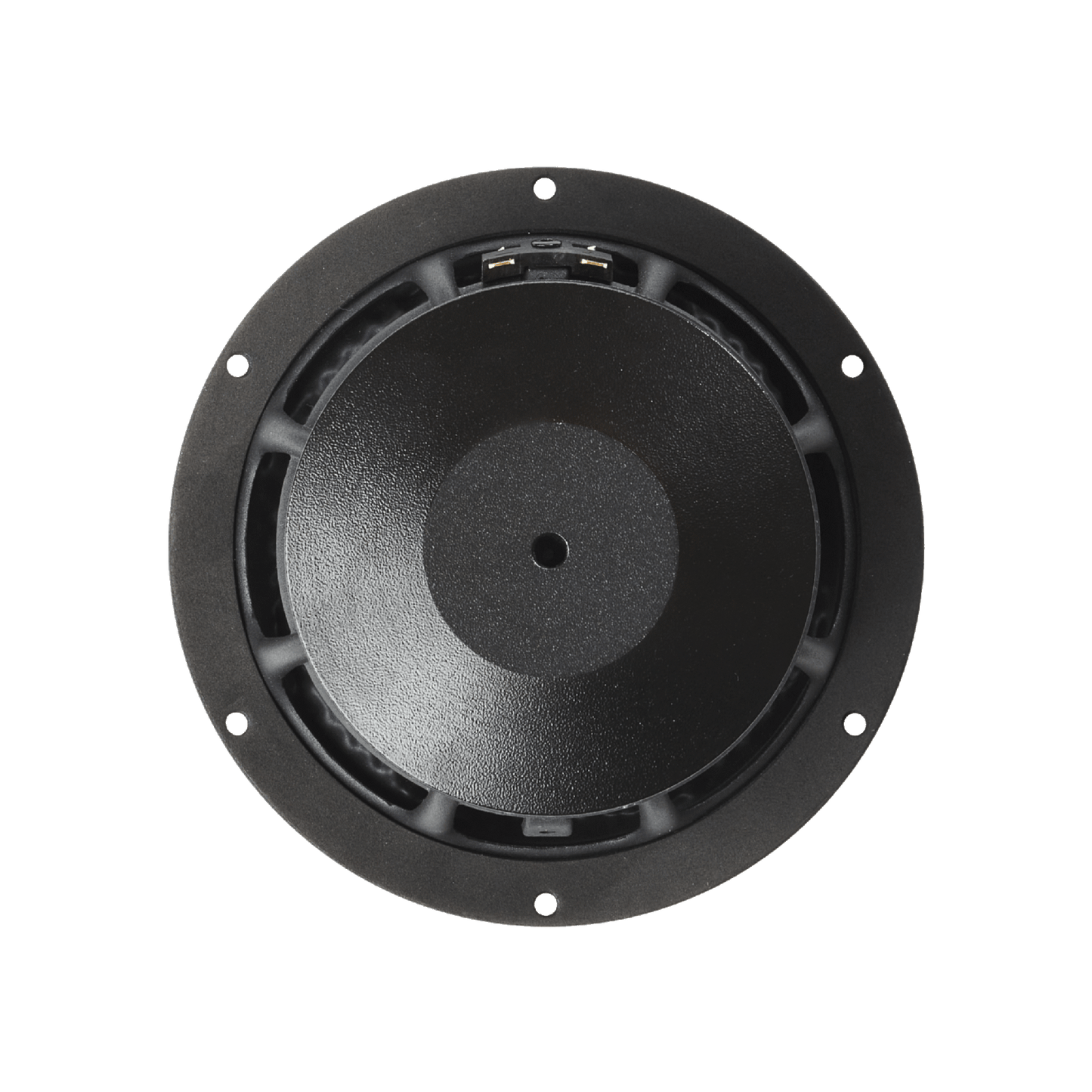

PURIFI - 5.25" Woofer - PTT5.25X08-NFA-01
PURIFI - 5.25" Woofer - PTT5.25X08-NFA-01
Regular price
$799.95
Regular price
Sale price
$799.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Made to order
Lead time: 8–12 weeks
Couldn't load pickup availability
Description
5.25” member of PURIFI's famous ultra low distortion extended-stroke woofer family. The driver incorporates the easily recognisable PURIFI NeutralSurround suspension and ultra-linear motor system PURIFI PureDrive technology working in concert to elevate performance to a whole new level despite its compact size.
Features
- Vibroacoustic optimised cone and dust cap in proprietary paper fibre mix
- Negligible Force Factor Modulation (FFM) and Surround Radiation Distortion (SRD)
- Ultra Low Magnetic Hysteresis Distortion (MHD)
- "Real" long-stroke performance with distortion remaining low over full excursion
- Uncompromised midrange performance
- Designed and manufactured in Denmark
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 5.25" |
| Nominal impedance | 8Ω |
| Power handling (RMS) | 80 W |
| Power handling (program) | 250 W |
| Sensitivity | 84.7 dB |
| Sensitivity (1 W/1 m) | 83.9 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 32 Hz |
|---|---|
| DC resistance (Re) | 5.9 Ω |
| Minimum impedance (Zmin) | 6.8 Ω |
| Voice coil inductance (Le) | 0.55 mH |
| Mechanical Q (Qms) | 6.6 |
| Electrical Q (Qes) | 0.28 |
| Total Q (Qts) | 0.27 |
| Equivalent volume (Vas) | 13.2 L |
| Compliance (Cms) | 1.3 mm/N |
| Moving mass (Mms) | 19.6 g |
| Mechanical resistance (Rms) | 0.59 kg/s |
| Force factor (Bl) | 9 T·m |
| Effective piston area (Sd) | 84.9 cm² |
| Linear excursion (Xmax, one-way) | 9.8 mm |
| Mechanical excursion (Xmech) | 14 mm |
| Displacement volume (Vd) | 83.2 cm³ |
| Efficiency bandwidth product (EBP) | 114.3 |
| Effective piston diameter (D) | 104 mm |
| Impedance at resonance (Zo) | 144 Ω |
| Frequency of minimum impedance | 262 Hz |
Motor
| Motor efficiency factor (β) | 13.7 (T·m)²/Ω |
|---|---|
| Voice coil height | 23.6 mm |
| Voice coil layers | 4 |
| Voice coil wire | CCAW |
| Air gap height | 4 mm |
| Magnet diameter | 100 mm |
Mounting
| Overall diameter | 147.3 mm |
|---|---|
| Cutout diameter | 121 mm |
| Mounting depth | 76 mm |
| Flange thickness | 3.6 mm |
| Bolt circle diameter | 138 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 4.2 mm |
| Volume displaced by driver | 0.3 L |
| Voice coil diameter | 39 mm |
| Weight | 1.75 kg |
Materials
| Cone | Proprietary Fibre Mix |
|---|
Typical box tunings
| Sealed B2: corner frequency | 83.8 Hz |
|---|---|
| Sealed B2: box volume | 2.3 L |
| Bass reflex: corner frequency | 44.9 Hz |
| Bass reflex: box resonance | 47.1 Hz |
| Bass reflex: box volume | 6.3 L |
| Bass reflex: port diameter | 56 mm |
| Bass reflex: port length | 527 mm |
| 2 × passive radiator: corner frequency | 47.6 Hz |
| 2 × passive radiator: box volume | 5.5 L |
| 2 × passive radiator: PR mass (each) | 47.6 g |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Purifi quotes sensitivity over 300–800 Hz.
Downloads
- PTT5.25X08-NFA-01 - Data Sheet
- PTT5.25X08-NFA-01 - 3D Drawing
- PTT5.25X08-NFA-01 Cutout & Recess Template (NB Audio) Every figure is straight off Purifi's own spec sheet. Check it against your driver before you cut.
