Scan-Speak

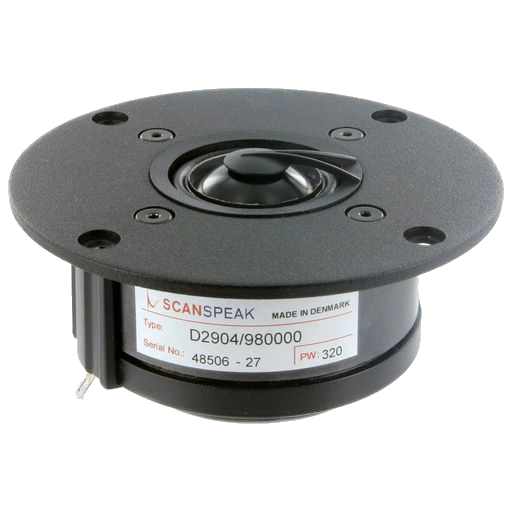

Scan-Speak - 1" Dome Tweeter Aluminium - D2904/980000
Scan-Speak - 1" Dome Tweeter Aluminium - D2904/980000
Regular price
$314.95 AUD
Regular price
Sale price
$314.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description:
Symmetric Drive technology that almost eliminates electrical phase shift. A carefully designed chamber & minimises air noise and compression. The geometry of the light-weight aluminium dome causes the typical characteristic “break-up” peak to appear far beyond the audible range. A special diffuser is used to equalise the response in the upper octave. SD-2 motor Low compression Non-resonant chamber Revelator design. This premium tweeter is characterised by a very clean and open sound.
Features:
- 1" Aluminium Dome Diaphragm
- Patented Symmetrical Drive (SD) motor
- Wave Guide
- Low Resonance Rear Chamber
- Black Aluminium Face Plate
Specifications:
| Code | D2904/980000 |
| Description | 28mm Alu Dome Tweeter 4 ohm, Ferrite Magnet, Waveguide, Ferro Fluid |
| Type | Tweeter |
| Size | 1" |
| Power | 160Wrms |
| Coil | 28mmØ |
| Width | 104.3mm |
| Lead | 0.01mH |
| Impedance | 4Ω (Re 3.5Ω) |
| Depth | 46mm |
| Mag. | 0.7kg |
| Sens. | 88.0dB |
| Re | 3.5Ω |
| Qms | 3.09 |
| Qes | 0.84 |
| Qts | 0.66 |
| Vas | 0.02L |
| Sd | 8.5cm² |
| Cms | 0.2mm/N |
| Fs | 500Hz |
| Mms | 0.6g |
| Zn | 4Ω |
| Le | 0.01mH |
| Rms | 0.61kg/s |
| Manufacturer | Scan-speak |
| Impedance (Ohm) | 4 ohm |
| Series | Classic |
| Brand. | Scan-speak |
