Scan-Speak

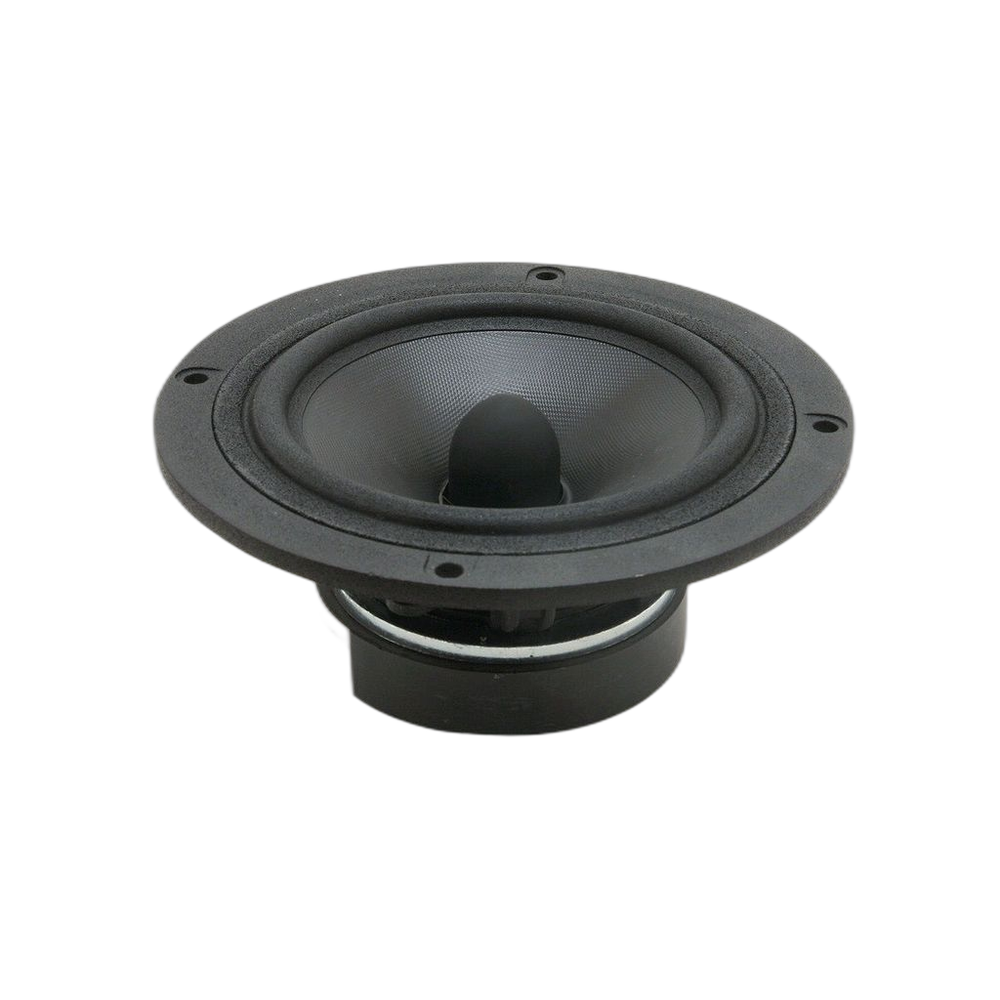

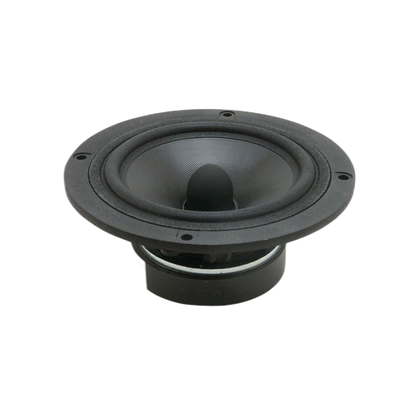

Scan-Speak - 5" Discovery Midrange - 15M/4624G00
Scan-Speak - 5" Discovery Midrange - 15M/4624G00
Regular price
$129.95 AUD
Regular price
Sale price
$129.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
15cm Midrange 4 ohm, Coated Fibreglass Cone, Ferrite Magnet. The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point.
Features
- High Output 92,5dB @ 2,83V
- Coated NRSC Fibre Glass Cone
- Die cast Alu Chassis vented below spider
- Phase Plug for Improved Phase Linearity
- Very Low Damping Foam Surround (Coated)
- Magnet System with Aluminium Ring
Specifications
| Impedance | 4Ω Re 4.1Ω |
|---|---|
| Power | 75Wrms |
| Fs | 100Hz |
| Sens. | 92.4dB |
| Qes | 0.47 |
| Qms | 5.62 |
| Qts | 0.43 |
| Cms | 0.41mm/N |
| Coil | 25mmØ |
| Le | 0.23mH |
| Mag. | 1kg |
| Mms | 6.2g |
| Re | 4.1Ω |
| Rms | 0.69kg/s |
| Sd | 80cm² |
| Series | Discovery |
| Size | 5' |
| Type | Midrange |
| Vas | 3.7L |
| Width | 150mm |
| Zn | 4Ω |
| Manufacturer | Scan-speak |
