Scan-Speak - 5" Discovery Midrange - 15M/4624G00
Scan-Speak - 5" Discovery Midrange - 15M/4624G00
Regular price
$134.95
Regular price
Sale price
$134.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
15cm Midrange 4 ohm, Coated Fibreglass Cone, Ferrite Magnet. The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonably low price point.
Features
- High Output 92.5dB @ 2.83V
- Phase Plug for Improved Phase Linearity
- Coated NRSC Fibre Glass Cone
- Very Low Damping Foam Surround (Coated)
- Die cast Alu Chassis vented below spider
- Magnet System w. Alu Ring
Specifications
Specifications
General
| Driver type | Mid-Range |
|---|---|
| Nominal size | 5" |
| Nominal impedance | 4Ω |
| Series | Discovery |
| Power handling (RMS) | 75 W |
| Power handling (program) | 180 W |
| Sensitivity | 92.4 dB |
| Frequency range | 150 – 10,000 Hz |
| Suggested alignment | Ported |
| Recommended crossover | 2. order HP Butterworth, 200 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 100 Hz |
|---|---|
| DC resistance (Re) | 3.2 Ω |
| Minimum impedance (Zmin) | 4.1 Ω |
| Voice coil inductance (Le) | 0.23 mH |
| Mechanical Q (Qms) | 5.62 |
| Electrical Q (Qes) | 0.47 |
| Total Q (Qts) | 0.43 |
| Equivalent volume (Vas) | 3.7 L |
| Compliance (Cms) | 0.41 mm/N |
| Moving mass (Mms) | 6.2 g |
| Mechanical resistance (Rms) | 0.69 kg/s |
| Force factor (Bl) | 5.3 T·m |
| Effective piston area (Sd) | 75 cm² |
| Linear excursion (Xmax, one-way) | 1.5 mm |
| Mechanical excursion (Xmech) | 8 mm |
| Displacement volume (Vd) | 11.25 cm³ |
| Efficiency bandwidth product (EBP) | 212.8 |
| Effective piston diameter (D) | 101 mm |
| Impedance at resonance (Zo) | 41.5 Ω |
Motor
| Voice coil height | 8 mm |
|---|---|
| Air gap height | 5 mm |
| Voice coil layers | 2 |

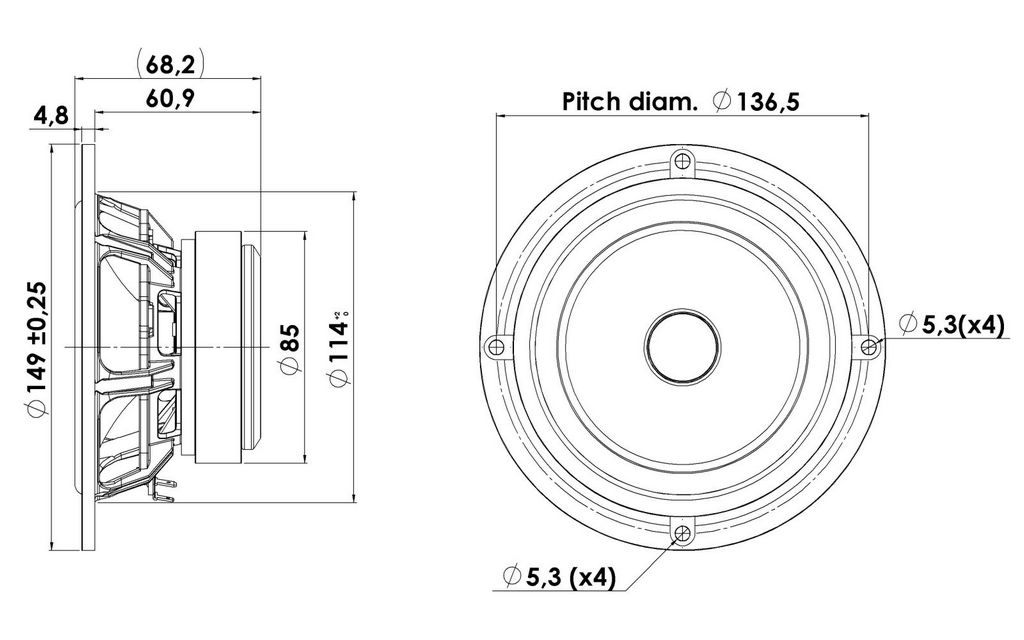

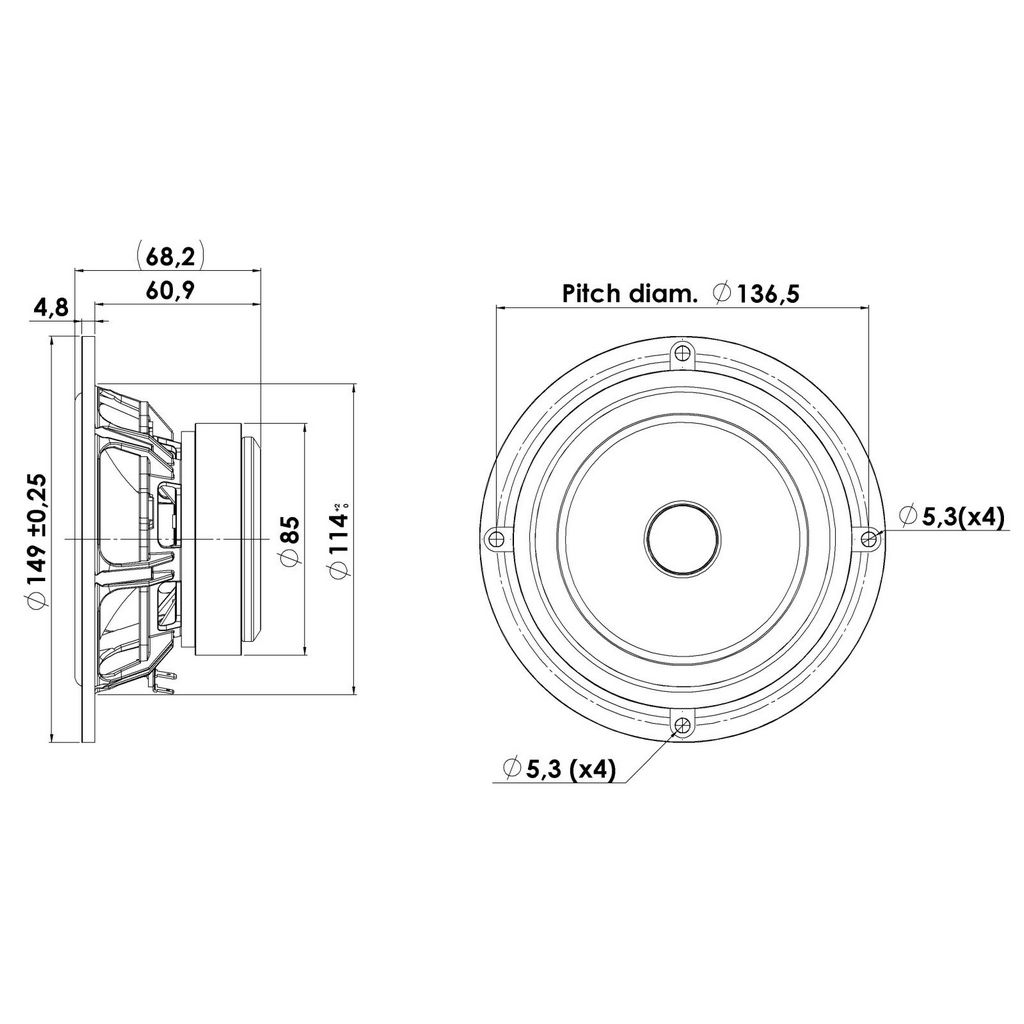

Mounting
| Overall diameter | 149.3 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 115.0 mm |
| Mounting depth | 60.9 mm |
| Flange thickness | 4.8 mm |
| Bolt circle diameter | 136.5 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 5.3 mm |
| Volume displaced by driver | 0.21 L |
| Voice coil diameter | 25 mm |
| Weight | 1 kg |
Materials
| Cone | Coated Fibreglass |
|---|---|
| Surround | Coated Foam |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
Typical box tunings
| Closed box: box volume | 3 L |
|---|---|
| Closed box: corner frequency | 150 Hz |
| Vented box: box volume | 6 L |
| Vented box: box resonance | 84 Hz |
| Vented box: corner frequency | 80 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Downloads
- 15M/4624G00 Datasheet
- 15M/4624G00 Drawing
- 15M/4624G00 Adv. Parameters
- 15M/4624G00 3D model
- 15M/4624G00 Cutout & Recess Template (NB Audio) Straight off Scan-Speak's spec sheet: flange outline, recess depth, bolt holes. Scaled from Scan-Speak's drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
