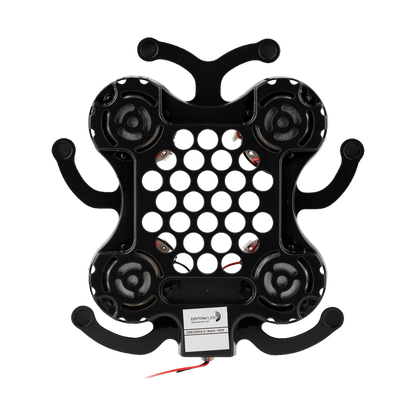

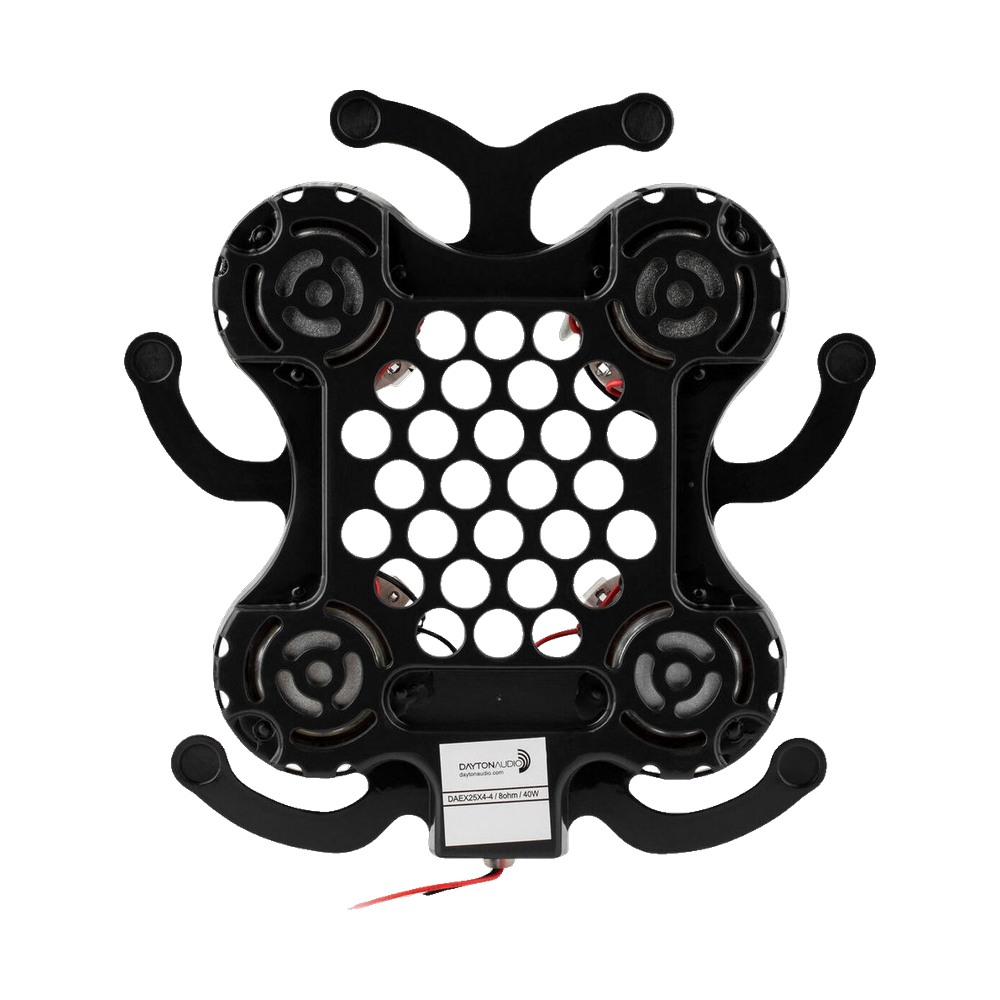

Dayton Audio - 40W 25mm Sound Exciter Quad Kit - DAEX25X4-4

Description

The unique DAEX25X4-4 exciter assembly from Dayton Audio uses an array of 4 separate exciters coupled together with a frame to actuate a larger area than conventional exciters, resulting in higher power handling and more output.

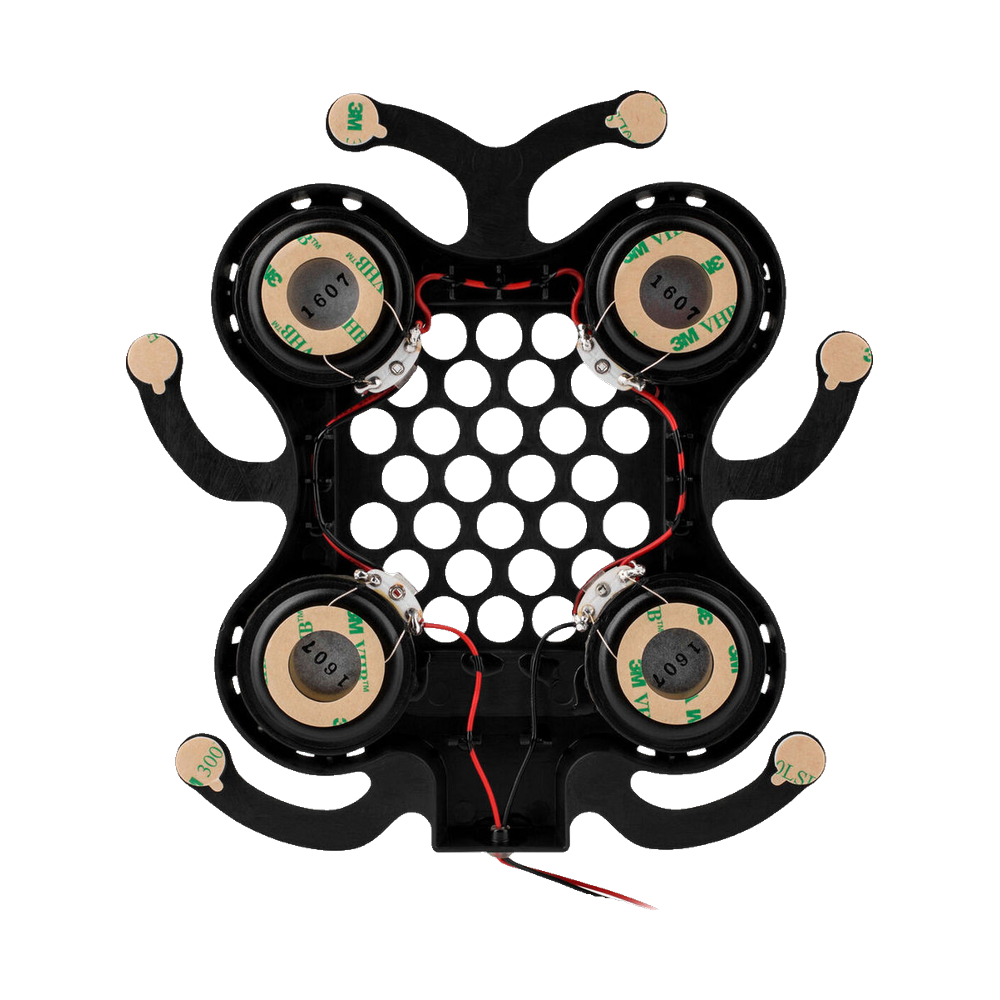

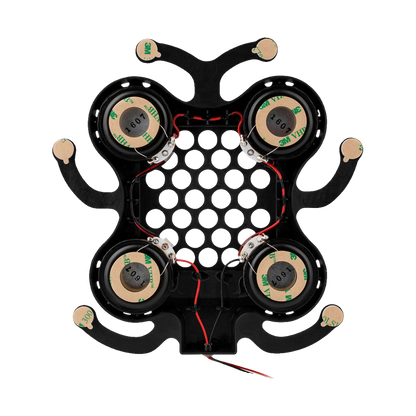

The Dayton Audio exciter assemblys unique design uses 4 25mm exciters coupled to a plastic frame to actuate a larger area with more force than conventional designs. This array of exciters is wired in a series-parallel configuration for an overall impedance of 8 ohms and power handling of up to 40 watts RMS.

The DAEX25X4-4 exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only with a larger contact area and moving mass allowing for increased energy transfer. Perfect for use in walls, drop ceilings, or even cabinet doors.

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Connection is made with 10" wire leads to keep installation and wiring as simple as possible.

Dimensions: 7.5" W x 7.5" H x 0.75" D

To understand more about exciter technology, here is a link to the Exciters Buyers Guide .

Features

• Pre-applied 3M™ VHB™ adhesive for quick, secure installation
• Four 24mm voice coils improves power handling to 40 watts RMS
• Rare-earth neodymium motor and a proprietary voice coils
• Easy 8 ohm load, can be powered be most amplifiers
