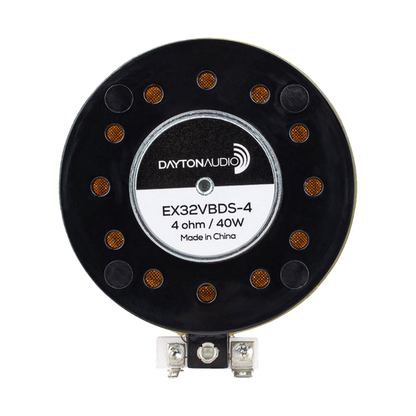

Dayton Audio - 40W 32mm Sound Exciter Mid-Bass - EX32VBDS-4

Description

Turn large, rigid surfaces into speakers with the Dayton Audio EX32VBDS-4 IMS™ audio exciter. Includes pre-attached 3M VHB™ adhesive for maximum energy transfer, even on moving objects!

Test the limits of your imagination and turn any surface into a great sounding speaker system

Surface exciter technology provides a universal, cost-effective alternative to loudspeakers, allowing for sound reproduction virtually anywhere it is desired. Issues such as weather, space constraints, vandalism or visibility can be avoided or minimised with the use of a sound exciter. Dayton Audio IMS™ Interchangeable Exciters may be used in a host of DIY executions to easily add sound to an existing non-audio specific project or create a portable speaker system, the unique mounting system allows you to try out the assortment of exciters offered by Dayton Audio!

Want to learn more about exciters? See our Exciters & Tactile Transducers Introduction Paper!

Read More

1/3th octave smoothing - measurement taken with transducer adhered off-centre on a 12" x 12" x ½" foam core board in an infinite baffle setup.

Note: This information is for comparison purposes only, the actual frequency response will depend on many factors of which the diaphragm being the greatest contributor.

Aural Excitement

Dayton Audio's 32 mm EX32VBDS-4 IMS™ Dual suspension exciter features the ability to turn nearly any surface into a speaker, this exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar-sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor.

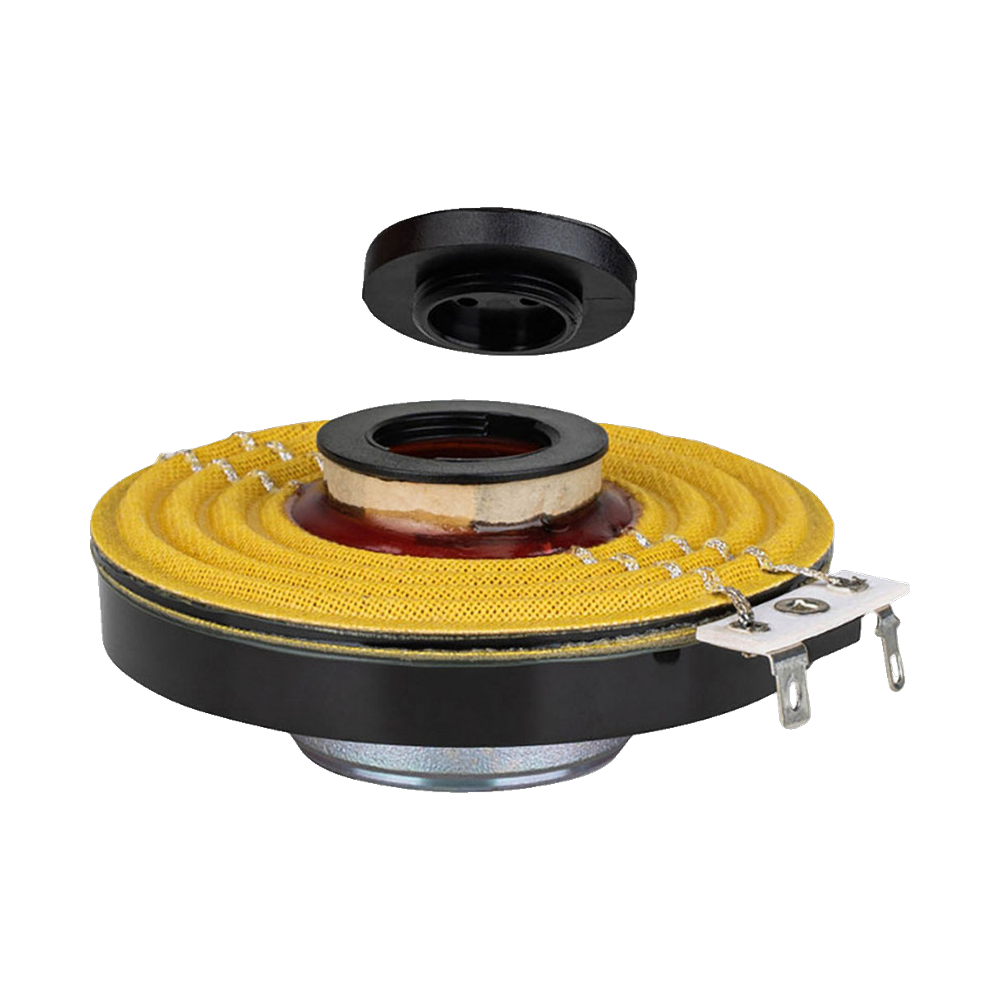

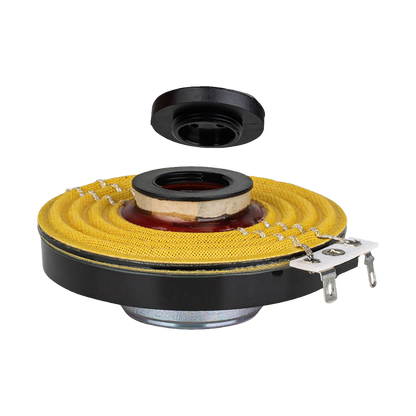

Exclusive IMS™ Interchangeable Mounting System

With Dayton Audio's exclusive IMS™ interchangeable mounting system, you can try out many different configurations, placements, and exciters to find the best combination for your project. Each exciter comes with a threaded mounting pad that can be permanently installed anywhere. Installation is easy, simply remove the pad from the exciter assembly, mount the pad to your project with 2 screws or with the 3M Adhesive, and screw the exciter assembly back onto the pad! The non-destructive nature of the interchangeable mount allows you to A/B different exciters or swap non-functional units out in the field without risking damage to your project or exciters.

Features

• Dual suspension increases excursion for low distortion performance
• Exclusive IMS™ Interchangeable mount allows you to A/B test different exciters
• Rare-earth neodymium motor and a proprietary two-layer voice coil
• Heavy-duty design with a 32mm voice coil for a high 40 watt RMS power handling
• Easily swap non-functional units out in the field
• 4-ohm impedance for use with small, Class D amplifiers

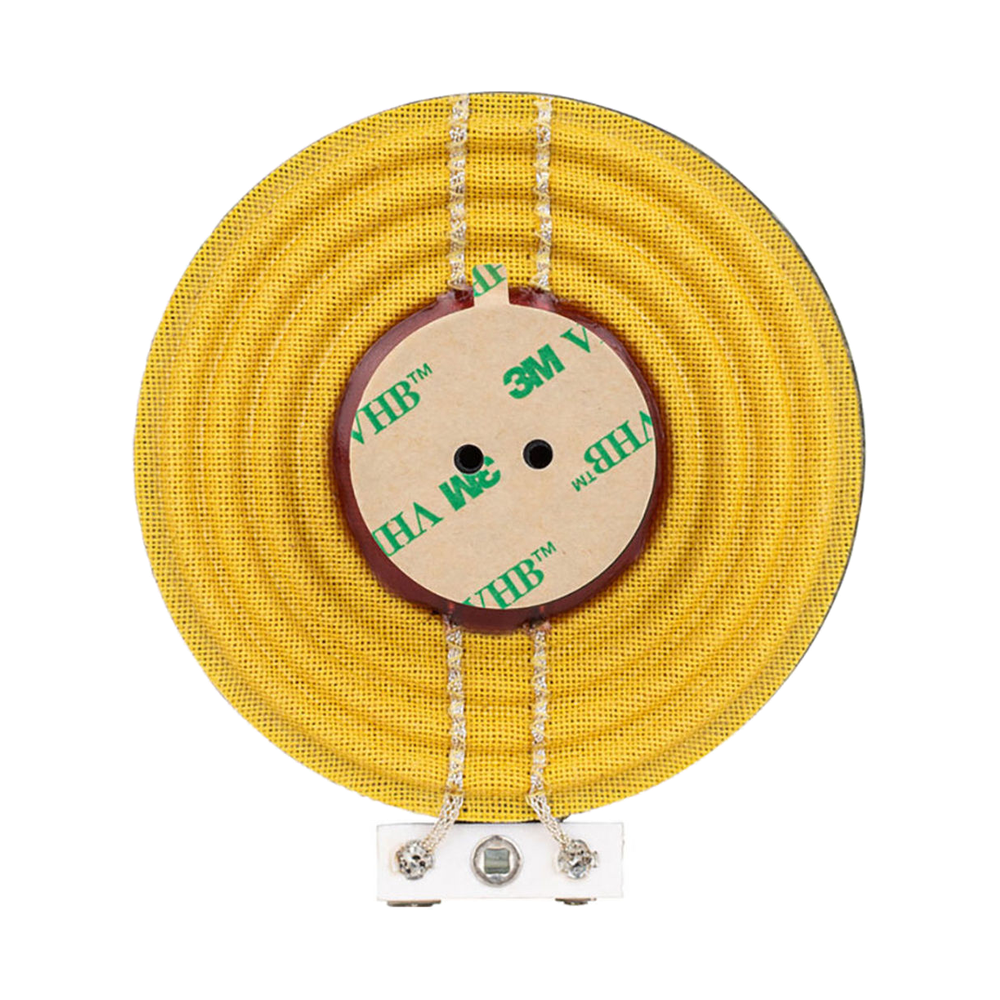

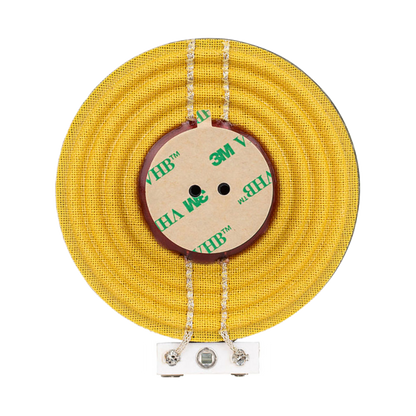

• Pre-applied 3M VHB™ adhesive for quick, durable installation
