Peerless

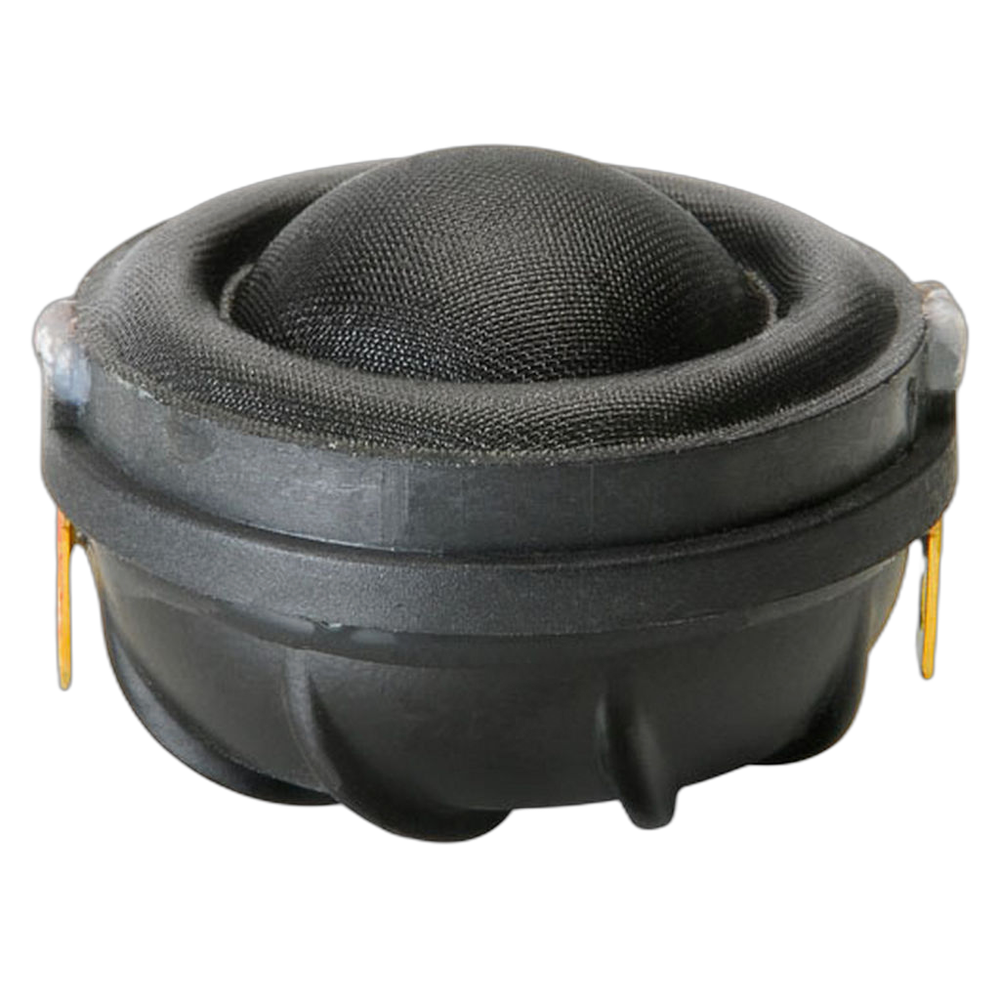

Peerless - ¾" Dome Tweeter Fabric - OX20SC00-04
Peerless - ¾" Dome Tweeter Fabric - OX20SC00-04
Regular price
$41.95 AUD
Regular price
Sale price
$41.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
No face plate. Super compact tweeter developed to maximise performance. Large surround to result good suspension for dispersion and reduced distortion. Treated fabric diaphragm dome. High sensitivity, double wound 20mm voice coil motor. Neodymium rare-earth high flux magnet with heat sink. Low resonance rear chamber for higher dynamic range.
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 0.75" |
| Nominal impedance | 4Ω |
| Series | Peerless Dome Tweeter |
| Power handling (RMS) | 16 W |
| Sensitivity | 86.5 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 1,000 Hz |
|---|---|
| DC resistance (Re) | 3.3 Ω |
| Voice coil inductance (Le) | 0.015 mH |
| Mechanical Q (Qms) | 9.1 |
| Electrical Q (Qes) | 1.89 |
| Total Q (Qts) | 1.6 |
| Equivalent volume (Vas) | 0.006 L |
| Compliance (Cms) | 0.19 mm/N |
| Moving mass (Mms) | 0.134 g |
| Force factor (Bl) | 1.212 T·m |
| Effective piston area (Sd) | 4.91 cm² |
| Efficiency bandwidth product (EBP) | 529.1 |
Motor
| Magnet weight | 0.04 kg |
|---|
Mounting
| Overall diameter | 33.4 mm |
|---|---|
| Cutout diameter | 30.4 mm |
| Voice coil diameter | 19.3 mm |
