Short answer: for a first build, pick a proven design: a kit or a published plan. You'll end up with a speaker that works, and you'll learn the woodwork, the wiring and the patience. Designing your own is a brilliant second project, but it means measuring gear, simulation software and almost certainly more than one crossover before you're happy.
That's not us being precious about design. It's just that a speaker is three jobs stacked on top of each other (drivers, box, crossover), and a first build goes much better when only one of them is new.
What you're actually choosing between
There are really three paths, not two.
| Kit | Published design, you source it | Your own design | |
|---|---|---|---|
| Drivers | Chosen for you | Chosen for you | You choose |
| Crossover | Supplied assembled, or as a parts list | Schematic supplied; you buy parts and build it | You design it, then build it |
| Cabinet | Flat-pack, finished, or drawings | Drawings supplied; you cut and build it | You design and build it |
| Measuring gear needed | No | No | Yes |
| Chance it works first go | High | High, if you follow the plans | Low to medium |
| What you learn | Building | Building, sourcing, crossover assembly | Everything, the hard way |
"Kit" covers a lot of ground. At one end it's a box of drivers and an assembled crossover with a finished cabinet, and your job is wiring and screws. At the other it's a parts list and a PDF. SB Acoustics, for example, publishes full open-source designs with cabinet drawings, crossover schematics and specs, and you can buy as much or as little of it ready-made as you like.
Published designs are the same idea without the box of bits. Our own Sealed 18SW500 build guide is one: a cut list, a driver, an amp suggestion and the DSP settings we used in the sim. The Mechano 23 customer project is another, a two-way bookshelf with full instructions.
Why a proven design is the better first build
The crossover is already done, and done properly. A good crossover is designed around measurements of those exact drivers in that exact box. That's the bit that separates a speaker that sounds right from one that sounds a bit off and you can't work out why. With a proven design, someone else has done the measuring. (We go into this in Passive crossovers explained.)
You only have to get the woodwork right. Building an accurate, airtight, well-braced box is a skill on its own. Build it to the drawings and the box behaves the way the designer modelled it.
It's a known target. If it sounds wrong, something in your build is wrong: a reversed wire, a leaky joint, a part in the wrong spot. That's fixable. If your own design sounds wrong, it could be anything.
You can still make it yours. Paint, veneer, grille, stands, the timber. Most of the fun of "designing your own" for a first build is really the look, and you get all of that with a proven design.
What changing a proven design actually changes
People ask this a lot: "Can I just make the box a bit wider / deeper / out of something else?"
- Internal volume and port size: keep them the same. They set the bass alignment. Change them and the bass response changes.
- Baffle width and driver positions: keep them the same if you can. The baffle shape affects how the sound wraps around the cabinet (baffle step and diffraction), and the crossover was tuned with that baffle. A wider or narrower front can shift the tonal balance enough to matter.
- Material: 18 mm birch ply instead of MDF (or the other way) is fine, as long as the internal dimensions stay the same.
- Finish, feet, grilles, terminals: go for your life.
If you want a different shape, the honest answer is that it's no longer the same speaker, and the crossover might need retuning to suit.
When designing your own makes sense
Your own design is the right call when:
- you've already built something and want to learn the design side;
- you need something no published design does (an odd size, an in-wall, a centre that fits a cabinet);
- you're happy to buy a measurement mic and learn the software; or
- you enjoy the process as much as the result.

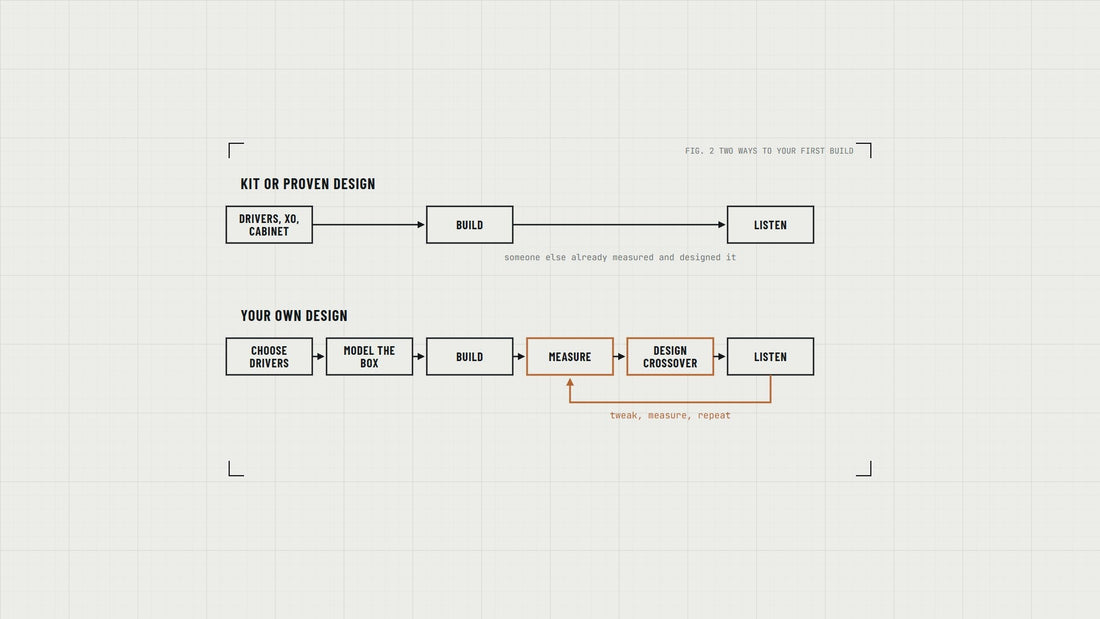

The steps, roughly:
- Pick drivers that suit the job. Start with How to read driver specs.
- Model the box in free software (WinISD, VituixCAD's enclosure tool) to choose sealed, ported or passive radiator and the volume.
- Build the box (Building the cabinet).
- Measure the drivers in the box: frequency response and impedance (Measuring speakers on a budget).
- Design the crossover from those measurements in VituixCAD or XSim.
- Build it, listen, measure again, tweak. Budget for a second round of parts.
That's a lot more than a kit, and step 4 is the one people try to skip. Designing a crossover from spec sheets can work, but it's designing blind compared to measuring what the drivers do in your box. Passive crossovers explained covers how it's done properly.
When DIY isn't worth it
Being upfront about it:
- Cheap, small speakers. At the bottom of the market, mass-produced speakers are hard to beat on price. If you want a little pair for the shed, buying is usually the sensible move. DIY value starts to shine further up, where commercial pricing is mostly margin, marketing and finish.
- No tools, no space, no patience. You need somewhere to cut sheet material and make dust. If you're paying someone else to cut and finish everything, the savings shrink fast.
- You need it to look showroom-perfect. A deep gloss finish is a skill and a lot of hours. Plan for paint, veneer or a ready-made cabinet instead.
- You value your time at shop rates. A first build is a few weekends, minimum. If that's a cost rather than the fun part, DIY is the wrong hobby.
What you'll need for a first build
- Drivers and crossover (from the kit or the design's parts list).
- Sheet material: usually 18 mm MDF or birch ply.
- A way to cut straight (a circular saw with a guide, a track saw, or the hardware store's panel saw).
- A router with a circle jig for driver holes, or a jigsaw and a steady hand.
- Clamps, wood glue, a drill, a soldering iron.
- Gasket tape, terminals and some damping material.
- A dust mask rated for fine dust. MDF dust is nasty stuff.
Quick questions
Is a kit "cheating"? No. You still build it, and you'll learn more from one well-built kit than three half-finished designs of your own.
Can I design my own without a measurement mic? You can, from spec sheets, and some people get lucky. You'll be guessing at what the drivers do in your box. A calibrated USB mic isn't expensive and takes most of the guessing out.
What's the easiest first build? A two-way bookshelf or a sealed subwoofer. A sub has no crossover to build (the amp's low-pass filter does it), which makes it a very gentle start.
Can I use a different driver in a published design? Not without reworking the crossover. See Why you can't just swap out drivers.
