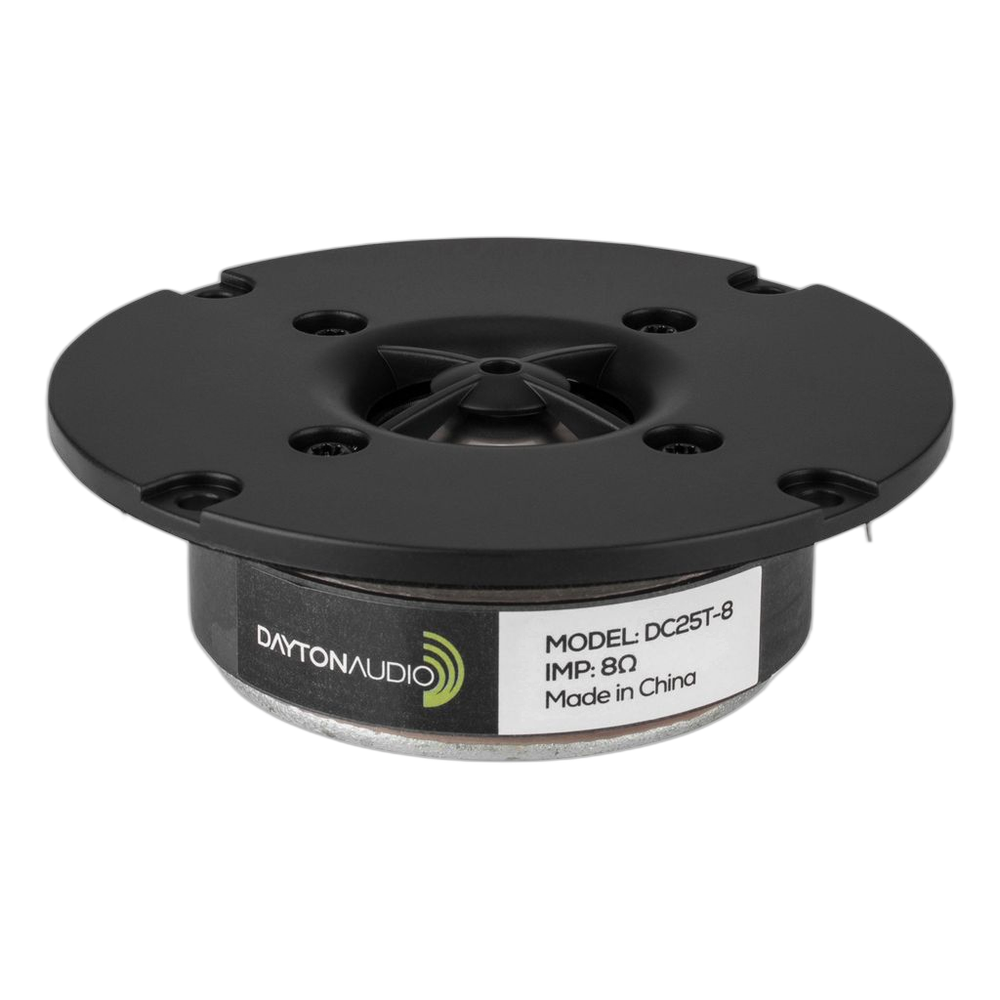

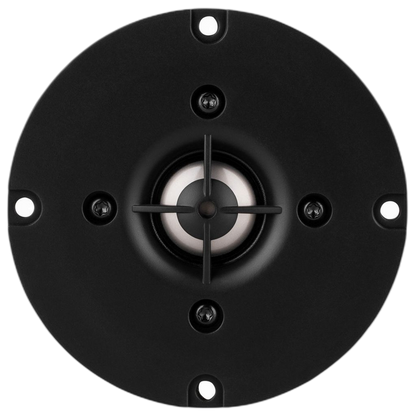

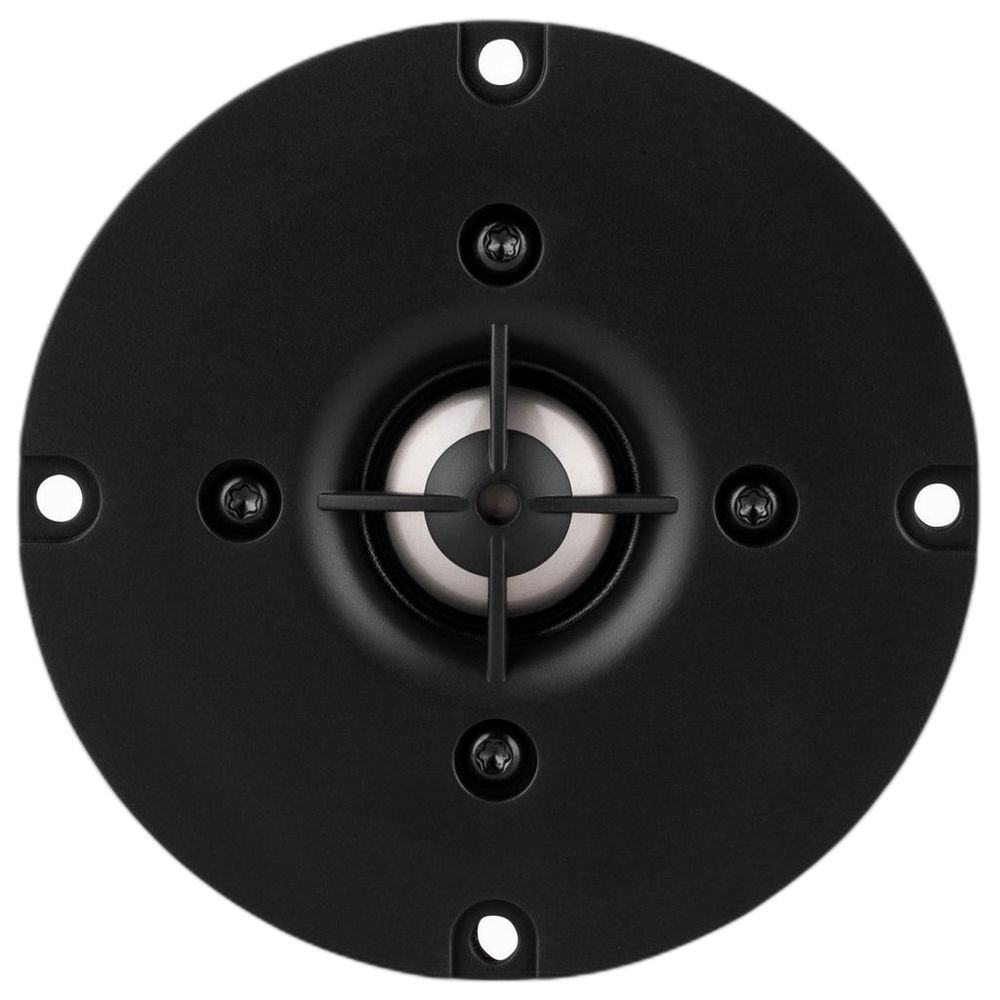

Dayton Audio - 1" Dome Tweeter Titanium - DC25T-8
Dayton Audio - 1" Dome Tweeter Titanium - DC25T-8
Regular price
$41.95
Regular price
Sale price
$41.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Features a ferro fluid cooled aluminium voice coil and a rubber surround. The 1" Titanium dome and precision phase lens, provides very natural sounding high frequency reproduction.
Features
- Great replacement for the Dayton DC25TS-8 1" Titanium Dome Shielded Tweeter
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 8Ω |
| Series | Classic |
| Power handling (RMS) | 50 W |
| Power handling (program) | 100 W |
| Sensitivity | 93 dB |

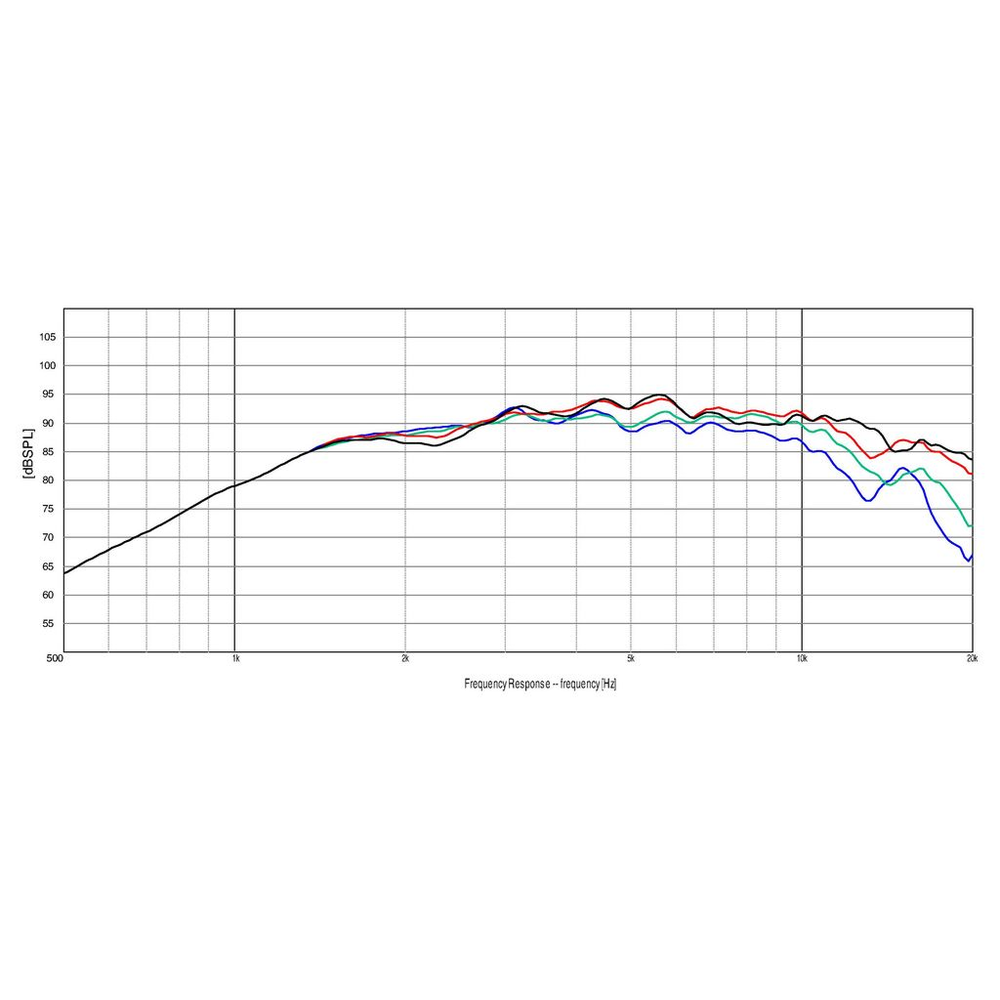

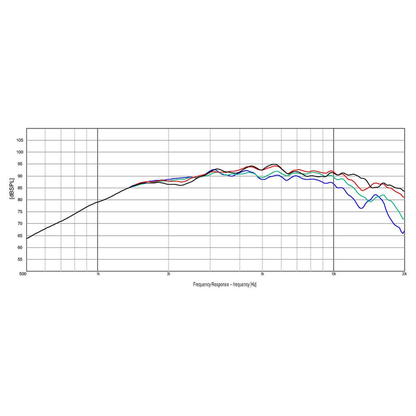

| Frequency range | 3,000 – 20,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 1,468 Hz |
|---|---|
| DC resistance (Re) | 7.7 Ω |
| Voice coil inductance (Le) | 0.59 mH |
| Mechanical Q (Qms) | 0.58 |
| Electrical Q (Qes) | 2.55 |
| Total Q (Qts) | 0.47 |
| Effective piston area (Sd) | 4.9 cm² |
| Efficiency bandwidth product (EBP) | 575.7 |

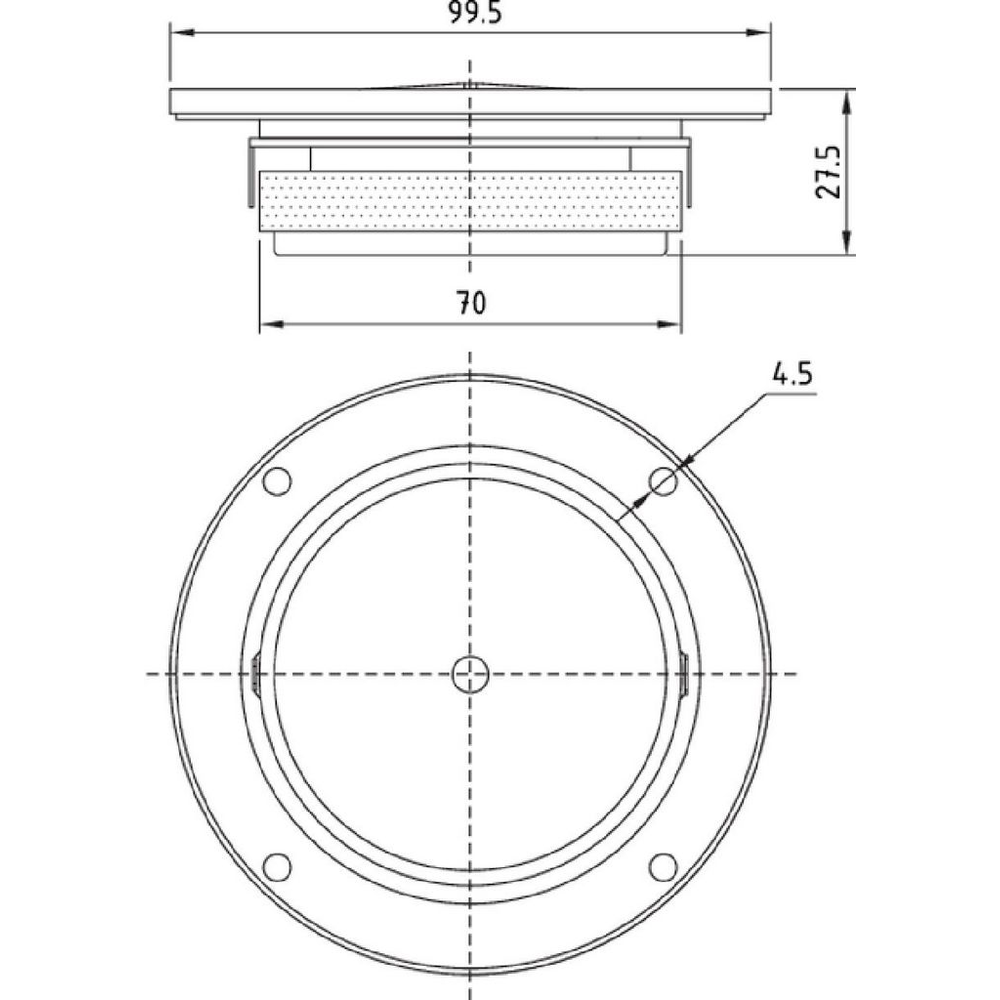

Mounting
| Overall diameter | 99.5 mm |
|---|---|
| Cutout diameter | 70 mm |
| Mounting depth | 27.5 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4.5 mm |
| Voice coil diameter | 25 mm |
| Weight | 0.4536 kg |
Materials
| Cone | Titanium Dome |
|---|---|
| Surround | Rubber |
- Sensitivity measured at 1W/1m.
Downloads
- DC25T-8 Specification Sheet
- DC25T-8 3D File
- DC25T-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
