Dayton Audio - 1¼" Mini Speaker - CE30P-4
Dayton Audio - 1¼" Mini Speaker - CE30P-4
Regular price
$11.95
Regular price
Sale price
$11.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Description

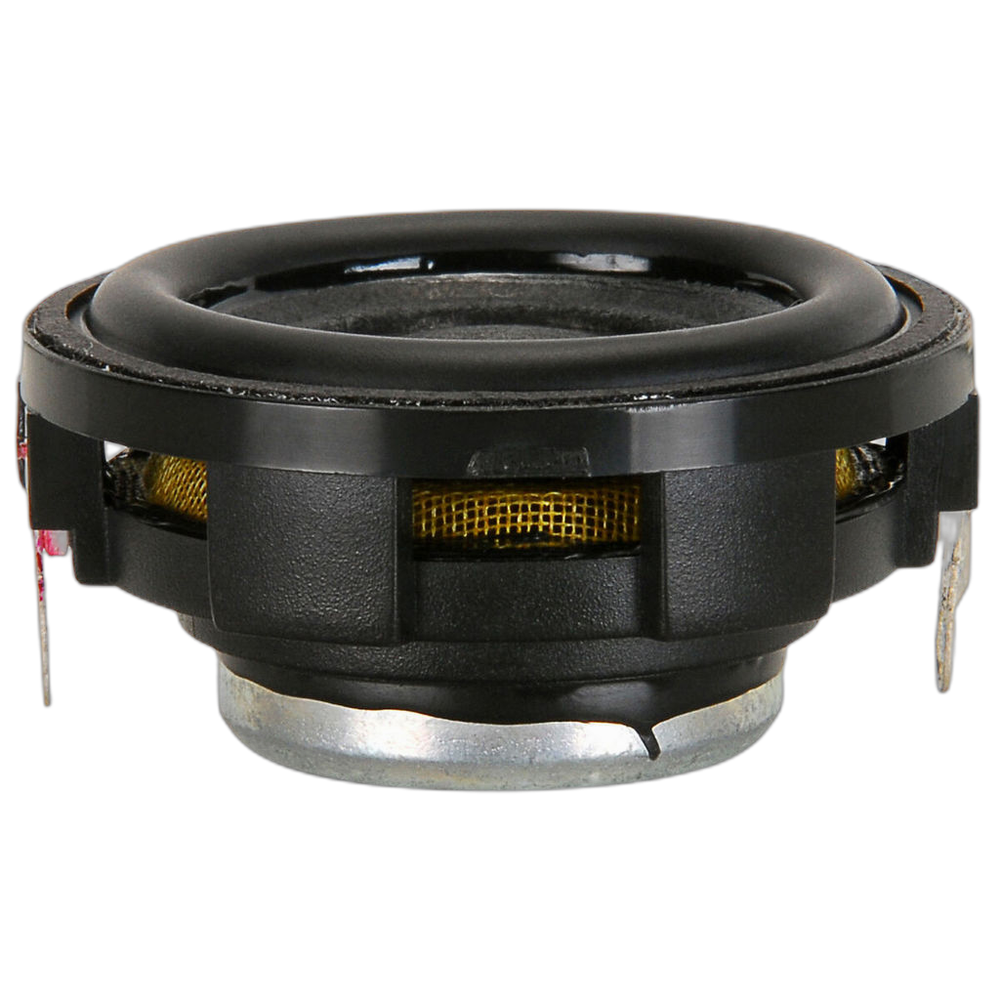

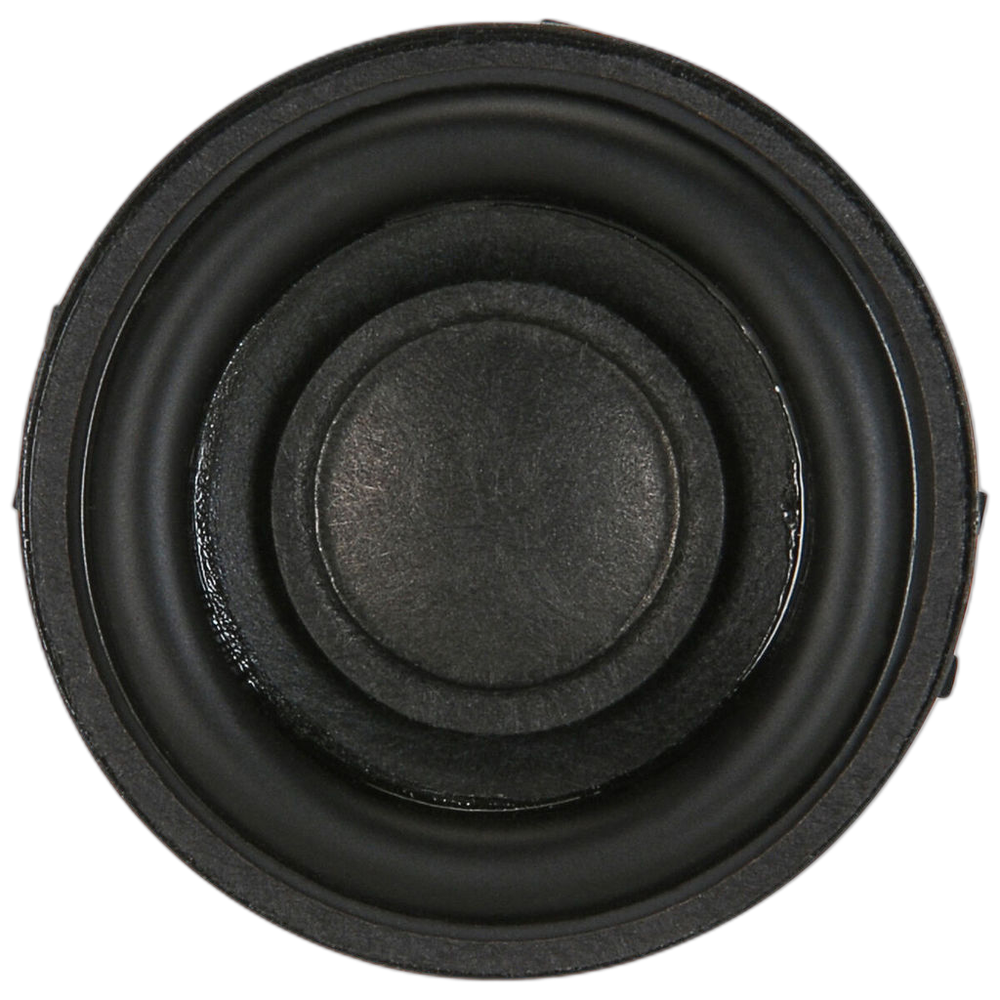

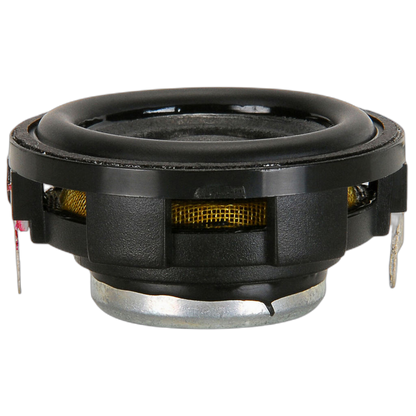

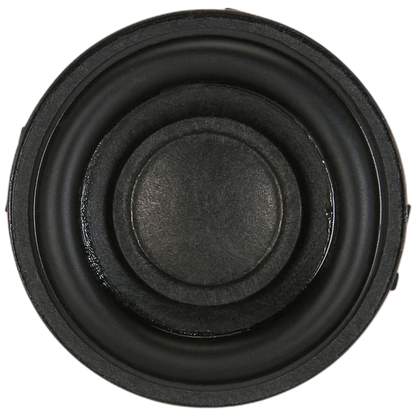

The Dayton Audio CE30P-4 provides big-speaker features in an extremely compact unit. It features a paper cone, rubber roll surround, and high-energy double neodymium motor structure, mounted to a robust injection-moulded plastic frame that’s perfect for press-fit or glued mounting. Its design makes it perfect for use in multimedia loudspeakers, small docking speakers for portable music players, or compact television frames and sound bars, plus a variety of other applications.
Features
- Extremely compact size in a press-fit frame
- Paper cone, rubber surround
- High-output double neodymium magnet motor
Specifications
Specifications
General
| Driver type | Mini Speaker |
|---|---|
| Nominal size | 1.25" |
| Nominal impedance | 4Ω |
| Series | CE |
| Power handling (RMS) | 2 W |
| Sensitivity | 78 dB |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 335.8 Hz |
|---|---|
| DC resistance (Re) | 3.4 Ω |
| Voice coil inductance (Le) | 0.18 mH |
| Mechanical Q (Qms) | 8.62 |
| Electrical Q (Qes) | 1.03 |
| Total Q (Qts) | 0.8 |
| Equivalent volume (Vas) | 0.008 L |
| Compliance (Cms) | 0.336 mm/N |
| Moving mass (Mms) | 0.65 g |
| Effective piston area (Sd) | 4.095 cm² |
| Linear excursion (Xmax, one-way) | 1.1 mm |
| Displacement volume (Vd) | 0.4505 cm³ |
| Efficiency bandwidth product (EBP) | 326 |
Mounting
| Overall diameter | 31.9 mm |
|---|---|
| Mounting depth (estimate) | ≈ 15.7 mm |
| Voice coil diameter | 13 mm |
| Dimensions | 16 × 32 mm Ø |
- Xmax is quoted one-way (peak), not peak-to-peak.
Downloads
- CE30P-4 datasheet (2013; copy from Solen)
- CE30P-4 Cutout & Recess Template (NB Audio) Straight off Dayton Audio's spec sheet: flange outline. Scaled from Dayton Audio's drawing, so close but not guaranteed exact: cutout. Left out: no recess (it mounts from behind); no bolt holes (positions not on file). Check it against your driver before you cut.
Some figures here aren't checked against Dayton Audio's datasheet yet. See which
