Dayton Audio - 1¼" Mini Speaker - CE32A-4
Dayton Audio - 1¼" Mini Speaker - CE32A-4
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Great-looking and great-sounding, the CE32A-4 miniature speaker driver from Dayton Audio has the goods in a surprisingly small package. Its high-quality design has big-speaker features like an elegant black-anodised aluminium cone, rubber surround, and a neodymium motor. 4 ohm impedance.
Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.
Multiple types and styles are available within the CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8") to 90 mm (3-1/2") in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.

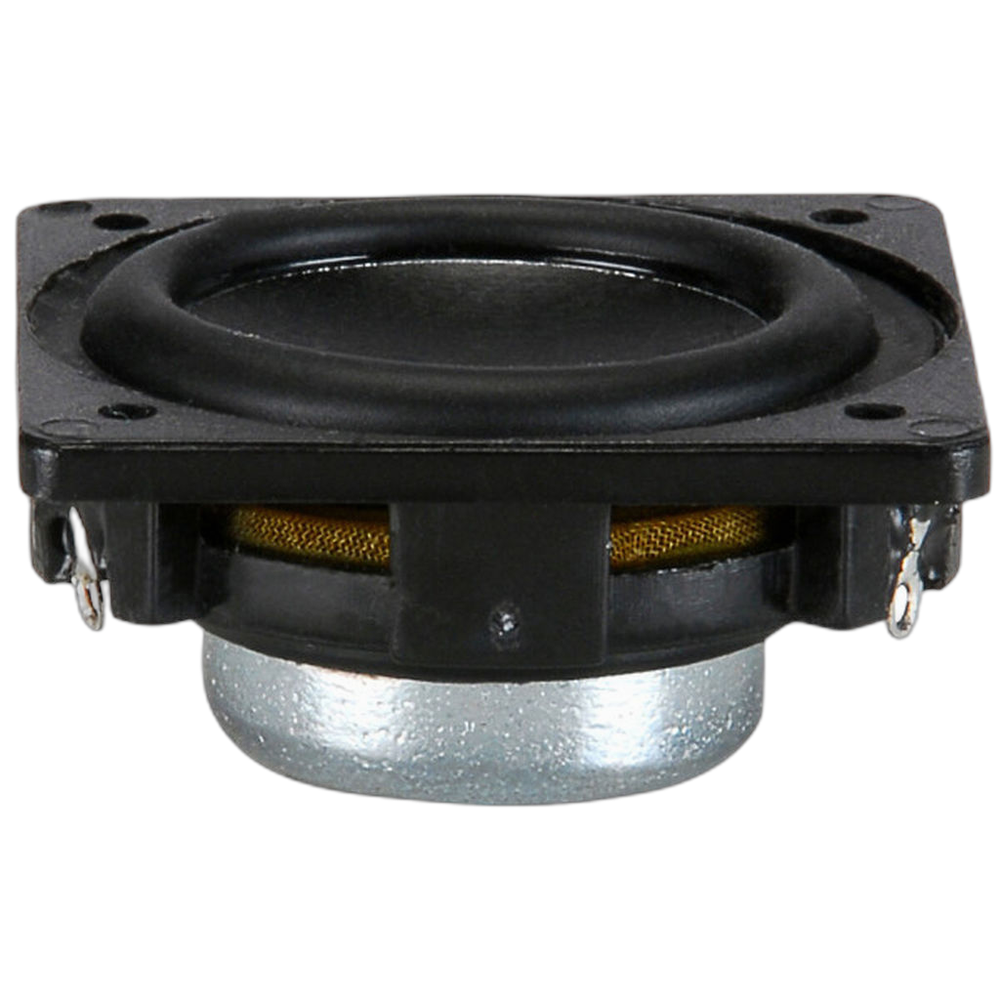

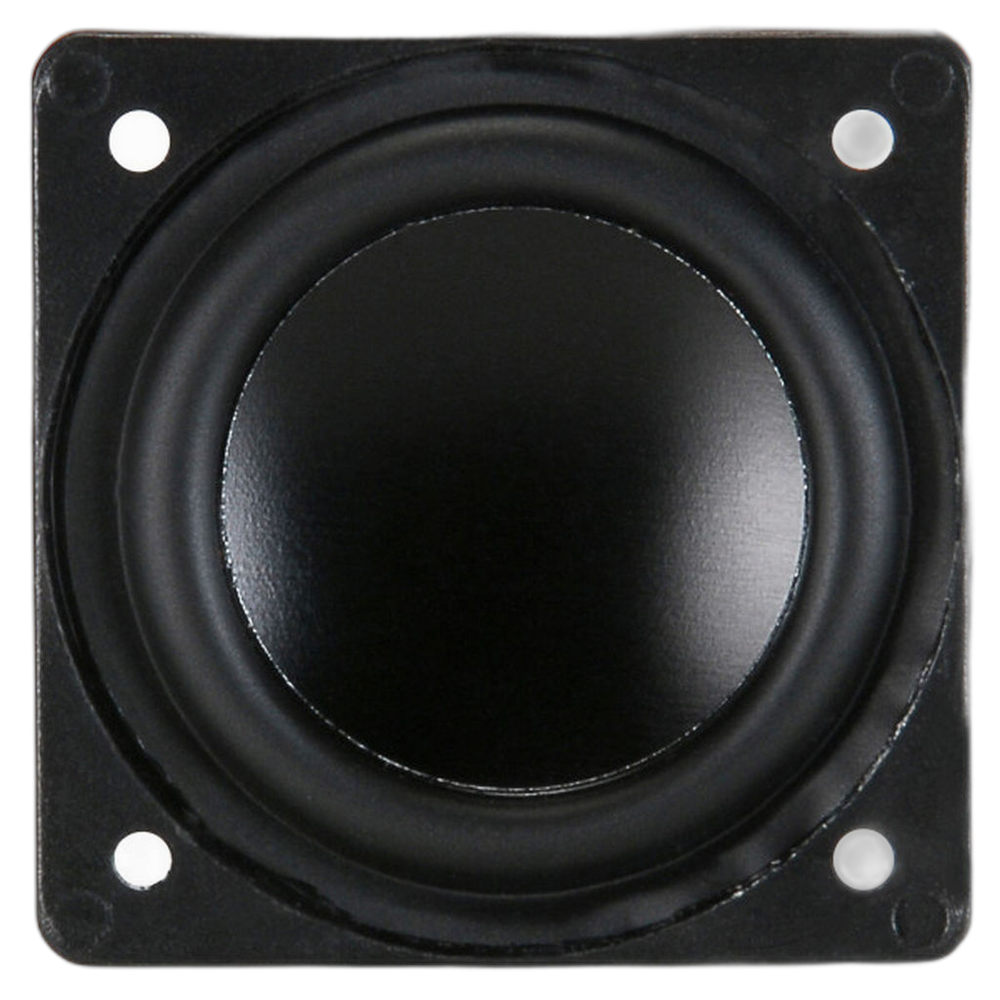

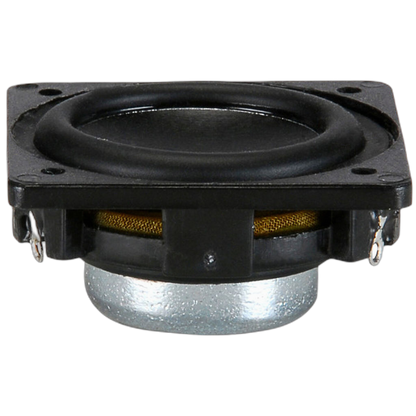

The CE32A-4 provides features you’d expect from a much larger driver, in a size that’s perfect for miniature applications that require wide dispersion and rich, natural sound. Its high-quality design features an elegant black-anodised concave aluminium diaphragm, rubber surround, textile spider, high-output neodymium motor, and a square injection-moulded frame drilled for conventional mounting.
Features
- Elegant black-anodised aluminium diaphragm
- Rubber surround and textile spider for low distortion
- High-energy double neodymium magnet motor
Specifications
Specifications
General
| Driver type | Mini Speaker |
|---|---|
| Nominal size | 1.25" |
| Nominal impedance | 4Ω |
| Series | CE |
| Power handling (RMS) | 2 W |
| Power handling (program) | 4 W |
| Sensitivity | 78 dB |

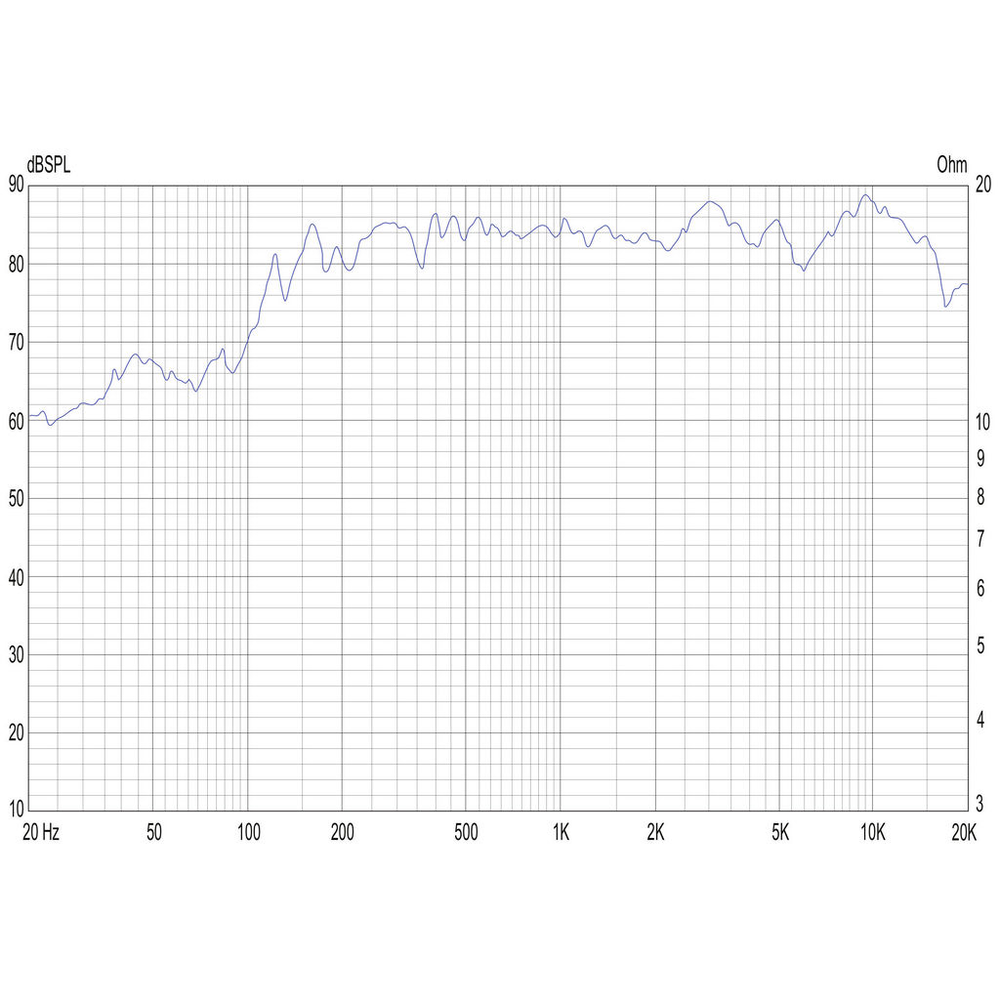

| Frequency range | 240 – 20,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 262.1 Hz |
|---|---|
| DC resistance (Re) | 3.57 Ω |
| Voice coil inductance (Le) | 0.15 mH |
| Mechanical Q (Qms) | 2.86 |
| Electrical Q (Qes) | 1.24 |
| Total Q (Qts) | 0.86 |
| Equivalent volume (Vas) | 0.015 L |
| Compliance (Cms) | 0.688 mm/N |
| Moving mass (Mms) | 0.52 g |
| Mechanical resistance (Rms) | 0.2994 kg/s |
| Force factor (Bl) | 1.59 T·m |
| Effective piston area (Sd) | 3.917 cm² |
| Linear excursion (Xmax, one-way) | 0.5 mm |
| Displacement volume (Vd) | 0.1958 cm³ |
| Efficiency bandwidth product (EBP) | 211.4 |

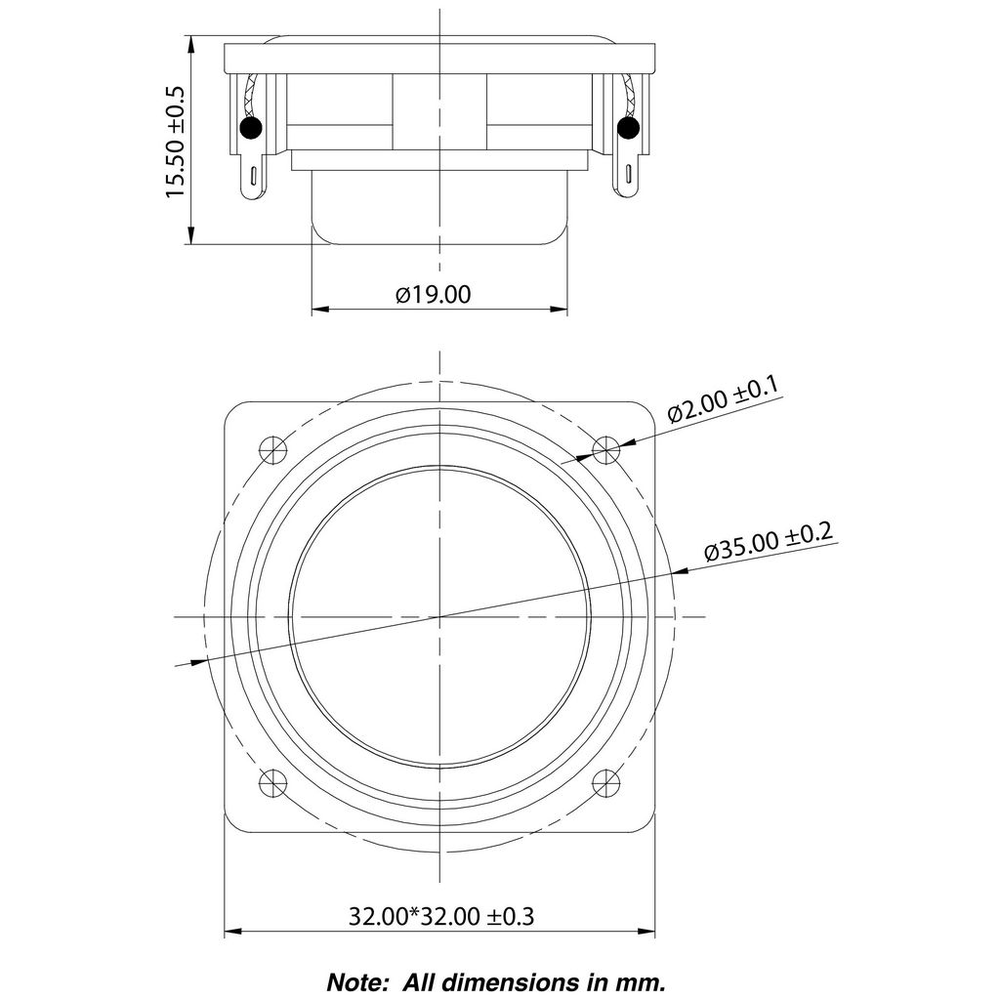

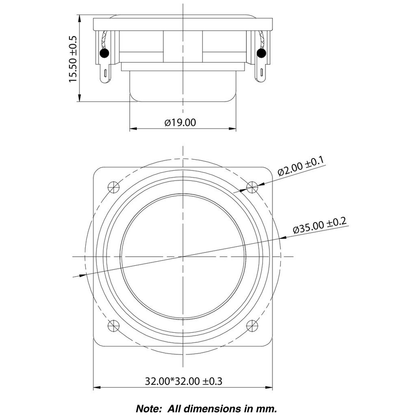

Mounting
| Faceplate | Square, 32 × 32 mm |
|---|---|
| Cutout diameter | 31.5 mm |
| Mounting depth | 15.5 mm |
| Voice coil diameter | 12.5 mm |
| Weight | 0.02948 kg |
| Mounting holes | 4 |
| Dimensions | 32 × 32 × 16 mm |
Materials
| Cone | Aluminium |
|---|---|
| Surround | Rubber |
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
Downloads
- CE32A-4 Specification Sheet
- CE32A-4 Cutout & Recess Template (NB Audio) Straight off Dayton Audio's spec sheet: flange outline. Not yet checked against Dayton Audio's drawing: cutout. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
Some figures here aren't checked against Dayton Audio's datasheet yet. See which
