Dayton Audio
Dayton Audio - 1½" Mini Speaker - CE38M-8
Dayton Audio - 1½" Mini Speaker - CE38M-8
Regular price
$7.50 AUD
Regular price
Sale price
$7.50 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description

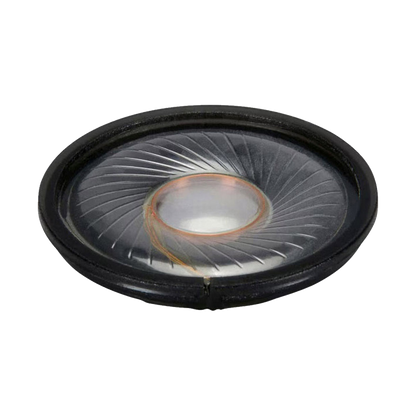

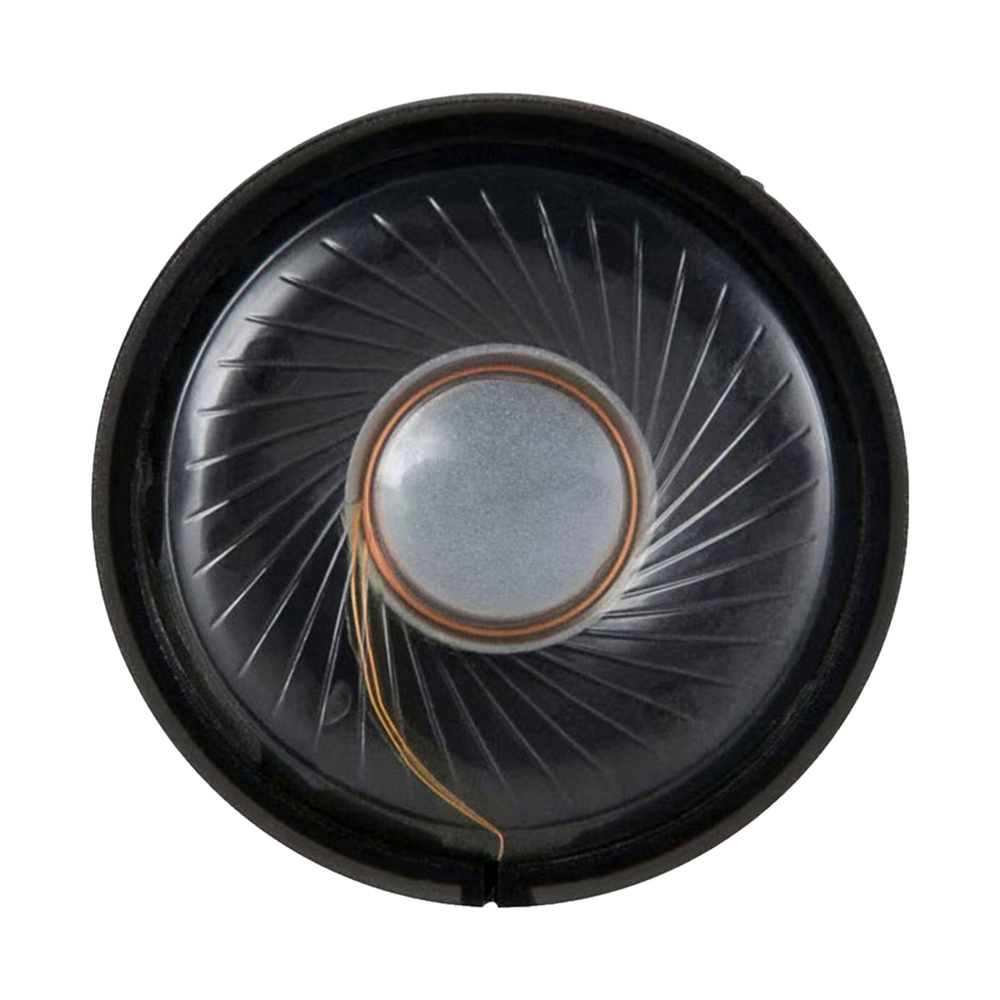

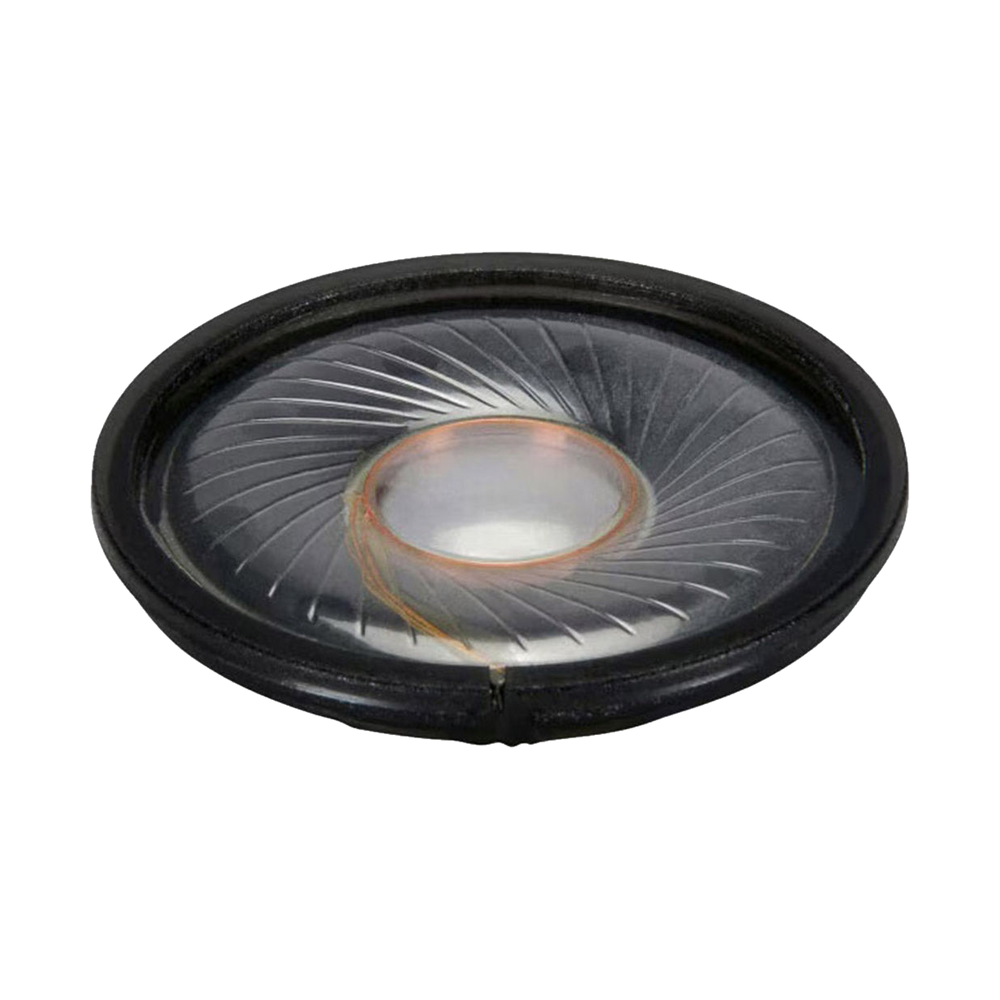

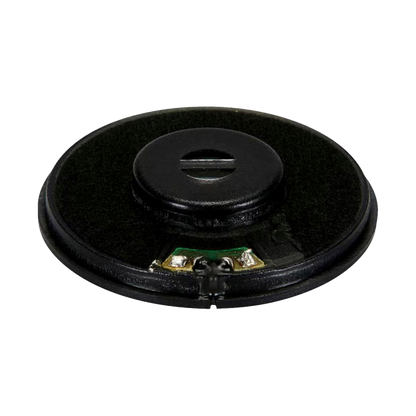

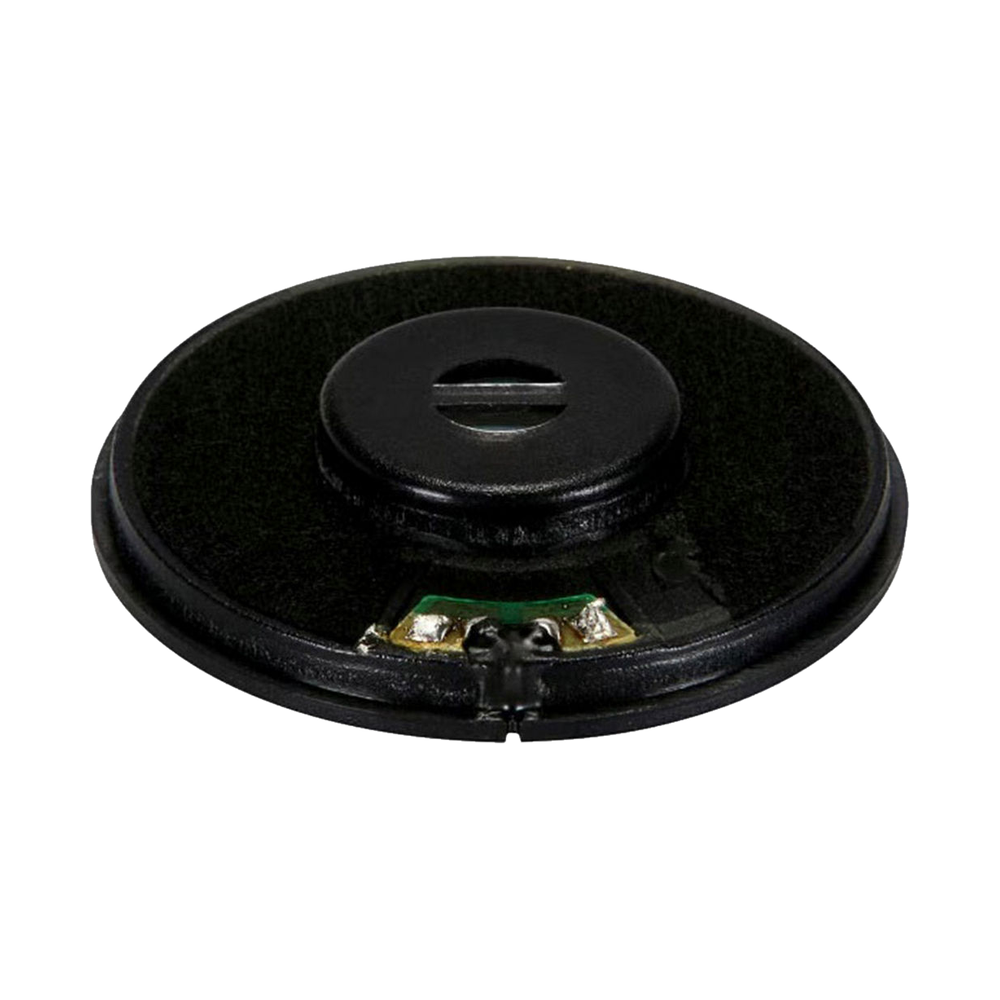

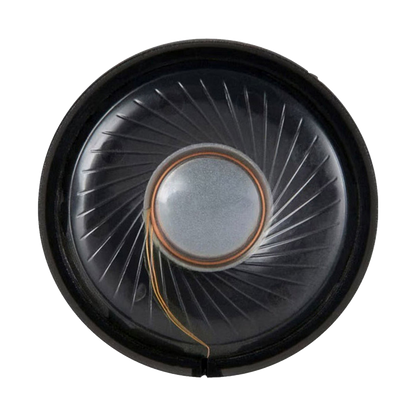

A 1½" mini speaker from Dayton Audio's Commercial Engineering (CE) Series, with a light Mylar diaphragm, a neodymium magnet and an injection-moulded plastic frame that can be press-fitted or glued in place. It suits headphones, portable electronics, kiosks, intercoms and electronic games, and the 8 Ω load works with most small amplifiers. Dayton notes the diaphragm is fragile, so mount it behind a grille.
Features
- Lightweight Mylar diaphragm
- Rugged moulded plastic frame
- Powerful neodymium magnet
- Light weight
Specifications
Specifications
General
| Driver type | Mini Speaker |
|---|---|
| Nominal size | 1.5" |
| Nominal impedance | 8Ω |
| Series | CE |
| Power handling (RMS) | 0.25 W |
| Power handling (program) | 0.5 W |
| Sensitivity | 75 dB |
| Frequency range | 190 – 20,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 191.8 Hz |
|---|---|
| DC resistance (Re) | 7.72 Ω |
| Voice coil inductance (Le) | 0.172 mH |
| Mechanical Q (Qms) | 1.59 |
| Electrical Q (Qes) | 4.45 |
| Total Q (Qts) | 1.17 |
| Equivalent volume (Vas) | 0.33 L |
| Compliance (Cms) | 9.68 mm/N |
| Moving mass (Mms) | 0.07 g |
| Force factor (Bl) | 0.39 T·m |
| Effective piston area (Sd) | 4.91 cm² |
| Linear excursion (Xmax, one-way) | 0.1 mm |
| Displacement volume (Vd) | 0.0491 cm³ |
| Efficiency bandwidth product (EBP) | 43.1 |

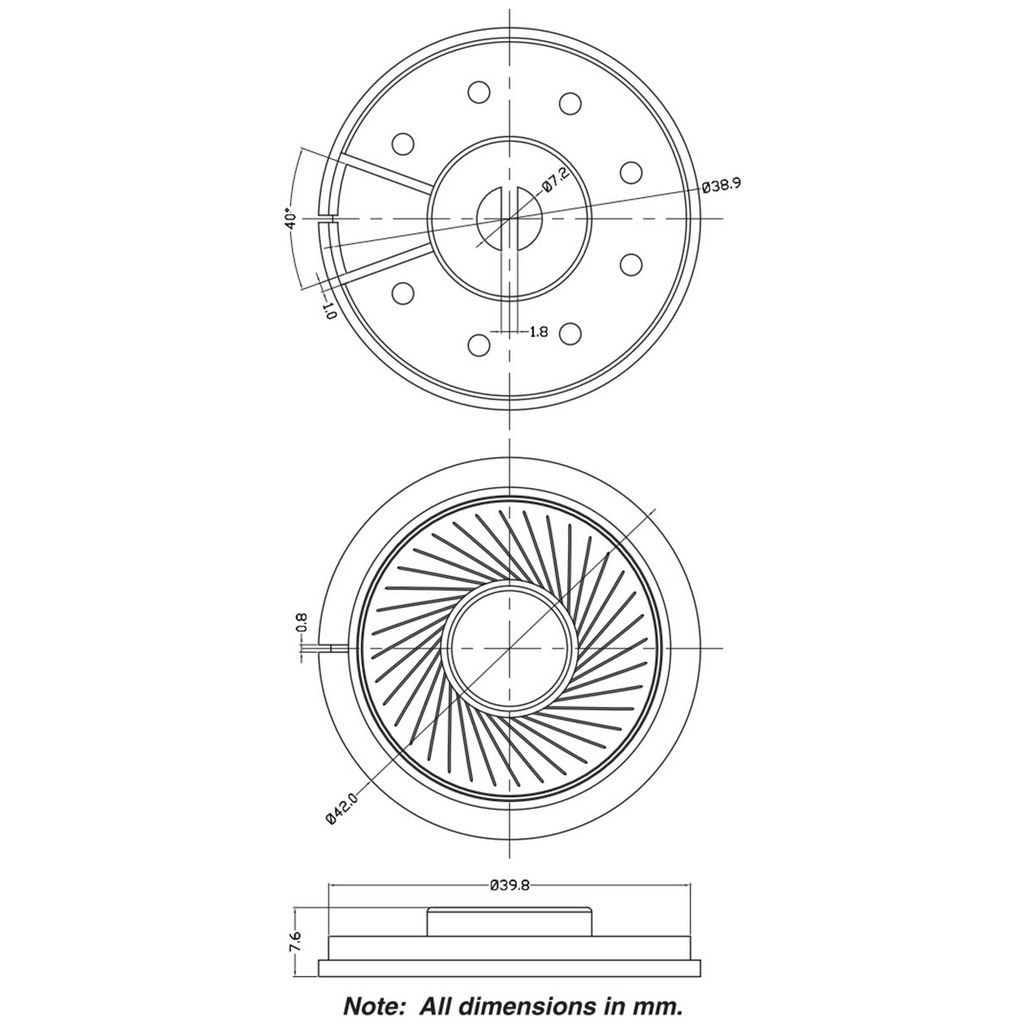

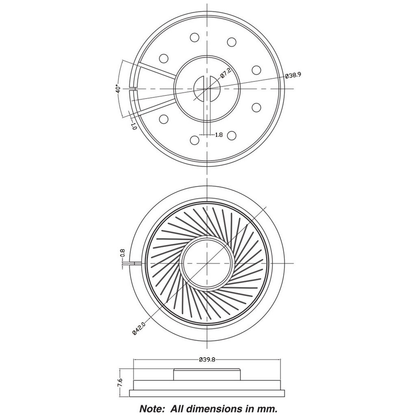

Mounting
| Overall diameter | 42 mm |
|---|---|
| Mounting depth | 7.6 mm |
| Voice coil diameter | 12.5 mm |
| Weight | 0.009072 kg |
Materials
| Voice coil former | Mylar |
|---|---|
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
