Dayton Audio - 1½" Mini Speaker - CE38MB-32
Dayton Audio - 1½" Mini Speaker - CE38MB-32
Regular price
$8.75 AUD
Regular price
Sale price
$8.75 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description

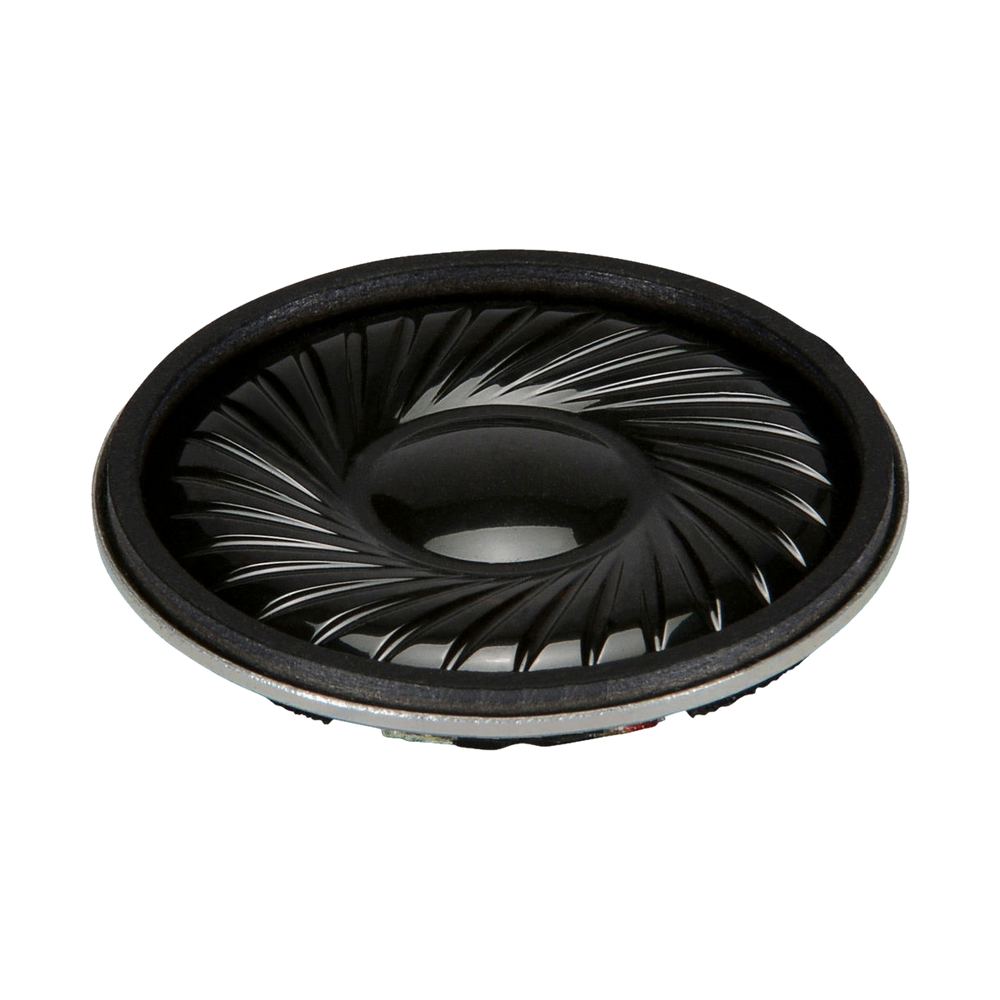

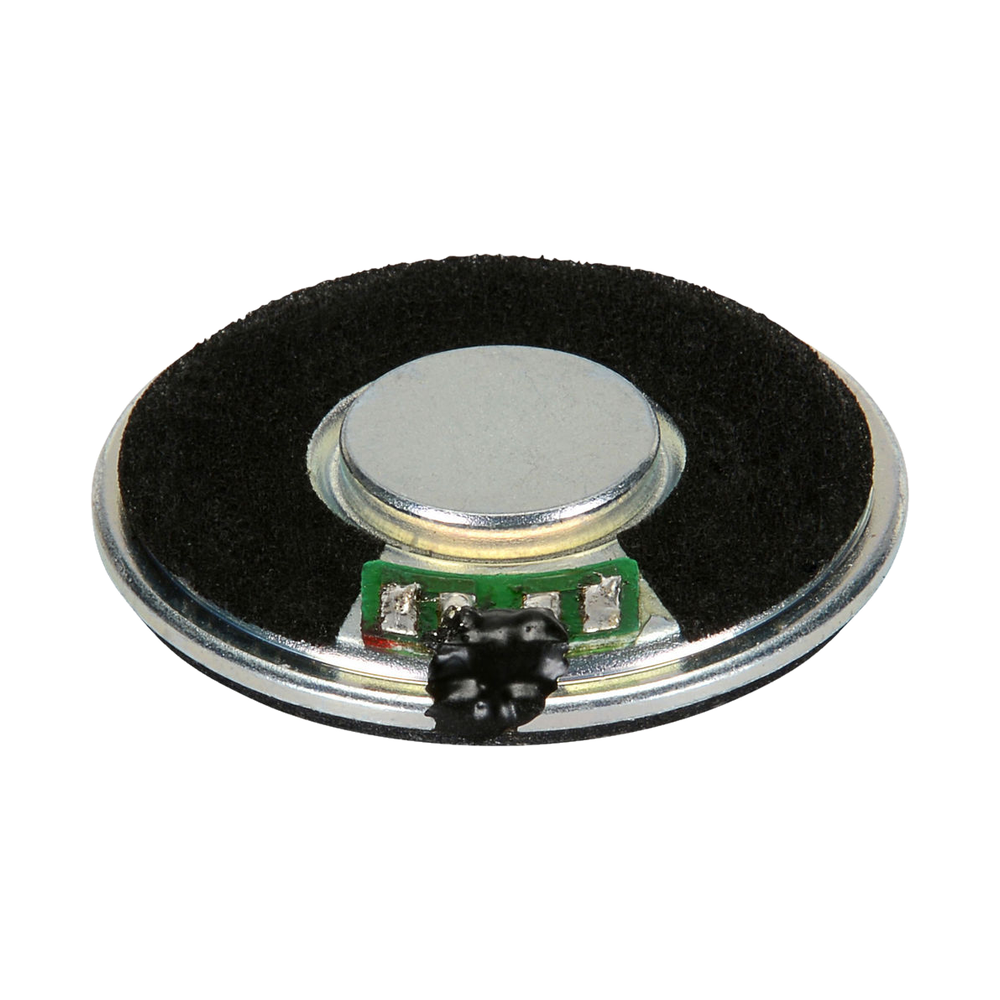

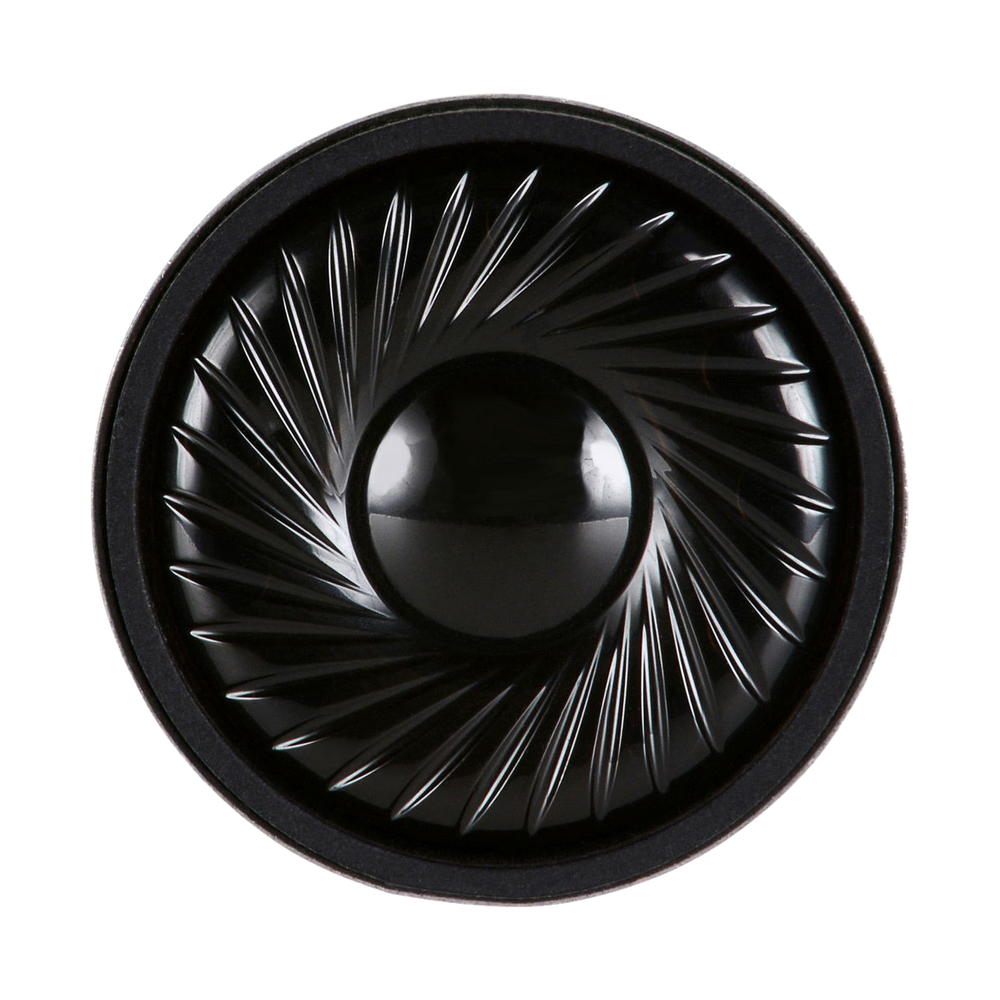

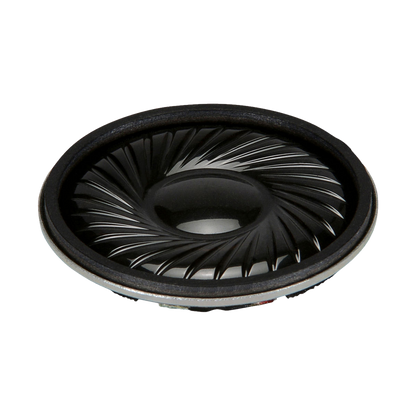

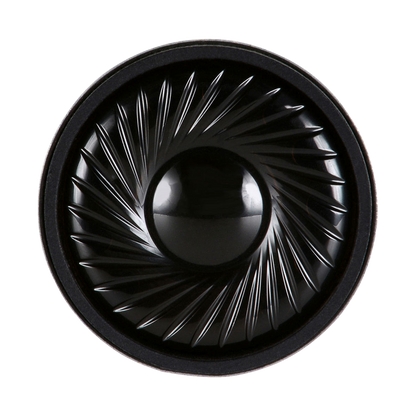

A 1½" mini speaker from Dayton Audio's Commercial Engineering (CE) Series, with a black Mylar diaphragm, a neodymium magnet and a steel frame with a front gasket. The 32 Ω impedance is an easy load for the headphone amplifier in most portable players and phones, and the 38 mm frame replaces most 40 mm headphone drivers. Dayton also suggests it for toys, speakerphones and intercoms; the diaphragm is fragile, so mount it behind a grille.
Features
- Lightweight Mylar diaphragm
- Rugged steel frame with front gasket
- Powerful neodymium magnet
- Suitable for headphone applications
Specifications
Specifications
General
| Driver type | Mini Speaker |
|---|---|
| Nominal size | 1.5" |
| Nominal impedance | 32Ω |
| Series | CE |
| Power handling (RMS) | 0.25 W |
| Power handling (program) | 0.5 W |
| Sensitivity | 78 dB |
| Frequency range | 137 – 20,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 137.9 Hz |
|---|---|
| DC resistance (Re) | 31.98 Ω |
| Voice coil inductance (Le) | 1.31 mH |
| Mechanical Q (Qms) | 0.66 |
| Electrical Q (Qes) | 1.15 |
| Total Q (Qts) | 0.42 |
| Equivalent volume (Vas) | 0.72 L |
| Moving mass (Mms) | 0.06 g |
| Force factor (Bl) | 1.23 T·m |
| Effective piston area (Sd) | 4.91 cm² |
| Linear excursion (Xmax, one-way) | 0.1 mm |
| Displacement volume (Vd) | 0.0491 cm³ |
| Efficiency bandwidth product (EBP) | 119.9 |

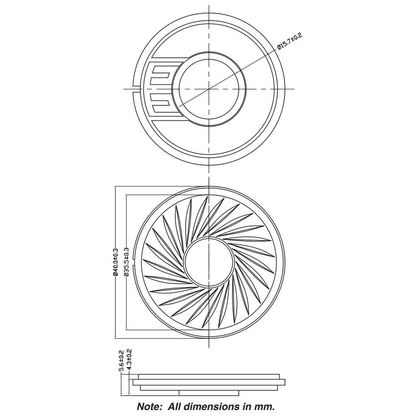

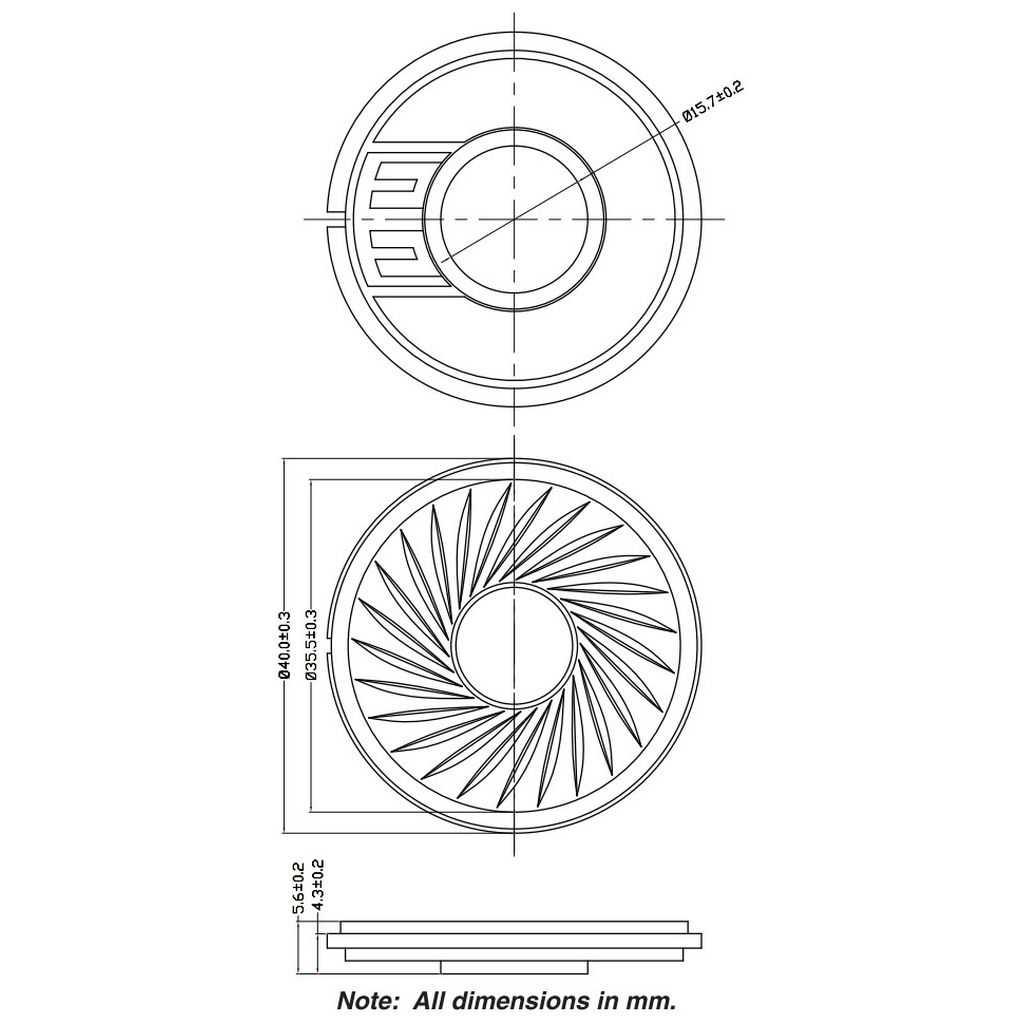

Mounting
| Overall diameter | 40 mm |
|---|---|
| Mounting depth | 5.6 mm |
| Voice coil diameter | 12.5 mm |
| Weight | 0.01361 kg |
Materials
| Cone | Poly / Mylar Diaphragm |
|---|---|
| Voice coil former | Mylar |
| Basket | Steel |
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
