Dayton Audio - 1½" Mini Speaker - CE40-28P-8
Dayton Audio - 1½" Mini Speaker - CE40-28P-8
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

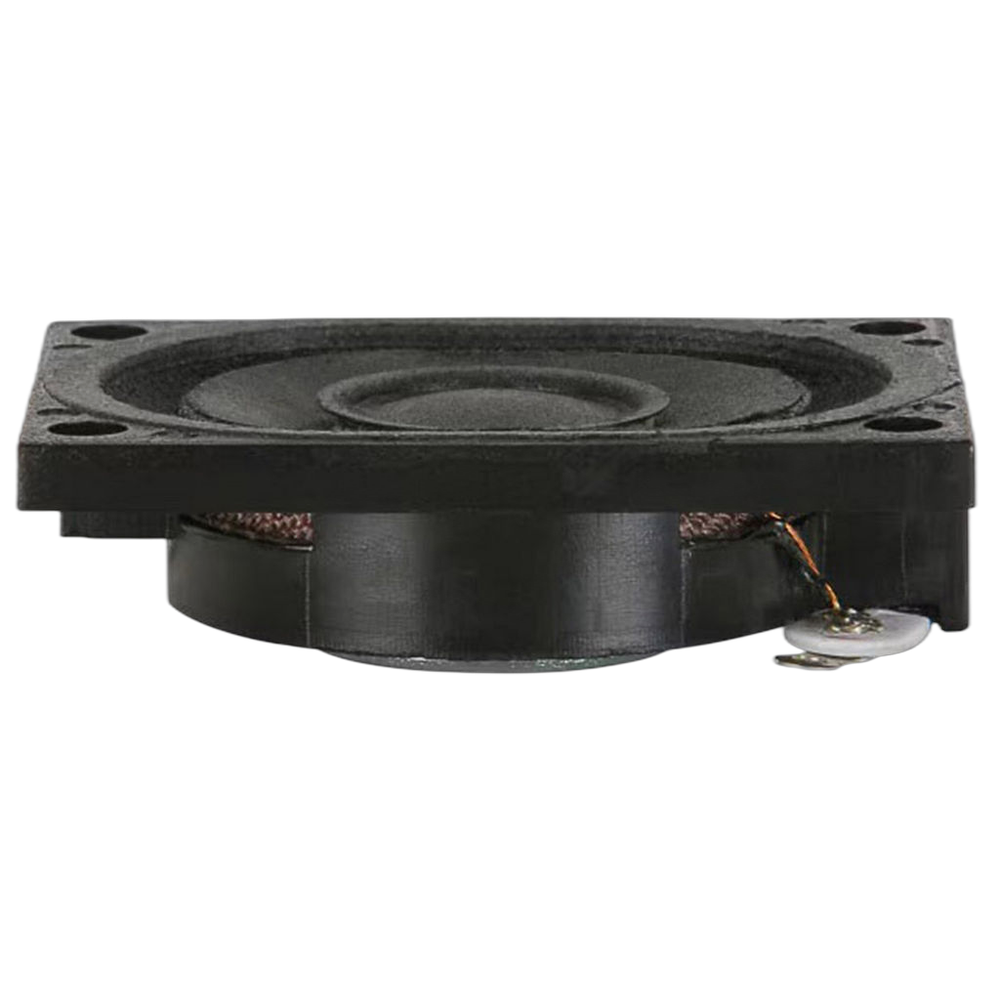

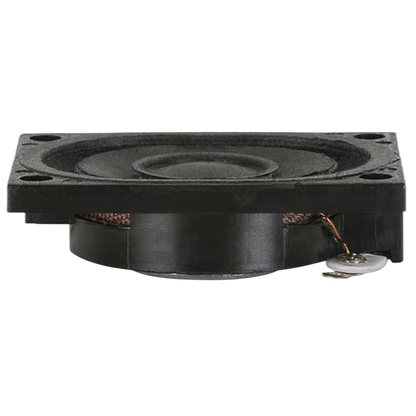

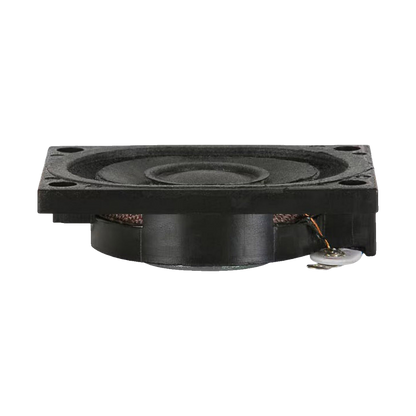

Dayton Audio’s CE40-28P-8 is an economical mini speaker that features a high-output neodymium motor, a lightweight paper cone, a front gasket, and a moulded plastic frame drilled for conventional mounting. 8 ohm impedance.
Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.
Multiple types and styles are available within the CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8") to 90 mm (3-1/2") in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.
The CE40-20P-8 is a slim driver that’s perfect for applications that require its shallow profile and rectangular shape. Its high-quality design features a paper cone, fabric surround, textile spider, high-performance neodymium motor, and an injection-moulded frame that’s drilled for conventional mounting.
Features

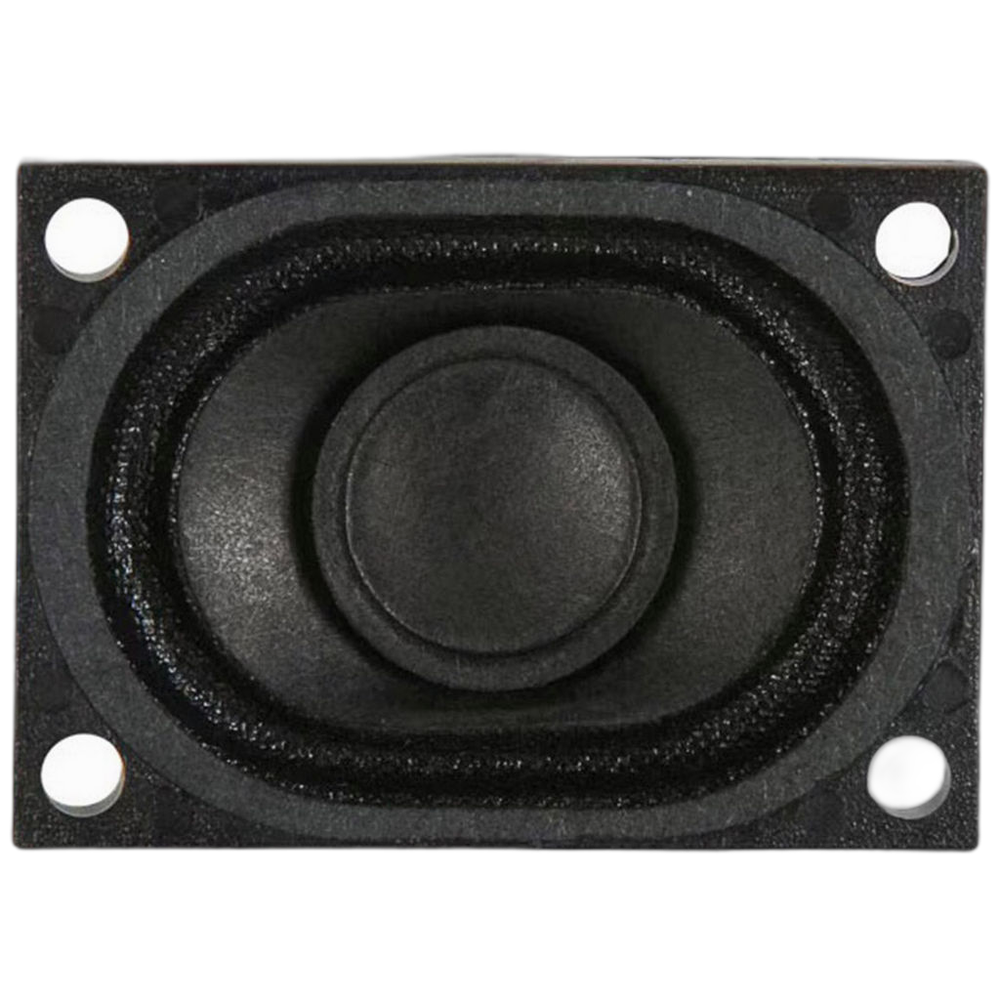

- Racetrack-shaped paper cone with fabric surround
- Slim design for narrow and shallow profile installation
- High-energy neodymium motor
Specifications
Specifications
General
| Driver type | Mini Speaker |
|---|---|
| Nominal size | 1.125x1.5" |
| Nominal impedance | 8Ω |
| Series | CE |
| Power handling (RMS) | 2 W |
| Power handling (program) | 4 W |
| Sensitivity | 72 dB |

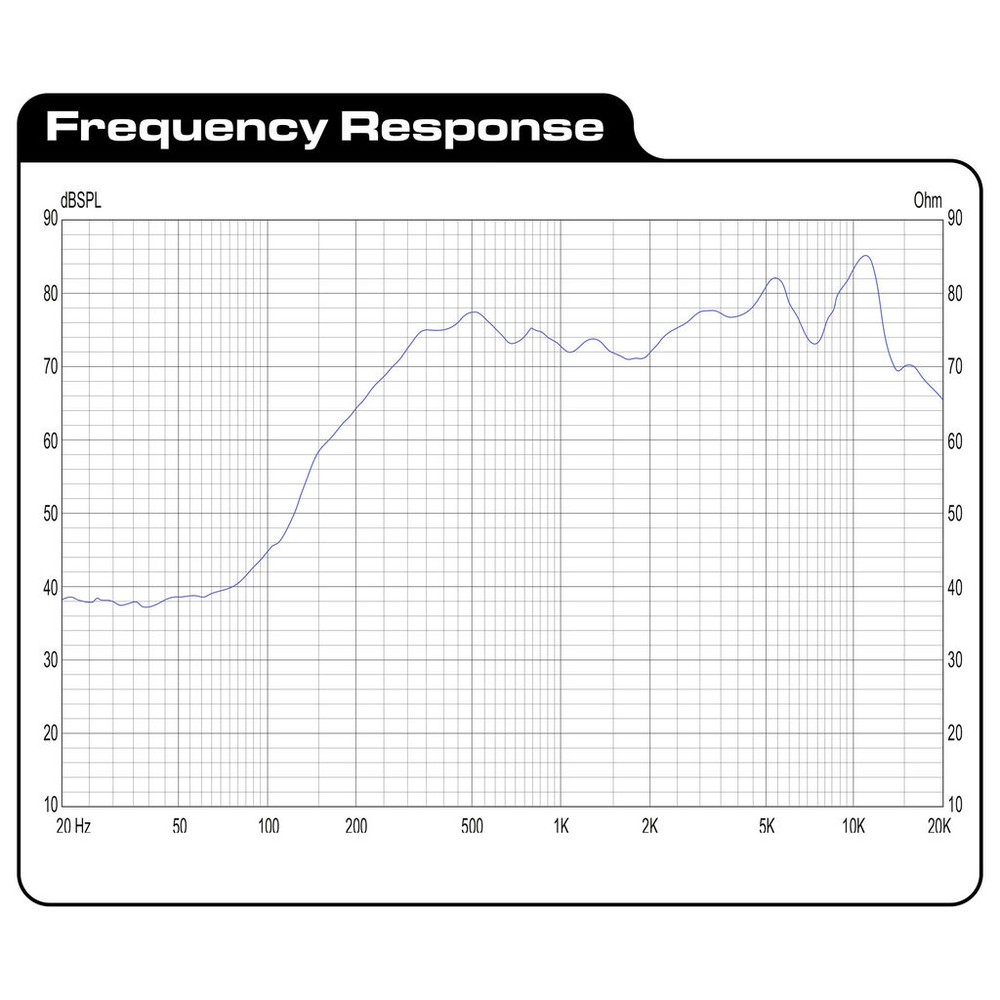

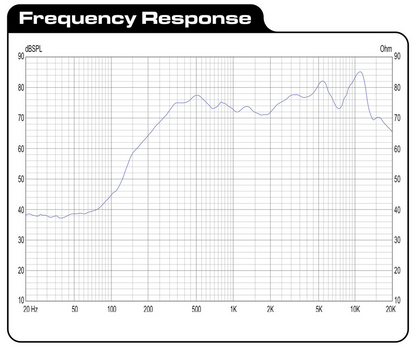

| Frequency range | 550 – 15,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 607.6 Hz |
|---|---|
| DC resistance (Re) | 7 Ω |
| Voice coil inductance (Le) | 0.26 mH |
| Mechanical Q (Qms) | 3.96 |
| Electrical Q (Qes) | 9.87 |
| Total Q (Qts) | 2.83 |
| Equivalent volume (Vas) | 0.007 L |
| Compliance (Cms) | 0.18 mm/N |
| Moving mass (Mms) | 0.37 g |
| Mechanical resistance (Rms) | 0.3567 kg/s |
| Force factor (Bl) | 1.03 T·m |
| Effective piston area (Sd) | 5.281 cm² |
| Linear excursion (Xmax, one-way) | 0.1 mm |
| Displacement volume (Vd) | 0.05281 cm³ |
| Efficiency bandwidth product (EBP) | 61.56 |
Mounting

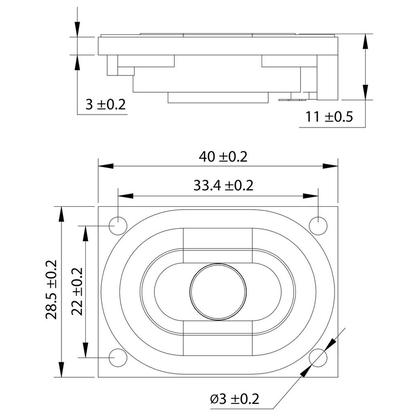

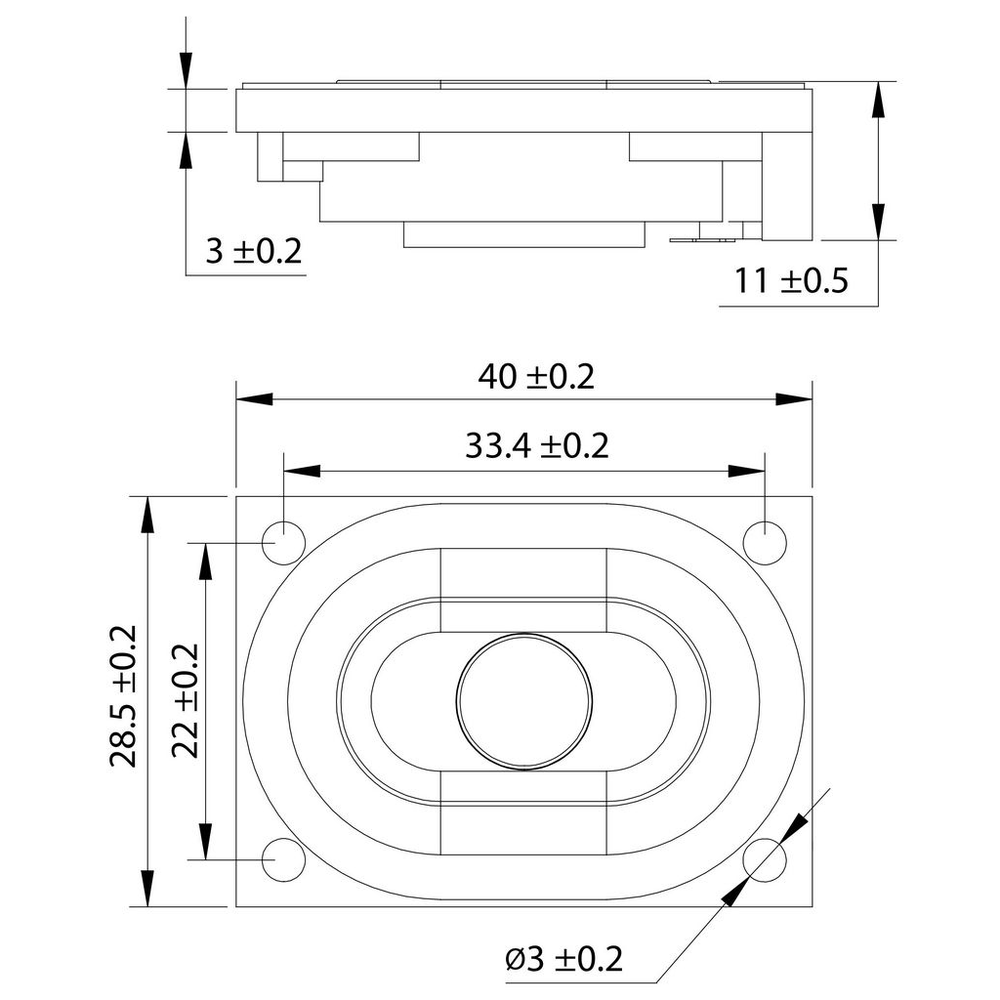

| Faceplate | Rectangle, 40 × 28.5 mm |
|---|---|
| Mounting depth | 11 mm |
| Voice coil diameter | 13 mm |
| Weight | 0.02268 kg |
| Mounting holes | 4 |
Materials
| Cone | Paper |
|---|---|
| Surround | Cloth |
| Basket | Plastic |
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
Downloads
- CE40-28P-8 Specification Sheet
- CE40-28P-8 Cutout & Recess Template (NB Audio) Straight off Dayton Audio's spec sheet: flange outline. Scaled from Dayton Audio's drawing, so close but not guaranteed exact: cutout. Left out: no recess (it mounts from behind); no bolt holes (positions not on file). Check it against your driver before you cut.
