Dayton Audio - 1½" Mini Speaker - CE40P-8
Dayton Audio - 1½" Mini Speaker - CE40P-8
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Dayton Audio’s CE40P-8 is an economical small full-range driver that features a high-output neodymium motor, a lightweight paper cone, a front gasket, and a steel frame with two mounting lobes. 8 ohm impedance.
Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.
Multiple types and styles are available within the CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8") to 90 mm (3-1/2") in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.

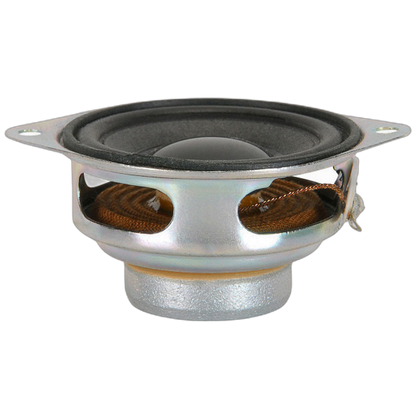

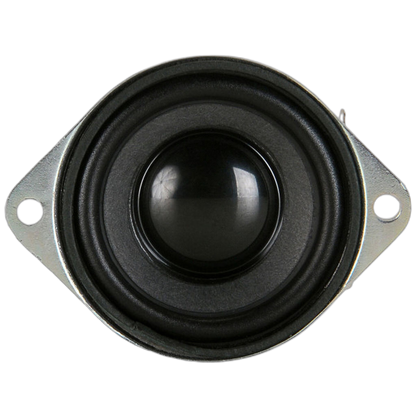

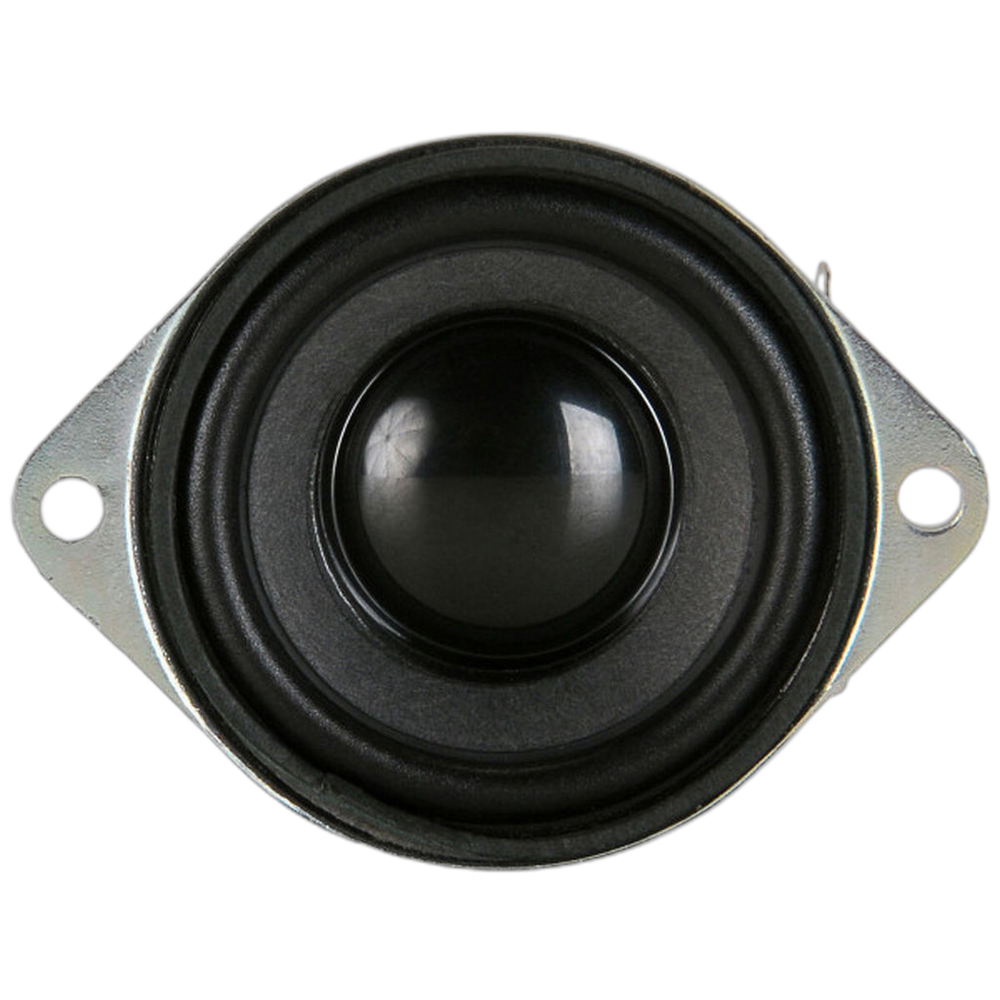

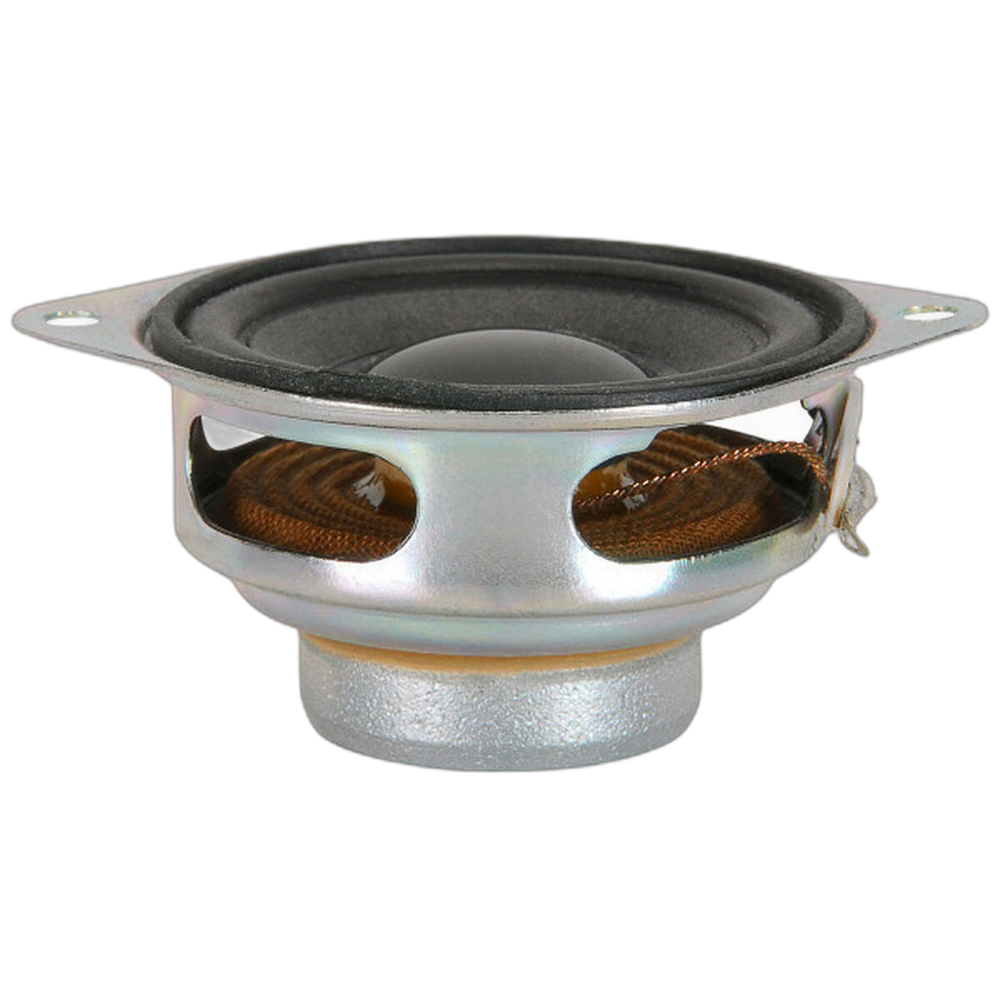

The CE40P-8 provides features you’d expect from a much larger driver, in a size that’s perfect for miniature applications that require wide dispersion and rich, natural sound. Its high-quality design features a paper cone with mylar dust cap, rubber surround, textile spider, high-performance neodymium motor, and a steel frame with dual mounting lobes for conventional mounting.
Features
- Paper cone with mylar dust cap for extended highs
- Rugged stamped steel frame
- High-energy double neodymium magnet motor
Specifications
Specifications
General
| Driver type | Mini Speaker |
|---|---|
| Nominal size | 1.5" |
| Nominal impedance | 8Ω |
| Series | CE |
| Power handling (RMS) | 2 W |
| Power handling (program) | 4 W |
| Sensitivity | 80 dB |

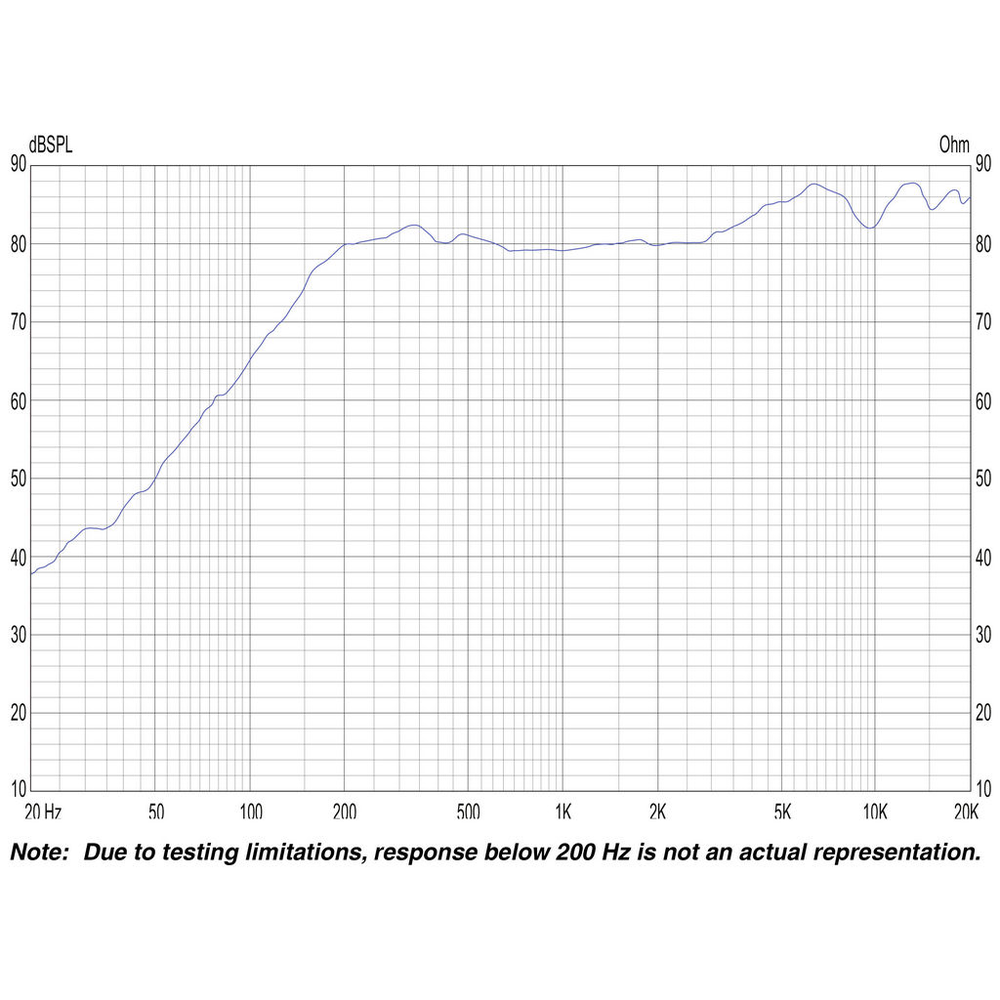

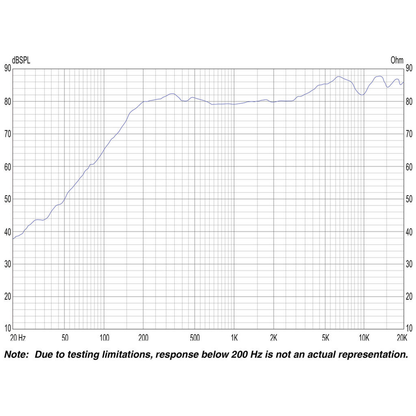

| Frequency range | 200 – 20,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 227.5 Hz |
|---|---|
| DC resistance (Re) | 7.3 Ω |
| Voice coil inductance (Le) | 0.25 mH |
| Mechanical Q (Qms) | 4.19 |
| Electrical Q (Qes) | 1.63 |
| Total Q (Qts) | 1.17 |
| Equivalent volume (Vas) | 0.052 L |
| Compliance (Cms) | 0.802 mm/N |
| Moving mass (Mms) | 0.6 g |
| Mechanical resistance (Rms) | 0.2047 kg/s |
| Force factor (Bl) | 1.98 T·m |
| Effective piston area (Sd) | 6.758 cm² |
| Linear excursion (Xmax, one-way) | 1.2 mm |
| Displacement volume (Vd) | 0.811 cm³ |
| Efficiency bandwidth product (EBP) | 139.6 |

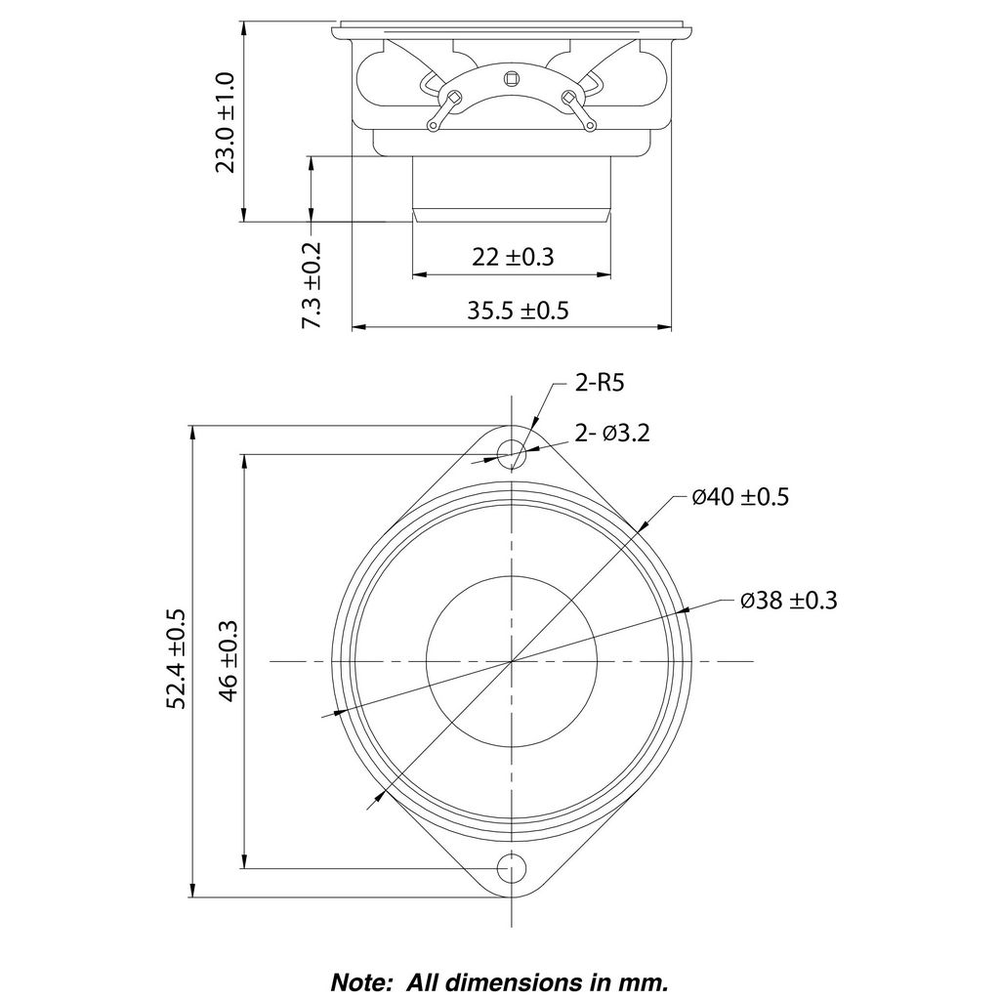

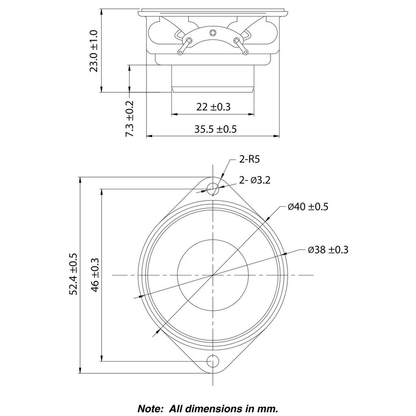

Mounting
| Overall diameter | 52.4 mm |
|---|---|
| Faceplate | Not round (see the maker's drawing) |
| Cutout diameter | 35.5 mm |
| Mounting depth | 23 mm |
| Voice coil diameter | 13 mm |
| Weight | 0.03221 kg |
| Mounting holes | 2 |
| Dimensions | 52 × 38 × 23 mm |
Materials
| Cone | Paper |
|---|---|
| Surround | Rubber |
| Basket | Stamped Steel |
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
Downloads
- CE40P-8 Specification Sheet
- CE40P-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
