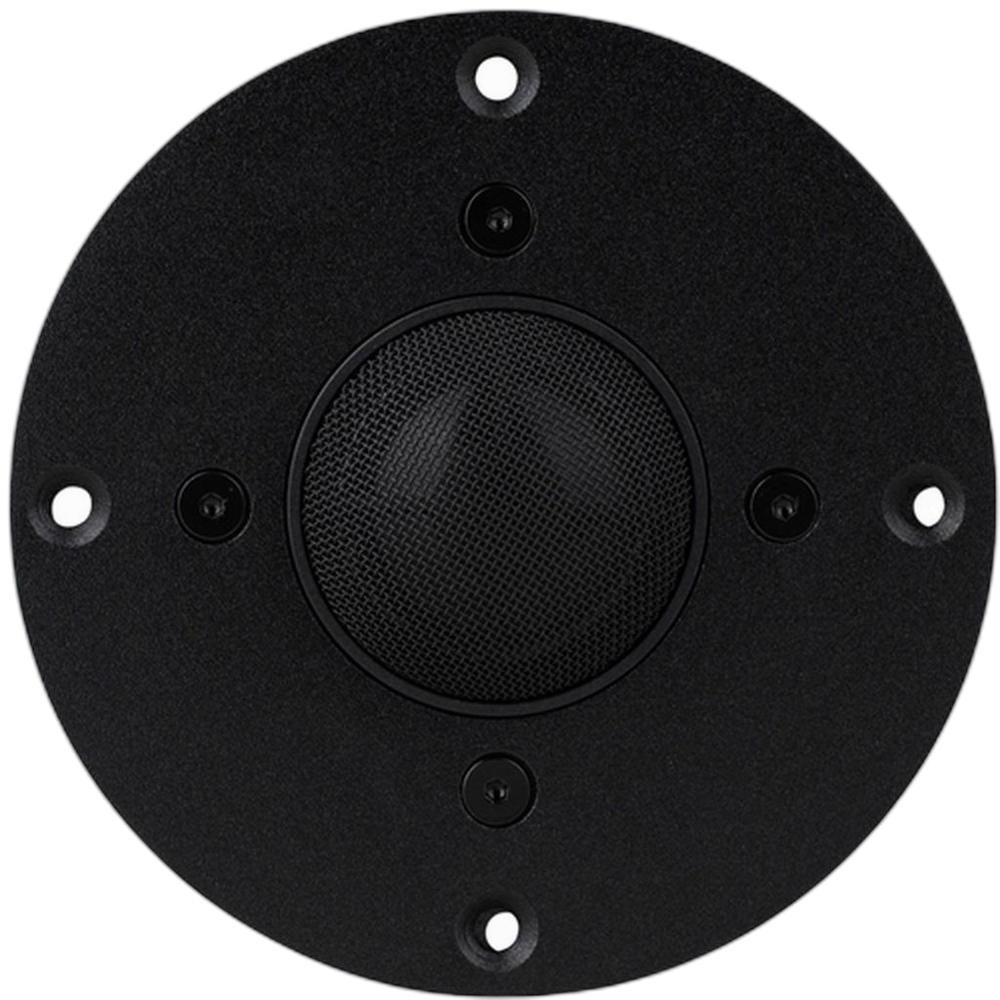

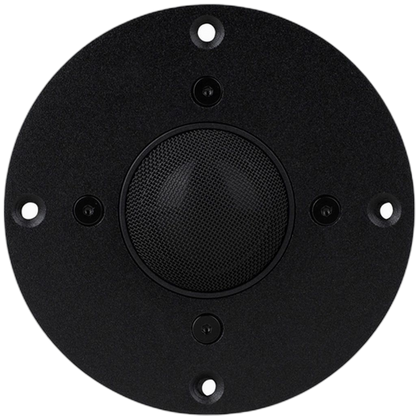

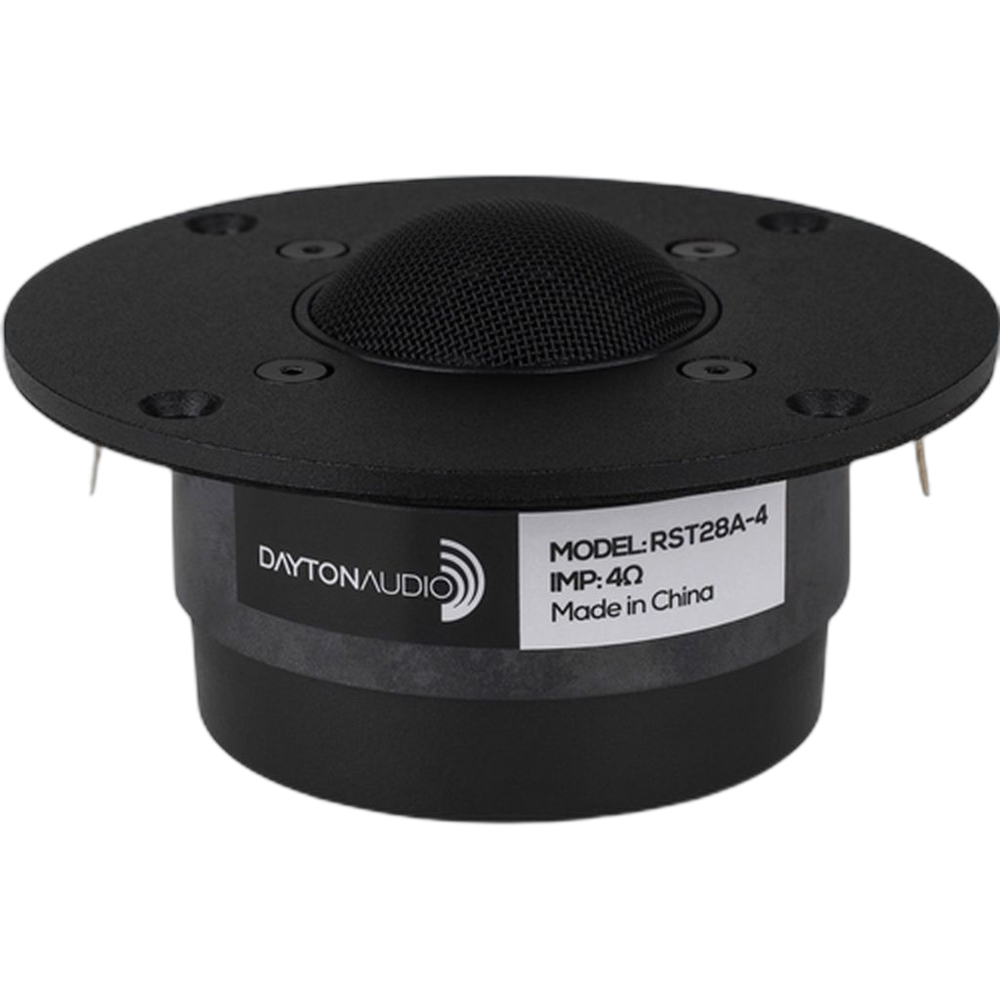

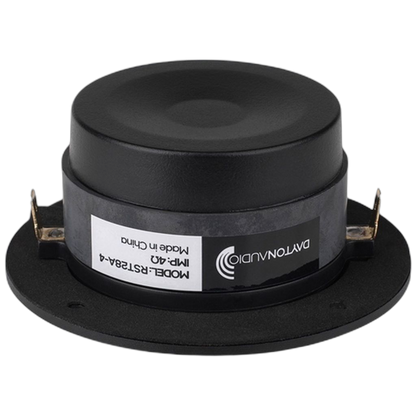

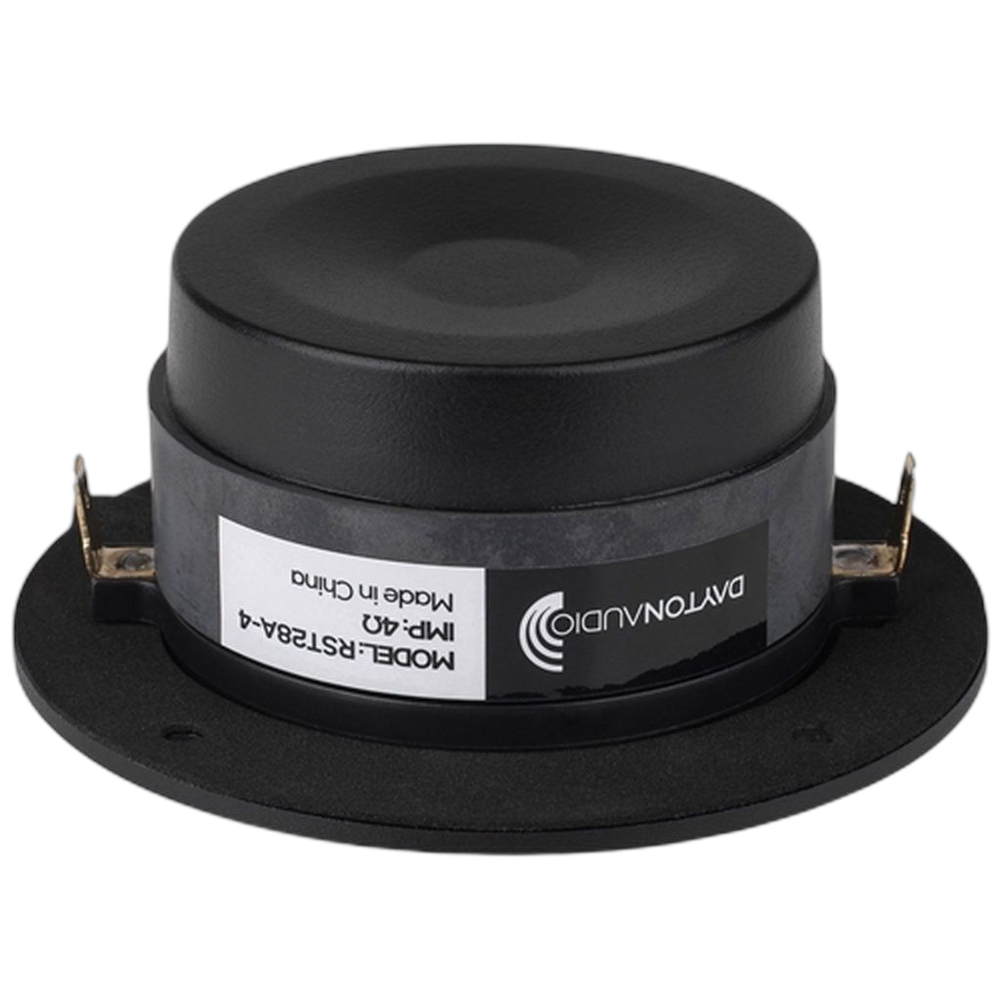

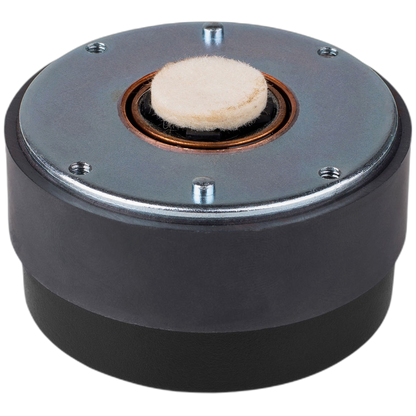

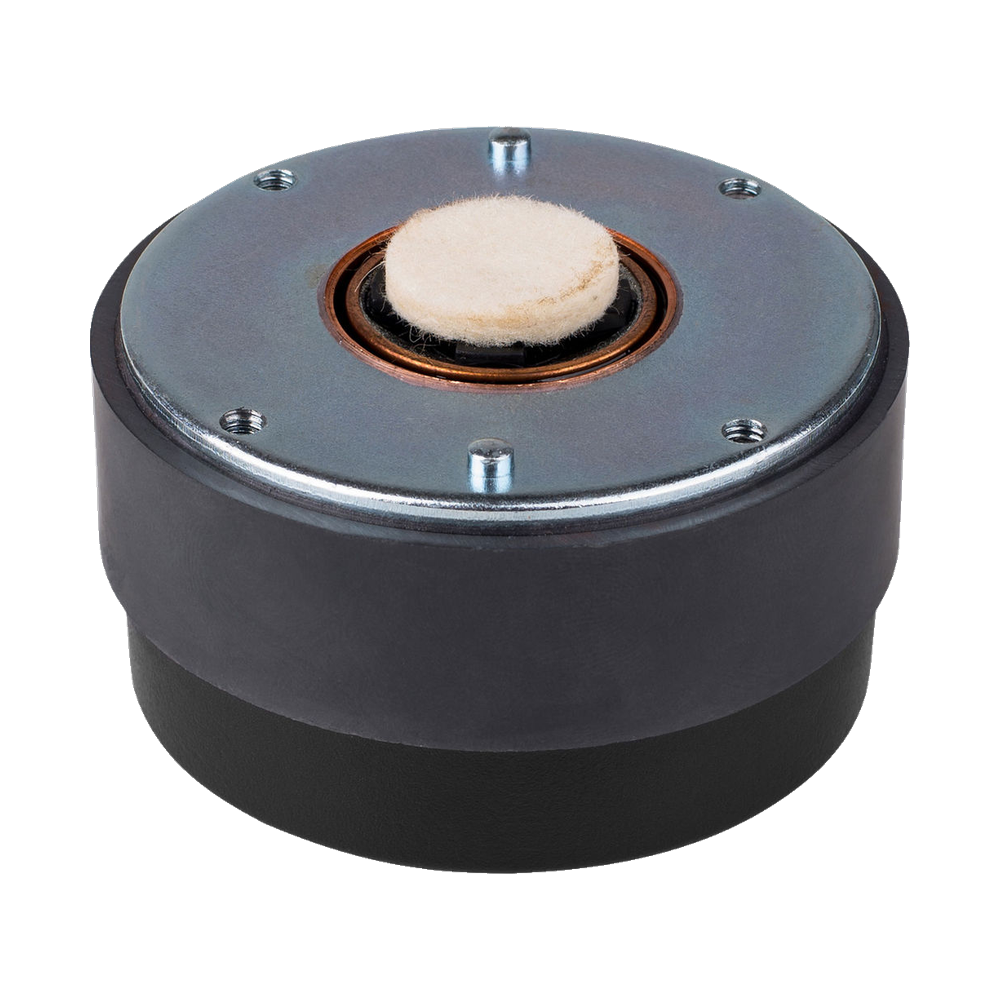

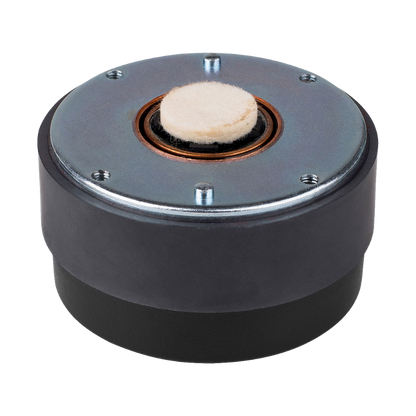

Dayton Audio - 1⅛" Reference Aluminium Dome Tweeter - RST28A-4
Dayton Audio - 1⅛" Reference Aluminium Dome Tweeter - RST28A-4
Couldn't load pickup availability
Description
The Dayton Audio RST28A-4 aluminium dome Reference Series tweeter offers exceptional efficiency from 1,500 Hz to 20,000 Hz with smooth and well controlled frequency response. This tweeters unique black anodized 1-1/8" aluminium diaphragm and state-of-the-art motor system not only match the look and features of Dayton Audios Reference Series woofers and midranges, but also the clean, detailed, and uncoloured sound you have come to expect. A specialized damped rear chamber, well-designed phase bridge, rigid mesh grill, and several distortion-reducing paths in the motor are just a few of the features that allow these tweeters to outperform some the most expensive audiophile high-frequency transducers.
Features
- Remarkable clarity without the typical harshness of metal domes

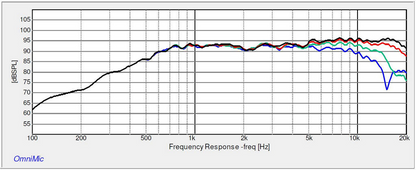

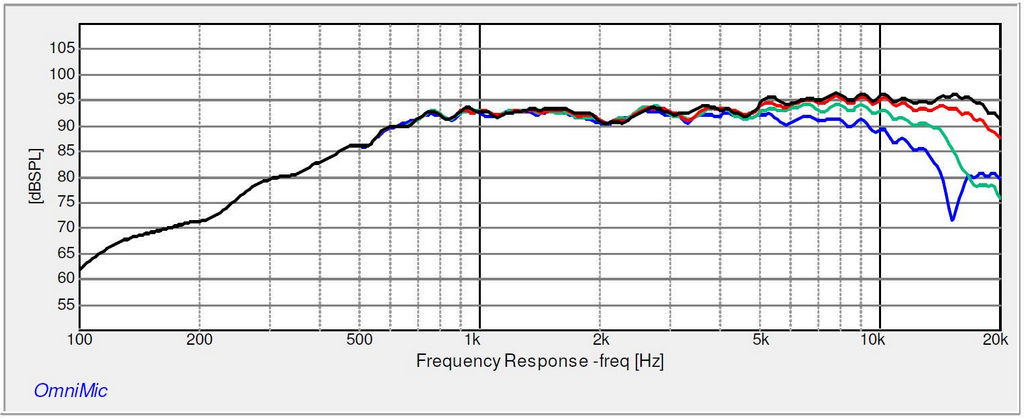

- Exceptional efficiency at 92.5 ±3dB from 1.5 kHz to 19 kHz and a smooth frequency response
- Well-designed phase bridge to balance response in the upper octave
- Tuned rear chamber and Ferrofluid for great low-end response

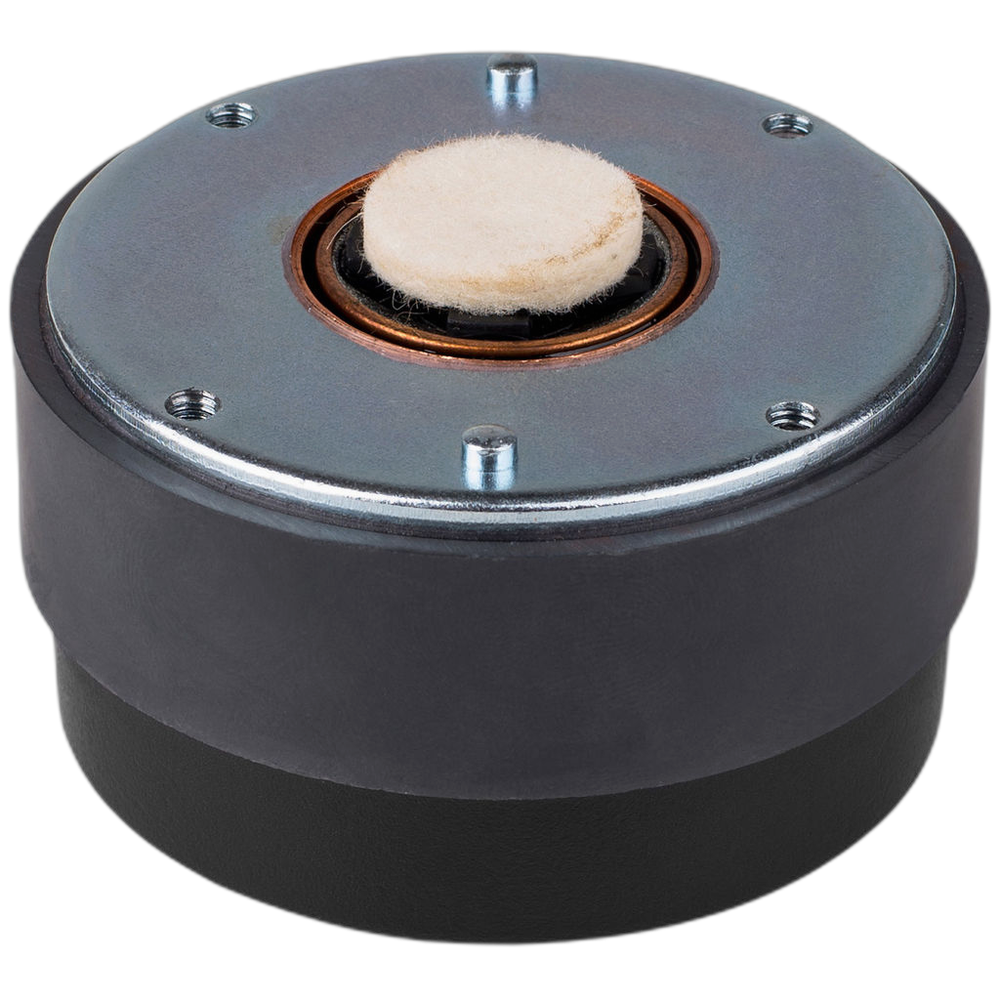

- Low-distortion motor system achieves a rare level of transparency
- Matches the performance of even the most expensive audiophile high-frequency transducers
Specifications
| Manufacturer | Dayton Audio |
|---|---|
| Impedance | 4Ω Re 3Ω |
| Zn | 4Ω |
| Re | 3.0Ω |
| Fs | 775Hz |
| Power | 80Wrms |
| Sens. | 92.5dB |
| Qms | 2.15 |
| Qes | 1.65 |
| Qts | 0.93 |
| Size | 1.125' |
| Diam. | 105mmØ |
| Hole | 73mmØ |

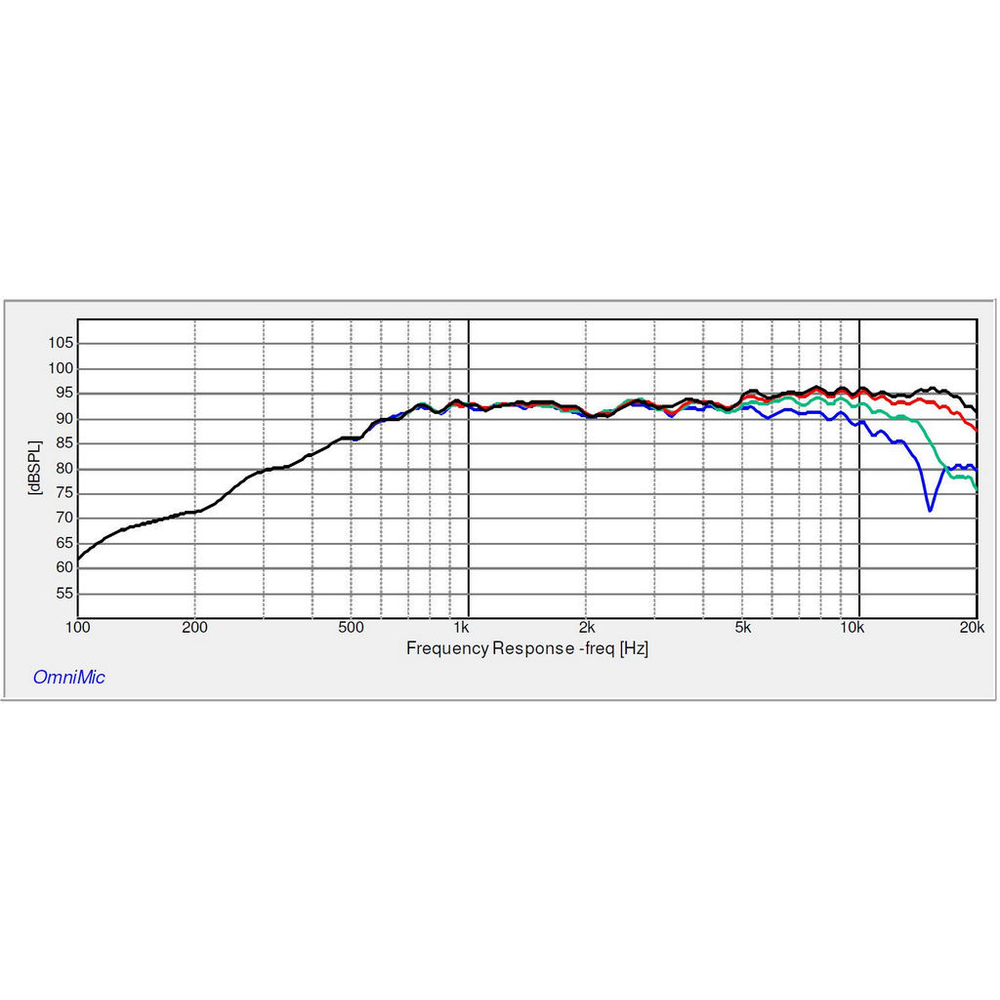

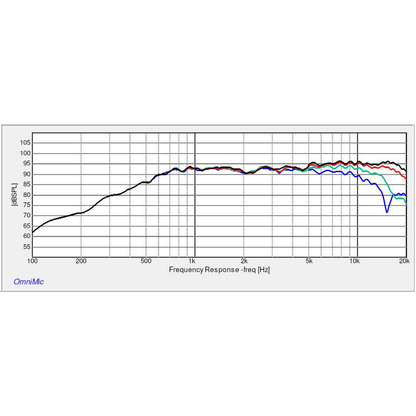

| Frequency | 1500Hz - 20KHz |
| Series | Reference Series |
| Type | Tweeter |
| Sd | 6.6cm² |
| Colour | Black |
| Le | 0.03mH |
