Dayton Audio

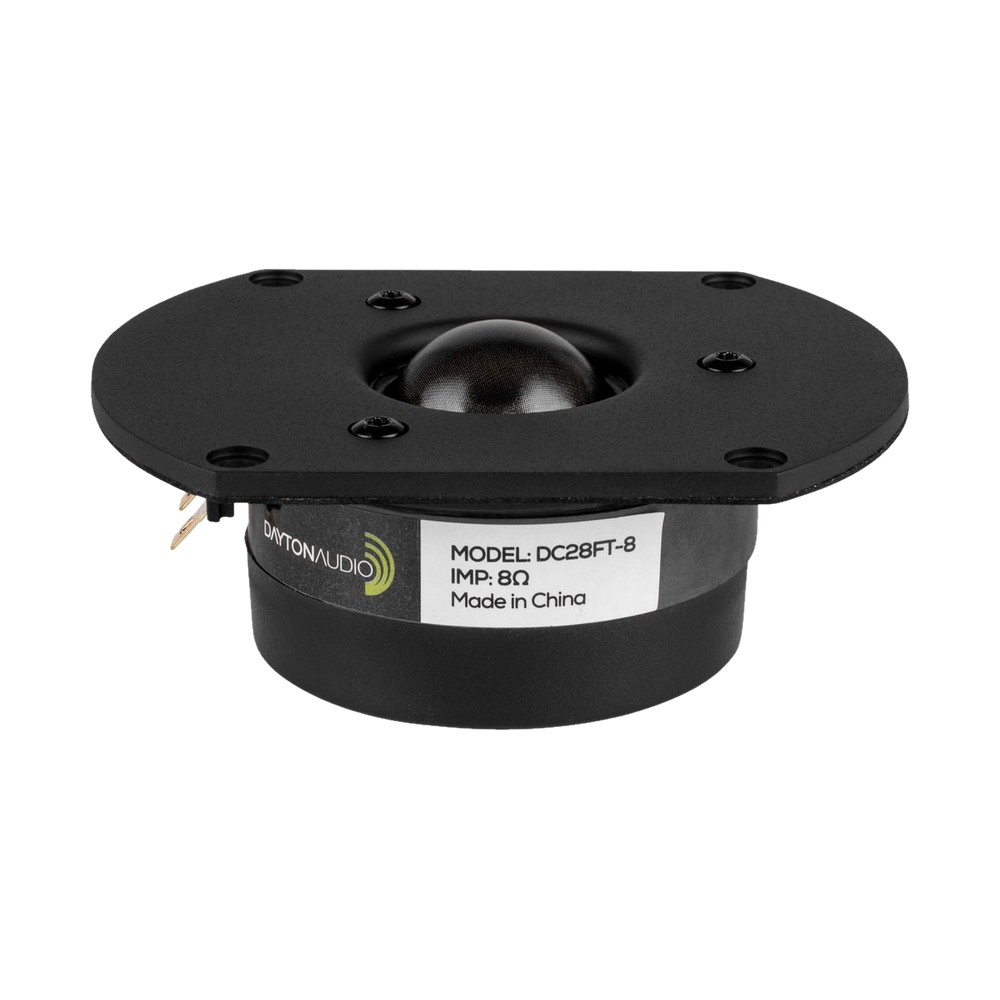

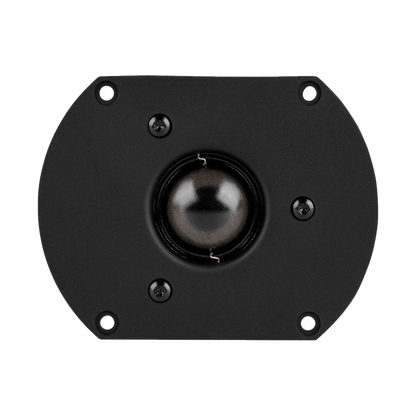

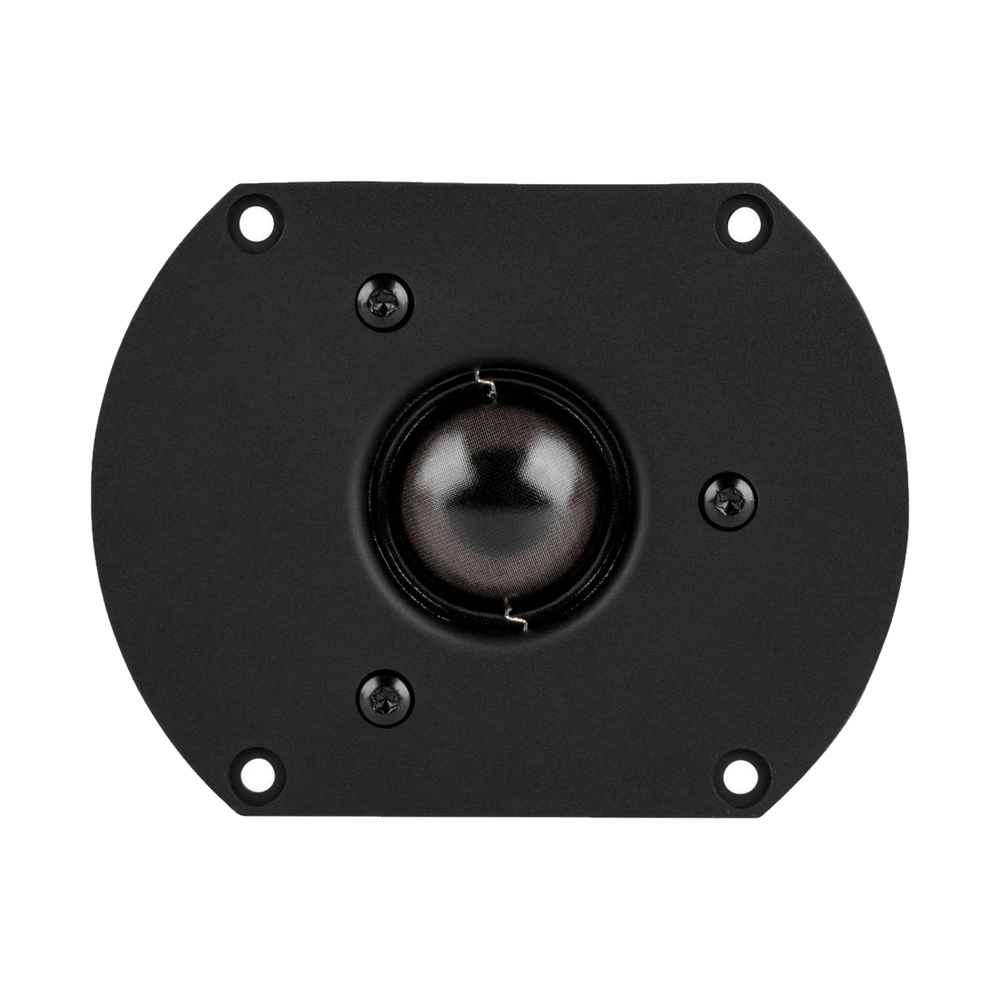

Dayton Audio - 1⅛" Silk Dome Truncated Tweeter - DC28FT-8
Dayton Audio - 1⅛" Silk Dome Truncated Tweeter - DC28FT-8
Regular price
$56.95 AUD
Regular price
Sale price
$56.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The truncated-faceplate version of Dayton Audio's DC28F-8 1⅛" silk dome tweeter, with the same performance specs. The flat-sided faceplate lets it sit closer to the woofer, and the damped rear chamber allows crossover points as low as 1,800 Hz.
Features
- Same performance specs as the DC28F "Silkies"
- Truncated faceplate permits close driver spacing
- Damped rear chamber makes low crossover points possible
- Treated silk dome offers smooth response with airy highs
- Replaces the Dayton DC28FST-8 1⅛" Silk Dome Truncated Shielded Tweeter
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1.125" |
| Nominal impedance | 8Ω |
| Series | Classic |
| Power handling (RMS) | 50 W |
| Power handling (program) | 100 W |
| Sensitivity | 89 dB |
| Frequency range | 1,300 – 20,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 834 Hz |
|---|---|
| DC resistance (Re) | 5.4 Ω |
| Voice coil inductance (Le) | 0.09 mH |
| Mechanical Q (Qms) | 0.81 |
| Electrical Q (Qes) | 1.33 |
| Total Q (Qts) | 0.5 |
| Effective piston area (Sd) | 6.6 cm² |
| Efficiency bandwidth product (EBP) | 627.1 |

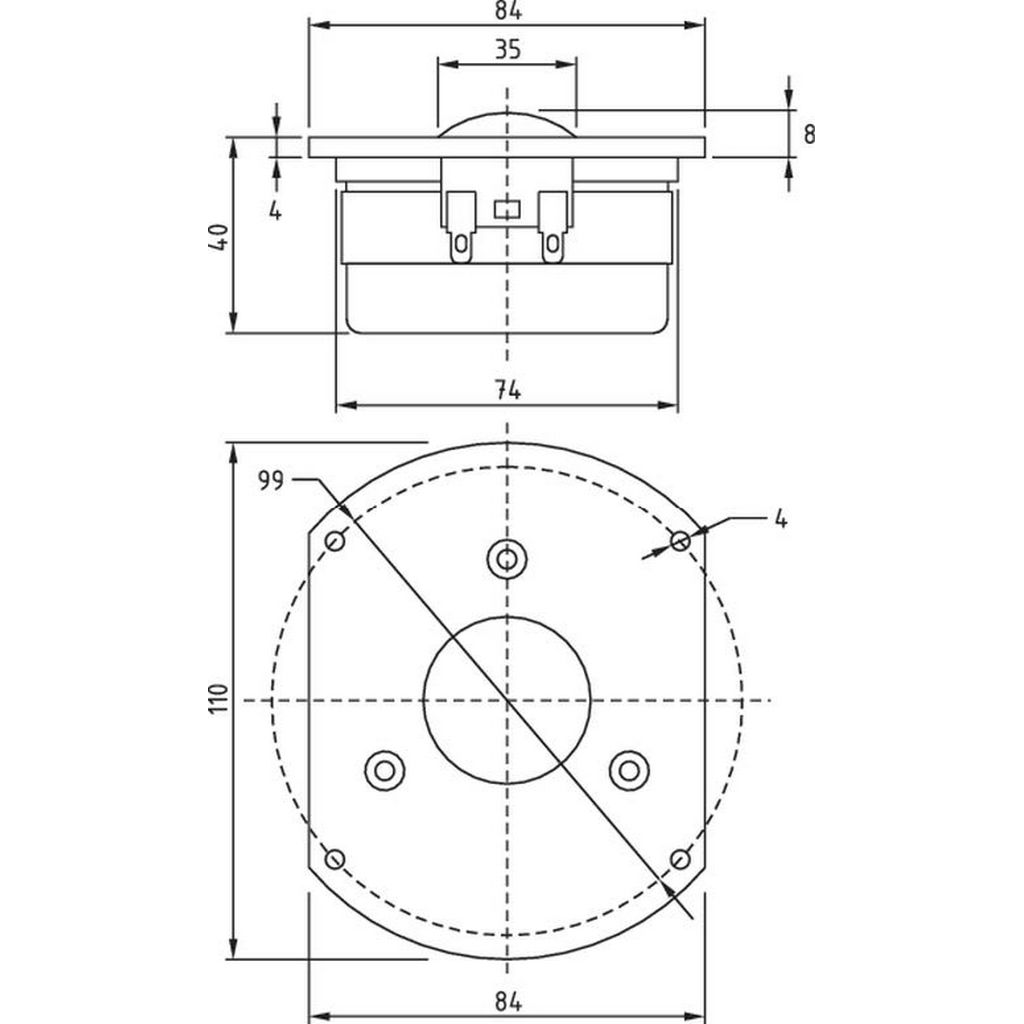

Mounting
| Overall diameter | 110 mm |
|---|---|
| Cutout diameter | 69 mm |
| Mounting depth | 39 mm |
| Mounting holes | 4 |
| Voice coil diameter | 29 mm |
Materials
| Cone | Treated Silk Dome |
|---|
- Sensitivity measured at 1W/1m.
