Dayton Audio - 1" Tweeter Silk - ND25FN-4
Dayton Audio - 1" Tweeter Silk - ND25FN-4
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

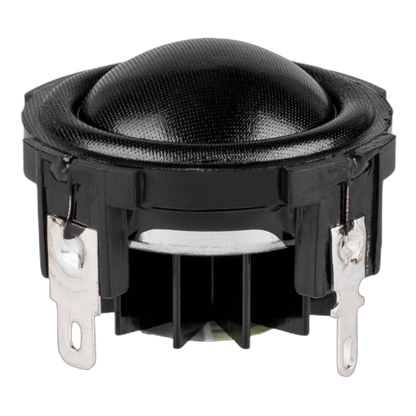

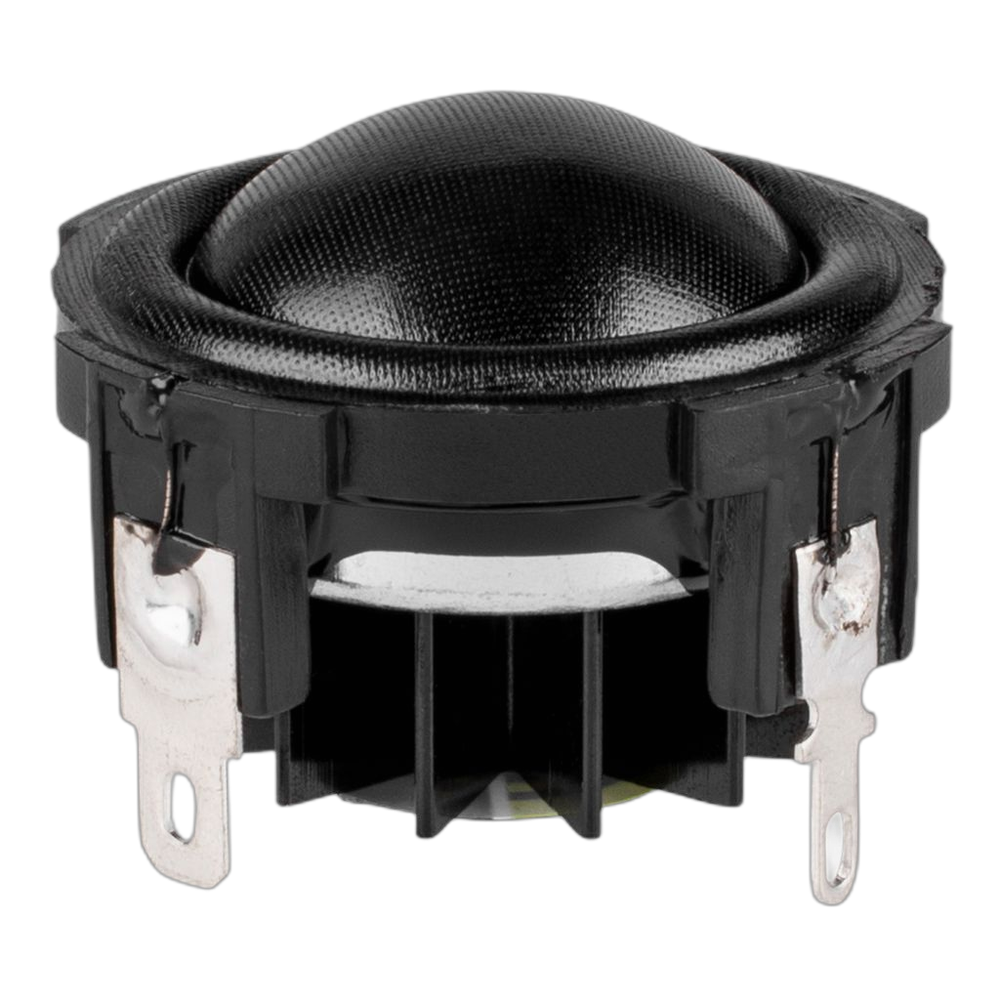

Compact soft dome tweeter element with high output and smooth, low-distortion sound. The high-strength neodymium motor features an aluminium heat sink for cool operation and reduced power compression.

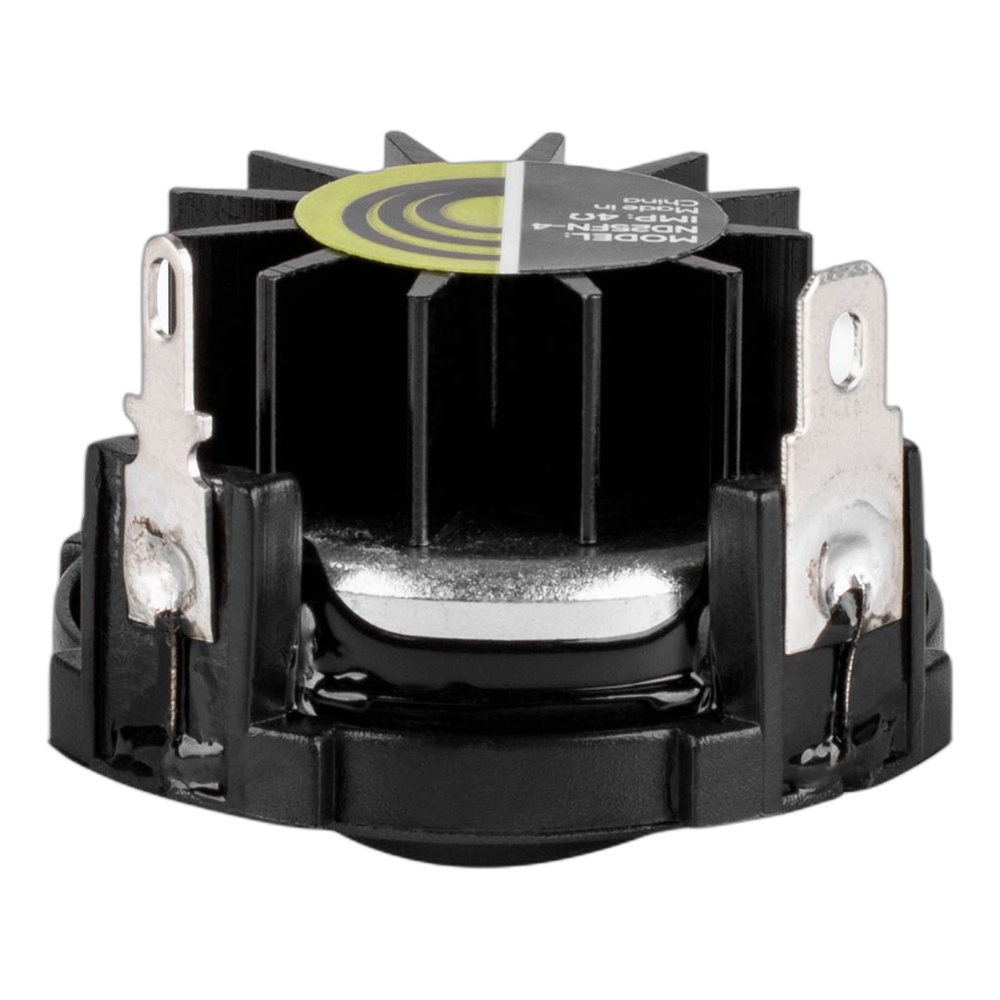

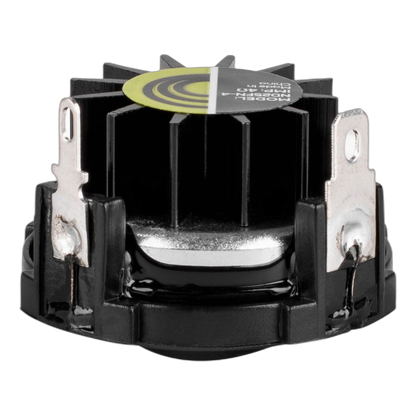

Dayton Audio’s ND25FN-4 is a versatile 1” tweeter element for use in highly customised applications requiring smooth, clean treble output. The treated silk dome diaphragm delivers excellent detail and smoothness, while the high-strength neodymium magnet enables high output from an extremely compact size. The rear-mounted heatsink and ferrofluid-filled magnetic gap provide improved heat dissipation from the compact motor structure, for reduced power compression at high levels. A copper pole cap further reduces distortion and inductance effects.
This element is identical to the round-faceplate ND25FA-4 model, but with no faceplate installed. It’s perfect for installation into a waveguide or a custom mounting plate, or in limited clearance applications such as automotive A-pillars. Simply bond the unit in place from behind, and prepare to be surprised at the clean, detailed output!
Features

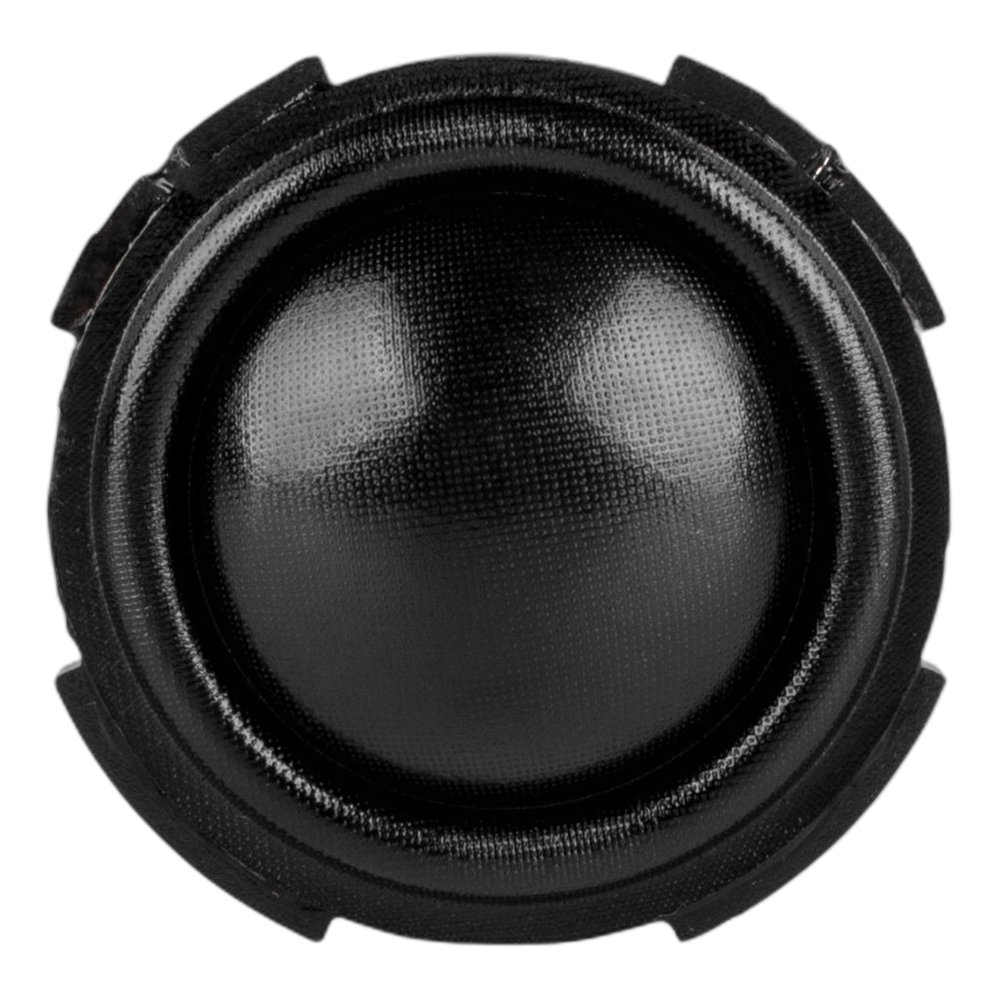

- 1" treated silk dome diaphragm
- Faceplate-free design enables versatile custom mounting
- High-strength neodymium motor with heatsink and ferrofluid cooling

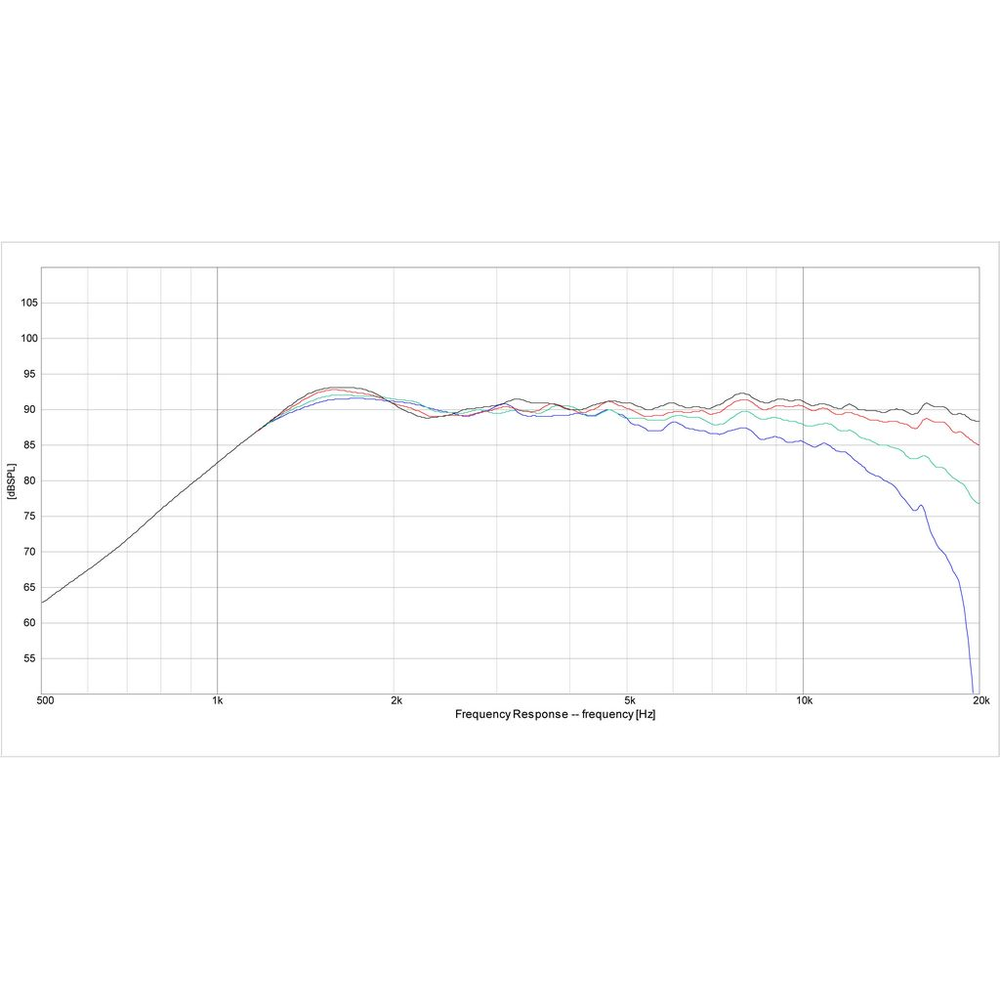

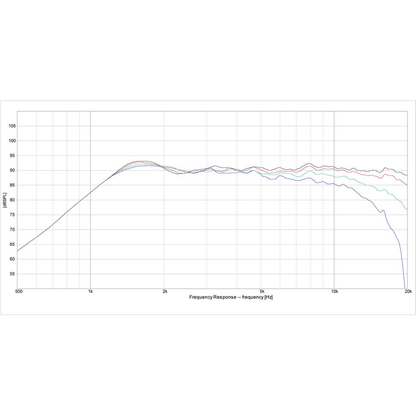

- Extremely smooth and extended treble response beyond 22kHz
- Perfect for use with a waveguide or custom mounting plate
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 4Ω |
| Series | ND |
| Power handling (RMS) | 20 W |
| Power handling (program) | 40 W |
| Sensitivity | 90 dB |
| Frequency range | 2,500 – 20,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 1,350 Hz |
|---|---|
| DC resistance (Re) | 3.2 Ω |
| Voice coil inductance (Le) | 0.04 mH |
| Mechanical Q (Qms) | 3.87 |
| Electrical Q (Qes) | 2.61 |
| Total Q (Qts) | 1.56 |
| Effective piston area (Sd) | 7.5 cm² |
| Efficiency bandwidth product (EBP) | 517.2 |
Motor
| Voice coil wire | Copper |
|---|

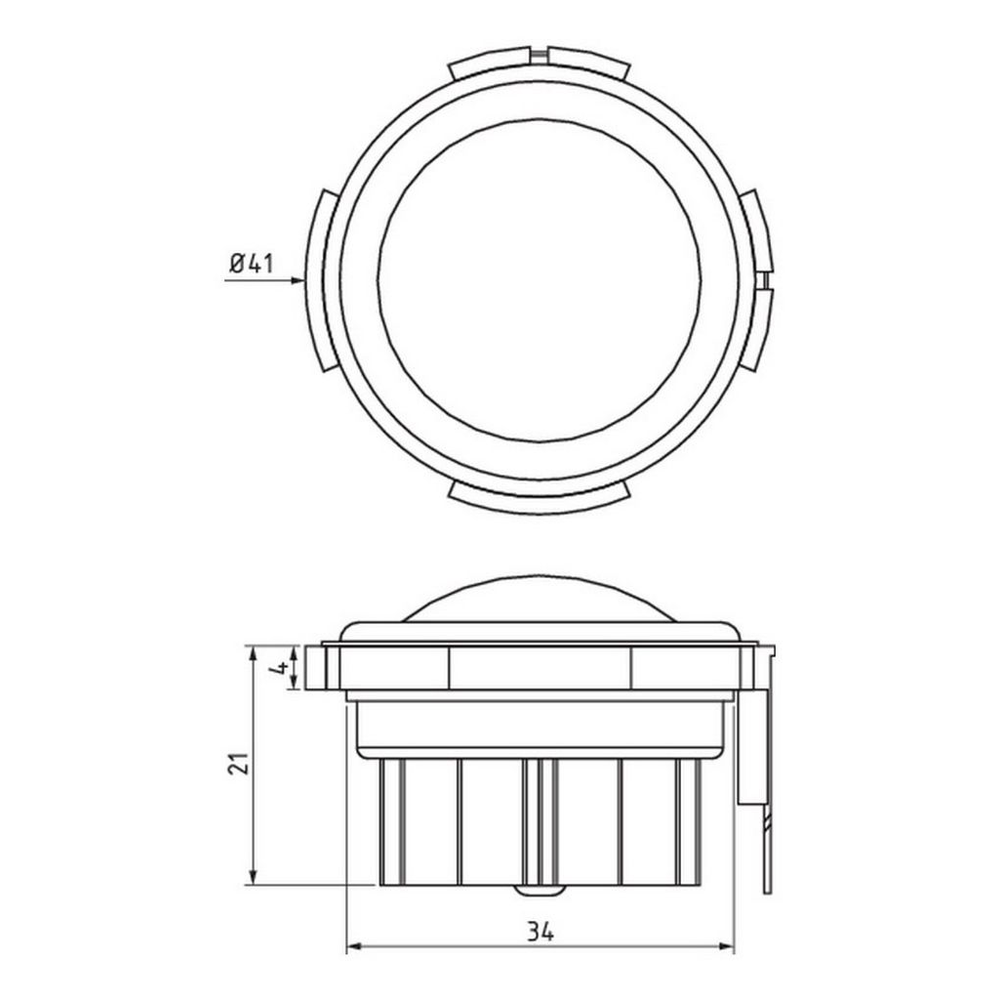

Mounting
| Overall diameter | 41 mm |
|---|---|
| Cutout diameter | 34 mm |
| Mounting depth | 21 mm |
| Voice coil diameter | 25 mm |
| Weight | 0.05897 kg |
| Mounting holes | 4 |
Materials
| Cone | Treated Silk Dome |
|---|---|
| Surround | Treated Silk |
| Voice coil former | Kapton® |
| Magnet | Neodymium |
- Sensitivity measured at 2.83V/1m.
Downloads
- ND25FN-4 Specification Sheet
- ND25FN-4 Data Files
- ND25FN-4 3D File
- ND25FN-4 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: no recess (flange outline not on file); no bolt holes (positions not on file). Check it against your driver before you cut.
