Dayton Audio - 1¼"x2¾" CE Full Range Driver - CE70-30P-8
Dayton Audio - 1¼"x2¾" CE Full Range Driver - CE70-30P-8
Out of stock
Couldn't load pickup availability
Description
Dayton Audio’s CE70-30P-8 is an economical small full-range driver that features an ultra-narrow racetrack shape, a high-output neodymium motor, a paper cone, a front gasket, and a steel frame. 8 ohm impedance.
Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.
Multiple types and styles are available within the CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8") to 90 mm (3-1/2") in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.

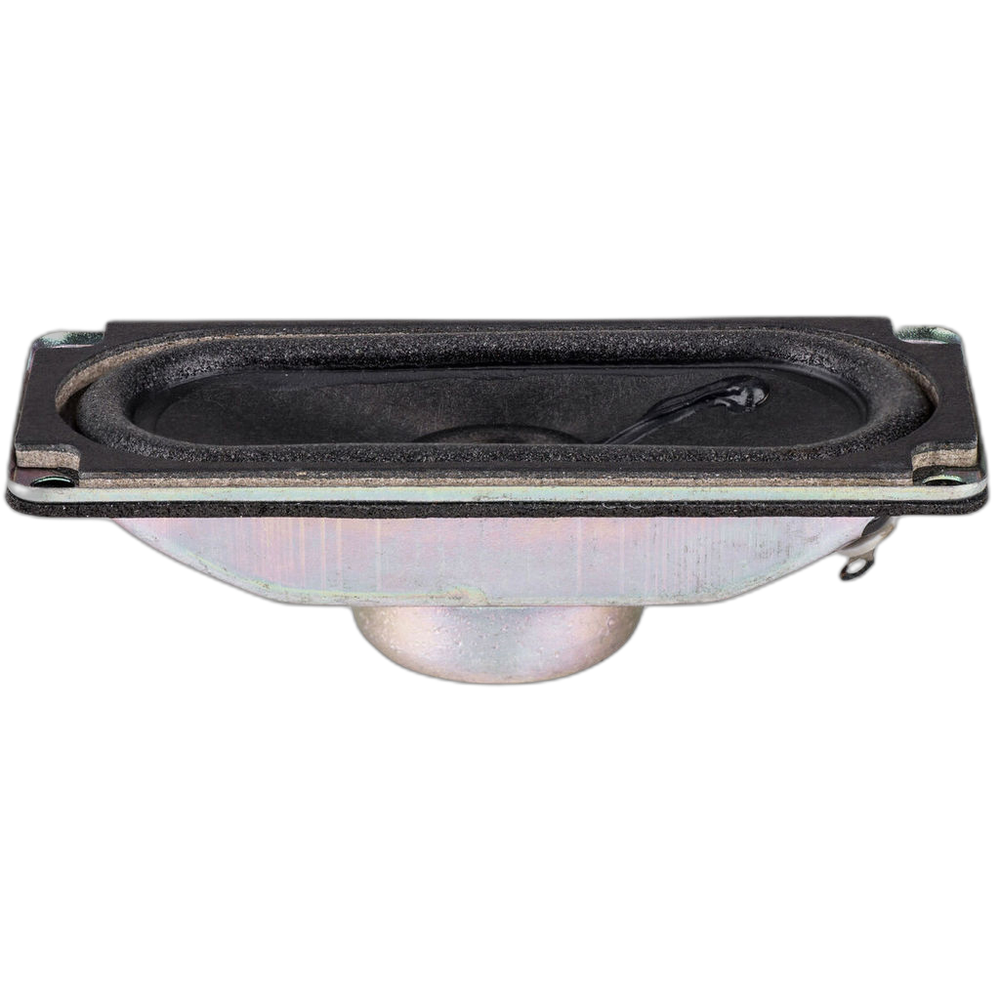

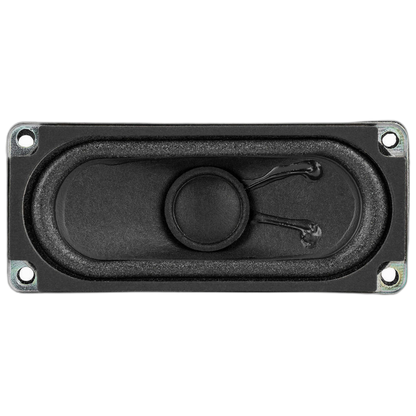

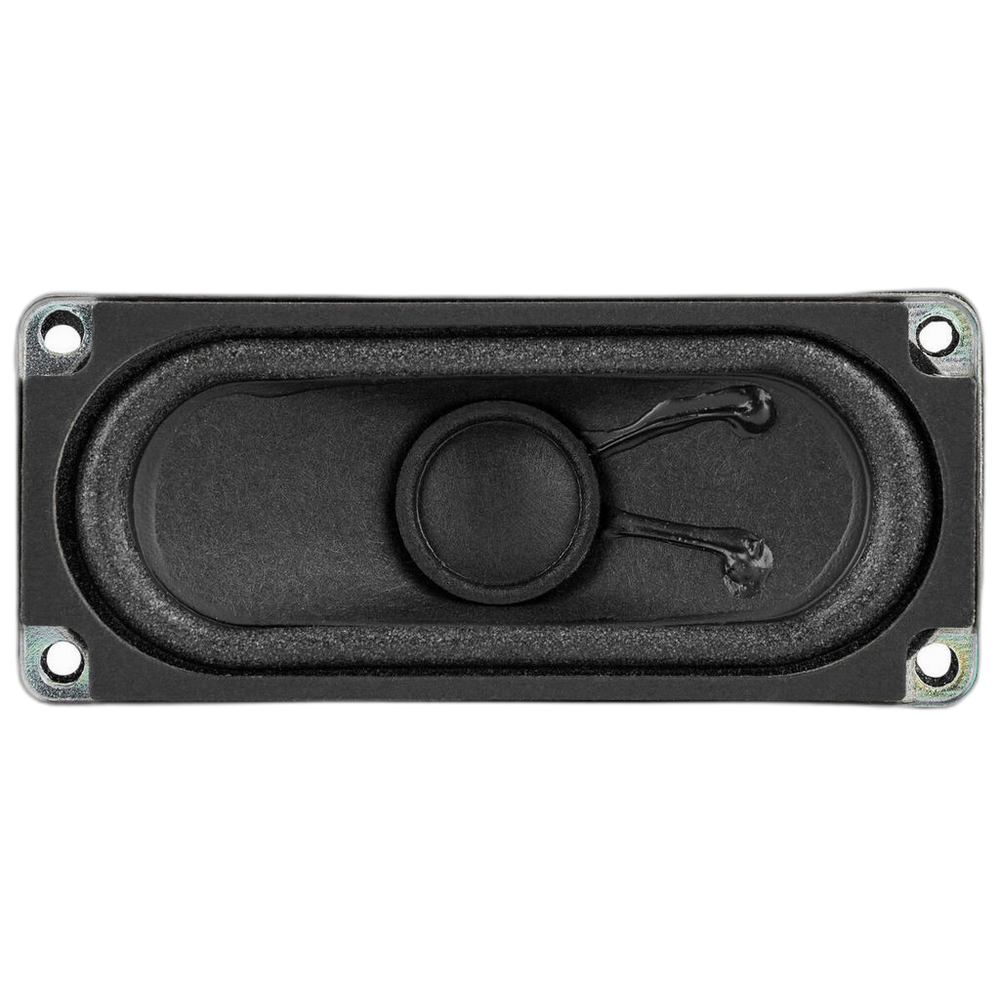

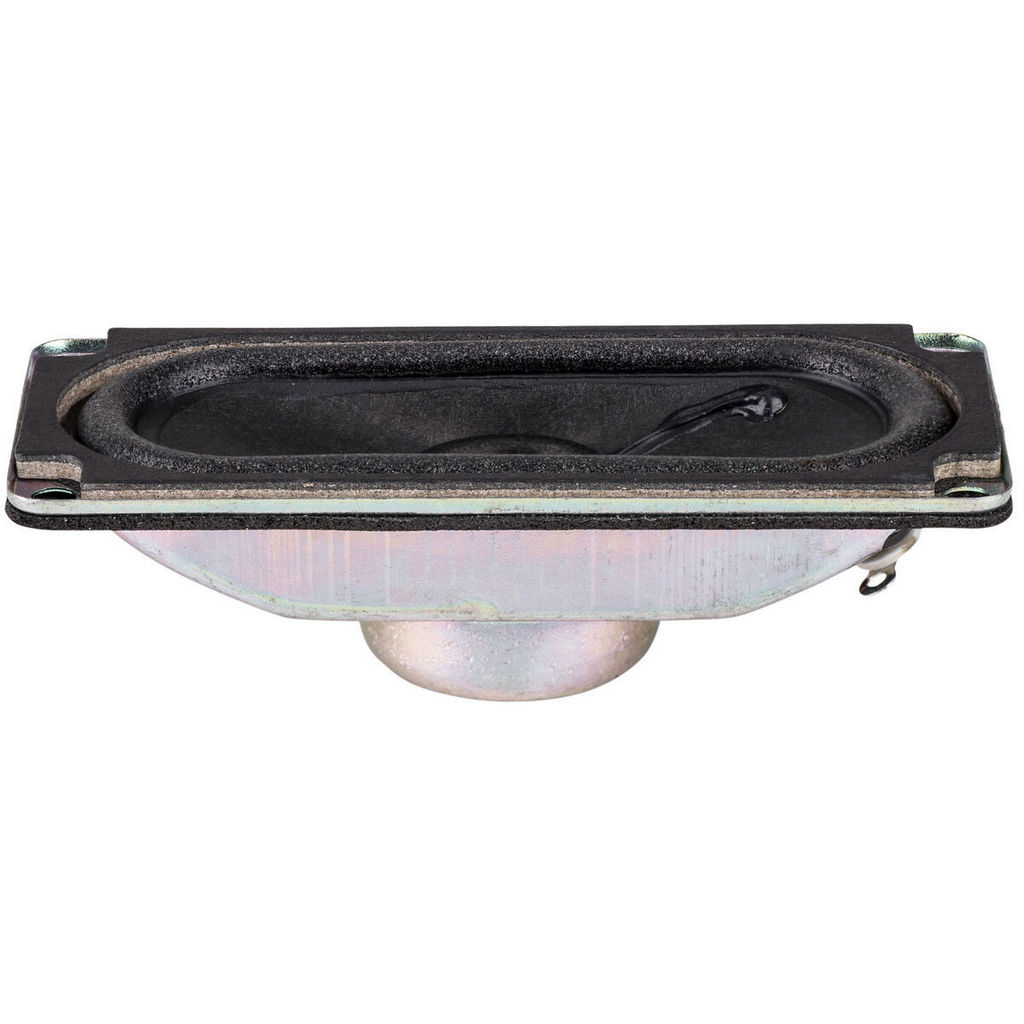

The CE70-30P-8 features a ‘racetrack’ design that maximises cone area for high output while fitting into narrow spaces. Its high-quality design features a paper cone, foam surround, textile spider, high-performance neodymium motor, and a rectangular steel frame with mounting lobes for conventional mounting.
Features
- Paper cone with foam surround for high output
- Rugged stamped steel frame
- High-energy neodymium magnet motor
Specifications
Specifications
General
| Driver type | Full Range |
|---|---|
| Nominal size | 1.25x2.75" |
| Nominal impedance | 8Ω |
| Series | CE |
| Power handling (RMS) | 2 W |
| Power handling (program) | 4 W |
| Sensitivity | 82 dB |

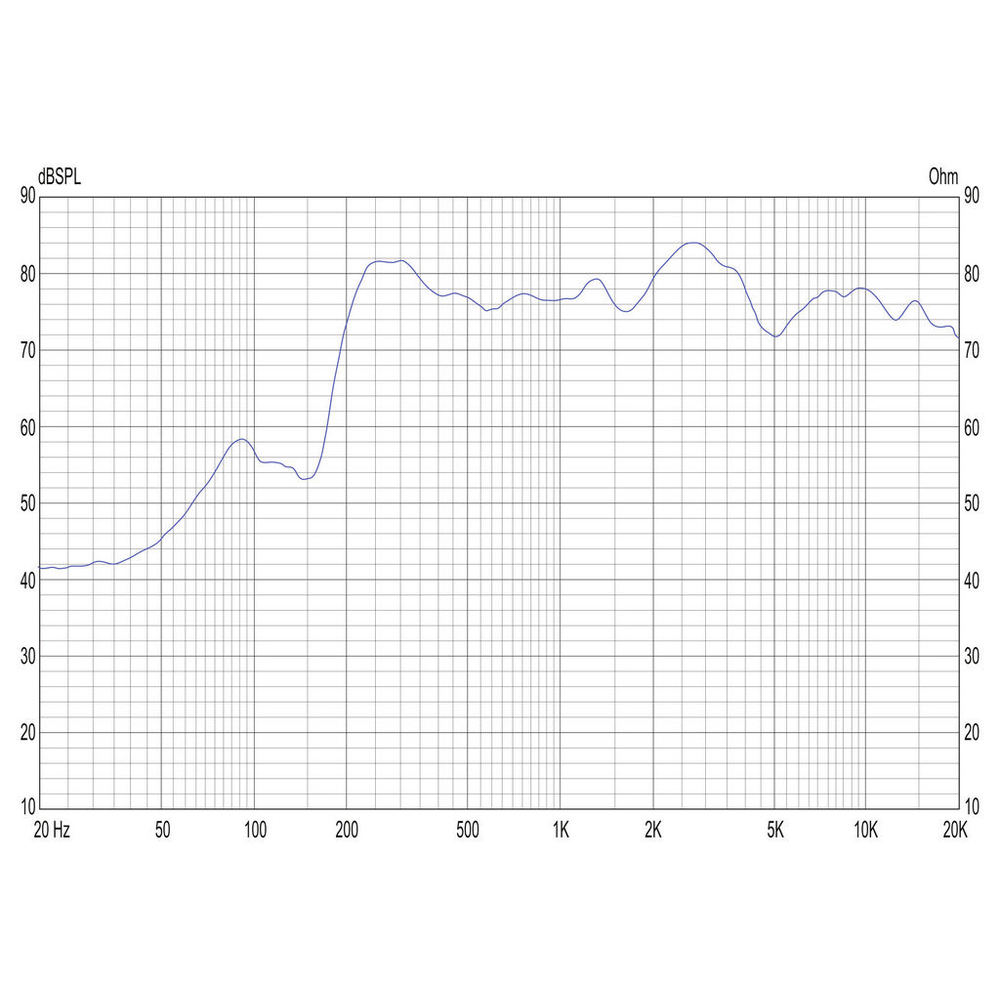

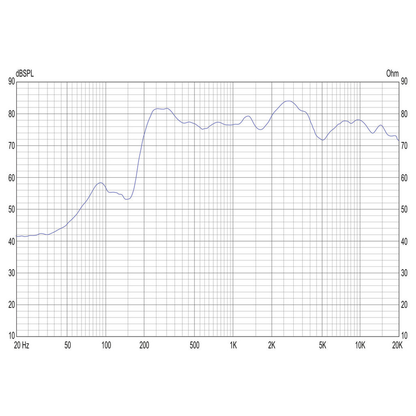

| Frequency range | 310 – 20,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 371 Hz |
|---|---|
| DC resistance (Re) | 7.2 Ω |
| Voice coil inductance (Le) | 0.214 mH |
| Mechanical Q (Qms) | 5.65 |
| Electrical Q (Qes) | 5.67 |
| Total Q (Qts) | 2.83 |
| Equivalent volume (Vas) | 0.04 L |
| Compliance (Cms) | 0.23 mm/N |
| Moving mass (Mms) | 0.82 g |
| Mechanical resistance (Rms) | 0.3381 kg/s |
| Force factor (Bl) | 1.56 T·m |
| Effective piston area (Sd) | 11.04 cm² |
| Linear excursion (Xmax, one-way) | 0.8 mm |
| Displacement volume (Vd) | 0.8832 cm³ |

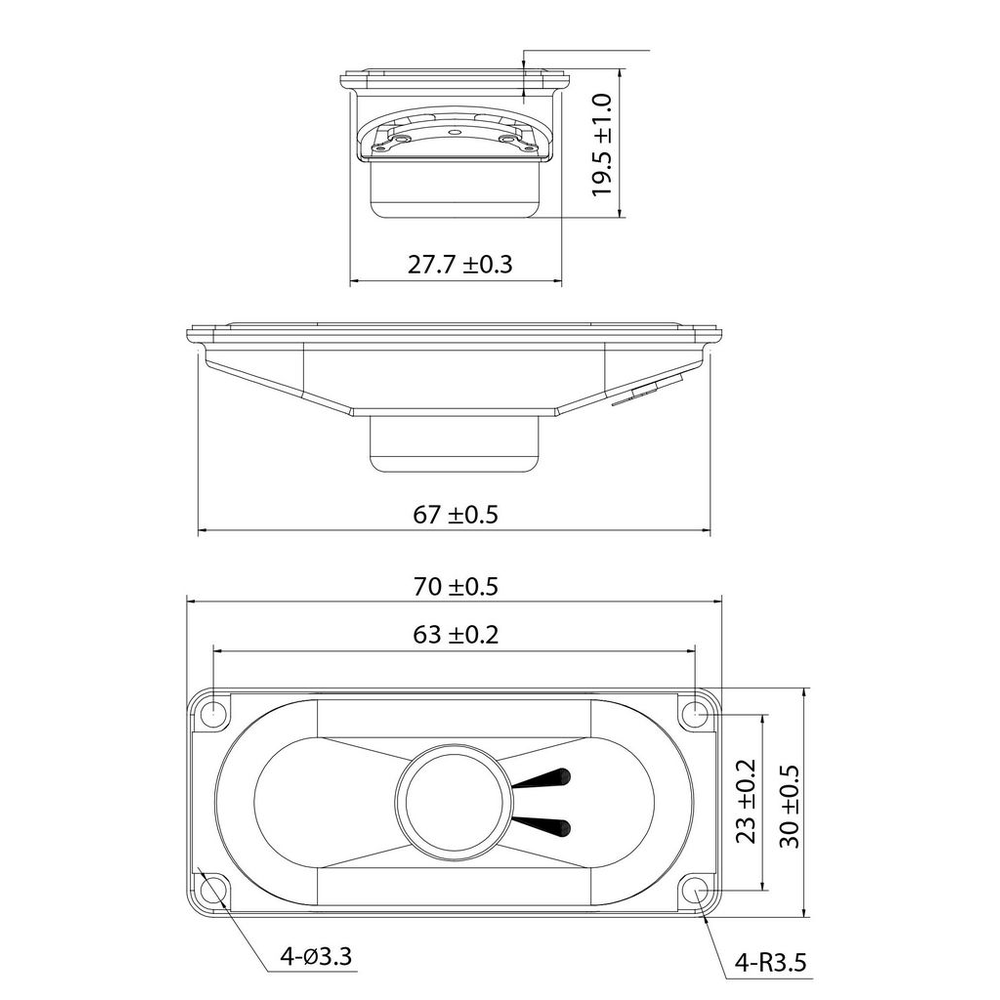

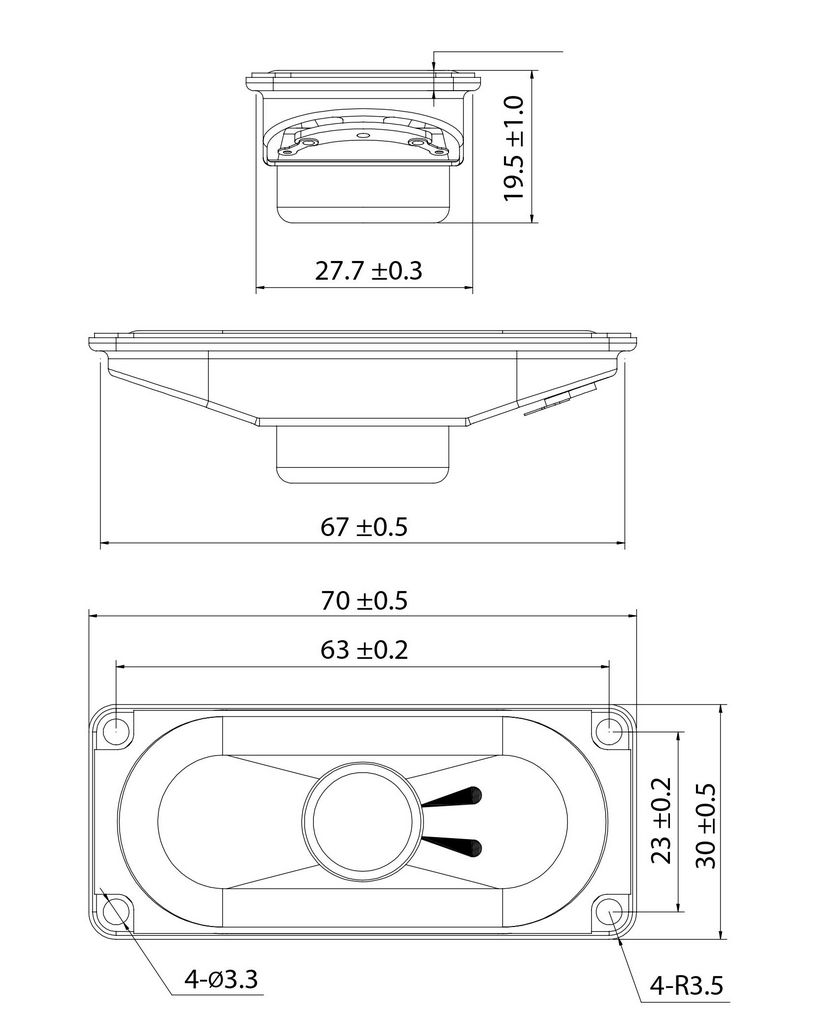

Mounting
| Faceplate | Rectangle, 70 × 30 mm, corner radius 3.5 mm |
|---|---|
| Mounting depth | 19.5 mm |
| Voice coil diameter | 13 mm |
| Weight | 0.02948 kg |
| Mounting holes | 4 |
| Cutout | 67 × 27.7 mm |
Materials
| Cone | Paper |
|---|---|
| Surround | Foam |
| Basket | Stamped Steel |
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
Downloads
- CE70-30P-8 Specification Sheet
- CE70-30P-8 Cutout & Recess Template (NB Audio) Straight off Dayton Audio's spec sheet: flange outline. Scaled from Dayton Audio's drawing, so close but not guaranteed exact: cutout. Left out: no recess (it mounts from behind); no bolt holes (positions not on file). Check it against your driver before you cut.
