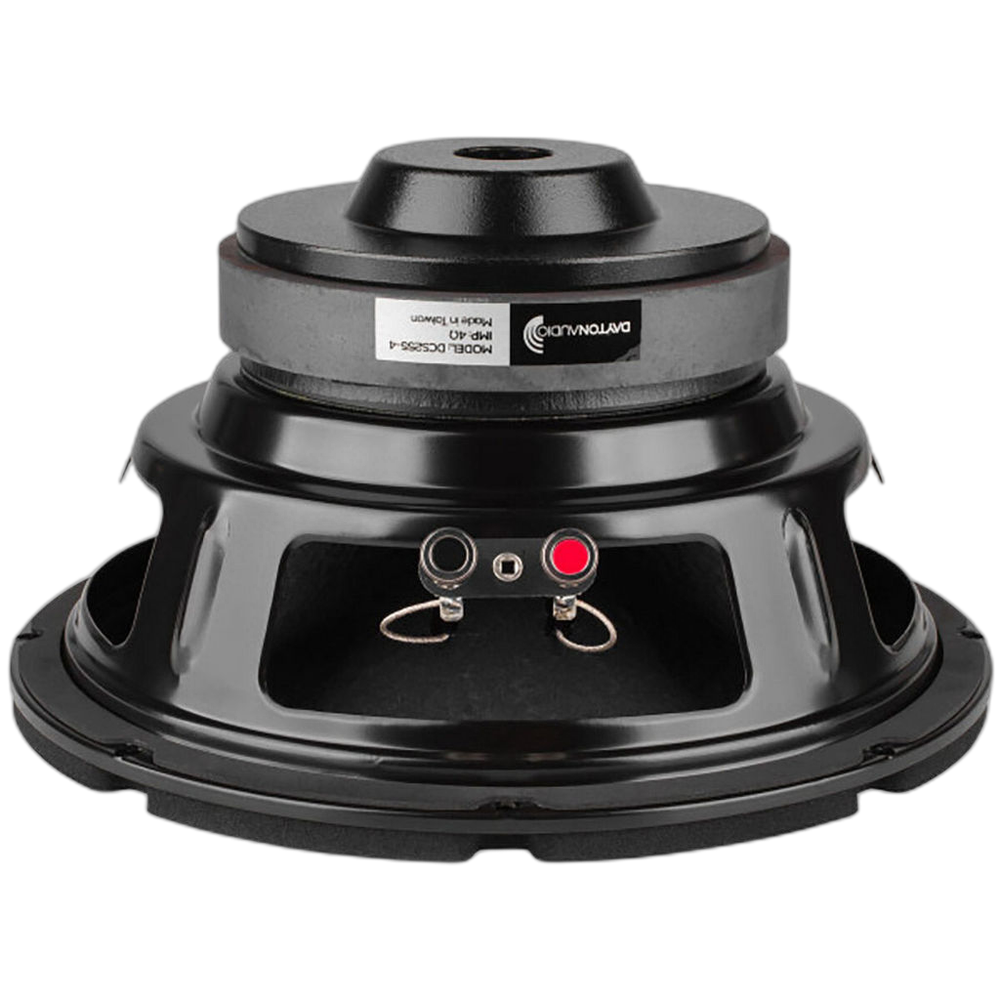

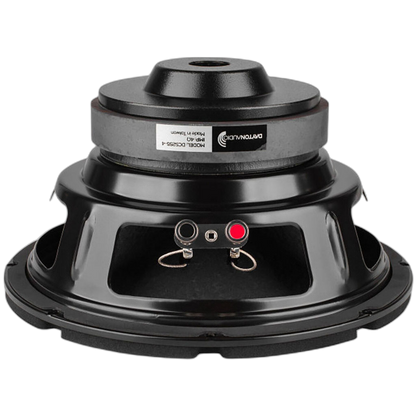

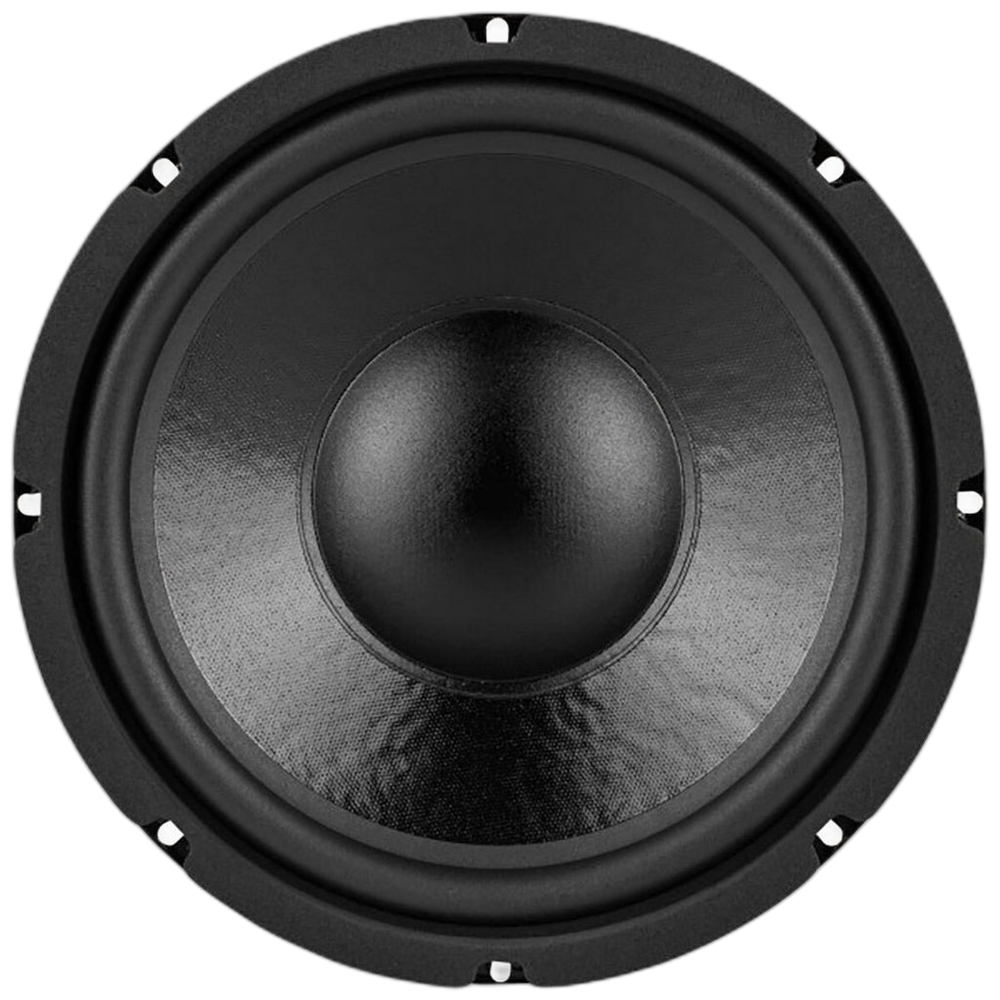

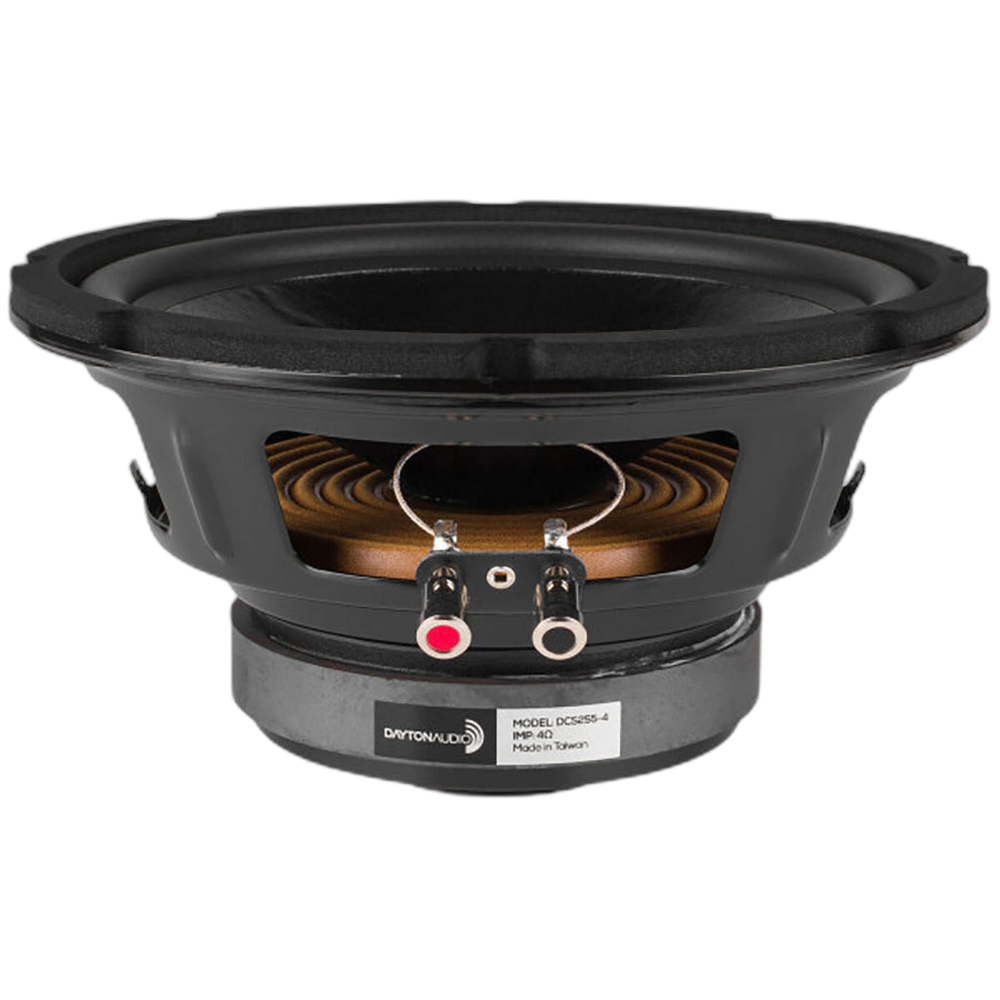

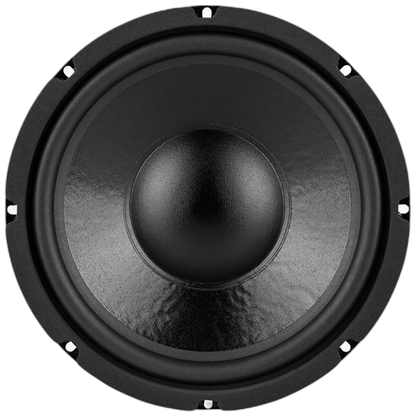

Dayton Audio - 10" Classic Subwoofer - DCS255-4
Dayton Audio - 10" Classic Subwoofer - DCS255-4
Regular price
$294.95
Regular price
Sale price
$294.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
The Dayton Audio Classic Series 10" subwoofer offers solid value at lower price points. No compromises were made in the design, materials, or construction of this rugged 4-ohm powerful subwoofer. The driver features a vented pole piece with copper cap, bumped back plate for improved excursion capability, Kevlar reinforced cone with rubber half-roll surround, and a high-temperature 4-layer copper voice coil wound on a polyimide former.
Features
- Sturdy stamped steel frame
- Vented pole piece and bumped back plate
- Inductance-reducing copper pole piece cap
- Treated non-pressed paper/Kevlar cone with rubber surround
- 4-layer VC with polyimide former
- Great for home and automotive applications
Specifications
Specifications
General
| Driver type | Subwoofer |
|---|---|
| Nominal size | 10" |
| Nominal impedance | 4Ω |
| Series | Classic |
| Power handling (RMS) | 200 W |
| Power handling (program) | 400 W |
| Sensitivity | 91 dB |

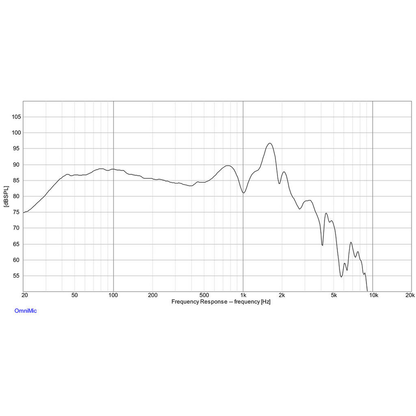

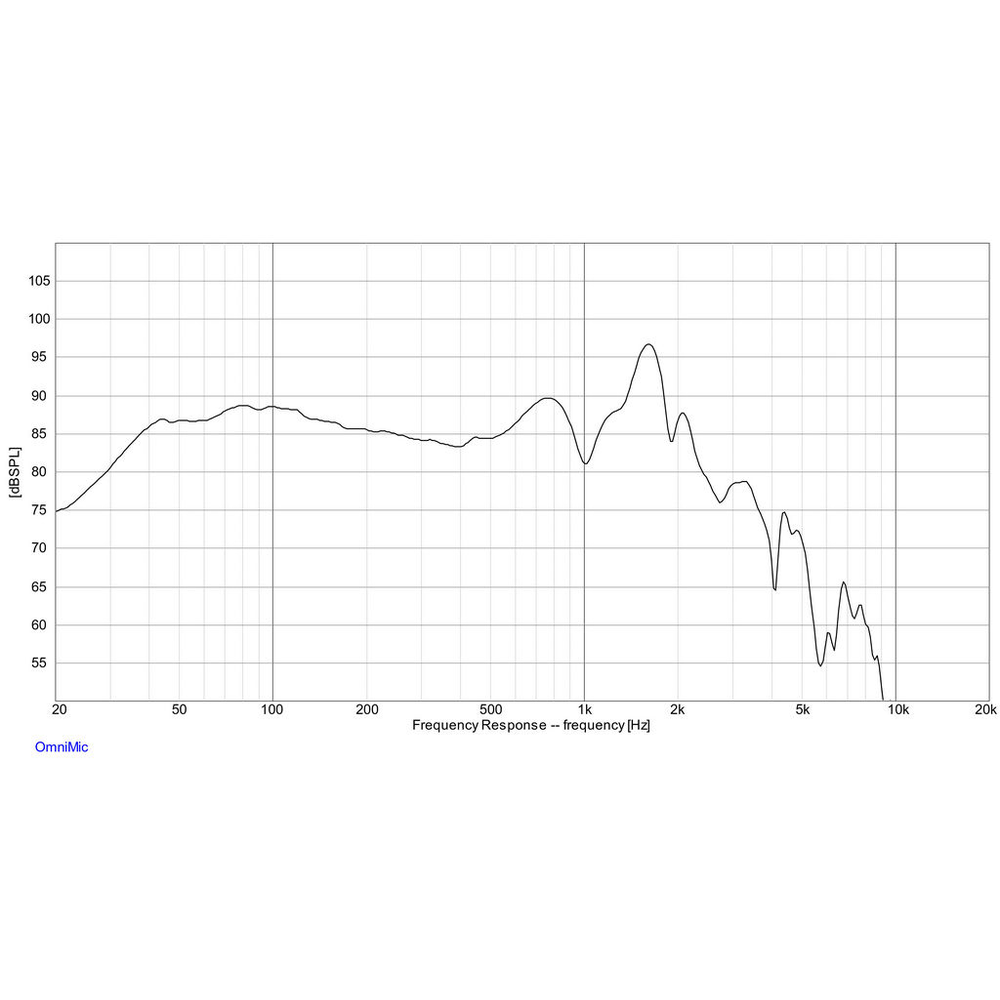

| Frequency range | 31 – 200 Hz |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 37.7 Hz |
|---|---|
| DC resistance (Re) | 3.45 Ω |
| Voice coil inductance (Le) | 1.8 mH |
| Mechanical Q (Qms) | 7.42 |
| Electrical Q (Qes) | 0.5 |
| Total Q (Qts) | 0.46 |
| Equivalent volume (Vas) | 32.1 L |
| Compliance (Cms) | 0.19 mm/N |
| Moving mass (Mms) | 95.5 g |
| Mechanical resistance (Rms) | 3.049 kg/s |
| Force factor (Bl) | 12.6 T·m |
| Effective piston area (Sd) | 346.4 cm² |
| Linear excursion (Xmax, one-way) | 8.3 mm |
| Displacement volume (Vd) | 287.5 cm³ |
| Efficiency bandwidth product (EBP) | 75.4 |
Motor
| Voice coil wire | Copper |
|---|

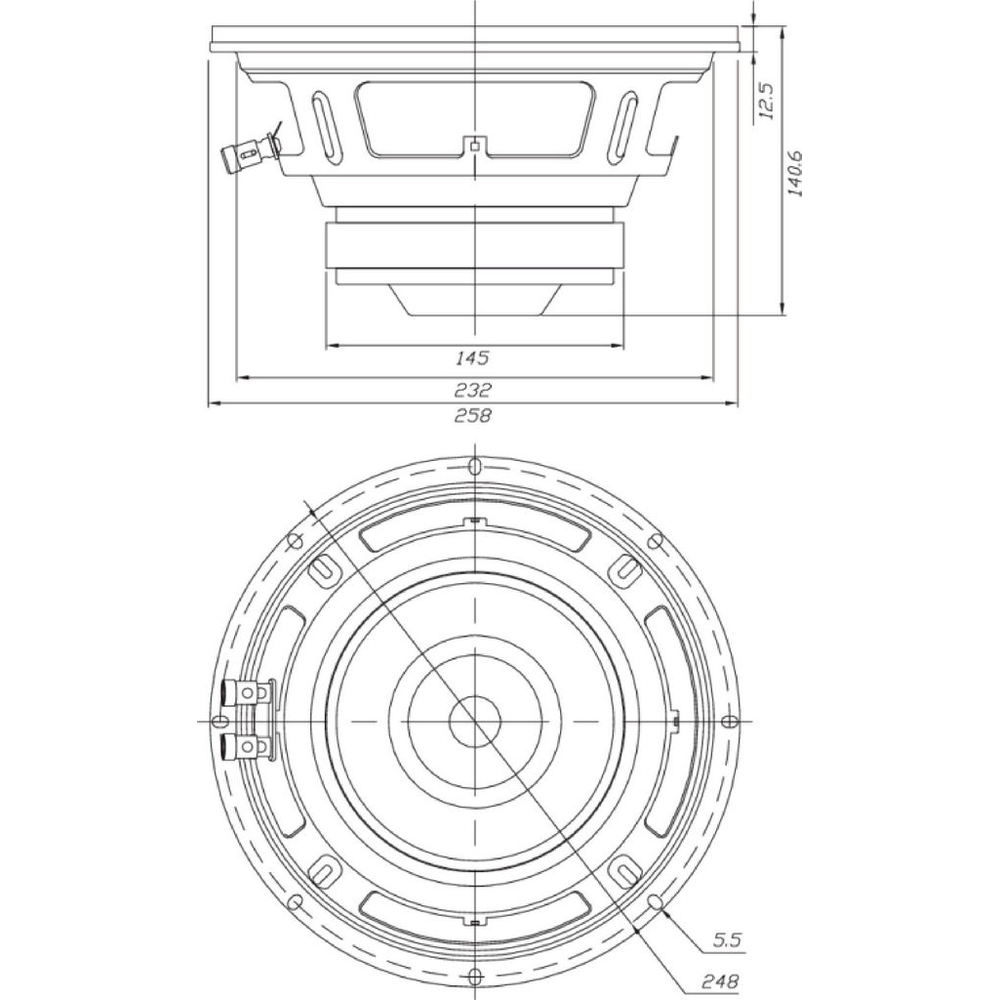

Mounting
| Overall diameter | 258 mm |
|---|---|
| Cutout diameter | 232 mm |
| Mounting depth | 140.6 mm |
| Bolt circle diameter | 248 mm |
| Mounting holes | 8 |
| Mounting hole diameter | 5.5 mm |
| Voice coil diameter | 49.5 mm |
| Weight | 4.74 kg |
Materials
| Cone | Paper / Kevlar |
|---|---|
| Surround | Rubber |
| Voice coil former | Kapton® / Polyimide |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- DCS255-4 Specification Sheet
- DCS255-4 Data Files
- DCS255-4 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange. Check it against your driver before you cut.
