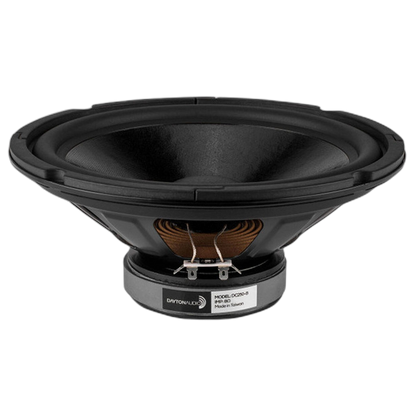

Dayton Audio - 10" Classic Woofer Paper - DC250-8
Dayton Audio - 10" Classic Woofer Paper - DC250-8
Out of stock
Couldn't load pickup availability
Description
One of the main design goals at Dayton Audio is to create loudspeakers that can achieve high levels of performance at reasonable prices and that's just what they did with the Dayton Classic 10" Woofer.

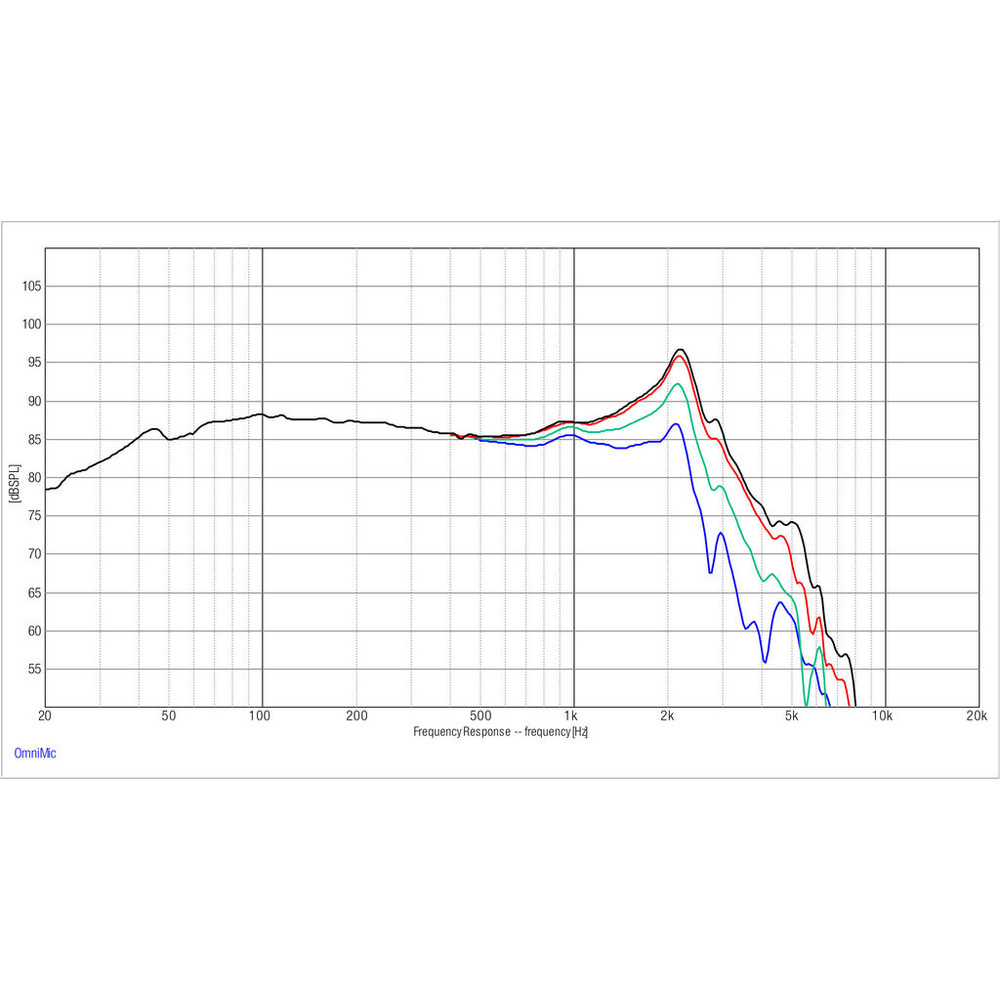

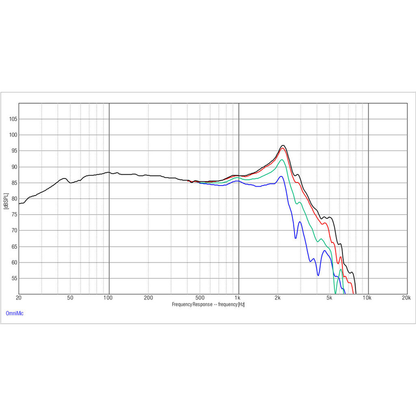

Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC250-8 10" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. Smooth frequency response and extended bass performance make this driver ideal for use in large format two-way and classic three-way loudspeaker designs. A Qts of 0.45 allows the DC300-8 to work well in both sealed and ported speaker enclosures.
A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminium voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.
Features
- Best Price/Performance Value Available Anywhere
- Excellent Low Frequency Capabilities
- Rubber Surround and Vented Pole Piece
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 10" |
| Nominal impedance | 8Ω |
| Series | Classic |
| Power handling (RMS) | 70 W |
| Power handling (program) | 140 W |
| Sensitivity | 88.4 dB |
| Frequency range | 25 – 2,500 Hz |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 24.9 Hz |
|---|---|
| DC resistance (Re) | 6.6 Ω |
| Voice coil inductance (Le) | 2.63 mH |
| Mechanical Q (Qms) | 3.16 |
| Electrical Q (Qes) | 0.44 |
| Total Q (Qts) | 0.38 |
| Equivalent volume (Vas) | 104 L |
| Compliance (Cms) | 0.61 mm/N |
| Moving mass (Mms) | 67.5 g |
| Mechanical resistance (Rms) | 3.342 kg/s |
| Force factor (Bl) | 12.64 T·m |
| Effective piston area (Sd) | 343.1 cm² |
| Linear excursion (Xmax, one-way) | 4.5 mm |
| Displacement volume (Vd) | 154.4 cm³ |
| Efficiency bandwidth product (EBP) | 56.59 |
Motor
| Voice coil wire | Copper |
|---|

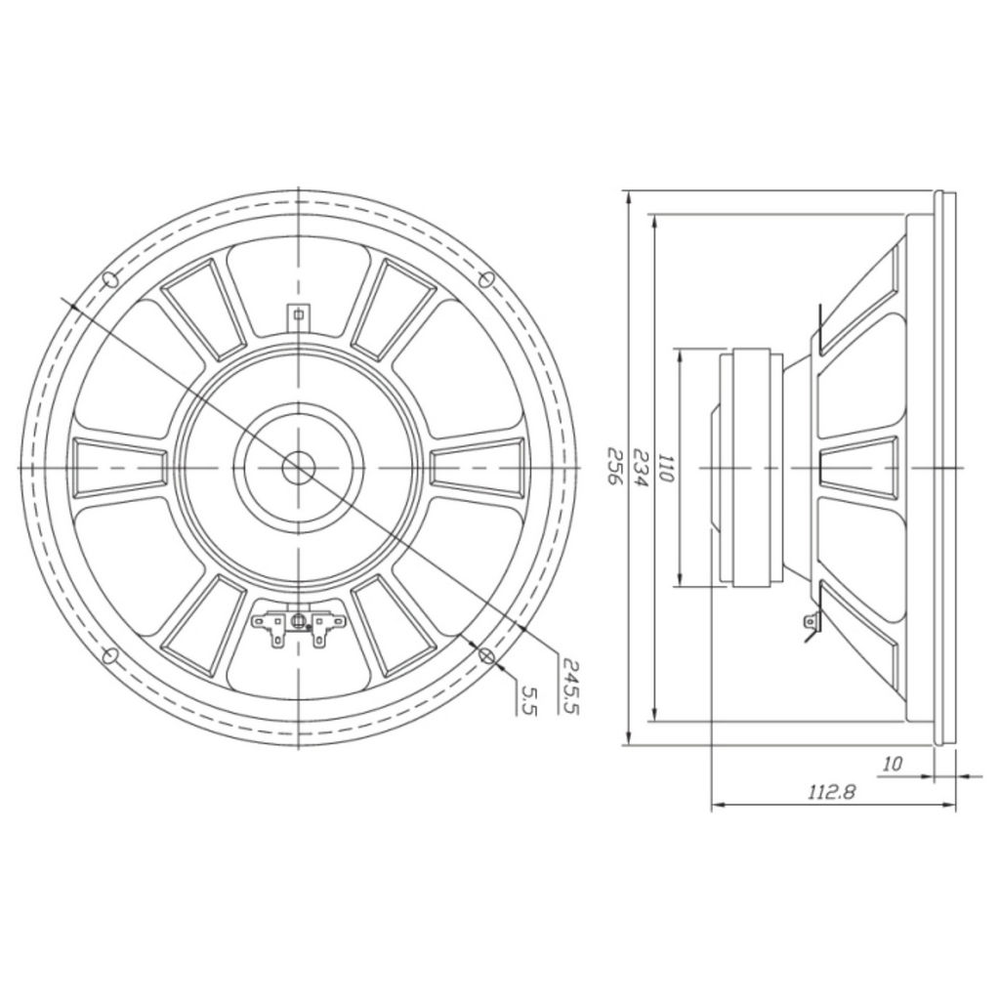

Mounting
| Overall diameter | 256 mm |
|---|---|
| Cutout diameter | 234 mm |
| Mounting depth | 112.8 mm |
| Flange thickness | 10 mm |
| Bolt circle diameter | 245.5 mm |
| Mounting holes | 4 |
| Voice coil diameter | 35 mm |
| Weight | 2.123 kg |
Materials
| Cone | Treated Paper |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- DC250-8 Specification Sheet
- DC250-8 Data Files
- DC250-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
