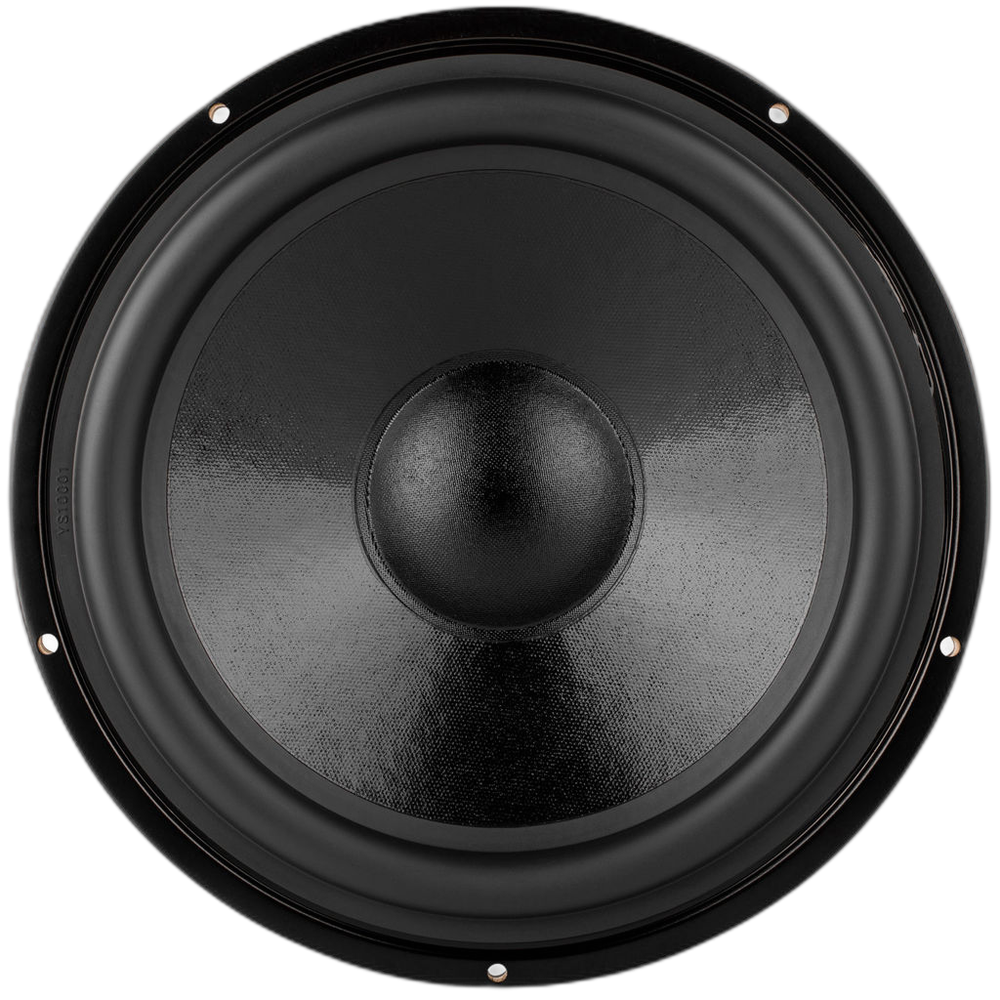

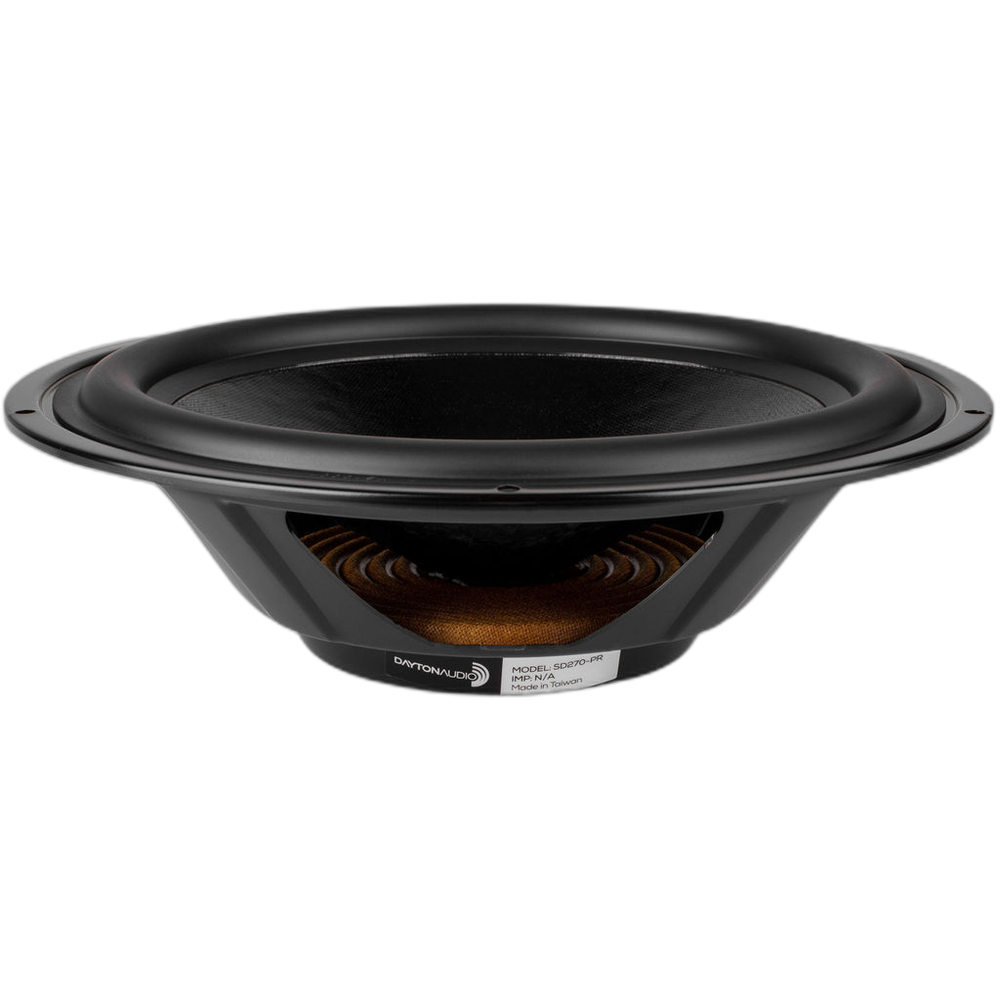

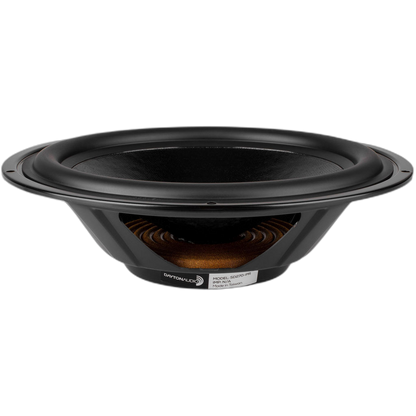

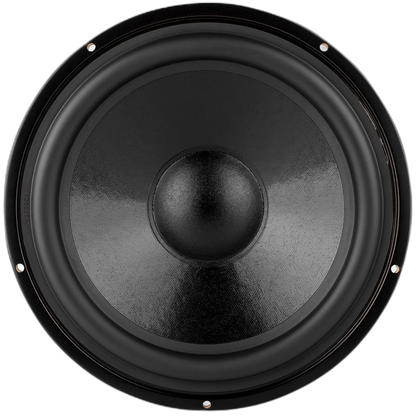

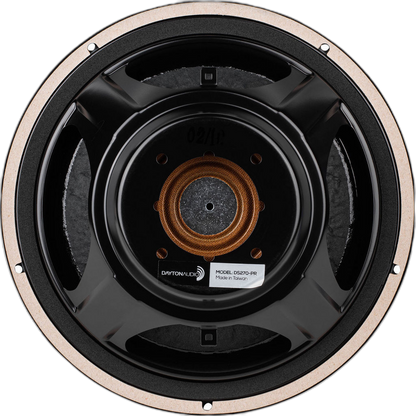

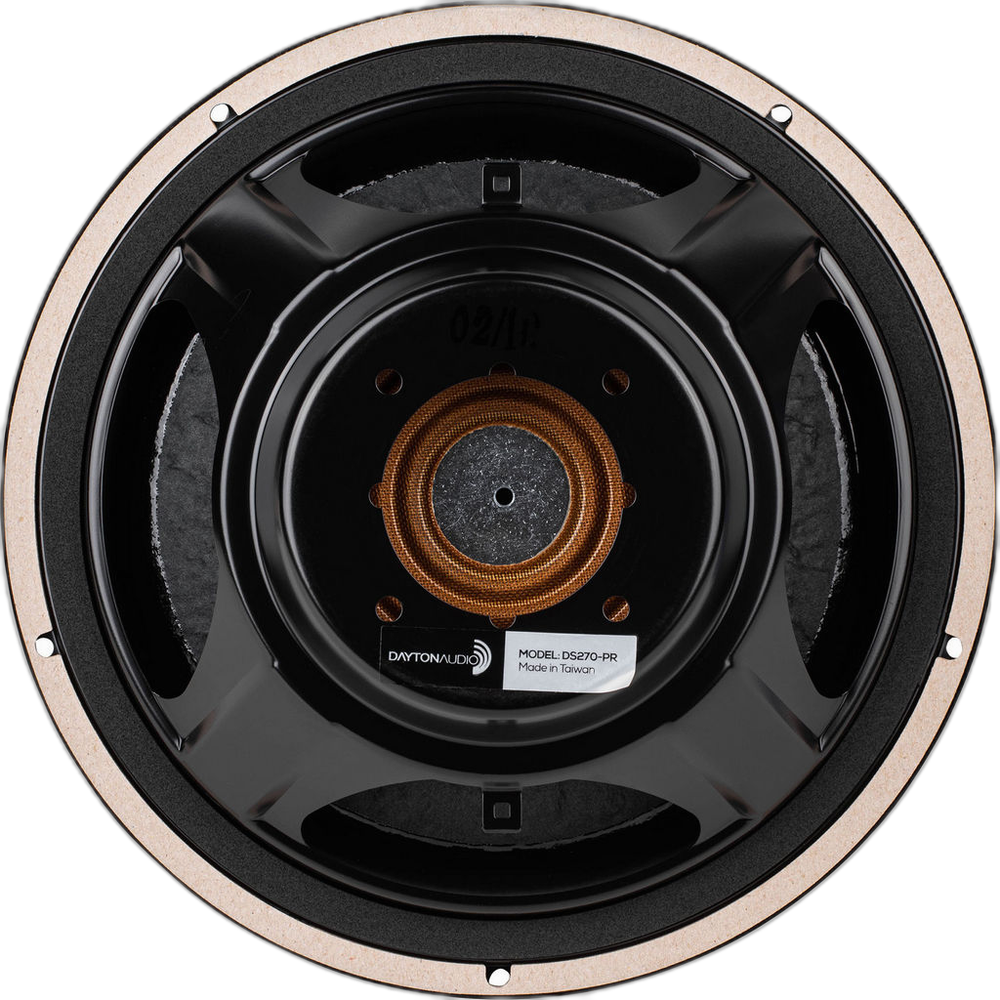

The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, the passives match the Shielded DVC line of subwoofers, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to small active/passive subwoofer systems.

Note: Adding mass to the passive radiator will decrease Fs and increase Qms.

Tip: As a general rule the passive radiator(s) should be able to move double the volume of air as the active woofer(s)/subwoofer(s) in the system. For example: A passive radiator system for a 10" woofer/subwoofer that has 10mm of X-max would require 2-10" passive radiators with 10mm of X-max. For single passive radiator systems, it is common to use a passive that is larger than the active woofer(s)/subwoofer(s).

Features

  • Smooth, low-distortion bass performance
  • Robust construction with high-excursion design
  • Elegant appearance adds class to any project
  • Cosmetic match for Designer Series woofers

Specifications

General

Driver type Passive Radiator
Nominal size 10"
Series Designer

Thiele/Small parameters

Resonant frequency (Fs) 21.9 Hz
Mechanical Q (Qms) 3.98
Equivalent volume (Vas) 105.6 L
Compliance (Cms) 0.6 mm/N
Moving mass (Mms) 88.4 g
Mechanical resistance (Rms) 3.1 kg/s
Effective piston area (Sd) 353 cm²
Linear excursion (Xmax, one-way) 11 mm
Displacement volume (Vd) 388.3 cm³

Mounting

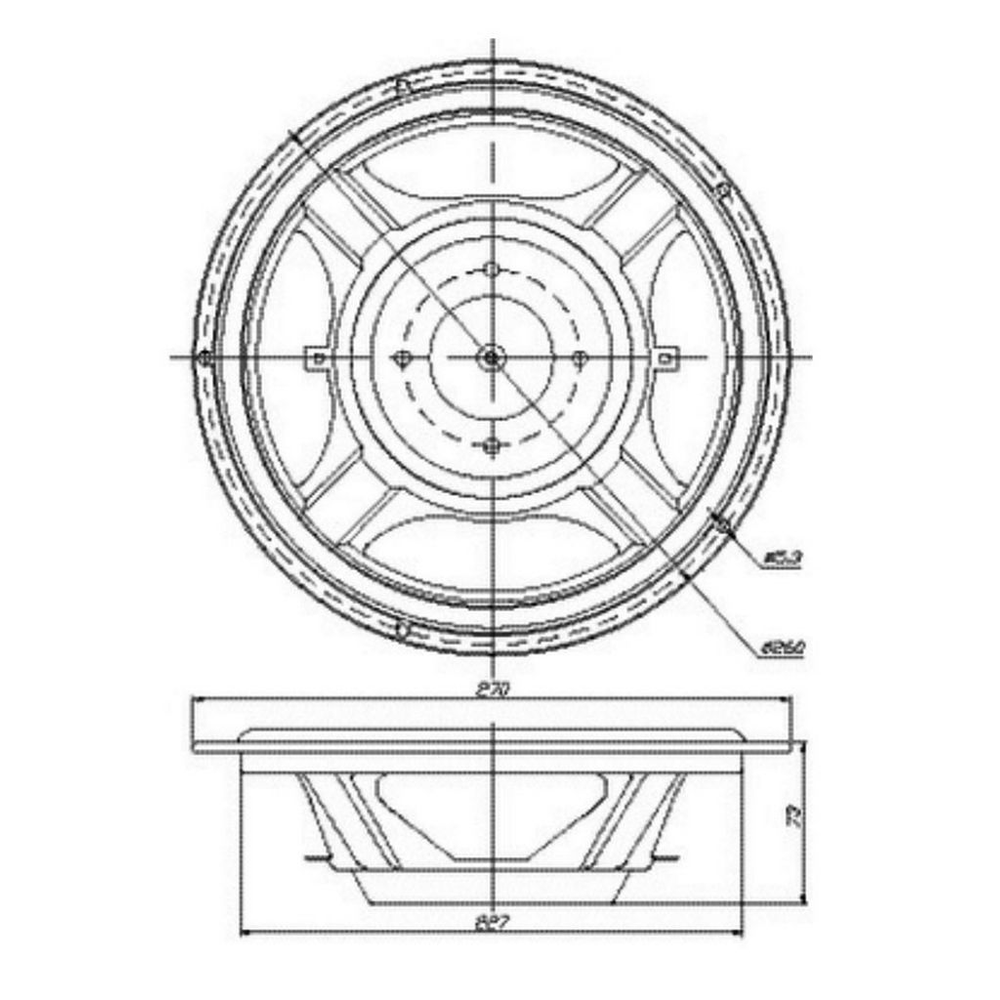

Overall diameter 270 mm
Cutout diameter 227 mm
Mounting depth 71.4 mm
Mounting holes 5
Weight 0.6804 kg

Materials

Cone Coated Paper
Surround Rubber
Basket Steel
  • Xmax is quoted one-way (peak), not peak-to-peak.

Downloads

  • DS270-PR Cutout & Recess Template (NB Audio) NB Audio CAD: DXF, PDF, SVG in a ZIP, 48 KBEvery figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
