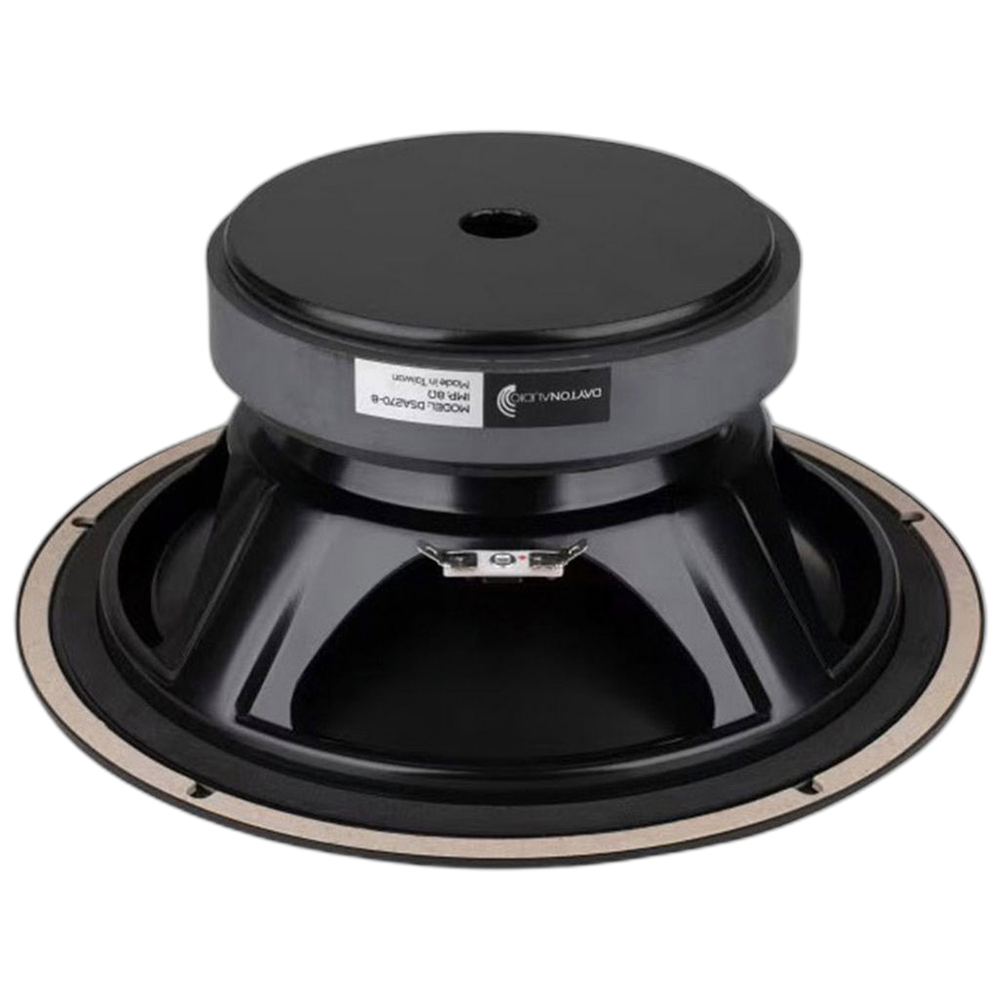

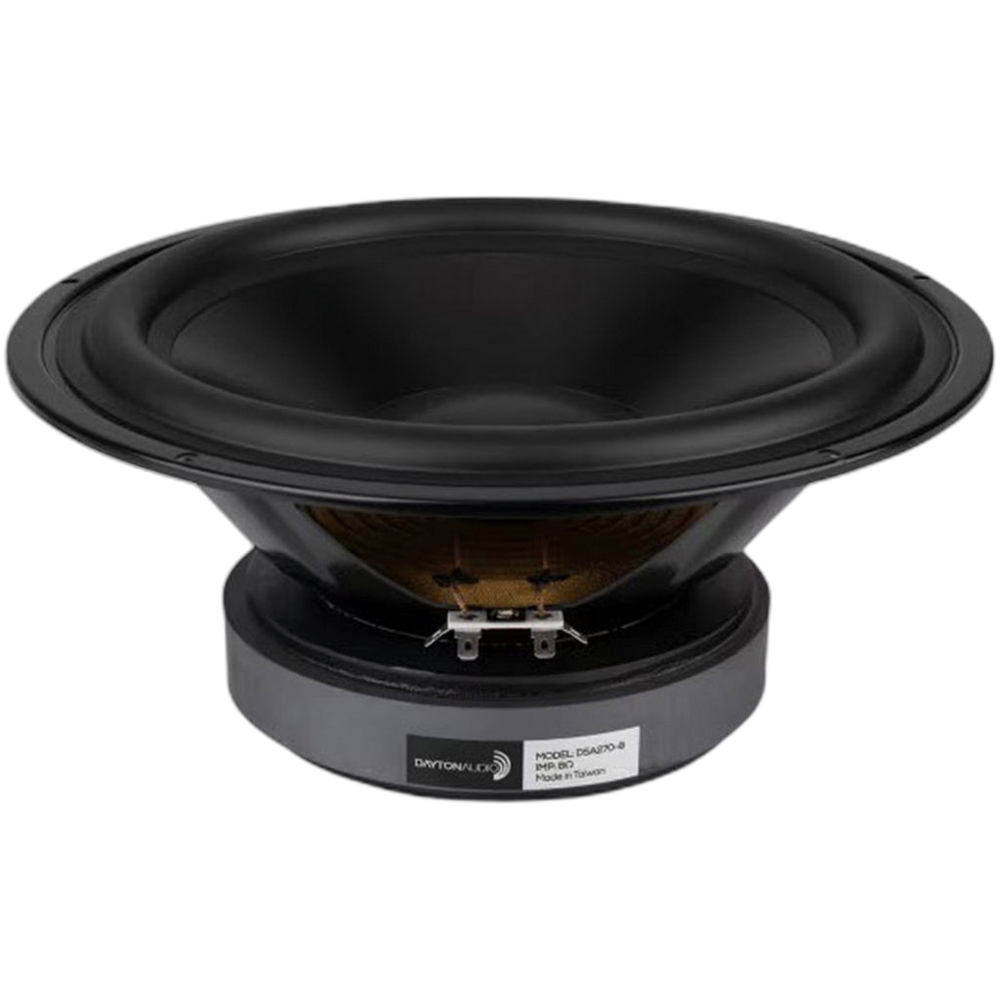

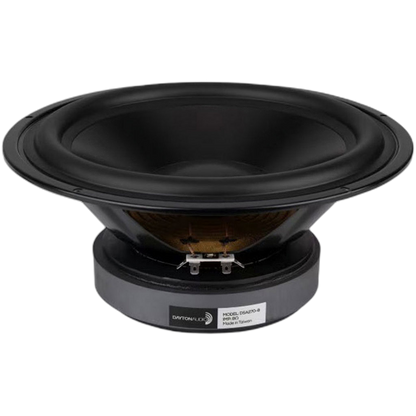

Dayton Audio - 10" Designer Woofer Aluminium - DSA270-8
Dayton Audio - 10" Designer Woofer Aluminium - DSA270-8
Out of stock
Couldn't load pickup availability
Description
The Dayton Audio Designer Series DSA270-8 10" can operate at its full rated power down to 27 Hz without exceeding Xmax!
The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.
>p>These speakers combine useful performance parameters with elegant style. Carefully optimised to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.
Features
- Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
- Low distortion motor system with copper shorting ring

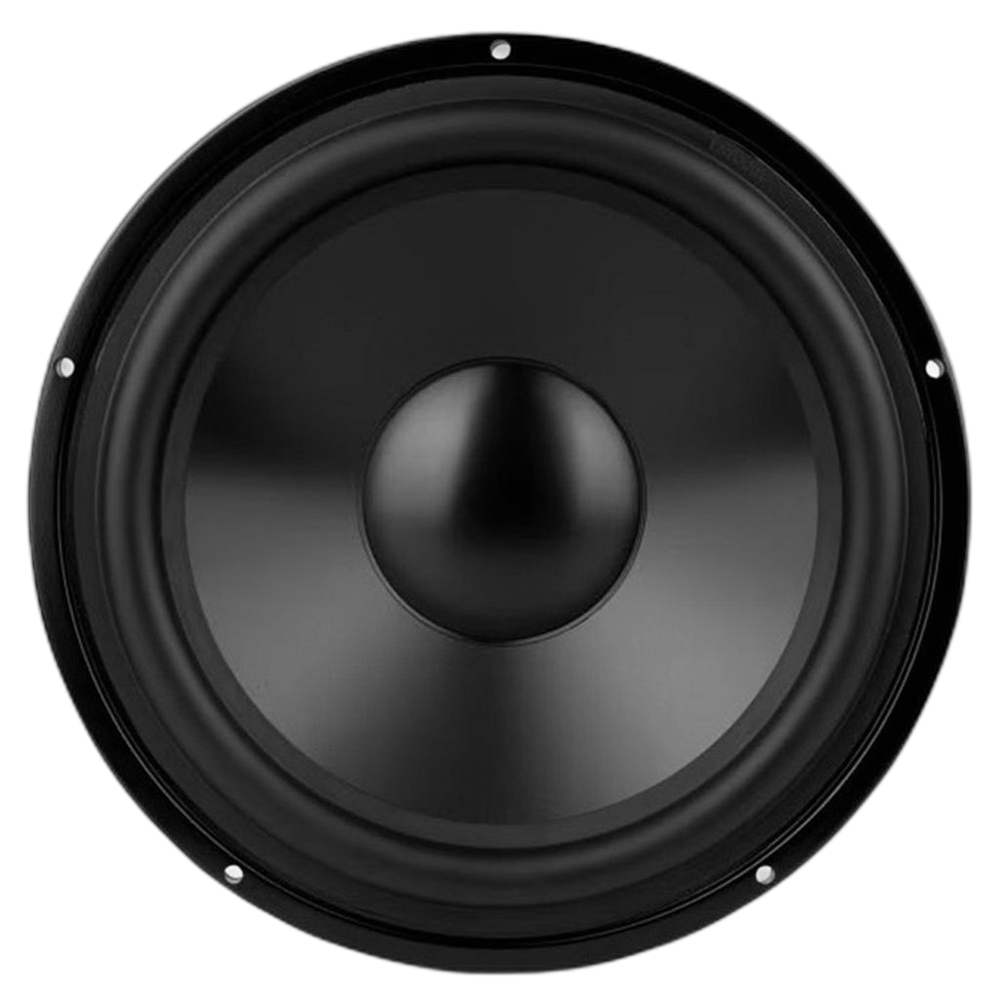

- Black anodised aluminium cone, half roll rubber surround for durability and accurate reproduction
- Optimised to yield the smallest possible box volume and lowest 3 dB down point

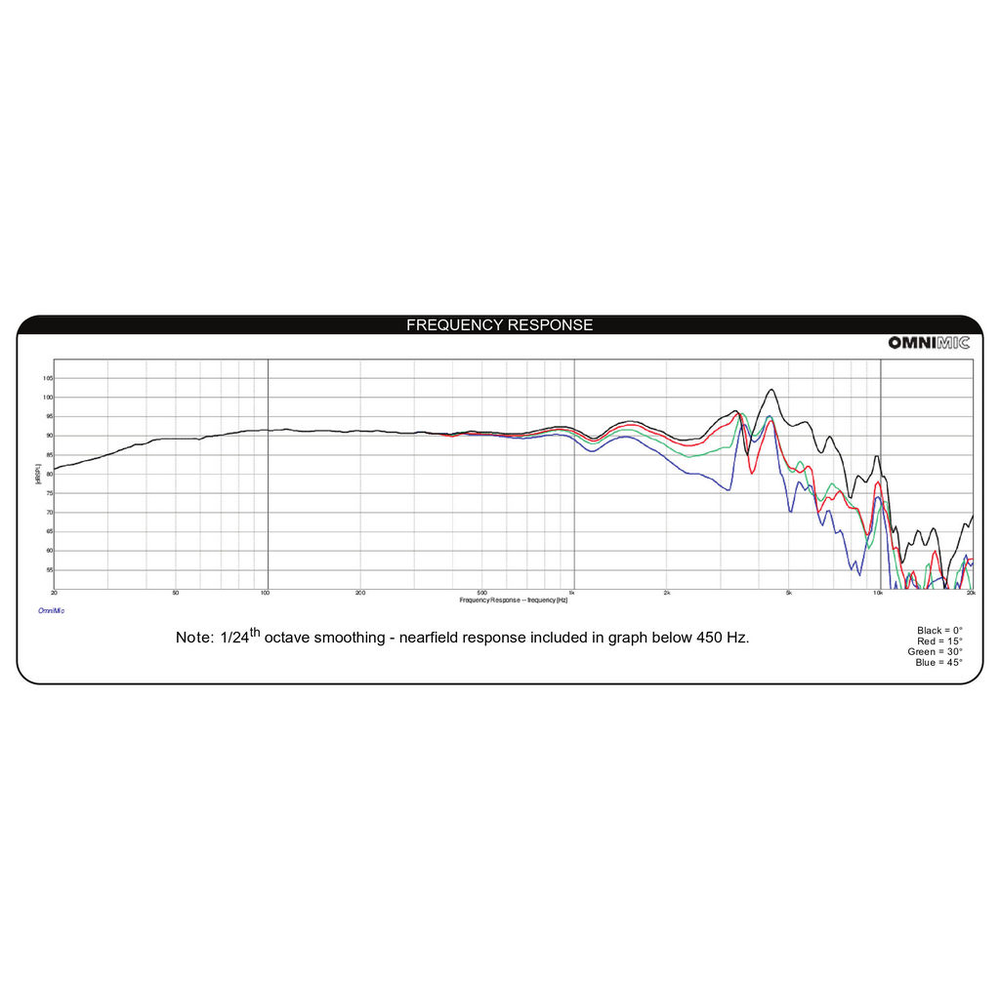

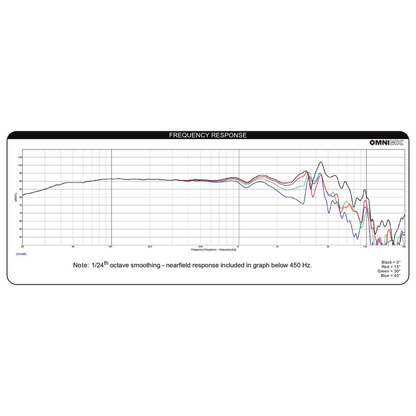

- Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
- Vented pole piece for minimised power compression and maximised reliability
- Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 10" |
| Nominal impedance | 8Ω |
| Series | Designer |
| Power handling (RMS) | 100 W |
| Power handling (program) | 200 W |
| Sensitivity | 90.4 dB |
| Frequency range | 29 – 6,000 Hz |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 29.61 Hz |
|---|---|
| DC resistance (Re) | 5.4 Ω |
| Voice coil inductance (Le) | 1.07 mH |
| Mechanical Q (Qms) | 2.09 |
| Electrical Q (Qes) | 0.47 |
| Total Q (Qts) | 0.39 |
| Equivalent volume (Vas) | 88.1 L |
| Compliance (Cms) | 0.49 mm/N |
| Moving mass (Mms) | 59.69 g |
| Mechanical resistance (Rms) | 5.305 kg/s |
| Force factor (Bl) | 11.2 T·m |
| Effective piston area (Sd) | 353 cm² |
| Linear excursion (Xmax, one-way) | 5.5 mm |
| Displacement volume (Vd) | 194.2 cm³ |
| Efficiency bandwidth product (EBP) | 63 |
Motor
| Magnet weight | 1.76 kg |
|---|---|
| Voice coil wire | Copper |

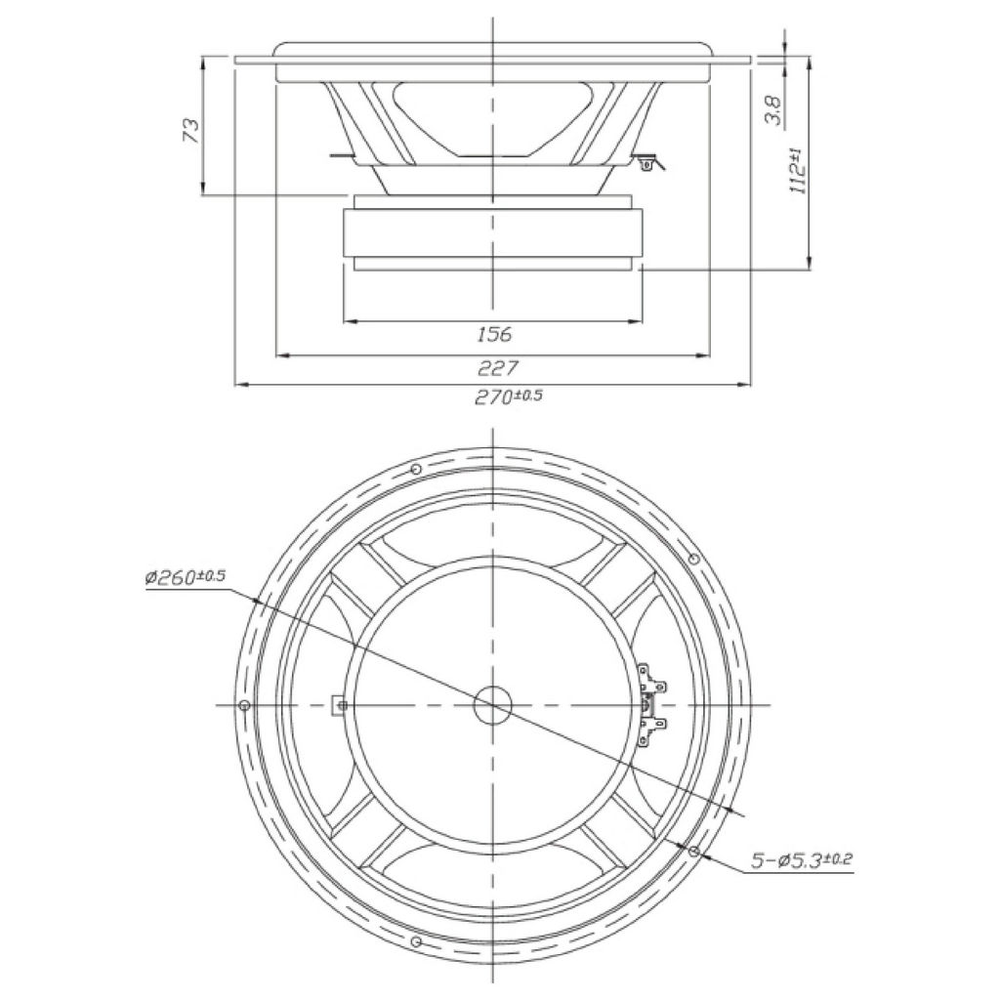

Mounting
| Overall diameter | 270 mm |
|---|---|
| Cutout diameter | 227 mm |
| Mounting depth | 112 mm |
| Flange thickness | 3.8 mm |
| Bolt circle diameter | 260 mm |
| Mounting holes | 5 |
| Mounting hole diameter | 5.3 mm |
| Voice coil diameter | 38.5 mm |
| Weight | 4.808 kg |
Materials
| Cone | Aluminium |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- DSA270-8 Specification Sheet
- DSA270-8 Data Files
- DSA270-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Check it against your driver before you cut.
