Dayton Audio
Dayton Audio - 10" Low Profile Subwoofer DVC - LS10-44
Dayton Audio - 10" Low Profile Subwoofer DVC - LS10-44
Regular price
$364.95 AUD
Regular price
Sale price
$364.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
A shallow 10" dual voice coil subwoofer from Dayton Audio's LS Series, made for walls, floors, ceilings and tight spots in cars, such as behind a ute's seats. A flat, rigid piston of aluminium honeycomb with glass fibre skins replaces the usual cone, and a balanced double-roll surround keeps its motion stable. Dual aluminium shorting rings lower inductance, and the dual 4Ω voice coils can be wired for 2Ω or 8Ω.
Features
- Innovative low-profile subwoofer, less than 3.8" thick
- Long Xmax for uncompromised bass performance
- Dual 4Ω voice coils, 6 layers in total, for multiple wiring options
- Rigid flat honeycomb fibreglass cone
- Low-distortion ferrite motor with dual aluminium shorting rings
- Balanced rubber double-roll surround improves stability and control
Specifications
Specifications
General
| Driver type | Subwoofer |
|---|---|
| Nominal size | 10" |
| Nominal impedance | 4+4Ω |
| Power handling (RMS) | 250 W |
| Power handling (program) | 500 W |
| Sensitivity | 86.5 dB |
| Frequency range | 30 – 300 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 34.3 Hz |
|---|---|
| DC resistance (Re) | 7.4 Ω |
| Voice coil inductance (Le) | 5.25 mH |
| Mechanical Q (Qms) | 5.15 |
| Electrical Q (Qes) | 0.47 |
| Total Q (Qts) | 0.43 |
| Equivalent volume (Vas) | 30.8 L |
| Compliance (Cms) | 0.16 mm/N |
| Moving mass (Mms) | 132 g |
| Force factor (Bl) | 21.1 T·m |
| Effective piston area (Sd) | 366.4 cm² |
| Linear excursion (Xmax, one-way) | 10 mm |
| Displacement volume (Vd) | 366.4 cm³ |
| Efficiency bandwidth product (EBP) | 72.98 |
Motor
| Voice coil wire | Cast Aluminum |
|---|

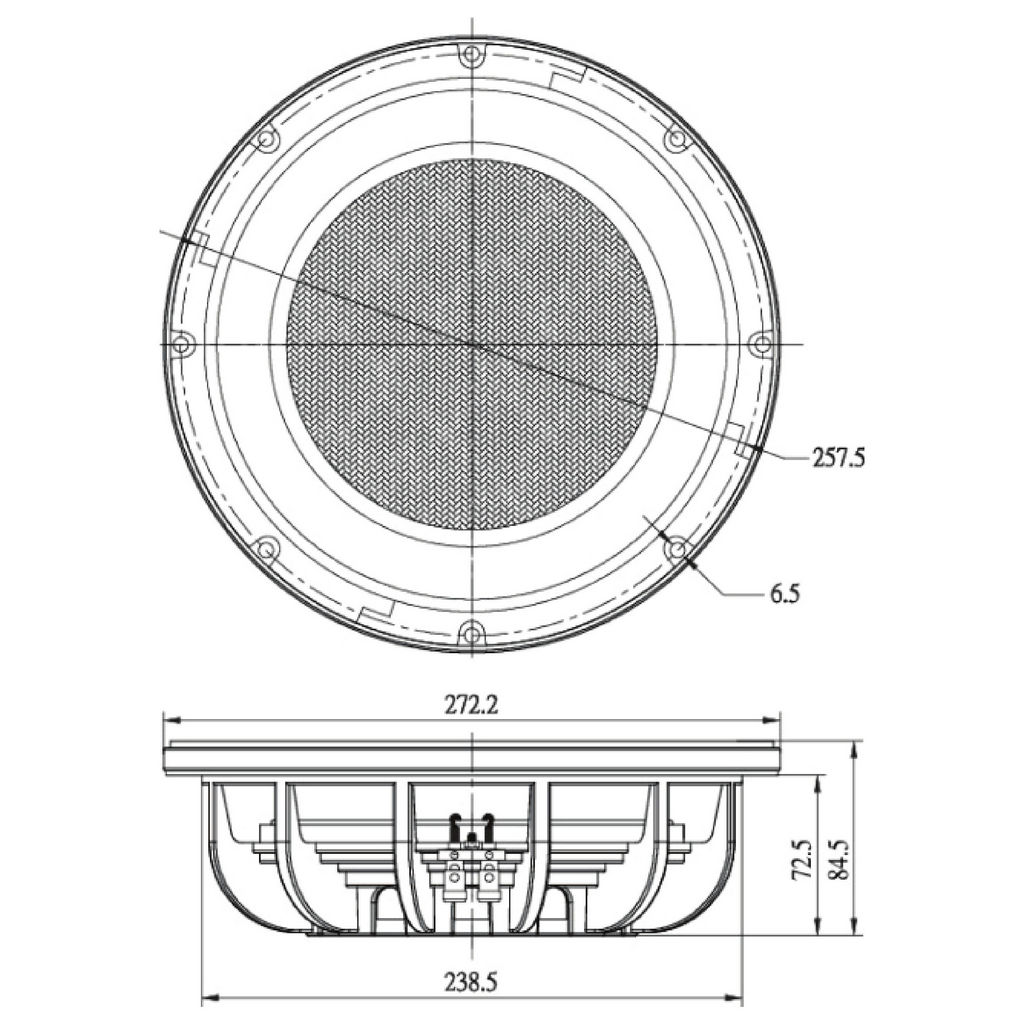

Mounting
| Overall diameter | 272.2 mm |
|---|---|
| Cutout diameter | 238.5 mm |
| Mounting depth | 84.5 mm |
| Mounting holes | 8 |
| Voice coil diameter | 50 mm |
| Weight | 4.921 kg |
Materials
| Cone | Fiberglass Cone |
|---|---|
| Surround | Rubber |
| Voice coil former | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Re, Le, Bl and sensitivity are quoted with the two voice coils wired in series (8 Ω).
