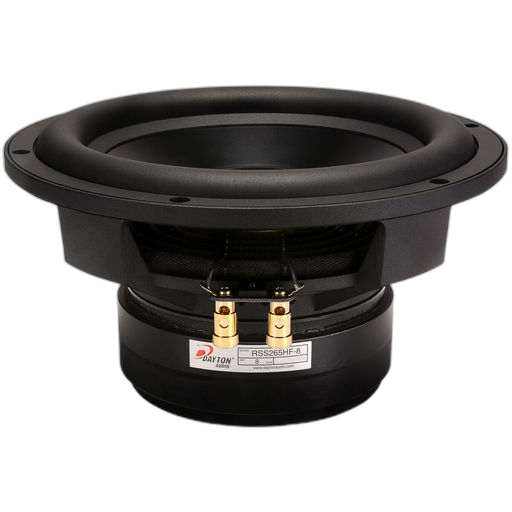

Dayton Audio - 10" Reference Series HF Subwoofer - RSS265HF-8
Dayton Audio - 10" Reference Series HF Subwoofer - RSS265HF-8
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of the RSS265HF-8 10" subwoofer is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilising three short-circuit paths within the motor structure. A durable aramid fibre spider and extensive venting throughout provide quiet and uniform excursion. The black anodised cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose this High Fidelity (HF) version for home speaker systems when your priority is clean, low bass and you are not restricted by cabinet size.
Features
- Extensively vented motor eliminates power compression and allows quiet excursion
- Lighter-weight black anodised aluminium cone minimises moving mass
- 2-layer coil for reduced back EMF
- Triple shorting-ring motor for ultra-low distortion
- Optimised for large enclosures
- Highest quality materials throughout for long-lasting performance
Specifications
Specifications
General
| Driver type | Subwoofer |
|---|---|
| Nominal size | 10" |
| Nominal impedance | 8Ω |
| Series | Reference |
| Power handling (RMS) | 350 W |
| Power handling (program) | 700 W |
| Sensitivity | 84.2 dB |
| Frequency range | 25 – 2,000 Hz |
| Suggested alignment | Sealed |
Thiele/Small parameters
| Resonant frequency (Fs) | 24.9 Hz |
|---|---|
| DC resistance (Re) | 6.5 Ω |
| Voice coil inductance (Le) | 1.57 mH |
| Mechanical Q (Qms) | 2.68 |
| Electrical Q (Qes) | 0.59 |
| Total Q (Qts) | 0.49 |
| Equivalent volume (Vas) | 52.5 L |
| Compliance (Cms) | 0.31 mm/N |
| Moving mass (Mms) | 131 g |
| Mechanical resistance (Rms) | 7.647 kg/s |
| Force factor (Bl) | 15 T·m |
| Effective piston area (Sd) | 346.4 cm² |
| Linear excursion (Xmax, one-way) | 14.3 mm |
| Displacement volume (Vd) | 495.4 cm³ |
| Efficiency bandwidth product (EBP) | 42.2 |
Motor
| Voice coil wire | Copper |
|---|
Mounting
| Overall diameter | 266 mm |
|---|---|
| Cutout diameter | 235 mm |
| Mounting depth | 136.5 mm |
| Flange thickness | 9.5 mm |
| Bolt circle diameter | 248 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 5.3 mm |
| Voice coil diameter | 65.5 mm |
| Weight | 7.734 kg |
Materials
| Cone | Black Anodised Aluminium |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- RSS265HF-8 Specification Sheet
- RSS265HF-8 Data Files
- RSS265HF-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Check it against your driver before you cut.
