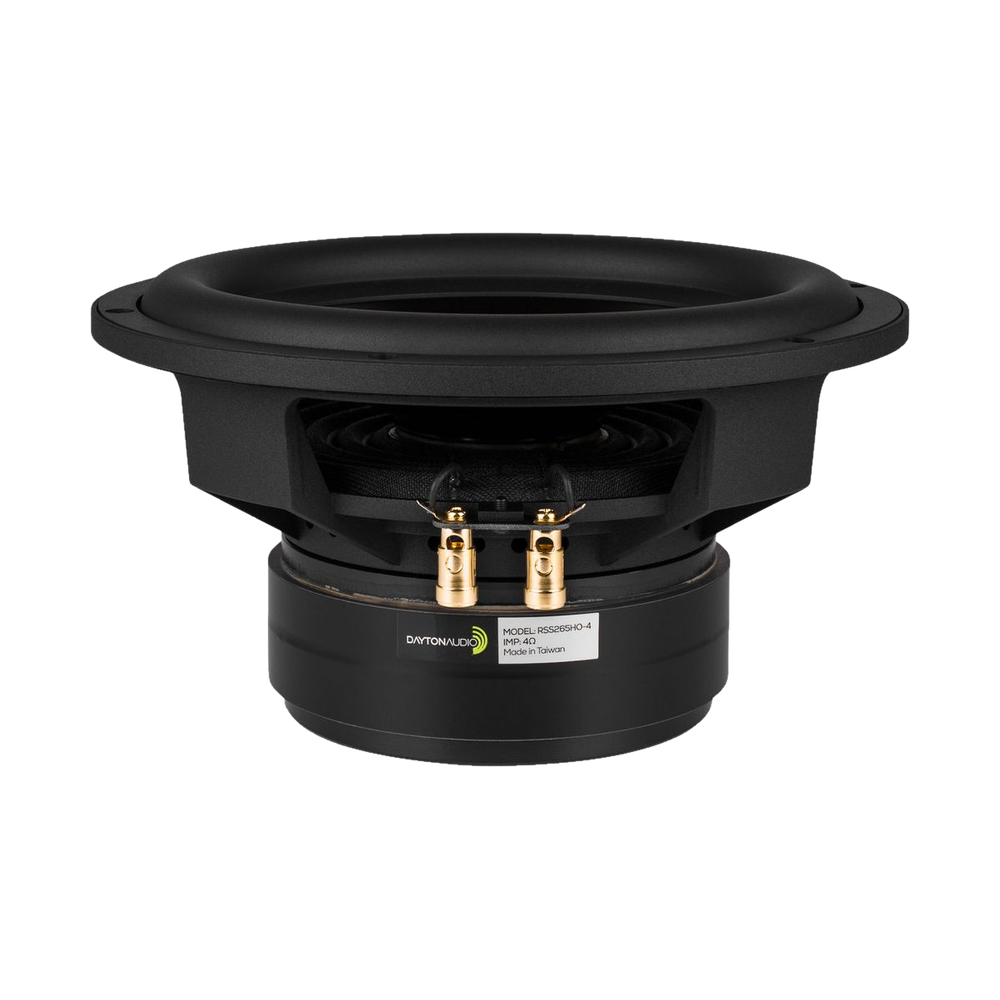

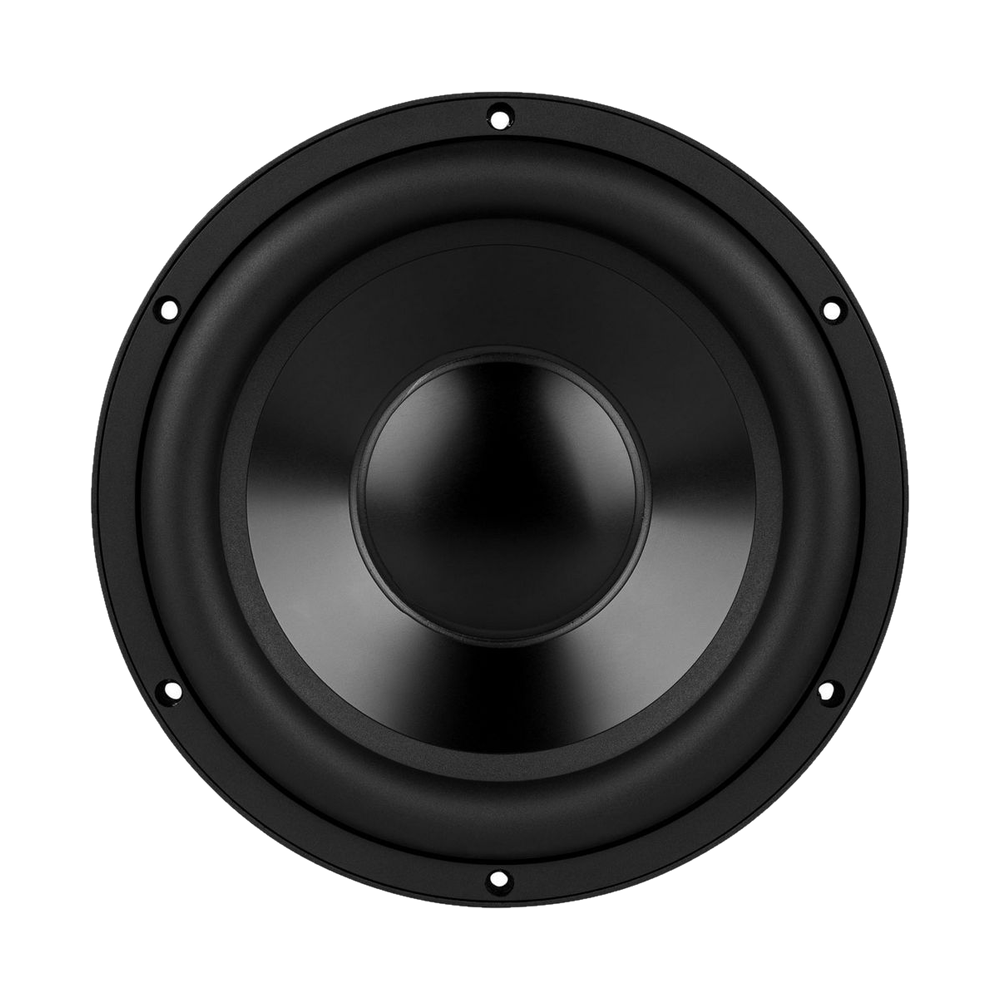

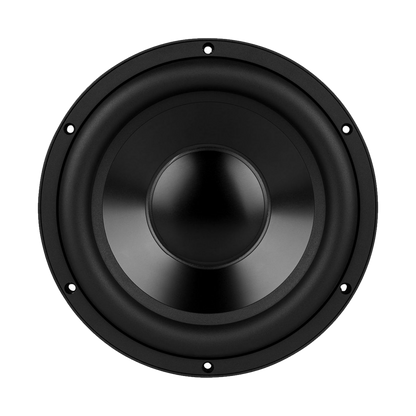

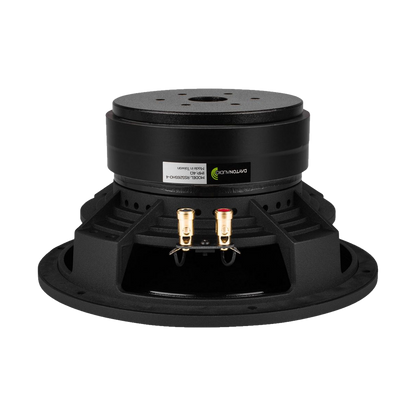

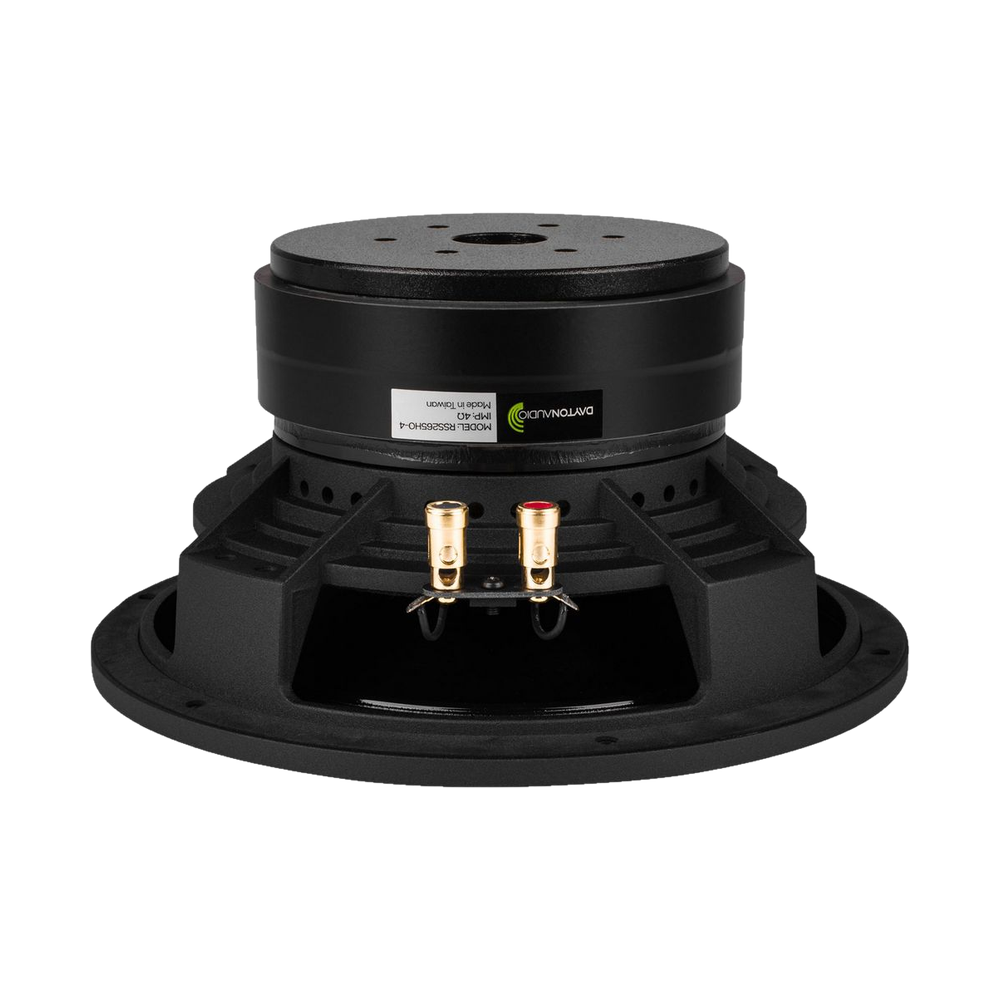

Dayton Audio - 10" Reference Series HO Subwoofer - RSS265HO-4
Dayton Audio - 10" Reference Series HO Subwoofer - RSS265HO-4
Regular price
$469.95 AUD
Regular price
Sale price
$469.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilising three short-circuit paths within the motor structure. A durable aramid fibre spider and extensive venting throughout provide quiet and uniform excursion. The black anodised cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose the high output version for automotive applications or for equalised high-power home subwoofers.
Features
- Extensively vented motor eliminates compression and allows quiet excursion
- Extra-thick black anodised aluminium cone for maximum rigidity
- Triple shorting ring motor for ultra-low distortion
- 4-layer coil for high power handling
- Optimised parameters for small enclosures
- Highest quality materials throughout for long-lasting performance
Specifications
Specifications
General
| Driver type | Subwoofer |
|---|---|
| Nominal size | 10" |
| Nominal impedance | 4Ω |
| Series | Reference |
| Power handling (RMS) | 600 W |
| Power handling (program) | 1,200 W |
| Sensitivity | 87.2 dB |
| Frequency range | 24 – 600 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 26.9 Hz |
|---|---|
| DC resistance (Re) | 3.5 Ω |
| Voice coil inductance (Le) | 1.74 mH |
| Mechanical Q (Qms) | 4.02 |
| Electrical Q (Qes) | 0.39 |
| Total Q (Qts) | 0.35 |
| Equivalent volume (Vas) | 29.4 L |
| Compliance (Cms) | 0.17 mm/N |
| Moving mass (Mms) | 201 g |
| Force factor (Bl) | 17.6 T·m |
| Effective piston area (Sd) | 349.7 cm² |
| Linear excursion (Xmax, one-way) | 12.3 mm |
| Displacement volume (Vd) | 430.1 cm³ |
| Efficiency bandwidth product (EBP) | 68.97 |
Motor
| Magnet weight | 2.83 kg |
|---|---|
| Voice coil wire | Copper |

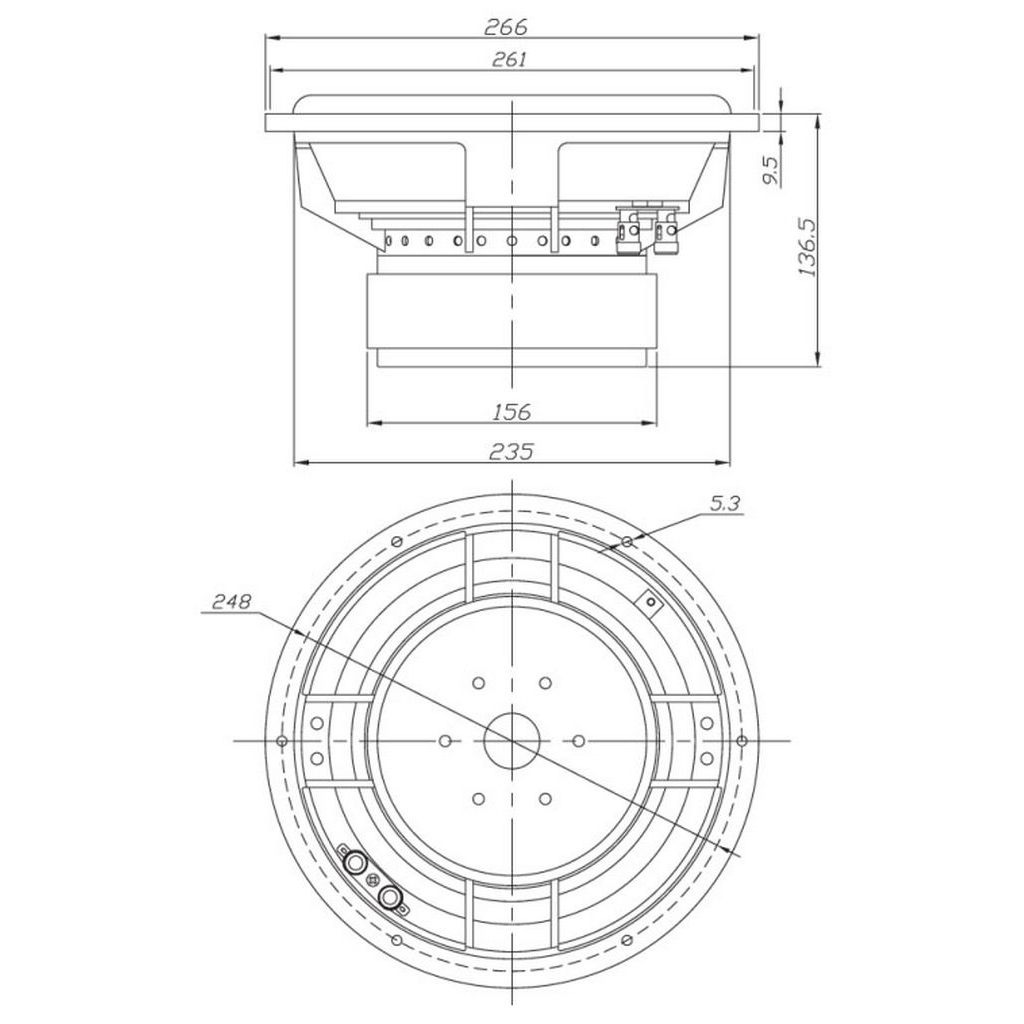

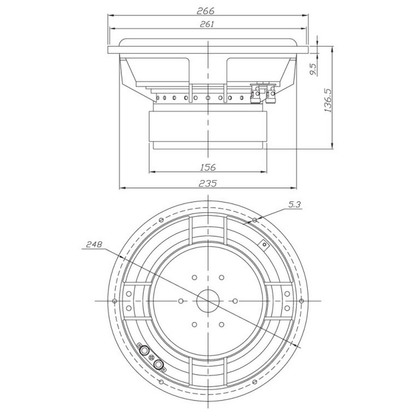

Mounting
| Overall diameter | 266 mm |
|---|---|
| Cutout diameter | 235 mm |
| Mounting depth | 136.5 mm |
| Flange thickness | 9.5 mm |
| Bolt circle diameter | 248 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 5.3 mm |
| Voice coil diameter | 64 mm |
| Weight | 7.756 kg |
Materials
| Cone | Black Anodized Aluminum Cone |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminum |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- RSS265HO-4 Specification Sheet PDF, 244 KB
- RSS265HO-4 Data Files FRD/ZMA data, ZIP, 60 KB
