Dayton Audio - 100W Plate Amplifier - SPA100-D

Description:

The Dayton Audio SPA100-D high-efficiency subwoofer plate amp has been engineered to include features like low level audio connections, adjustable crossover frequency, adjustable level, switchable bass boost (6 dB @ 35 Hz), auto on/off circuit activated by input signal, and comprehensive internal protection against shorted speaker loads, thermal faults, and overload conditions. Ideal for installation into cabinets that cannot accommodate bulky old-style amps.

Features:

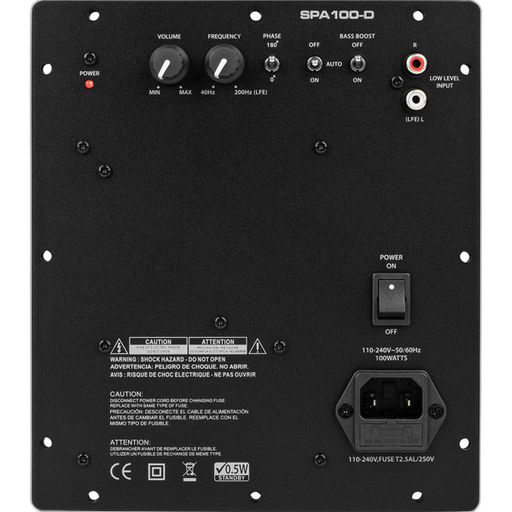

• Low-Level Inputs (Left/Right): RCA style jacks that will accept standard line level inputs from a pre-amp level source.
• 100W output @ 4ohms
• Power clipping LED indicators
• Volume (Gain) Control to match the input sensitivity to the pre-amp source
• Low-Pass Frequency cross-over to help integrate the subwoofer with the rest of the system.
• Bass Boost: Switchable, 6db at 35Hz
• Dayton Audio 5year warranty.


Specifications:

• 100 watts RMS into 4 ohms @ < 1.0% THD

• Signal to noise ratio: 90 dB (A-weighted)

• Weight: 1.0kg
