Dayton Audio

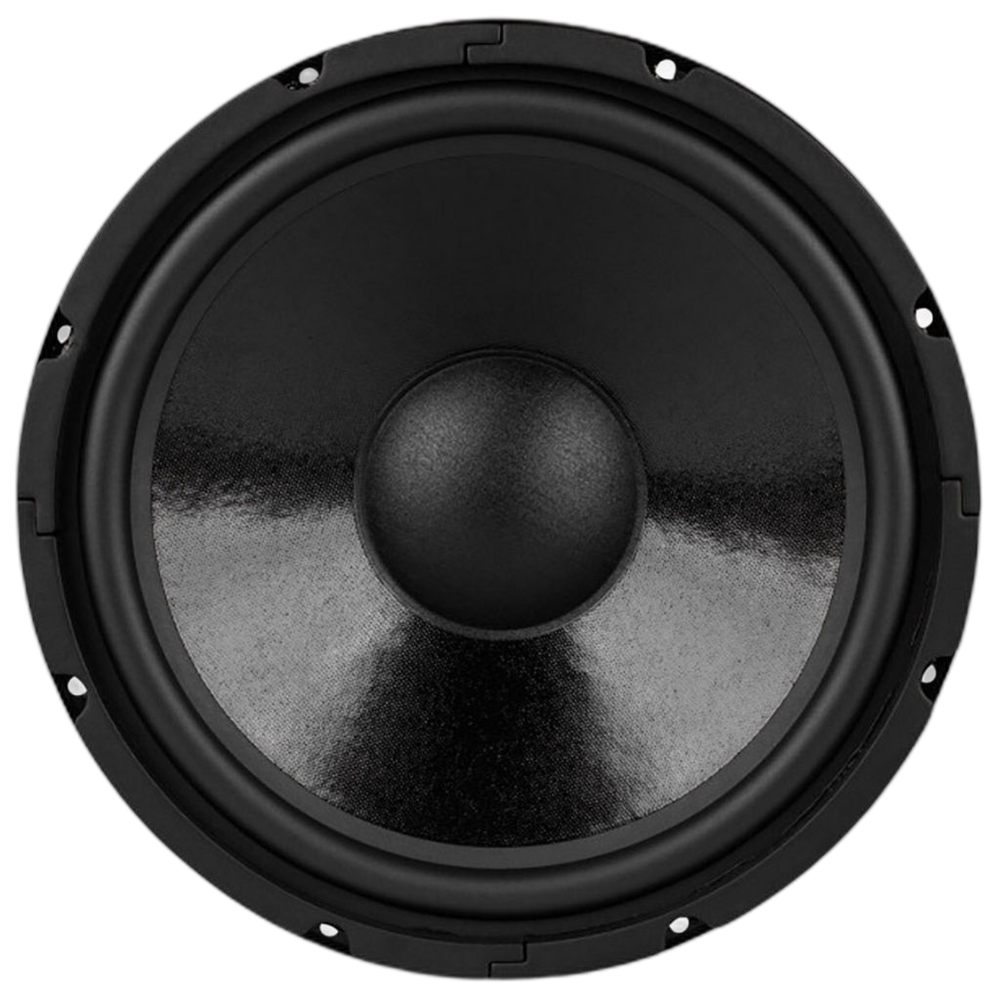

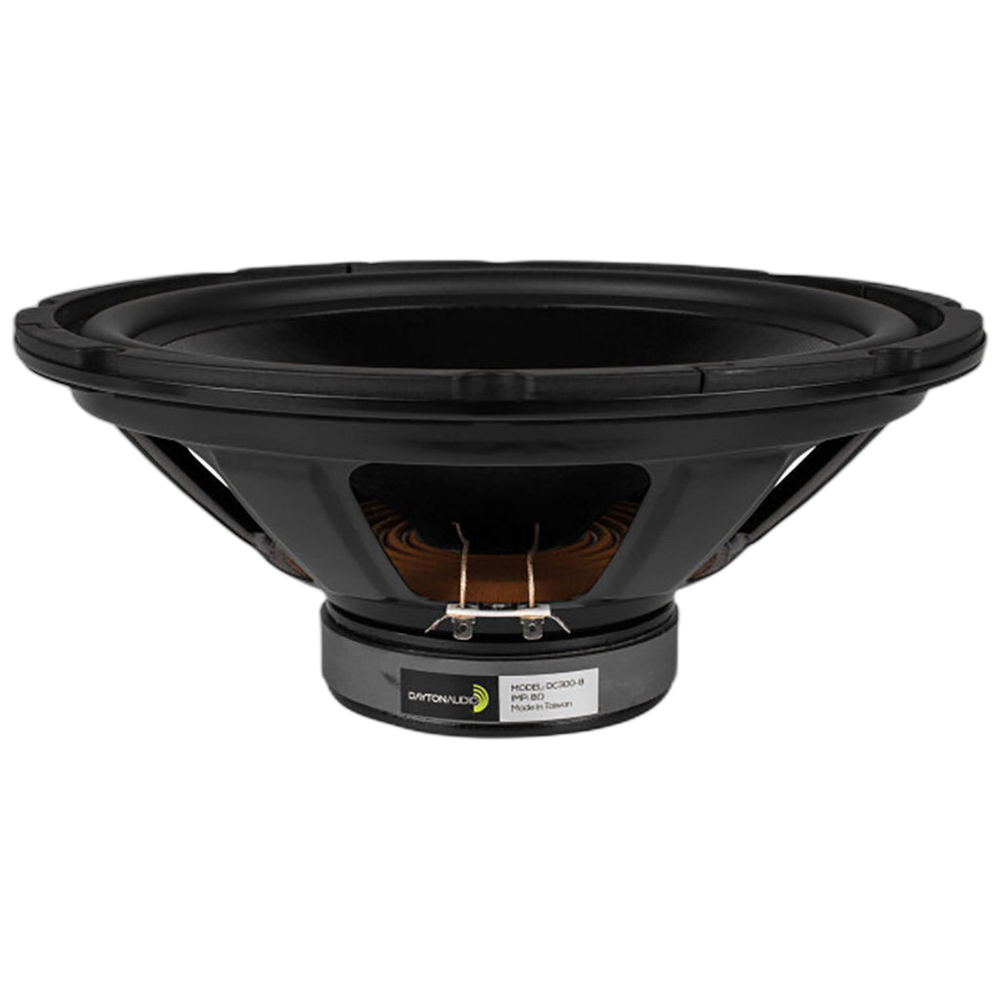

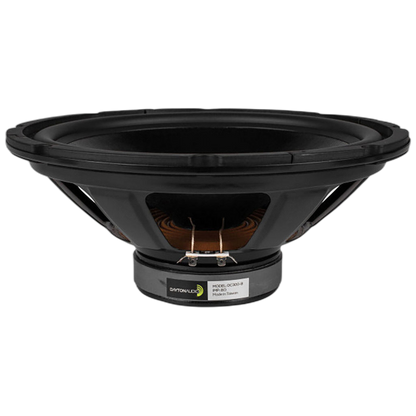

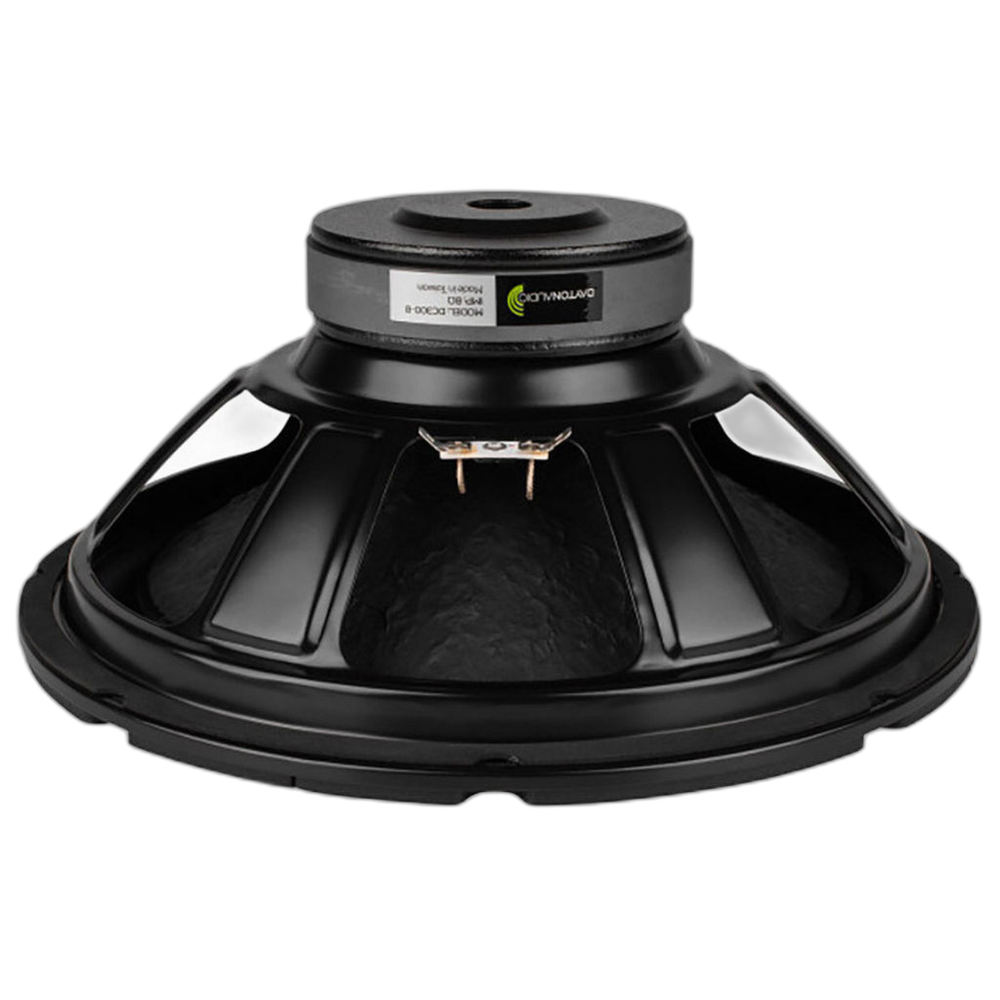

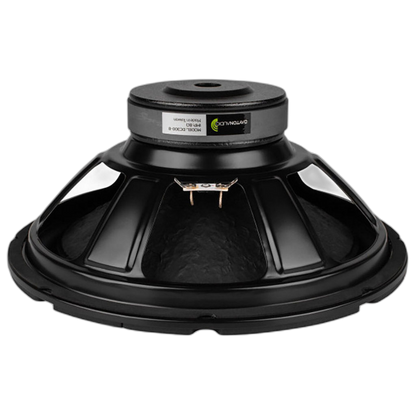

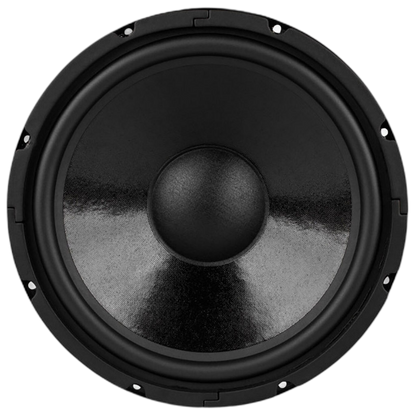

Dayton Audio - 12" Classic Woofer - DC300-8

Dayton Audio - 12" Classic Woofer - DC300-8

Regular price $144.95
Regular price Sale price $144.95
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.

View full details

Description

One of the main design goals at Dayton Audio is to create loudspeakers that can achieve high levels of performance at reasonable prices and that's just what they did with the Dayton Audio Classic 12" woofer.

Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC300-8 12" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. Smooth frequency response and extended bass performance make this driver ideal for use in large format two-way and classic three-way loudspeaker designs. A Qts of 0.43 allows the DC300-8 to work well in both sealed and ported speaker enclosures.

A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminium voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.

Features

  • Works great as a general replacement woofer
  • Excellent price/performance ratio
  • Bring those old vintage speakers back to life
  • Long lasting rubber surround beats foam

Specifications

General

Driver type Woofer
Nominal size 12"
Nominal impedance 8Ω
Series Classic
Power handling (RMS) 80 W
Power handling (program) 160 W
Sensitivity 90.3 dB

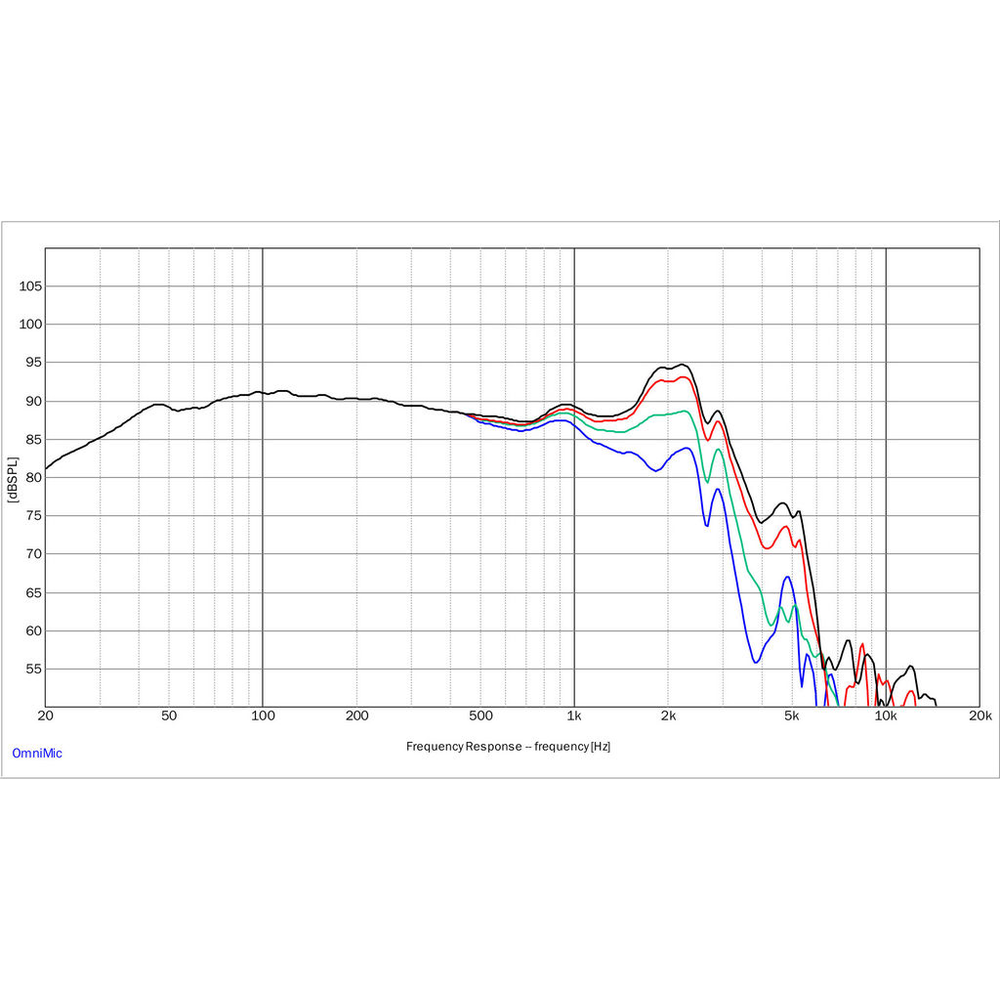

Frequency range 25 – 2,500 Hz
Suggested alignment Either

Thiele/Small parameters

Resonant frequency (Fs) 22.9 Hz
DC resistance (Re) 6.8 Ω
Voice coil inductance (Le) 2.93 mH
Mechanical Q (Qms) 3.21
Electrical Q (Qes) 0.37
Total Q (Qts) 0.33
Equivalent volume (Vas) 181.5 L
Compliance (Cms) 0.48 mm/N
Moving mass (Mms) 100.7 g
Mechanical resistance (Rms) 4.514 kg/s
Force factor (Bl) 16.3 T·m
Effective piston area (Sd) 498.8 cm²
Linear excursion (Xmax, one-way) 4.3 mm
Displacement volume (Vd) 214.5 cm³
Efficiency bandwidth product (EBP) 61.89

Motor

Voice coil wire Copper

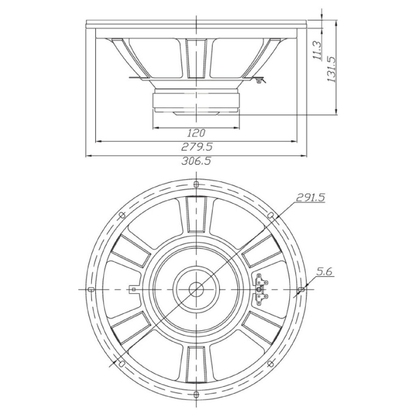

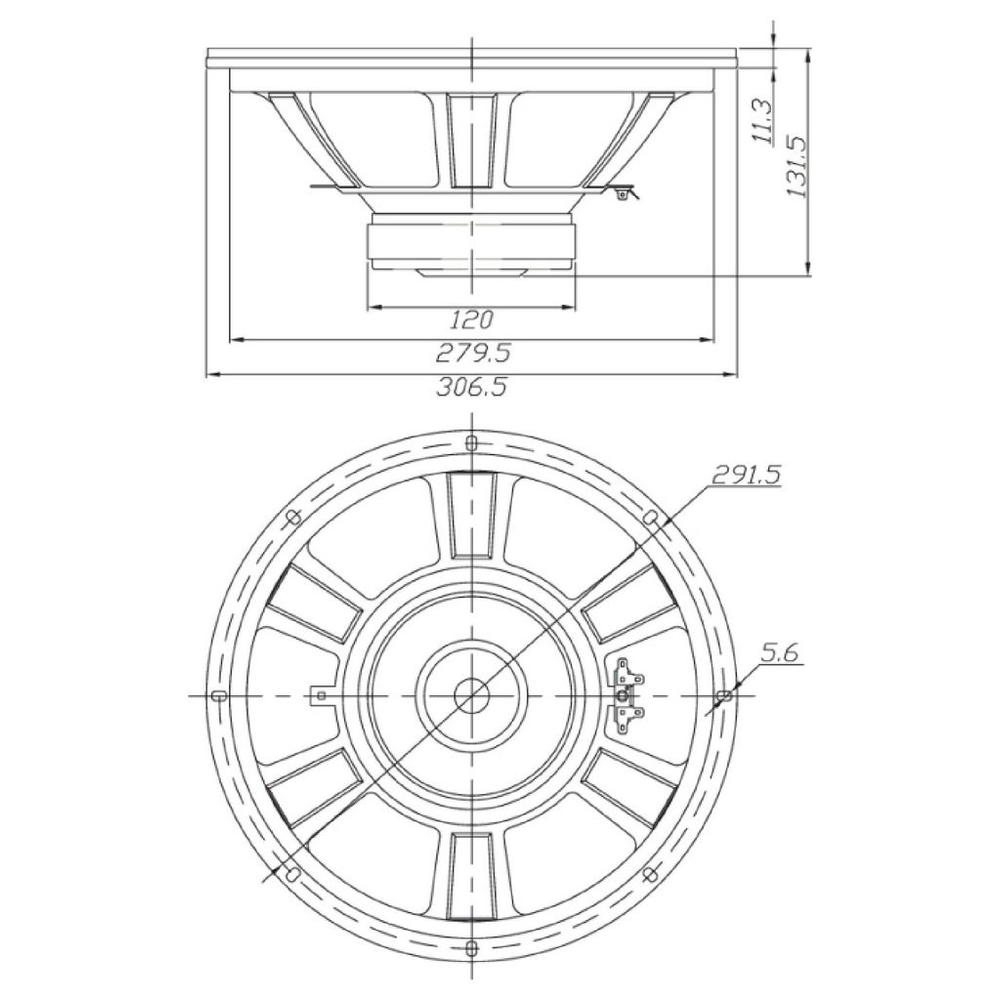

Mounting

Overall diameter 306.5 mm
Cutout diameter 279.5 mm
Mounting depth 131.5 mm
Flange thickness 11.3 mm
Bolt circle diameter 291.5 mm
Mounting holes 8
Voice coil diameter 51 mm
Weight 3.538 kg

Materials

Cone Treated Paper
Surround Rubber
Voice coil former Aluminium
Basket Steel
Magnet Ferrite
  • Xmax is quoted one-way (peak), not peak-to-peak.
  • Sensitivity measured at 2.83V/1m.
