Dayton Audio - 12" Designer Passive Radiator Aluminium - DSA315-PR
Dayton Audio - 12" Designer Passive Radiator Aluminium - DSA315-PR
Out of stock
Couldn't load pickup availability

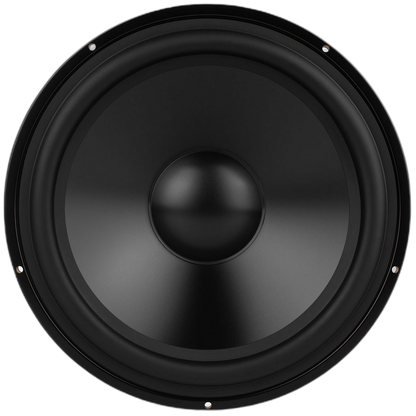

Description

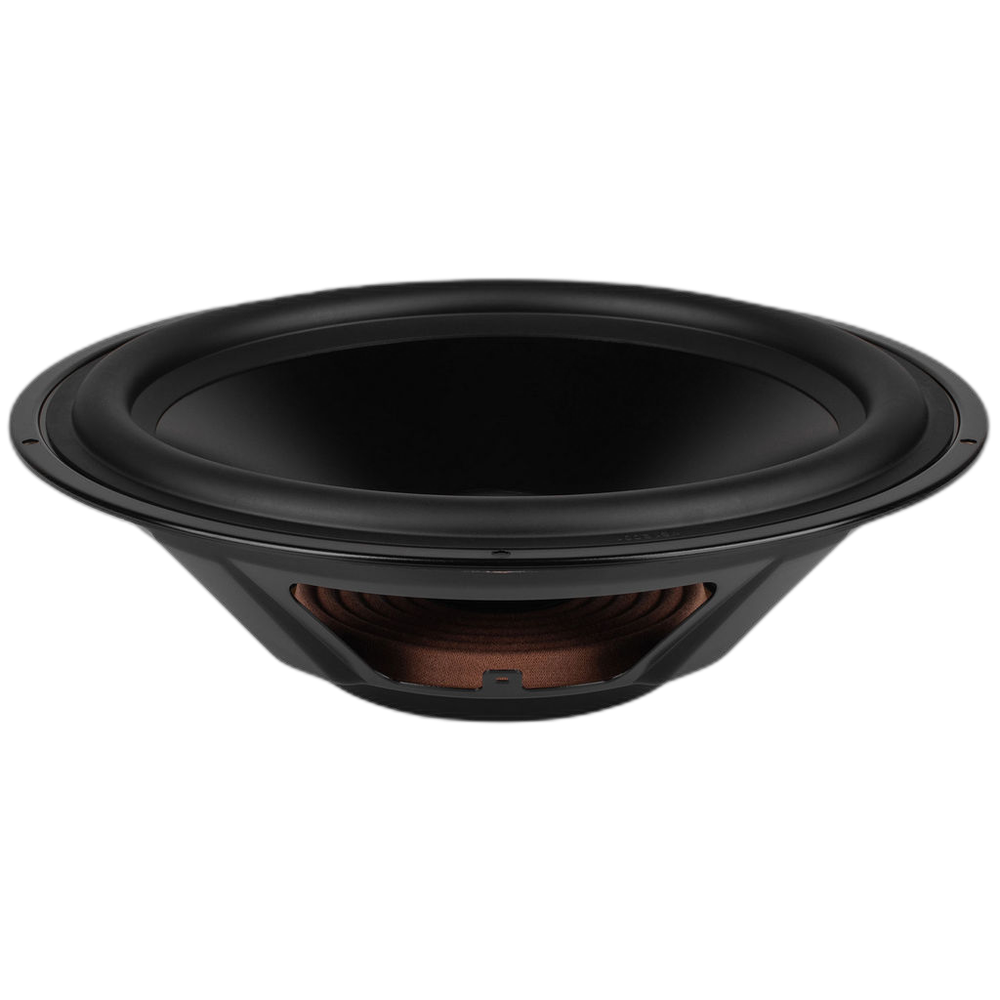

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodised aluminium cone making them visually identical.

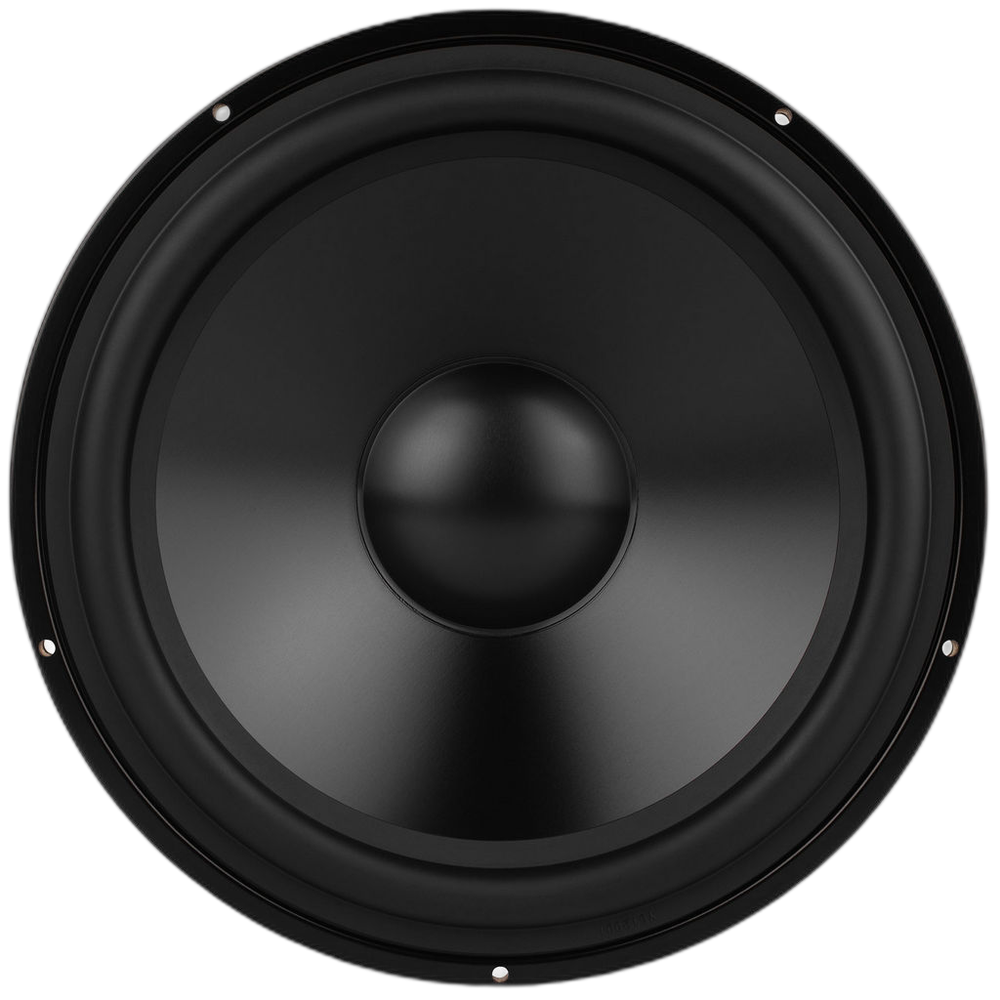

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodised aluminium cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from large tower designs to compact subwoofer systems.
Note: Adding mass to the passive radiator will decrease Fs and increase Qms.
Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd
Features

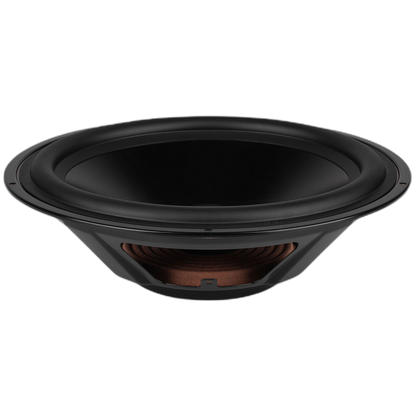

- Cosmetic frame edge looks great even when surface mounted
- Allows tuning small enclosures lower than using conventional ports

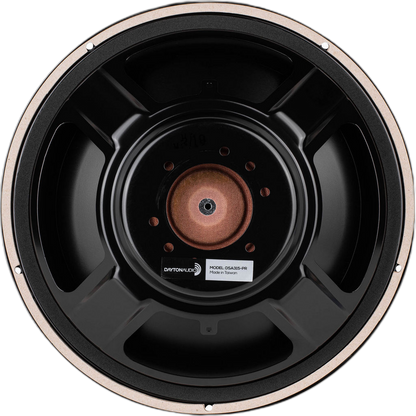

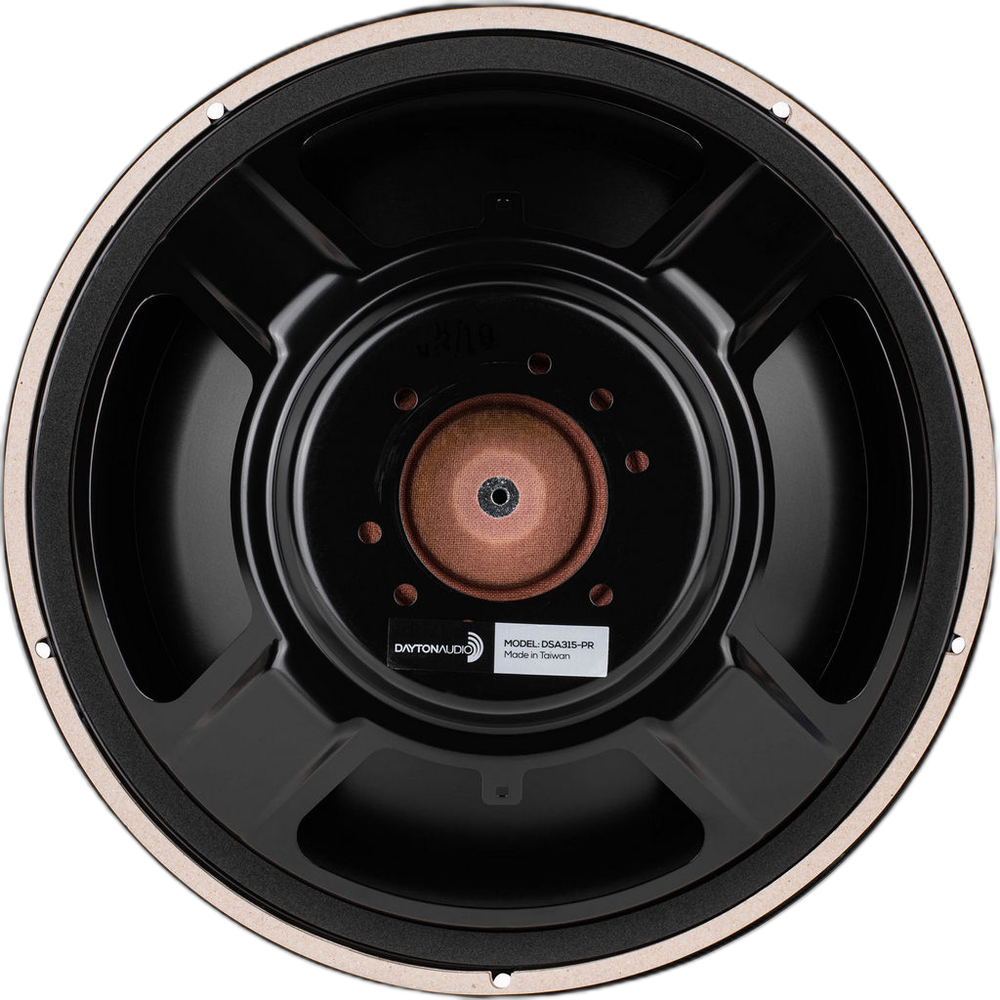

- Rear mounted screw allows easy mass adjustment for custom tuning
- Perfect match for Dayton Audio's aluminium cone Designer Series drivers
Specifications
Specifications
General
| Driver type | Passive Radiator |
|---|---|
| Nominal size | 12" |
| Series | Designer |
Thiele/Small parameters
| Resonant frequency (Fs) | 17.5 Hz |
|---|---|
| Mechanical Q (Qms) | 6.23 |
| Equivalent volume (Vas) | 190.8 L |
| Compliance (Cms) | 0.58 mm/N |
| Moving mass (Mms) | 142.6 g |
| Mechanical resistance (Rms) | 2.5 kg/s |
| Effective piston area (Sd) | 480 cm² |
| Linear excursion (Xmax, one-way) | 13 mm |
| Displacement volume (Vd) | 624 cm³ |
Mounting

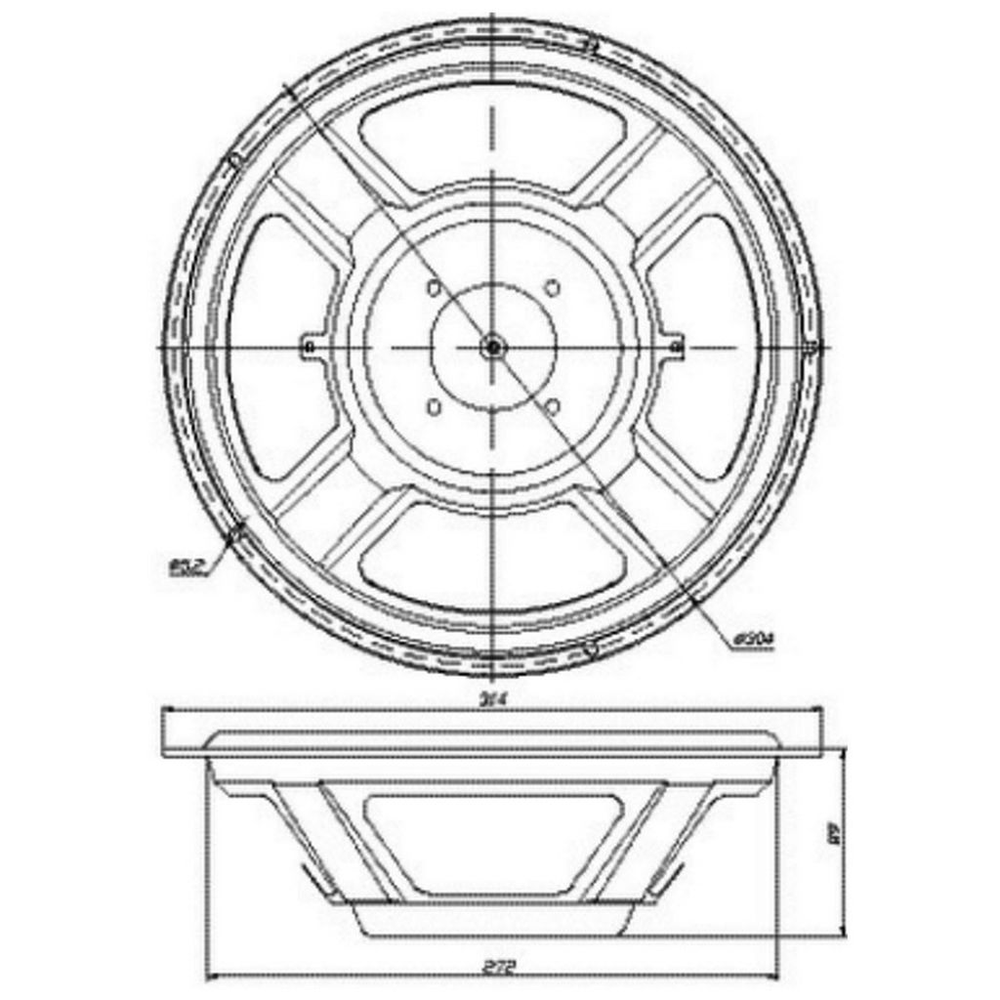

| Overall diameter | 313.9 mm |
|---|---|
| Cutout diameter | 272 mm |
| Mounting depth | 88.9 mm |
| Bolt circle diameter | 304 mm |
| Mounting holes | 5 |
| Mounting hole diameter | 5.2 mm |
| Weight | 1.202 kg |
Materials
| Cone | Aluminium |
|---|---|
| Surround | Rubber |
| Basket | Steel |
- Xmax is quoted one-way (peak), not peak-to-peak.
Downloads
- DSA315-PR Specification Sheet
- DSA315-PR Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
Where do these figures come from? See the source of each one
