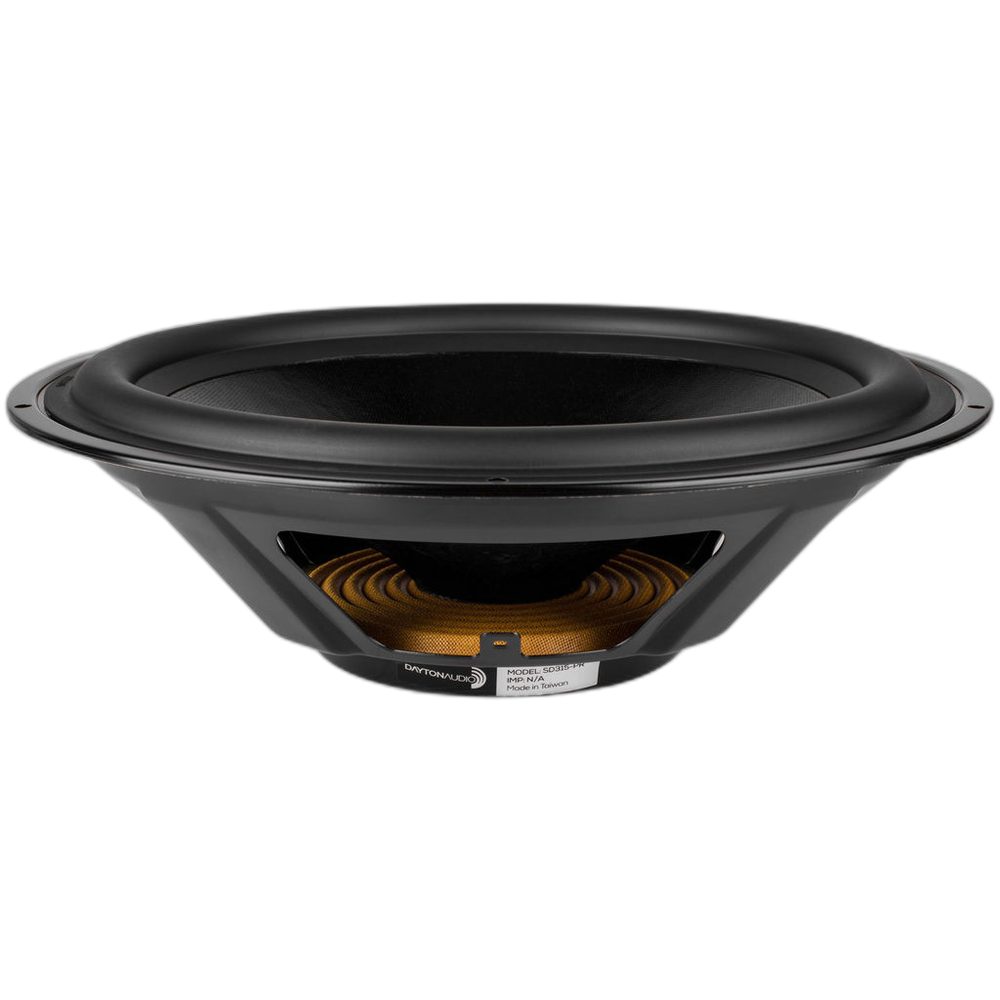

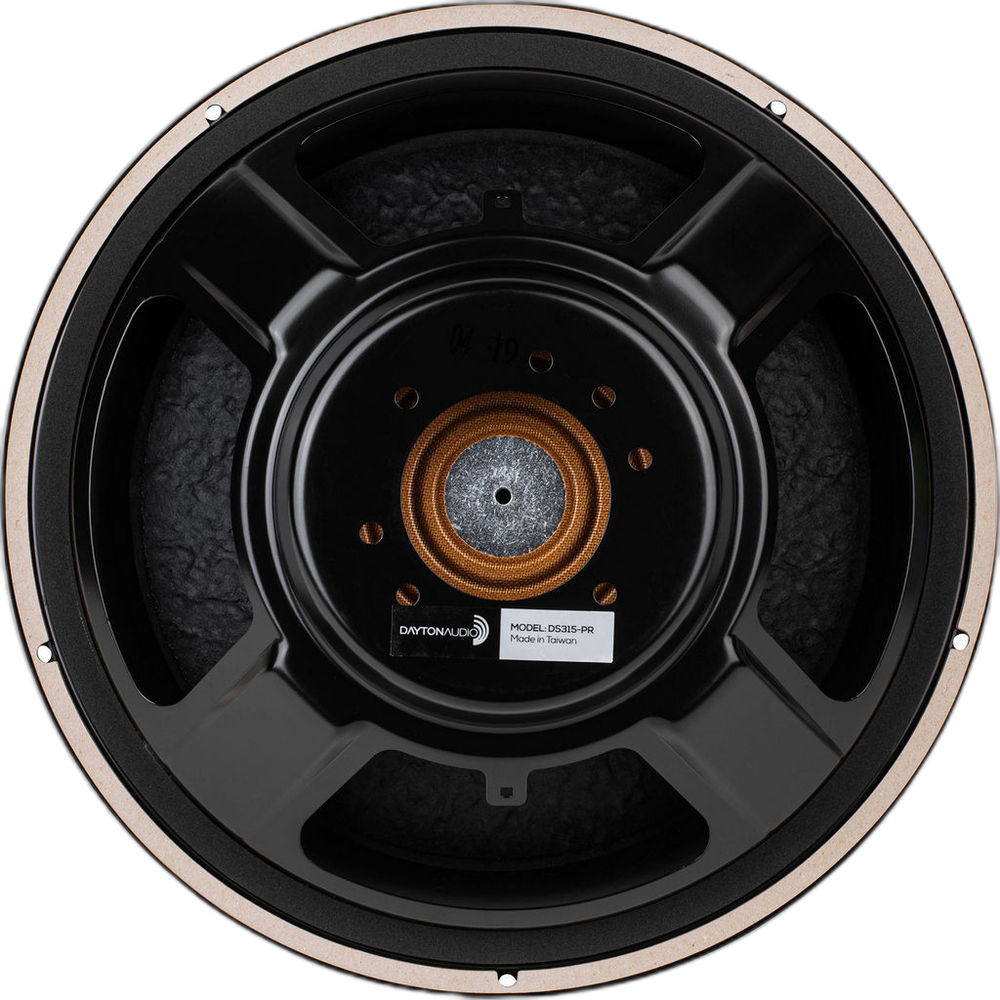

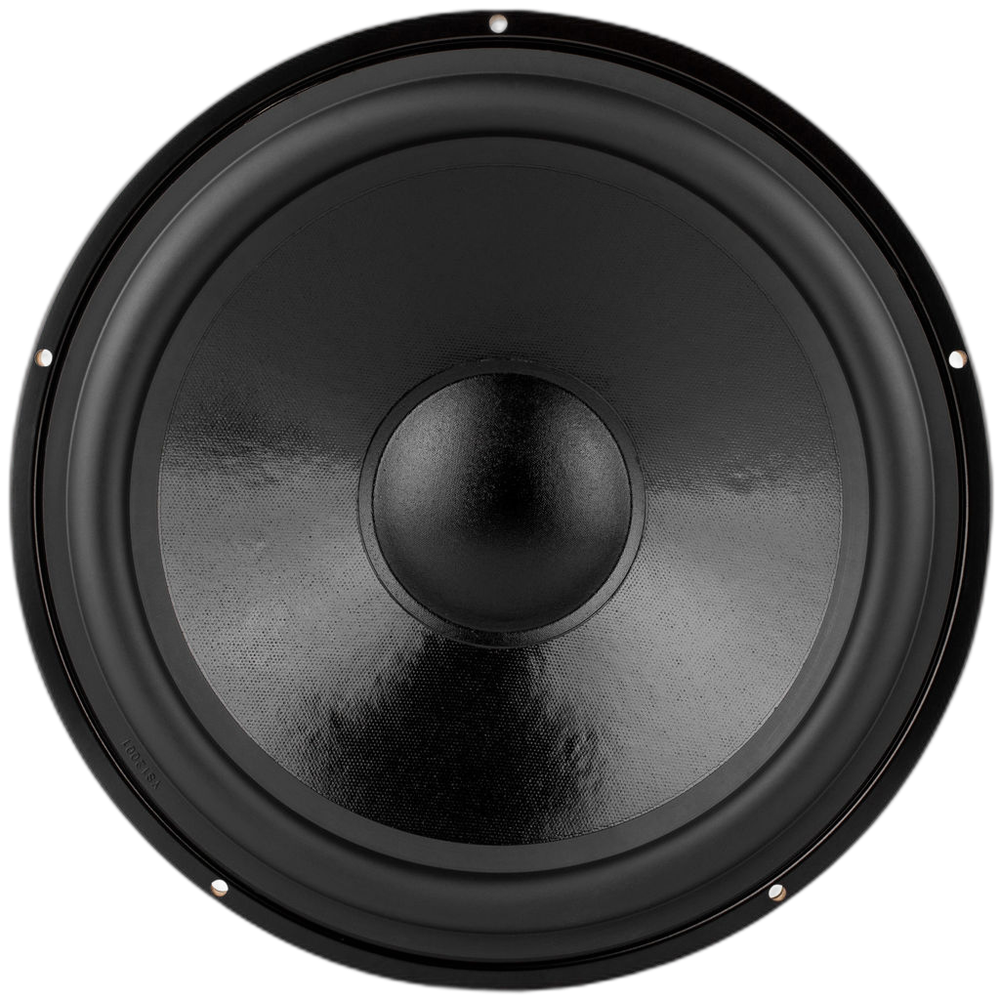

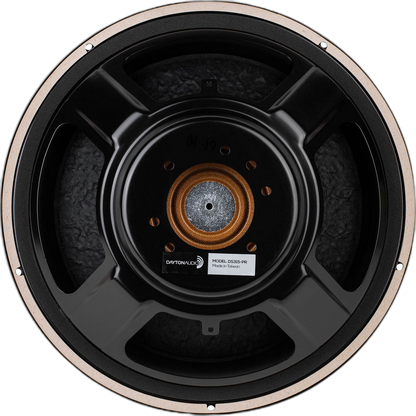

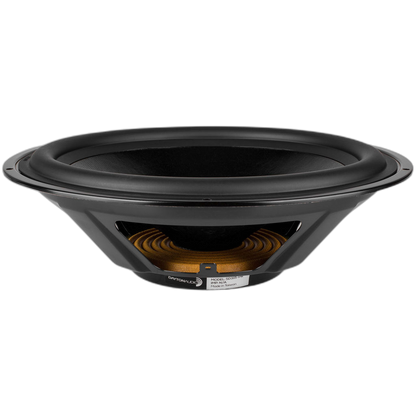

Dayton Audio - 12" Designer Passive Radiator - DS315-PR
Dayton Audio - 12" Designer Passive Radiator - DS315-PR
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, the passives match the Shielded DVC line of subwoofers, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to small active/passive subwoofer systems.
Note: Adding mass to the passive radiator will decrease Fs and increase Qms.
Tip: As a general rule the passive radiator(s) should be able to move double the volume of air as the active woofer(s)/subwoofer(s) in the system. For example: A passive radiator system for a 12" woofer/subwoofer that has 10mm of X-max would require 2-12" passive radiators with 10mm of X-max. For single passive radiator systems, it is common to use a passive that is larger than the active woofer(s)/subwoofer(s).
Features
- Smooth, low-distortion bass performance
- Robust construction with high-excursion design
- Elegant appearance adds class to any project
- Cosmetic match for Designer Series woofers
Specifications
Specifications
General
| Driver type | Passive Radiator |
|---|---|
| Nominal size | 12" |
| Series | Designer |
Thiele/Small parameters
| Resonant frequency (Fs) | 18.6 Hz |
|---|---|
| Mechanical Q (Qms) | 4.27 |
| Equivalent volume (Vas) | 162.2 L |
| Compliance (Cms) | 0.5 mm/N |
| Moving mass (Mms) | 147.1 g |
| Mechanical resistance (Rms) | 4 kg/s |
| Effective piston area (Sd) | 480 cm² |
| Linear excursion (Xmax, one-way) | 13 mm |
| Displacement volume (Vd) | 624 cm³ |

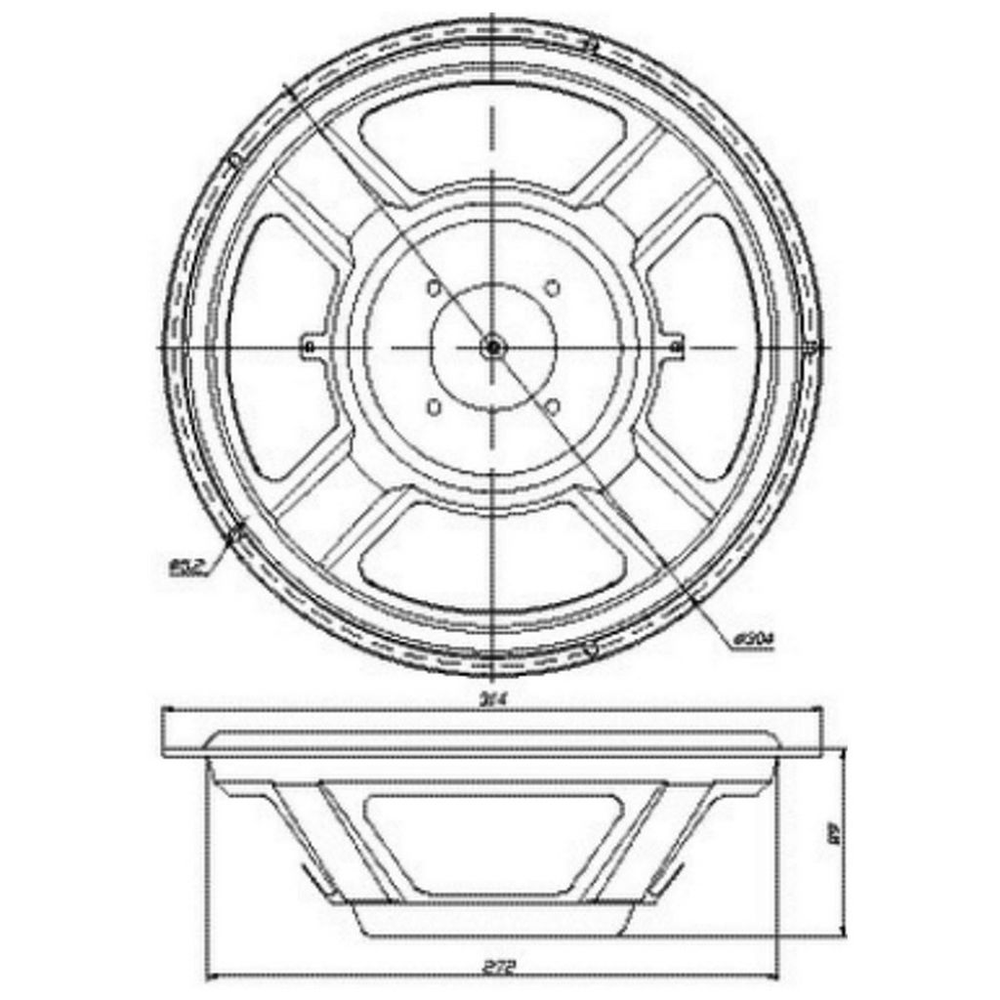

Mounting
| Overall diameter | 314 mm |
|---|---|
| Cutout diameter | 272 mm |
| Mounting depth | 89 mm |
| Bolt circle diameter | 304 mm |
| Mounting holes | 5 |
| Mounting hole diameter | 5.2 mm |
| Weight | 0.9072 kg |
Materials
| Cone | Coated Paper |
|---|---|
| Surround | Rubber |
| Basket | Steel |
- Xmax is quoted one-way (peak), not peak-to-peak.
Downloads
- DS315-PR Specification Sheet
- DS315-PR Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange. Check it against your driver before you cut.
