Dayton Audio

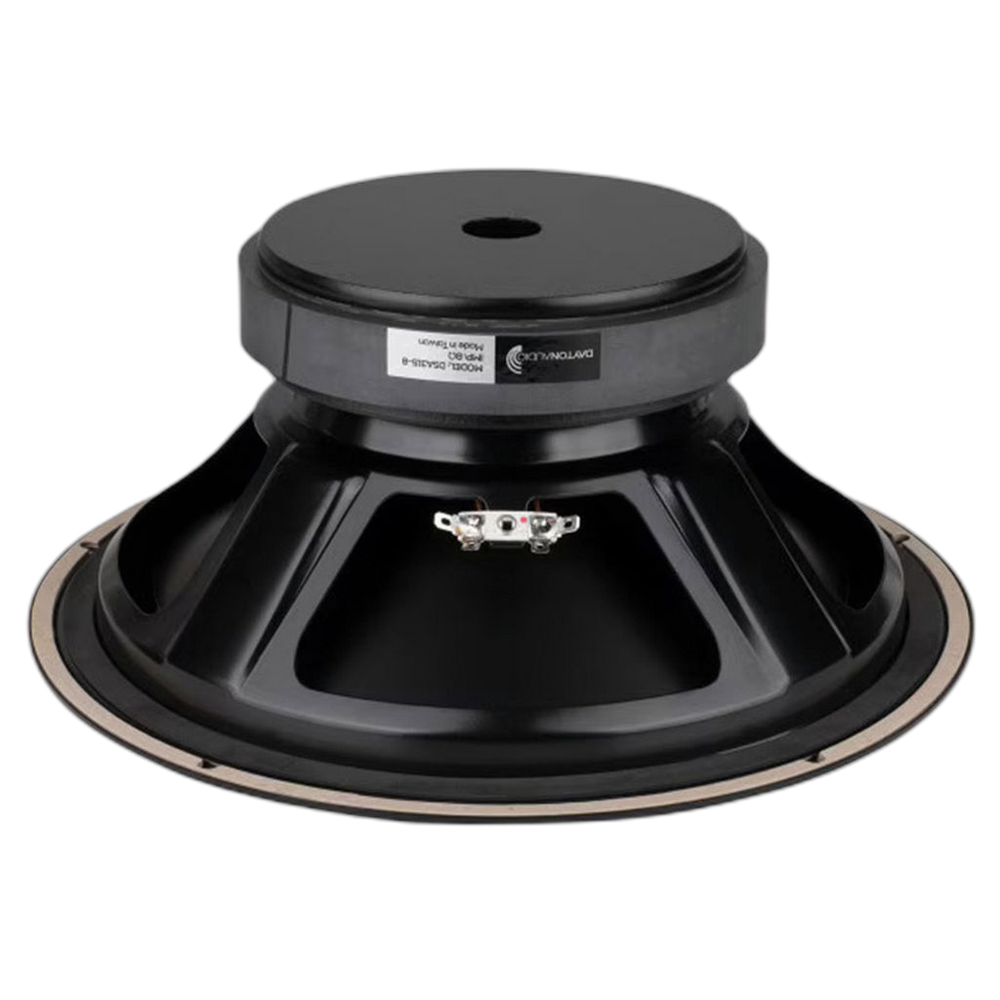

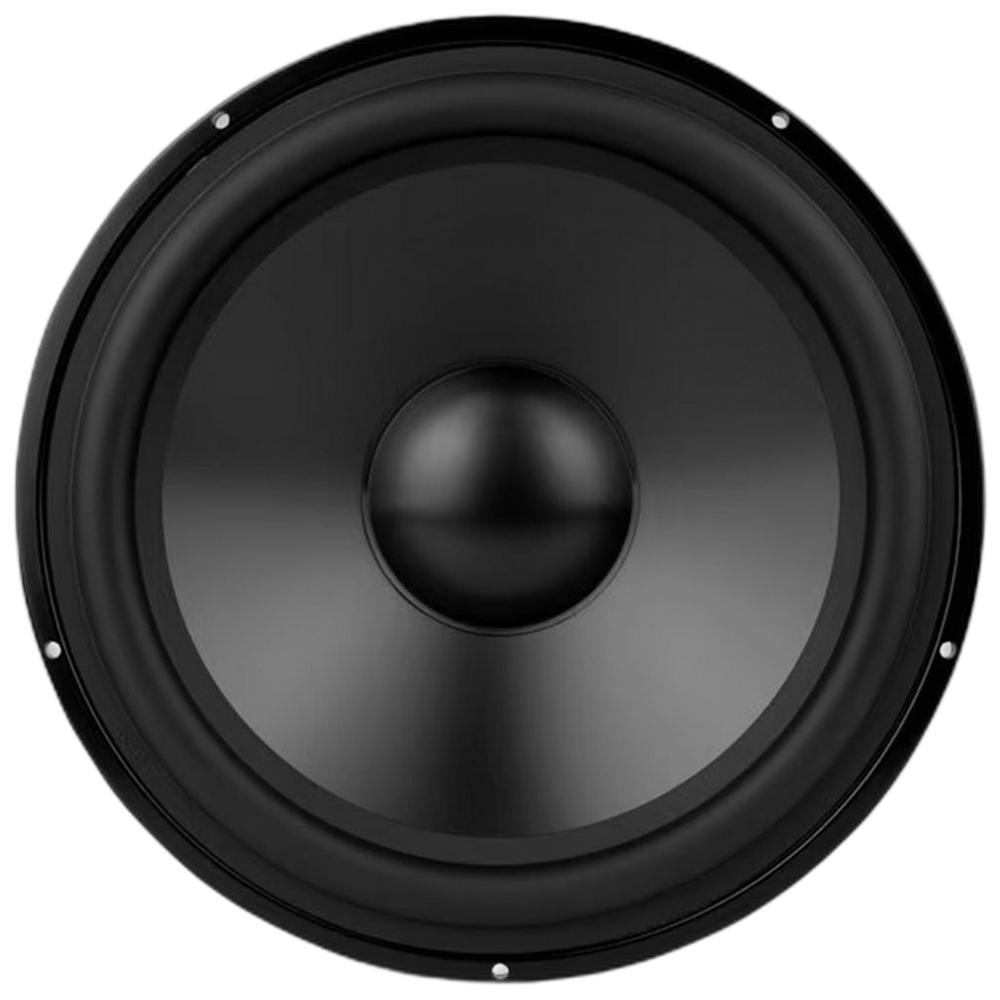

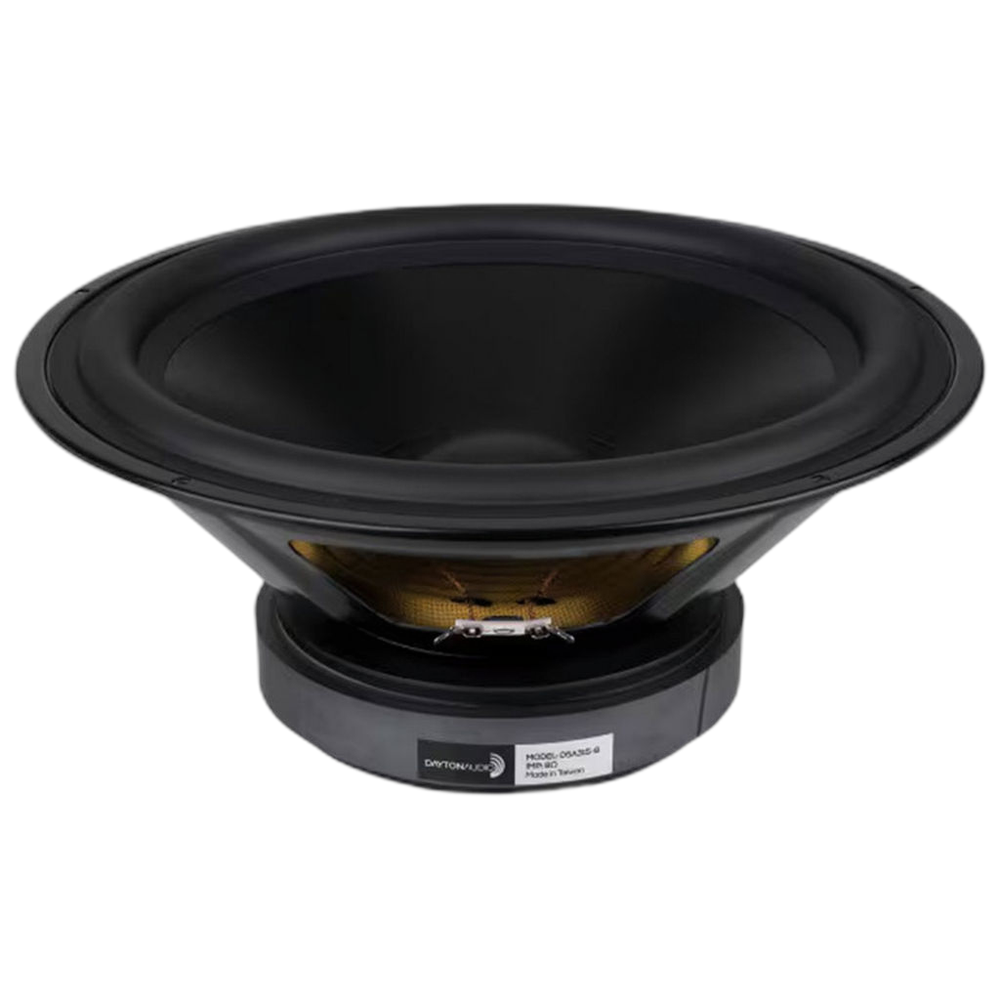

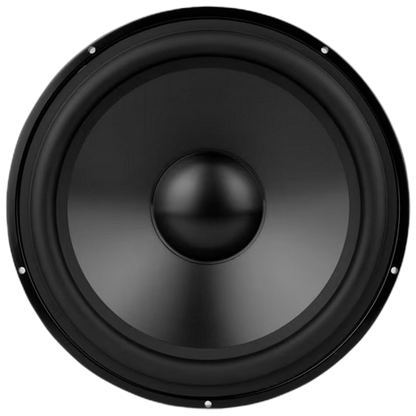

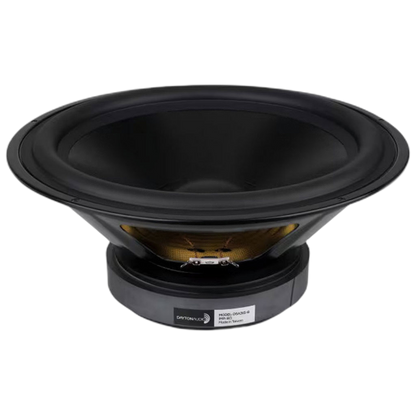

Dayton Audio - 12" Designer Woofer Aluminium - DSA315-8

Dayton Audio - 12" Designer Woofer Aluminium - DSA315-8

Regular price $314.95 AUD
Regular price Sale price $314.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

The 12" Designer Series aluminium cone woofer is an affordable and high-performance speaker. Careful engineering ensures the speaker is capable of handling full rated power at the lowest possible frequencies without exceeding Xmax. This speaker combines useful performance parameters with elegant style.

Features

  • 12” woofer boasts impressive aesthetics, high efficiency, and a clean bass.
  • Low distortion motor system with copper shorting ring.
  • Black anodised aluminium cone, half roll rubber surround for accurate sound.
  • Vented pole piece for minimised power compression and reliability.

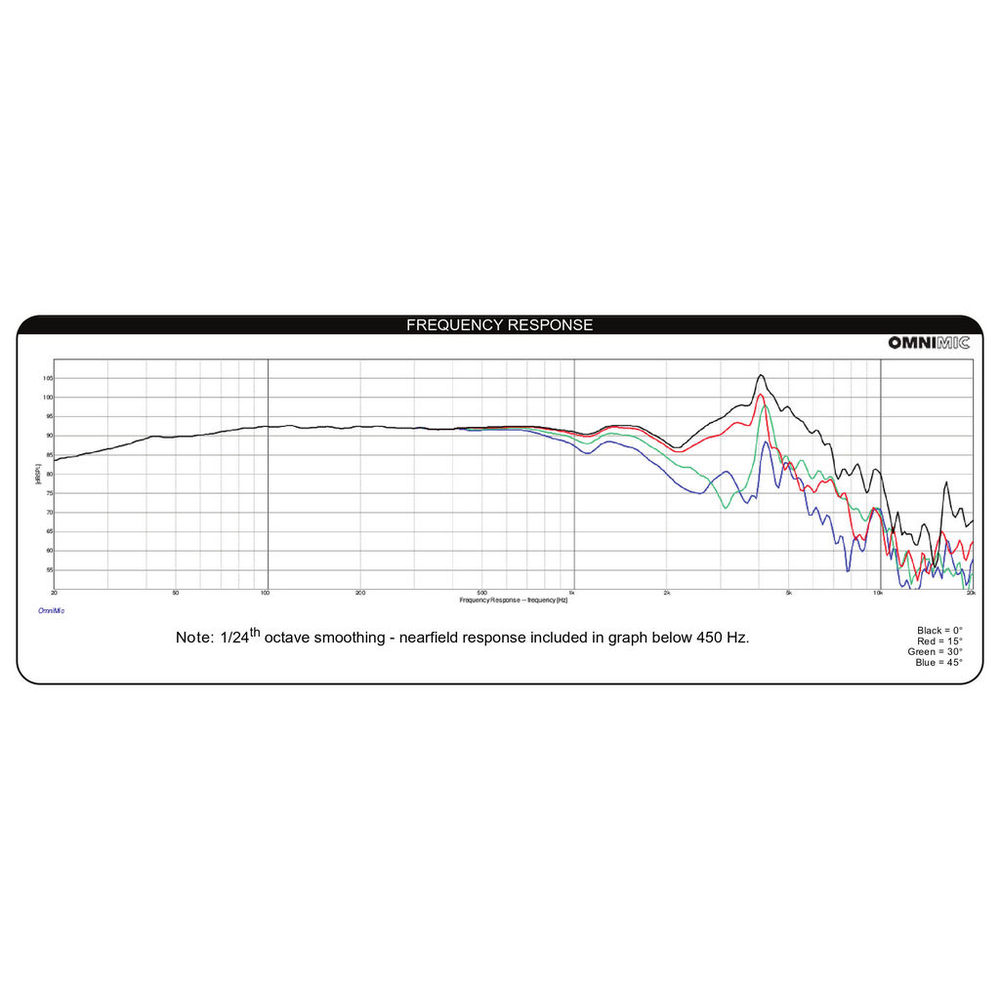

  • Smooth frequency response and linear roll-off simplify filter design.

Specifications

Bl 16.1Tm
Cms 0.38mm/N
Coil 49.5mmØ

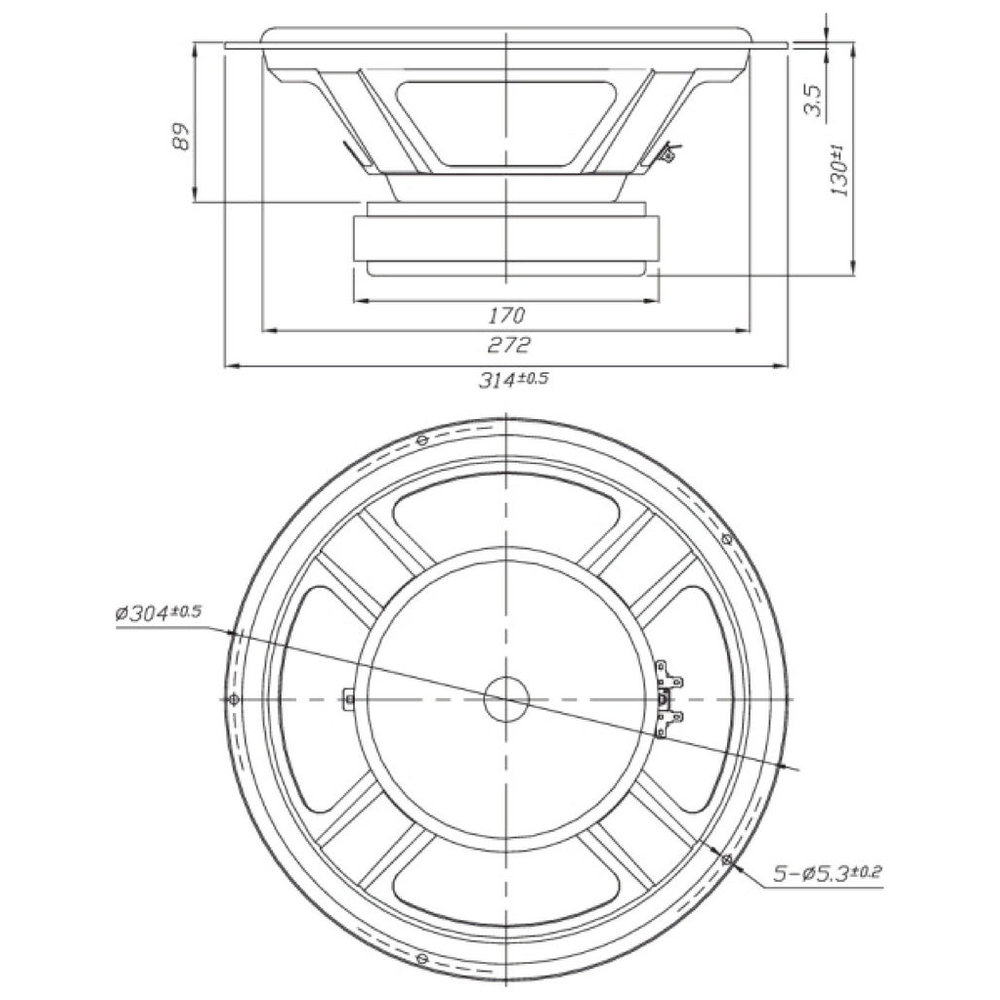

Diam. 314mmØ
Freq. 24-2kHz
Fs 24.23Hz
Hole 272mmØ
Impedance 8Ω Re 6Ω
Le 1.11mH
Mag. Ferrite
Manufacturer Dayton Audio
Material Aluminium
Mms 113.1g
Power 120Wrms
Qes 0.4
Qms 1.89
Qts 0.33
Re
Sd 506.7cm²
Sens. 90.3dB
Series Designer
Size 12'
SPL 90.3dB
Type Woofer
Vas 147L
VC 49.5mmØ
Vd 276.7cm³
Xmax 5.5mm
Zn
