Dayton Audio

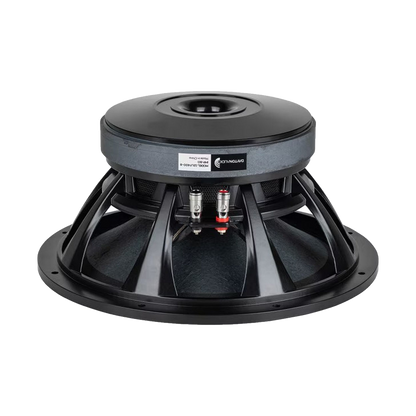

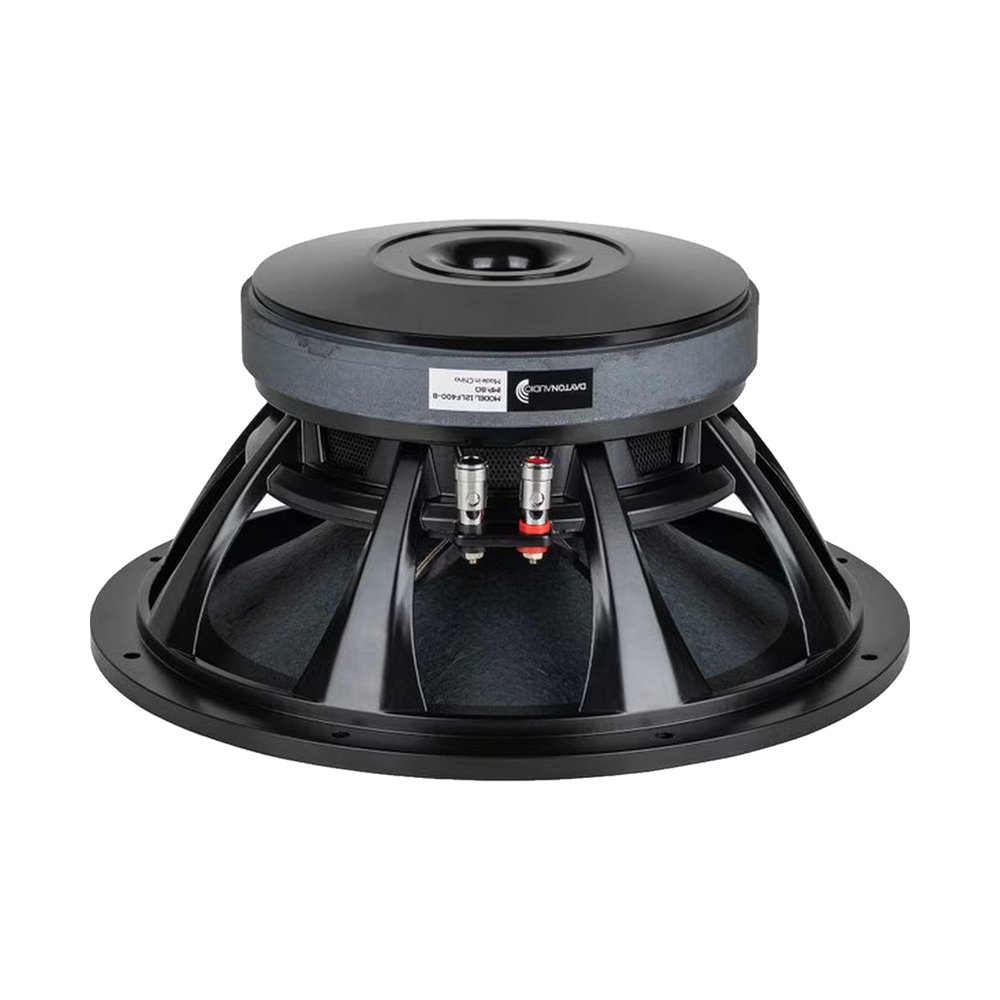

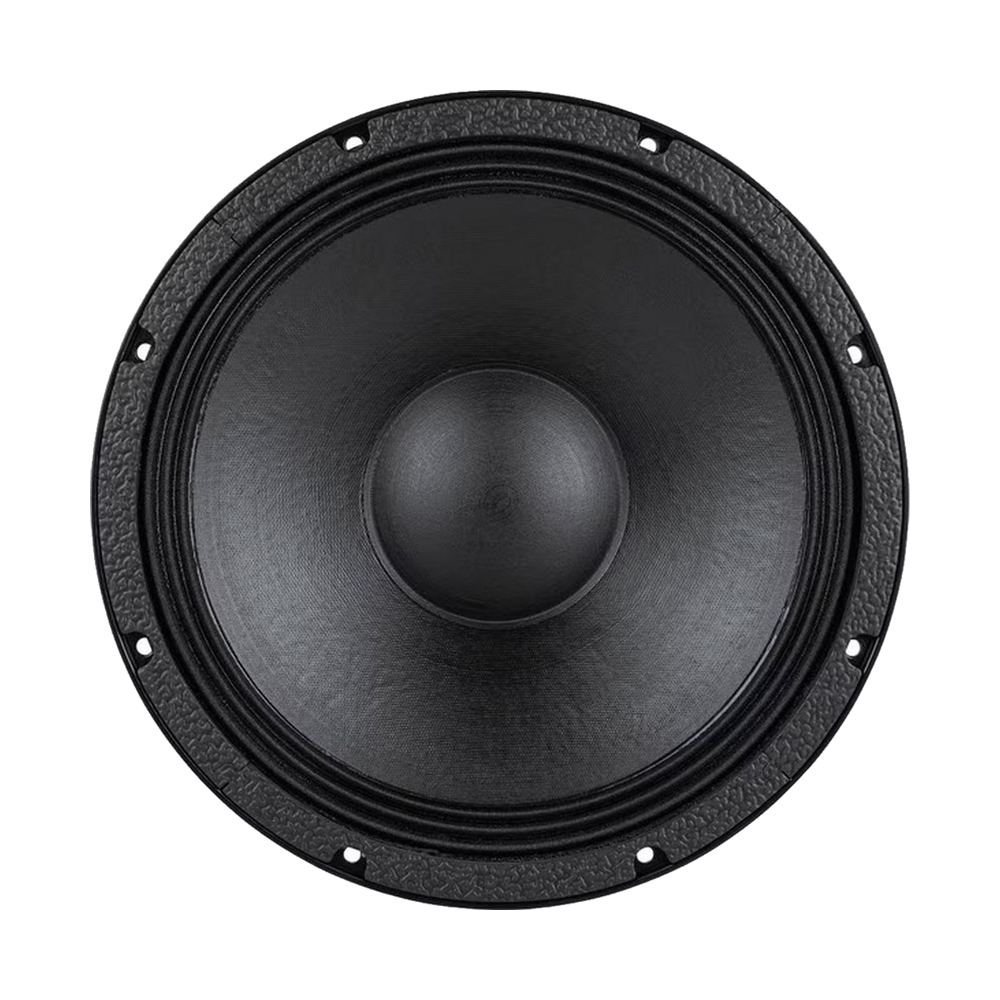

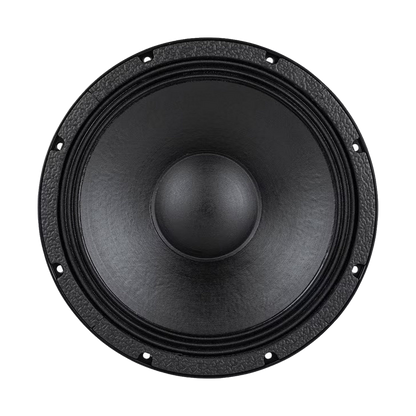

Dayton Audio - 12" Odeum Subwoofer - 12LF400-8
Dayton Audio - 12" Odeum Subwoofer - 12LF400-8
Regular price
$449.95 AUD
Regular price
Sale price
$449.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The Odeum Apollo 12LF is a 12" low-frequency pro driver from Dayton Audio, designed to outperform the stock woofers in PA systems. A large ferrite motor, a 3" inside-outside wound voice coil on a fibreglass former and extensive venting raise power handling and reduce power compression. A treated paper cone with cloth accordion surrounds gives a neutral tone that is easy to tune, and a progressive spider keeps excursion under control.
Features
- Robust build quality for years of chest-pounding output
- Well-balanced SPL to Xmax ratio for a loud, long-throw sub
- Low Qts and high Bl for small vented enclosures
Specifications
Specifications
General
| Driver type | Subwoofer |
|---|---|
| Nominal size | 12" |
| Nominal impedance | 8Ω |
| Series | Odeum |
| Power handling (RMS) | 400 W |
| Power handling (program) | 800 W |
| Sensitivity | 94.5 dB |
| Frequency range | 30 – 1,500 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 28 Hz |
|---|---|
| DC resistance (Re) | 6.7 Ω |
| Voice coil inductance (Le) | 1.47 mH |
| Mechanical Q (Qms) | 5.19 |
| Electrical Q (Qes) | 0.22 |
| Total Q (Qts) | 0.21 |
| Equivalent volume (Vas) | 147.8 L |
| Compliance (Cms) | 0.37 mm/N |
| Moving mass (Mms) | 88.3 g |
| Force factor (Bl) | 21.8 T·m |
| Effective piston area (Sd) | 533 cm² |
| Linear excursion (Xmax, one-way) | 9.25 mm |
| Displacement volume (Vd) | 493 cm³ |
| Efficiency bandwidth product (EBP) | 127.3 |
Motor
| Voice coil wire | Copper |
|---|
Mounting
| Overall diameter | 320 mm |
|---|---|
| Cutout diameter | 285 mm |
| Mounting depth | 152 mm |
| Mounting holes | 8 |
| Voice coil diameter | 76.2 mm |
| Weight | 19.78 kg |
Materials
| Cone | Treated Paper |
|---|---|
| Surround | Cloth |
| Voice coil former | Fiberglass |
| Basket | Cast Aluminum |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
