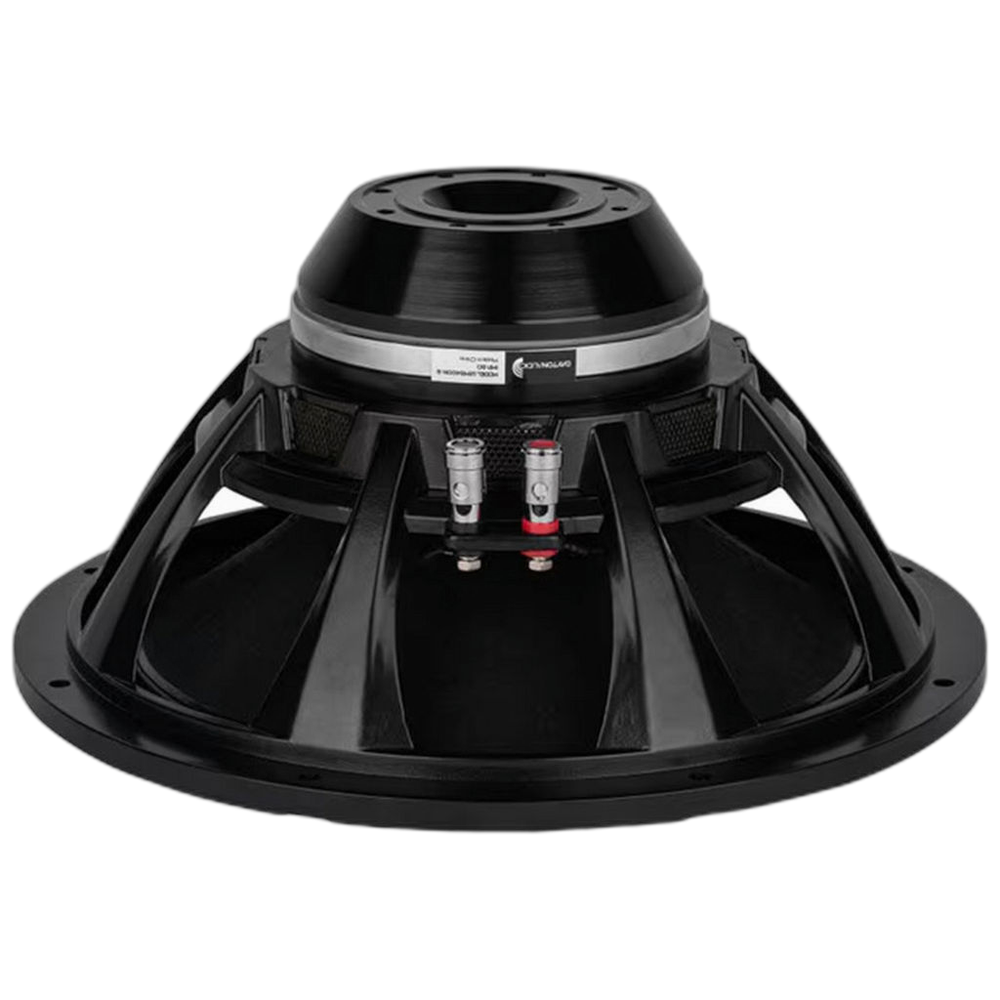

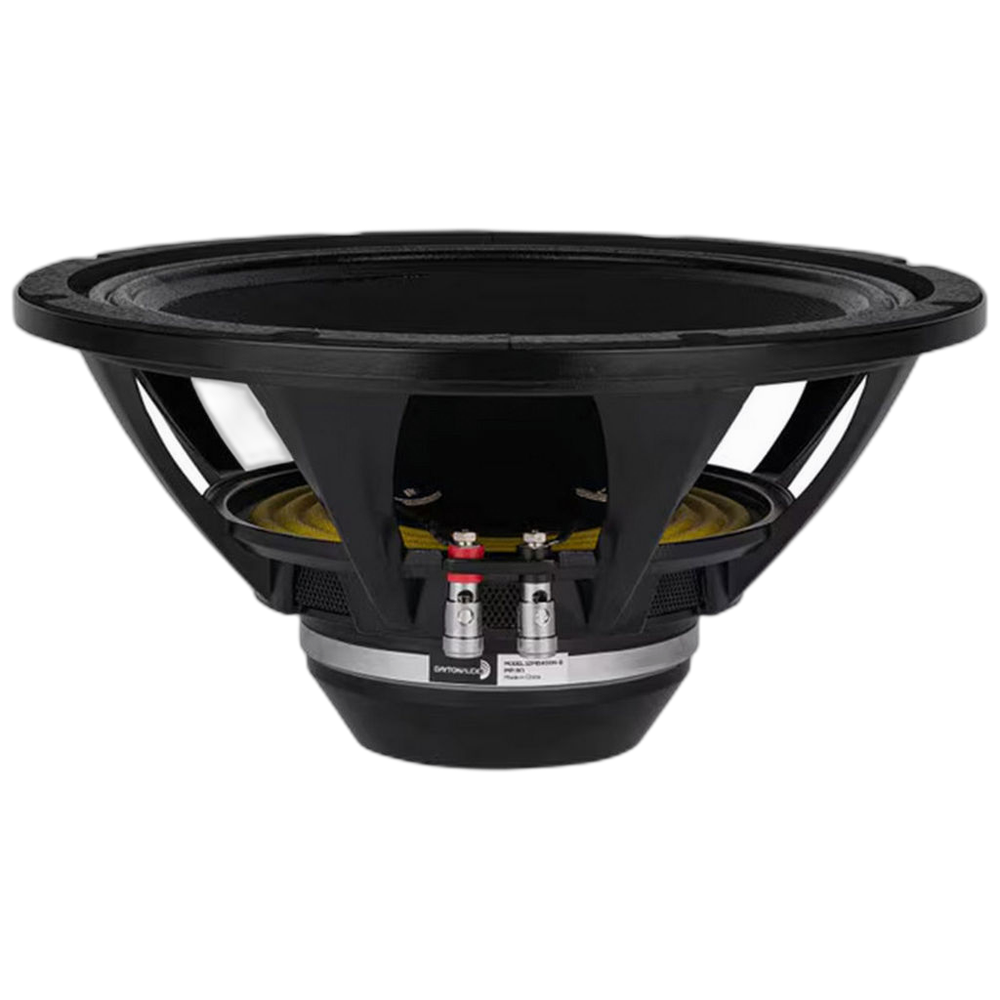

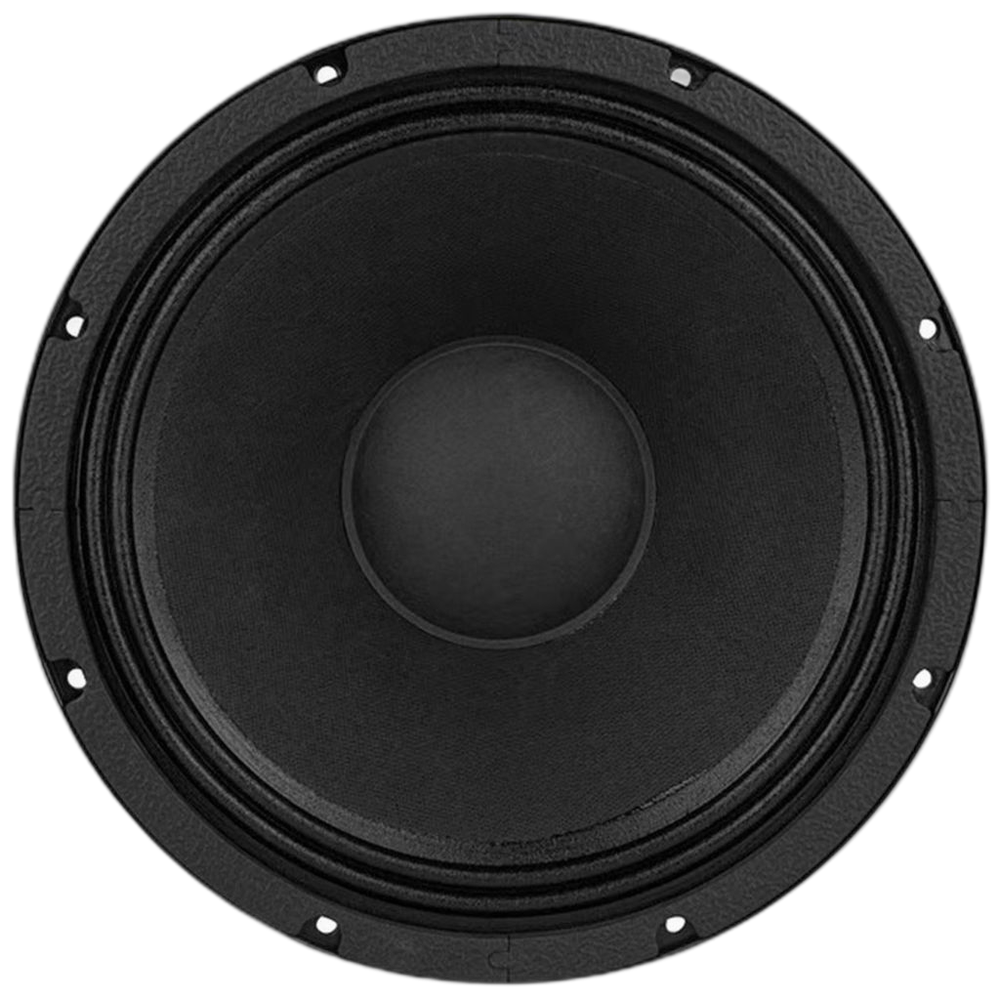

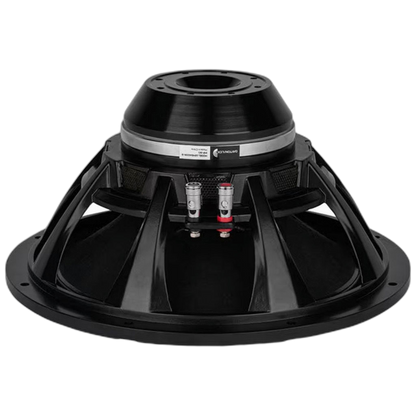

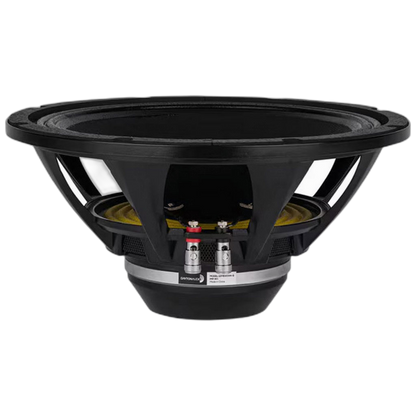

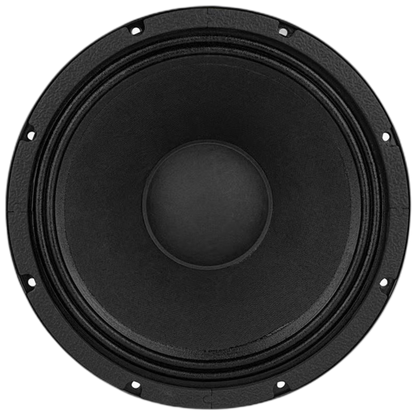

Dayton Audio - 12" Odeum Woofer Neo - 12MB400N-8

Dayton Audio - 12" Odeum Woofer Neo - 12MB400N-8

Regular price $429.95 AUD
Regular price Sale price $429.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

The Dayton Audio ODEUM series 12" mid-bass woofer outperforms stock woofers in PA systems. The powerful 400W Pro driver features a neodymium motor, a 3" voice coil with a fibreglass former, and a copper inductance cap to lower distortion. A paper cone with cloth M-roll surrounds provides a neutral tone that is easy to tune, and peripheral venting helps keep the whole system cool when playing.

Features

  • Powerful neodymium motor for superior output.
  • Copper inductance cap for low distortion.
  • Paper cone and cloth m-roll surround for high clarity, smooth response, and linear excursion for pounds of punch.
  • 3" inside/outside wound copper voice coil leads on fibreglass former lend solid power handling capability.
  • Under spider and rear periphery venting allow for a cooler running voice coil.
  • Low Qts means high damping and smaller boxes.

Specifications

Bl 19.19Tm
Cms 0.323mm/N
Coil 76.2mmØ

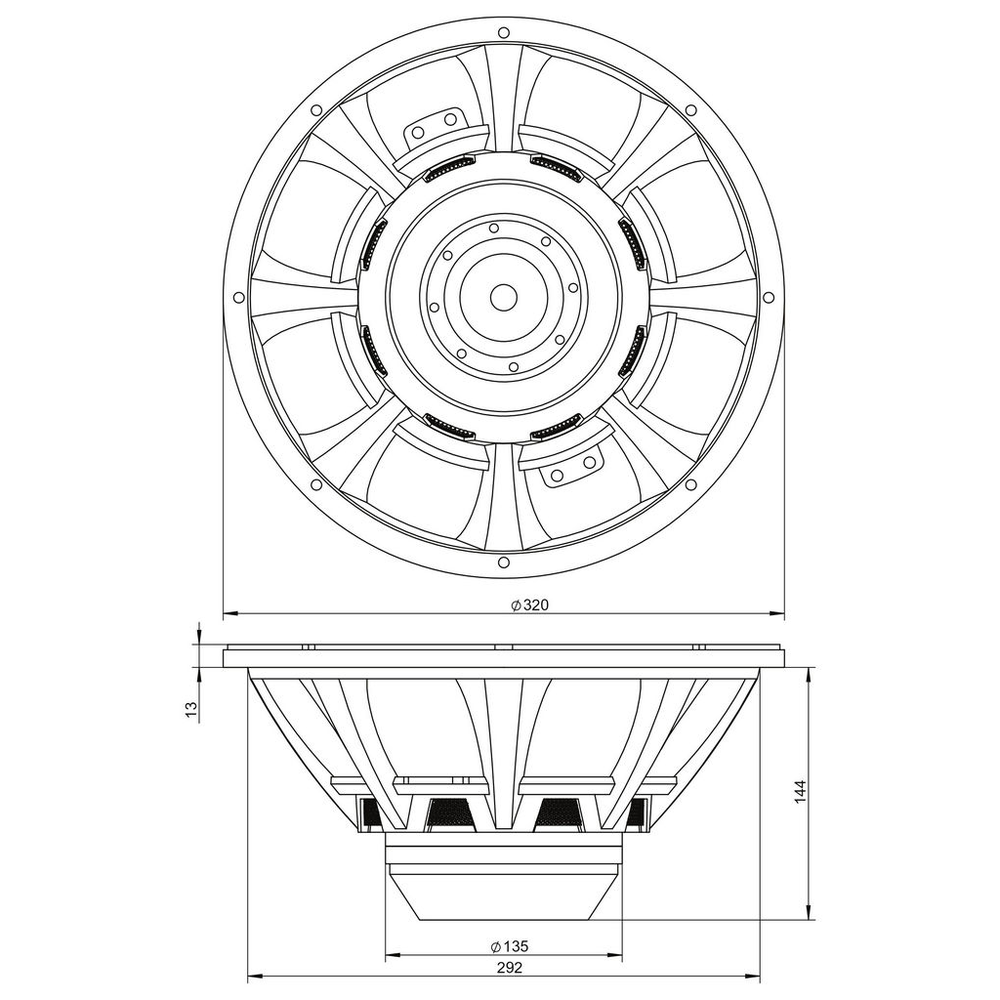

Diam. 320mmØ

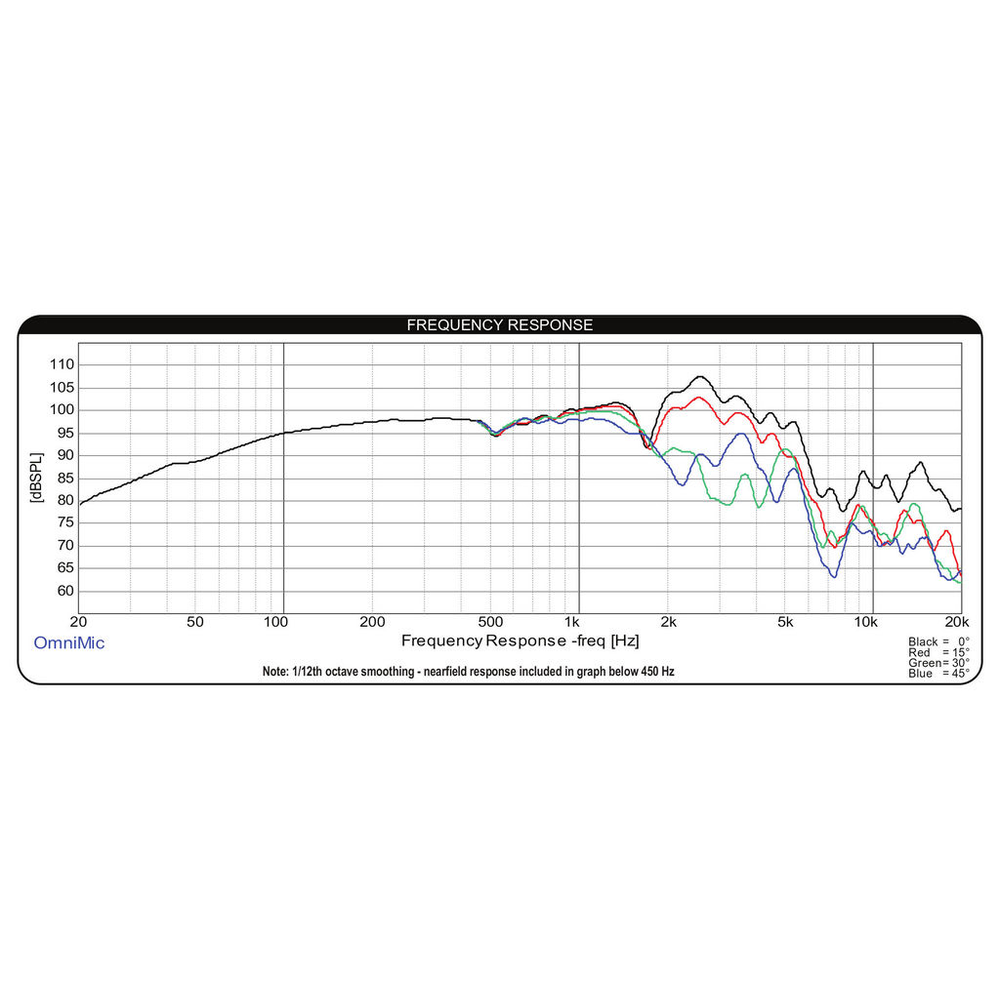

Freq. 40Hz-5.6kHz
Fs 38Hz
Hole 292mmØ
Impedance 8Ω Re 7.5Ω
Le 1.21mH
Mag. Neodymium
Manufacturer Dayton Audio
Material Paper
Mms 54.46g
Power 400Wrms
Qes 0.27
Qms 7.75
Qts 0.26
Re 7.5Ω
Sd 494.56cm²
Sens. 96.6dB
Series Odeum
Size 12'
SPL 96.6dB
Type Odeum
Vas 128.1L
VC 76.2mmØ
Vd 333.2cm³
Xmax 6.75mm
Zn
