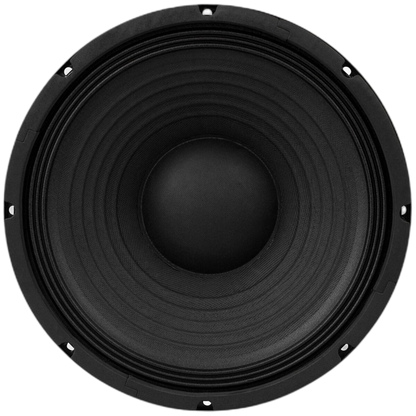

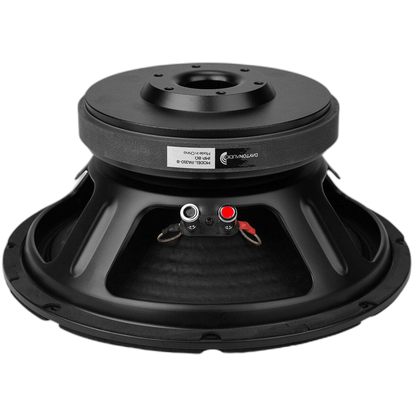

Dayton Audio - 12" PA Woofer Pro - PA310-8
Dayton Audio - 12" PA Woofer Pro - PA310-8
Regular price
$344.95
Regular price
Sale price
$344.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
The 12” Dayton Audio PA Series Pro Woofers are a great upgrade for musical instrument or sound reinforcement cabinets, and also excel in custom-built speaker systems. High power handling, smooth response, low distortion, deep punchy bass, and rugged reliability are the features that set PA Series woofers apart from other drivers - premium performance, but value priced.
Features
- Strong, low-mass carbon fibre impregnated paper cone
- I-beam rolled edge 1.2 mm steel frame
- Low distortion motor system w/copper cap
- Powerful 80 oz. ceramic ferrite magnet
- Vented pole piece/vented voice coil gap improve thermal management
- Black motor parts and black polyimide voice coil former dissipate heat
- Bumped back plate for unrestricted excursion
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 12" |
| Nominal impedance | 8Ω |
| Series | PA |
| Power handling (RMS) | 450 W |
| Power handling (program) | 900 W |
| Sensitivity | 96.1 dB |

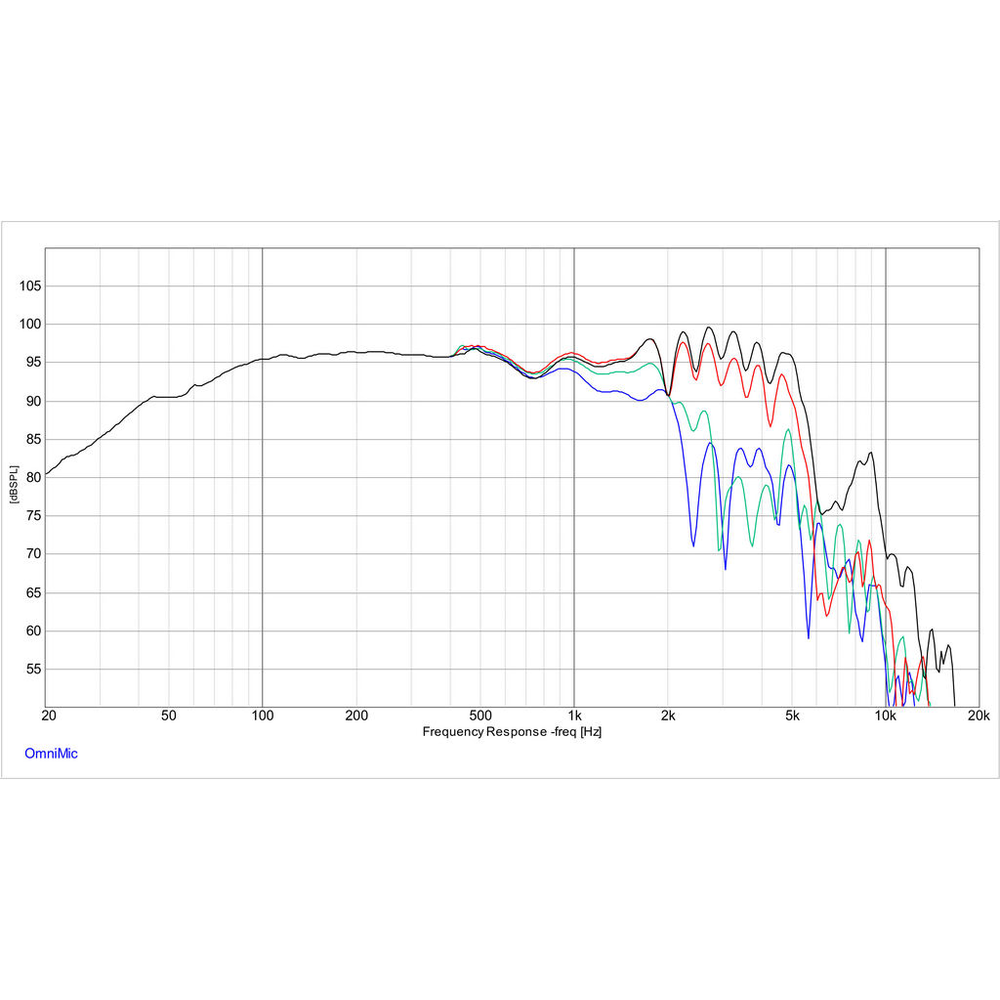

| Frequency range | 44 – 4,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 39 Hz |
|---|---|
| DC resistance (Re) | 5.5 Ω |
| Voice coil inductance (Le) | 1.68 mH |
| Mechanical Q (Qms) | 8.85 |
| Electrical Q (Qes) | 0.3 |
| Total Q (Qts) | 0.29 |
| Equivalent volume (Vas) | 91.8 L |
| Compliance (Cms) | 0.23 mm/N |
| Moving mass (Mms) | 72.8 g |
| Mechanical resistance (Rms) | 2.016 kg/s |
| Force factor (Bl) | 18 T·m |
| Effective piston area (Sd) | 530.9 cm² |
| Linear excursion (Xmax, one-way) | 5 mm |
| Displacement volume (Vd) | 265.4 cm³ |
| Efficiency bandwidth product (EBP) | 130 |
Motor
| Magnet weight | 2.27 kg |
|---|---|
| Voice coil wire | Copper |

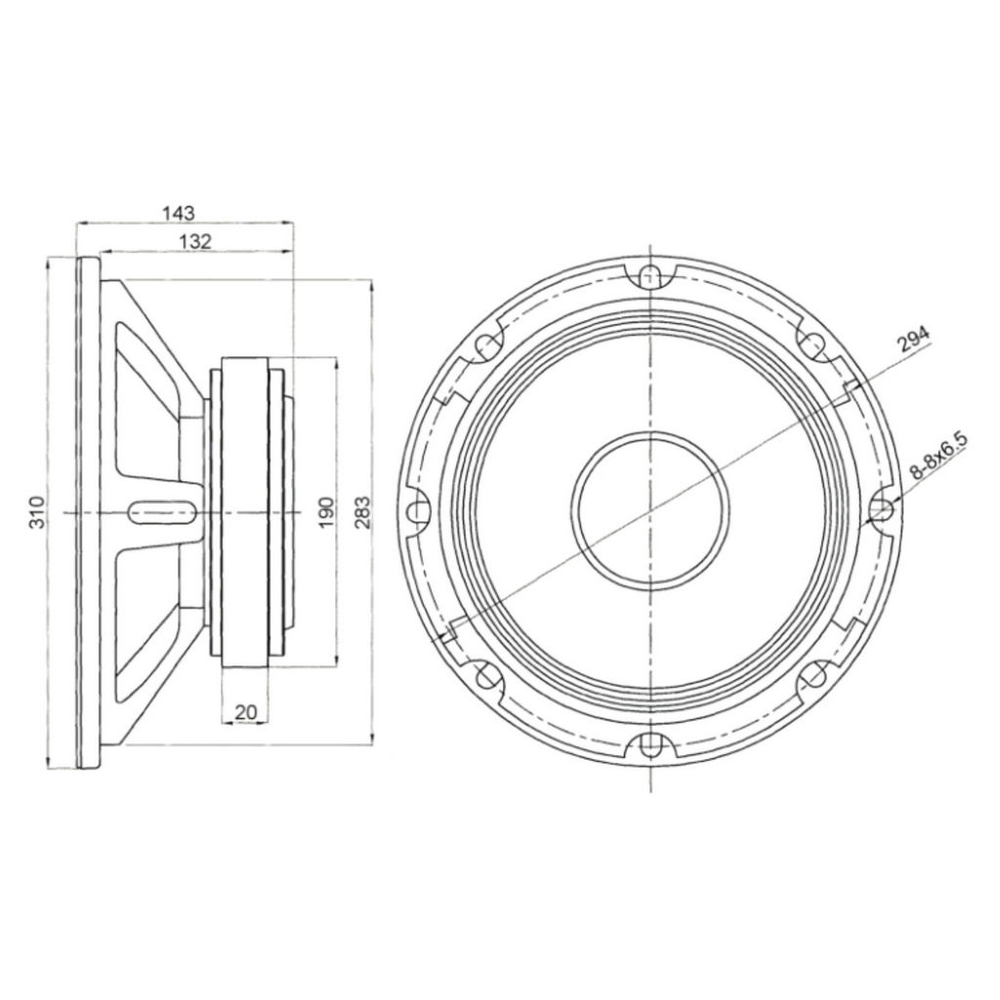

Mounting
| Overall diameter | 310 mm |
|---|---|
| Cutout diameter | 283 mm |
| Mounting depth | 132 mm |
| Bolt circle diameter | 294 mm |
| Mounting holes | 8 |
| Mounting hole diameter | 6.5 mm |
| Voice coil diameter | 76 mm |
| Weight | 7.439 kg |
Materials
| Cone | Paper / Carbon Fibre |
|---|---|
| Surround | Cloth |
| Voice coil former | Kapton® / Polyimide |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- PA310-8 Specification Sheet
- PA310-8 Data Files
- PA310-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
