Dayton Audio - 12" Reference Series HF Subwoofer - RSS315HF-4
Dayton Audio - 12" Reference Series HF Subwoofer - RSS315HF-4
Regular price
$569.95 AUD
Regular price
Sale price
$569.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilising three short-circuit paths within the motor structure. A durable aramid fibre spider and extensive venting throughout provide quiet and uniform excursion. The black anodised cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose the high fidelity version for home systems when you are looking for clean, low bass and are not restricted by cabinet size.
Features
- Extensively vented motor eliminates compression and allows quiet excursion
- Lightweight black anodised aluminium cone for rigidity and lower moving mass
- Triple shorting ring motor for ultra-low distortion
- 2-layer coil for reduced back EMF
- Suitable for sealed or vented enclosures
- Highest quality materials throughout for long-lasting performance
Specifications
Specifications
General
| Driver type | Subwoofer |
|---|---|
| Nominal size | 12" |
| Nominal impedance | 4Ω |
| Series | Reference |
| Power handling (RMS) | 400 W |
| Power handling (program) | 800 W |
| Sensitivity | 90.3 dB |
| Frequency range | 23 – 1,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 24.2 Hz |
|---|---|
| DC resistance (Re) | 3.1 Ω |
| Voice coil inductance (Le) | 0.96 mH |
| Mechanical Q (Qms) | 2.83 |
| Electrical Q (Qes) | 0.45 |
| Total Q (Qts) | 0.39 |
| Equivalent volume (Vas) | 84.1 L |
| Compliance (Cms) | 0.23 mm/N |
| Moving mass (Mms) | 188 g |
| Force factor (Bl) | 13.99 T·m |
| Effective piston area (Sd) | 514.7 cm² |
| Linear excursion (Xmax, one-way) | 14.3 mm |
| Displacement volume (Vd) | 736 cm³ |
| Efficiency bandwidth product (EBP) | 53.78 |
Motor
| Magnet weight | 4.25 kg |
|---|---|
| Voice coil wire | Copper |

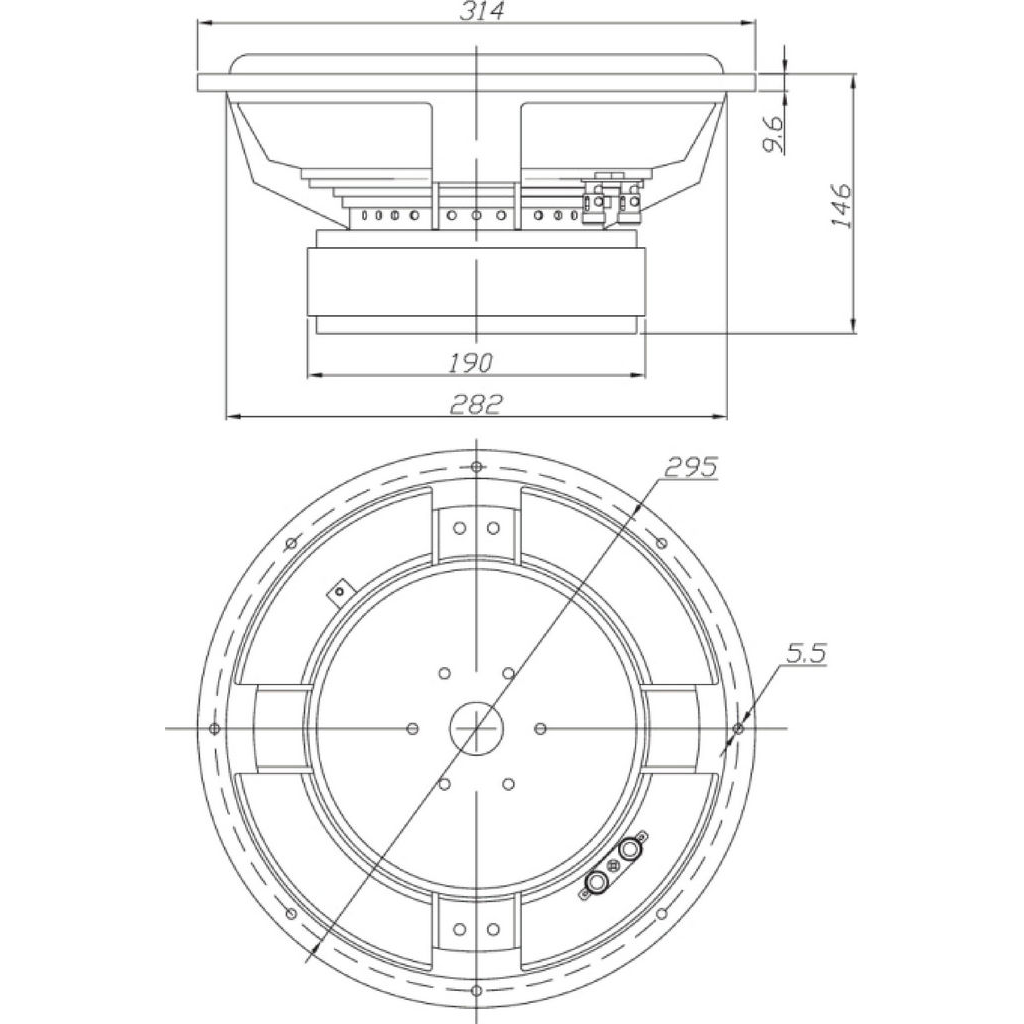

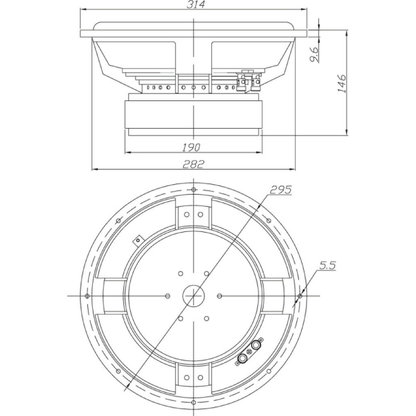

Mounting
| Overall diameter | 314 mm |
|---|---|
| Cutout diameter | 282 mm |
| Mounting depth | 146 mm |
| Flange thickness | 9.6 mm |
| Bolt circle diameter | 295 mm |
| Mounting holes | 8 |
| Mounting hole diameter | 5.5 mm |
| Voice coil diameter | 64 mm |
| Weight | 11.34 kg |
Materials
| Cone | Black Anodized Aluminum Cone |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminum |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- RSS315HF-4 Specification Sheet PDF, 235 KB
- RSS315HF-4 Data Files FRD/ZMA data, ZIP, 60 KB
