Dayton Audio

Dayton Audio - 12" Reference Series HF Subwoofer - RSS315HFA-8

Dayton Audio - 12" Reference Series HF Subwoofer - RSS315HFA-8

Regular price $594.95 AUD
Regular price Sale price $594.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description:

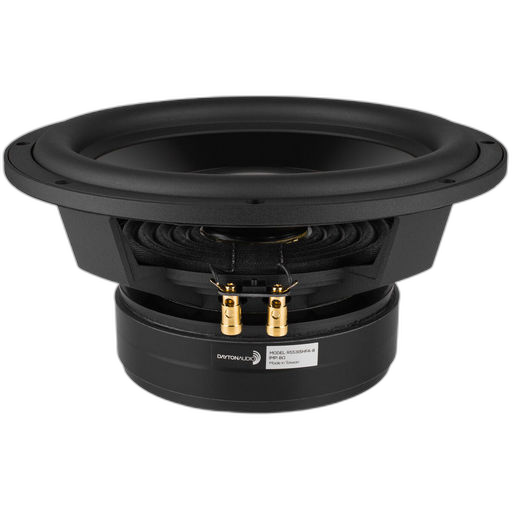

The Dayton Audio Reference Series RSS315HFA-8 subwoofer takes the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of this subwoofer is ultra-low-distortion.

The main focus of the Dayton Audio RSS315HFA-8 12" HF subwoofer is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilising three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodised cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose this High Fidelity (HF) version for home speaker systems when your priority is clean, low bass and you are not restricted by cabinet size.

Features:

  • Extensively vented motor eliminates power compression and allows quiet excursion
  • Lighter-weight black anodised aluminium cone minimises moving mass
  • 2-layer coil for reduced back EMF
  • Triple shorting-ring motor for ultra-low distortion
  • Optimized for large enclosures
  • Highest quality materials throughout for long-lasting performance

Specifications:

Code RSS315HFA-8
Description 12" Reference HF Subwoofer 8 Ohm
Cms 0.27mm/N
Coil 65.5mmØ
Depth 146mm
Diam. 314mmØ
Fs 22.2Hz
Hole 282mmØ
Impedance 8Ω (Re 6.5Ω)
Impedance (Ohm) 8 ohm
Le 1.56mH
Manufacturer Dayton Audio
Mms 194g
Prms 400W
Qes 0.54
Qms 2.5
Qts 0.45
Re 6.6Ω
Sd 506.7cm²
Sens. 85.7dB
Series Reference Series
Size 12"
Type Subwoofer
Vas 97.2L
Zn
