Dayton Audio - 12" Ultimax II Subwoofer - UMII12-22

Dayton Audio - 12" Ultimax II Subwoofer - UMII12-22

$494.95 AUD
$494.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

***CURRENTLY ON BACK ORDER. EXPECTED TO SHIP OUT WITHIN 2-3 WEEKS. EMAIL US FOR MORE ACCURATE LEAD TIMES***

Description:

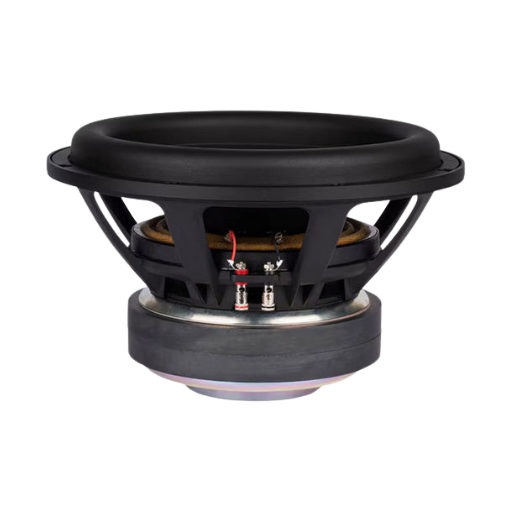

Introducing the UMII12-22 Ultimax II 12" Carbon Fiber Cone subwoofer from Dayton Audio. Building on the success of their predecessor, these subwoofers have been meticulously engineered to surpass expectations. With improved excursion capability, lower distortion, higher power handling, better efficiency, and increased output, the Ultimax II subwoofers elevate your audio experience to new depths. Immerse yourself in rich, booming bass that will shake you to the core. Dayton Audio continues to redefine the boundaries of excellence with the UMII12-22 subwoofer.

Features:

  • A large aluminum shorting cap and sleeve help keep inductance linear to guarantee minimal distortion
  • The rigid yet lightweight woven carbon fiber cone delivers quick, detailed, and accurate response
  • With 22 mm xmax, you can expect powerful and deep bass response, taking your audio experience to the next level
  • Equipped with a 4-layer 3" flat wound voice coil that can handle up to 800 watts RMS
  • The frame and motor include extensive venting ensuring efficient heat dissipation for consistent and reliable operation, while minimizing power compression
  • Dual spiders maintain cone linearity even at extremely high excursion levels, providing peak audio performance at all times
  • Optimized for compact sealed enclosures, but capable of exceptional low frequency extension in vented designs - offering you the freedom to create the perfect audio setup

Specifications:

Code UMII12-22
Description Dayton Audio Ultimax II 12" DVC Subwoofer 2 Ohm Per Coil
Cms 0.133mm/N
Coil 76mmØ
Depth 170mm
Diam. 321mmØ
Fs 31Hz
Hole 285mmØ
Impedance (Ohm) 2+2 ohm
Le 0.66mH
Mms 189g
Power 800Wrms
Qes 0.71
Qms 2.75
Qts 0.56
Re 4.2Ω
Sd 528cm²
Sens. 88.6dB
Size 12"
Type DVC subwoofer
Vas 53L
