Dayton Audio - 15" Classic Woofer - DC380-8
Dayton Audio - 15" Classic Woofer - DC380-8
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
The Dayton Audio Classic Series 15" woofer is excellent as a replacement driver or for new system design and construction. The versatile set of parameters makes it suitable for sealed or vented enclosure designs.

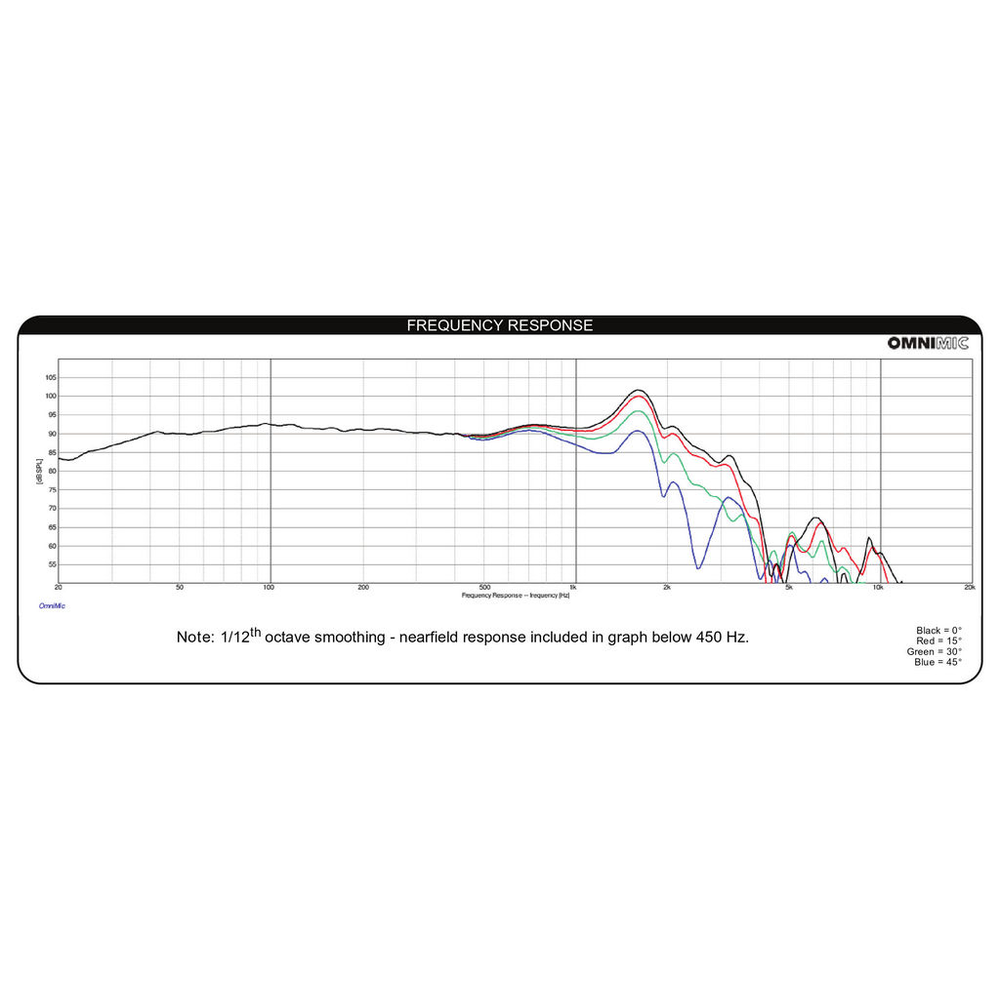

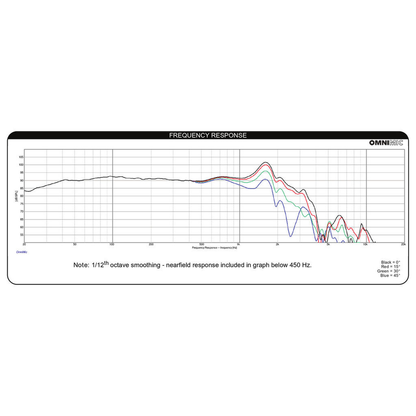

Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC380-8 15" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. Smooth frequency response and extended bass performance make this driver ideal for use in large format two-way and classic three-way loudspeaker designs. A Qts of 0.35 allows the DC300-8 to work well in both sealed and ported speaker enclosures.

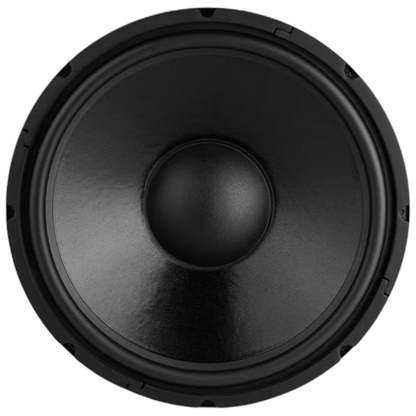

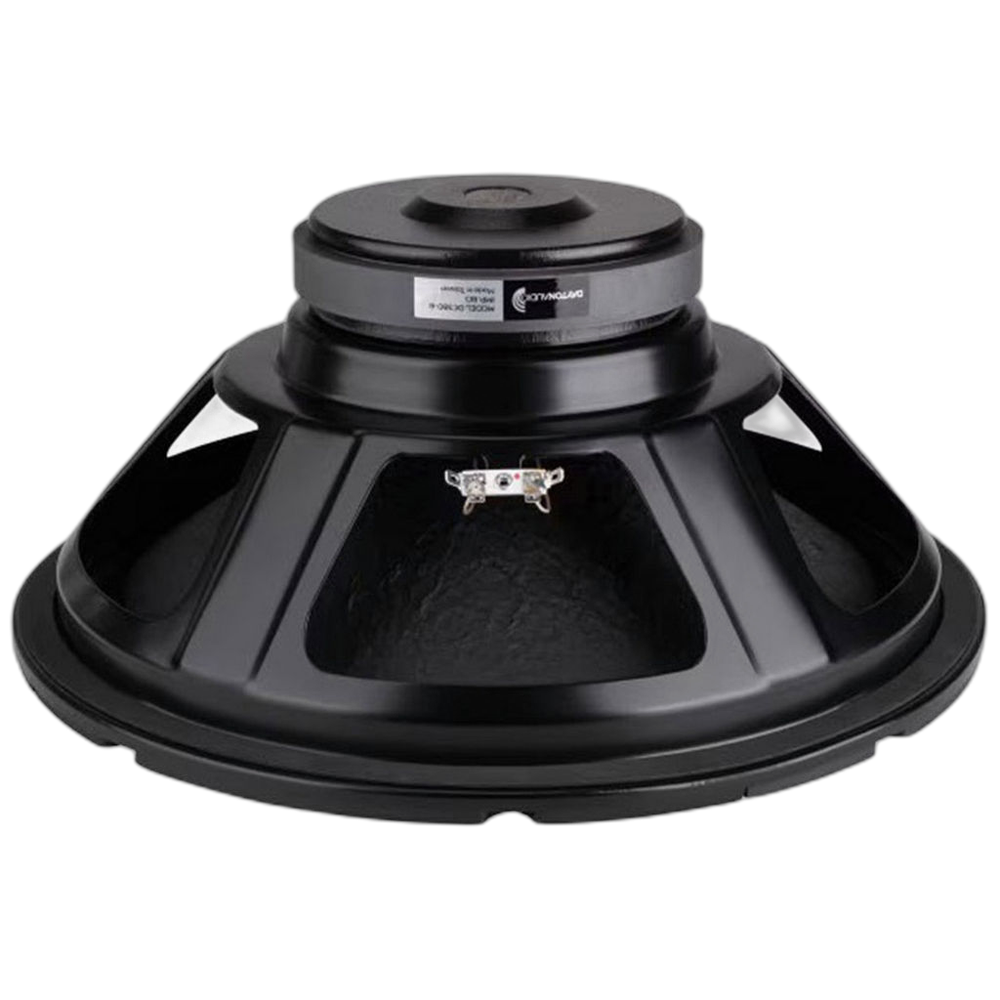

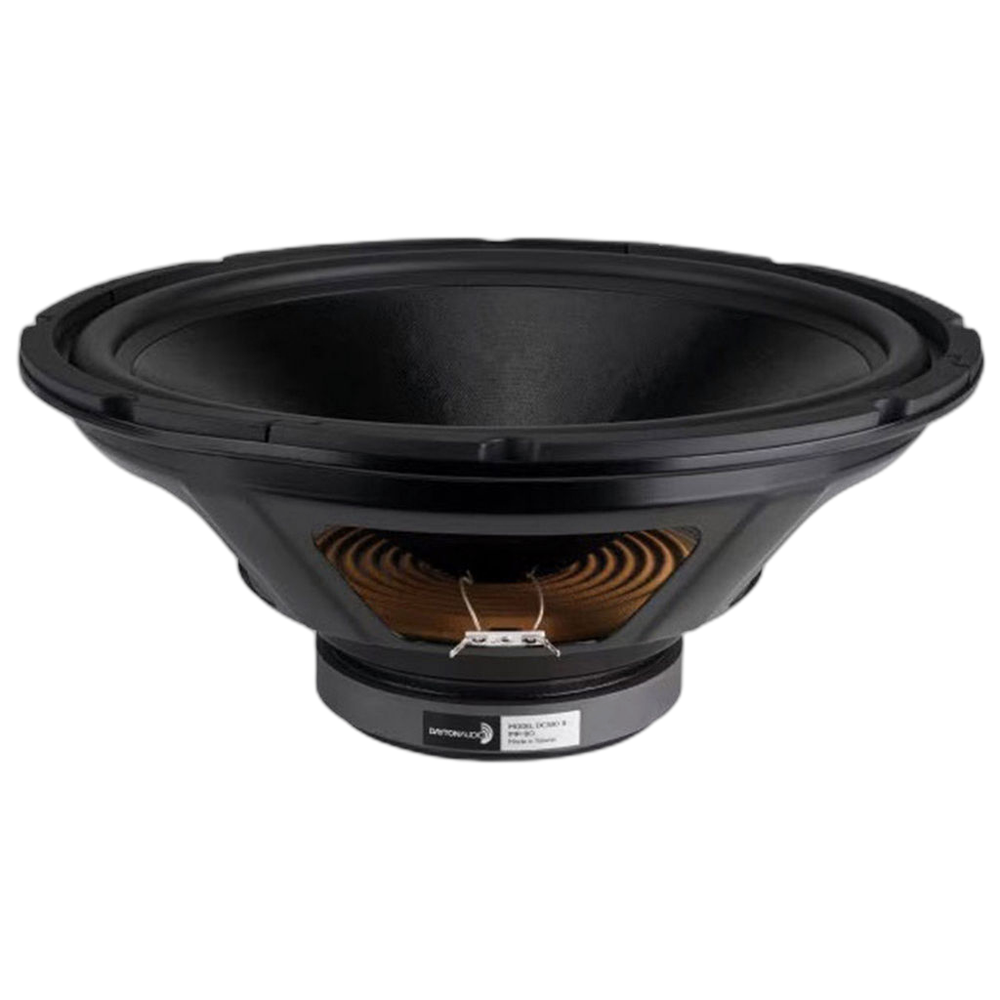

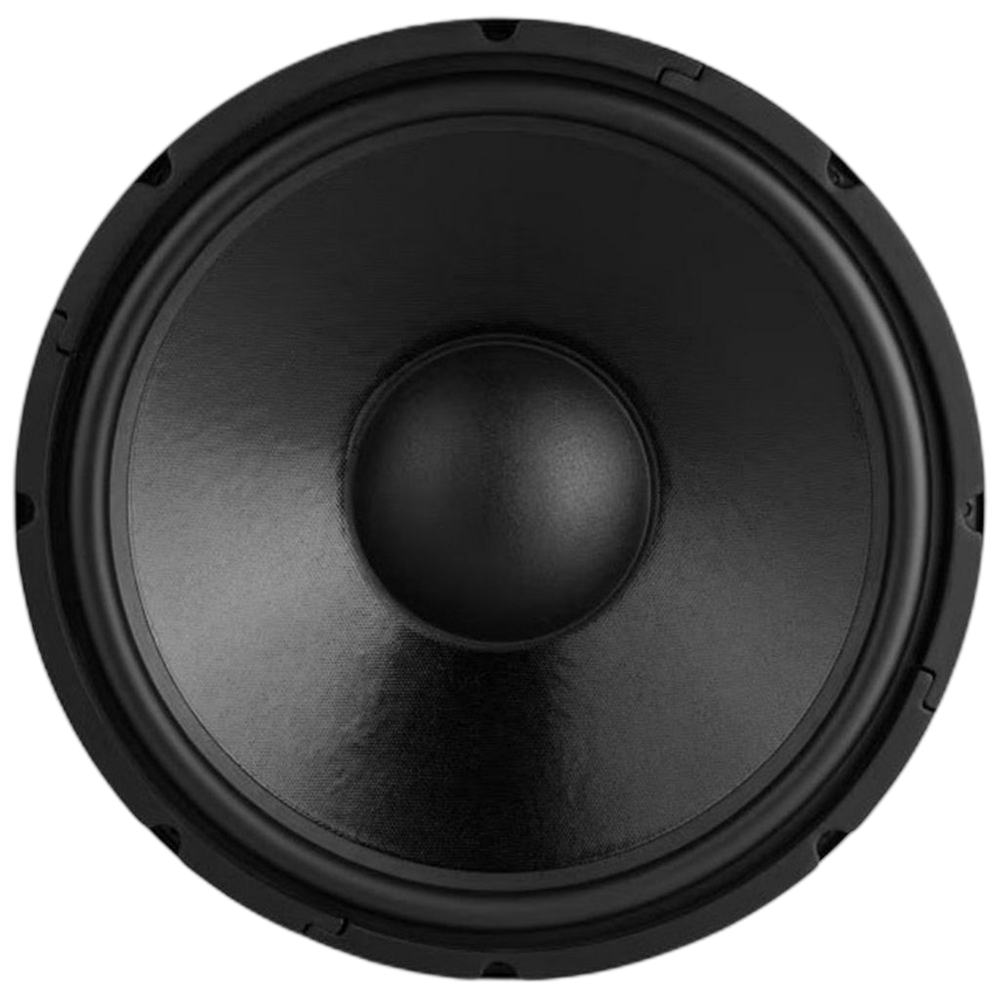

A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminium voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.
Features
- Treated paper cone provides smooth response and low energy storage
- Aluminium former, vented pole piece, and porous dustcap for high power handling
- Large diameter flat spider and healthy Xmax for clean bass
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 15" |
| Nominal impedance | 8Ω |
| Series | Classic |
| Power handling (RMS) | 100 W |
| Power handling (program) | 200 W |
| Sensitivity | 91.8 dB |
| Frequency range | 20 – 1,500 Hz |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 18.8 Hz |
|---|---|
| DC resistance (Re) | 6.4 Ω |
| Voice coil inductance (Le) | 3.09 mH |
| Mechanical Q (Qms) | 2.87 |
| Electrical Q (Qes) | 0.34 |
| Total Q (Qts) | 0.3 |
| Equivalent volume (Vas) | 391.4 L |
| Compliance (Cms) | 0.39 mm/N |
| Moving mass (Mms) | 182.9 g |
| Mechanical resistance (Rms) | 7.528 kg/s |
| Force factor (Bl) | 20.4 T·m |
| Effective piston area (Sd) | 834.7 cm² |
| Linear excursion (Xmax, one-way) | 4.35 mm |
| Displacement volume (Vd) | 363.1 cm³ |
| Efficiency bandwidth product (EBP) | 55.29 |
Motor
| Voice coil wire | Copper |
|---|

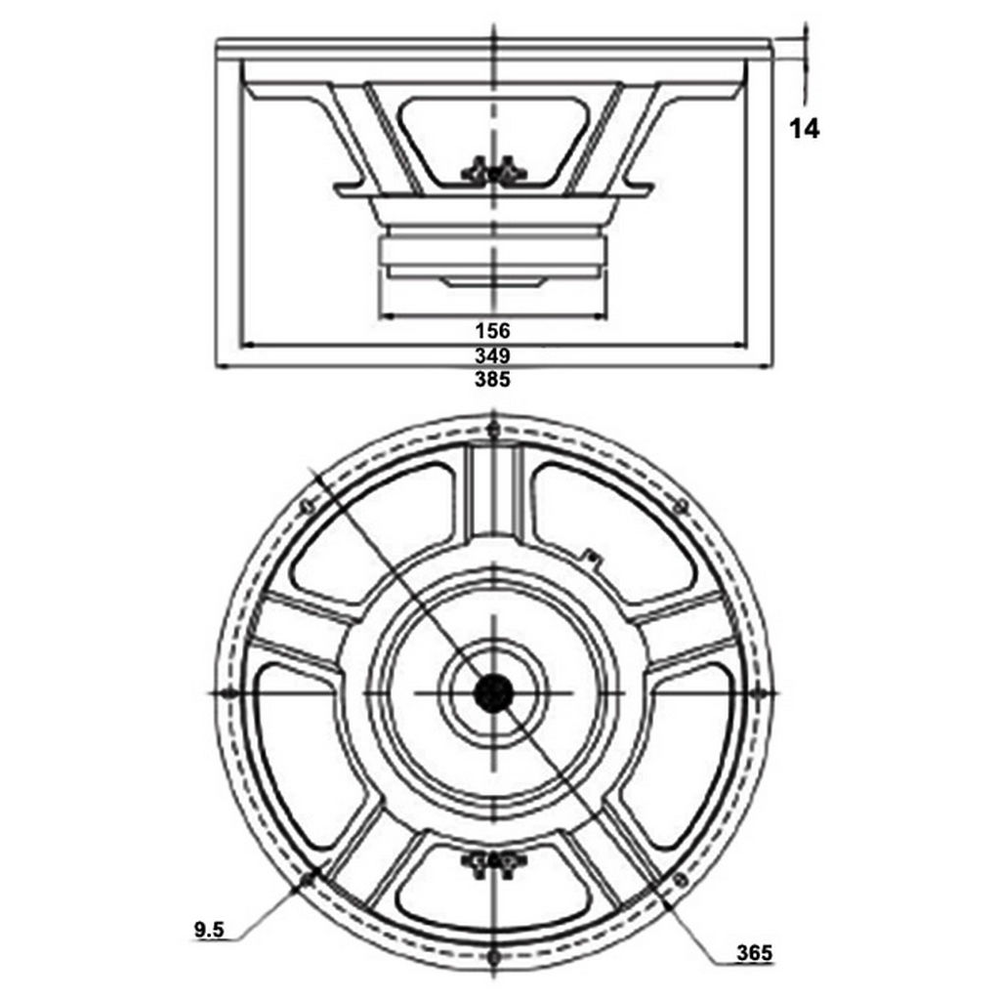

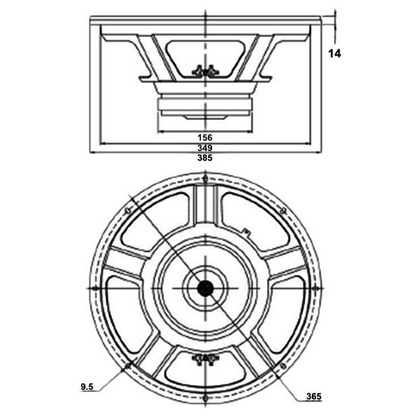

Mounting
| Overall diameter | 385 mm |
|---|---|
| Cutout diameter | 349 mm |
| Mounting depth | 162 mm |
| Flange thickness | 14 mm |
| Bolt circle diameter | 365 mm |
| Mounting holes | 8 |
| Mounting hole diameter | 9.5 mm |
| Voice coil diameter | 51 mm |
| Weight | 5.216 kg |
Materials
| Cone | Treated Paper |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- DC380-8 Specification Sheet
- DC380-8 Data Files
- DC380-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
