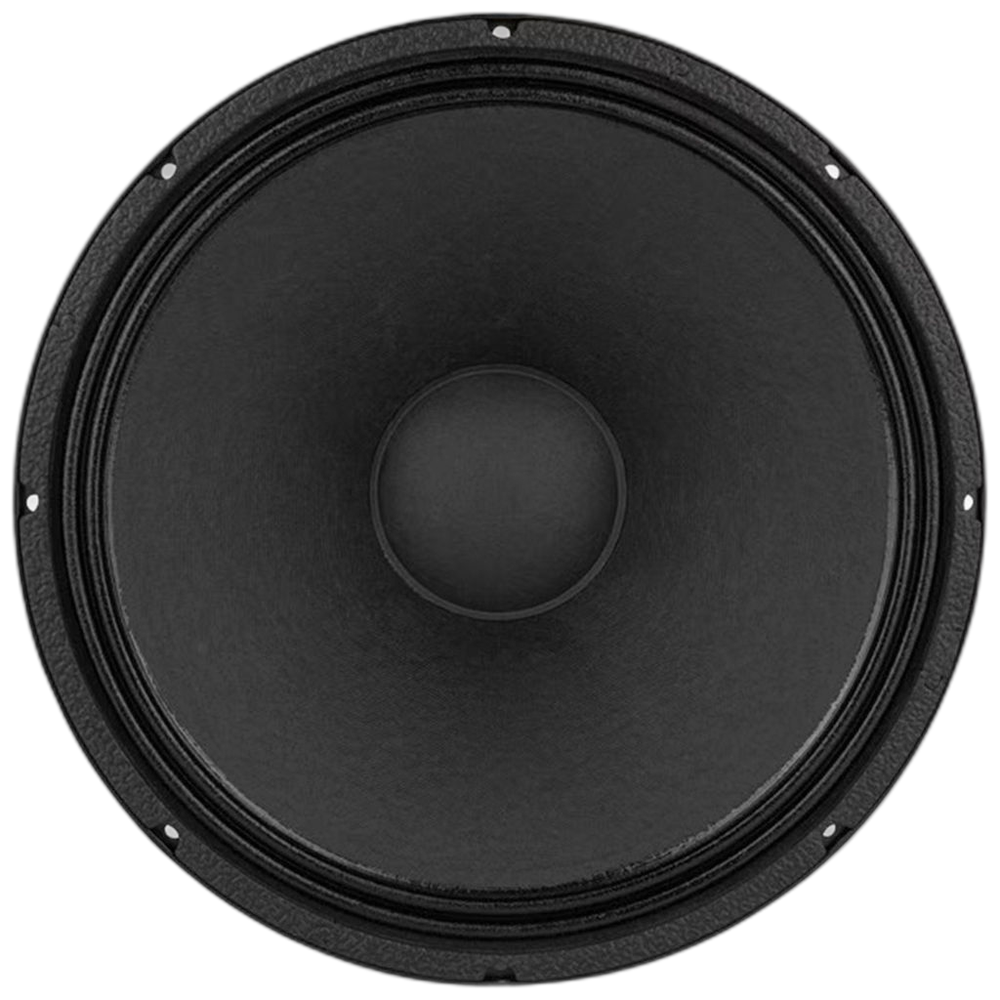

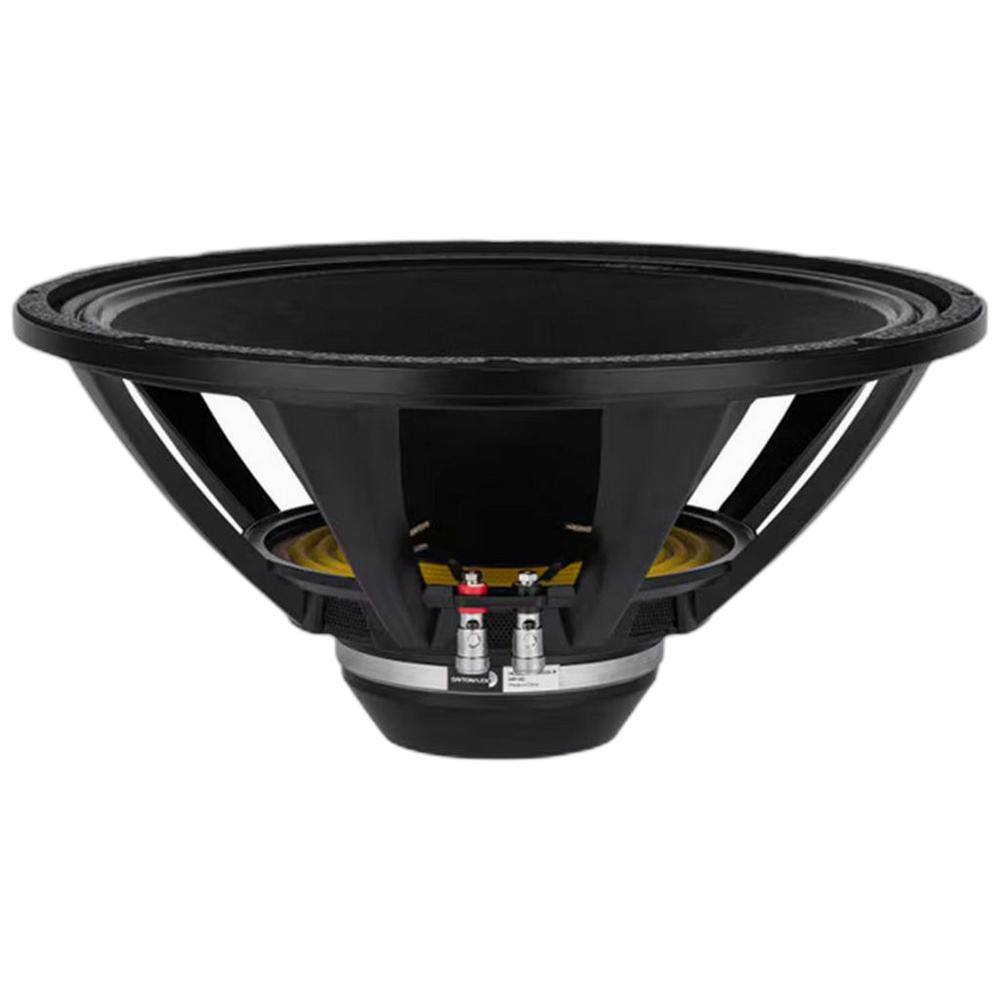

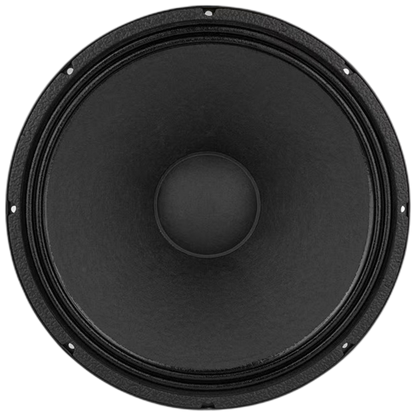

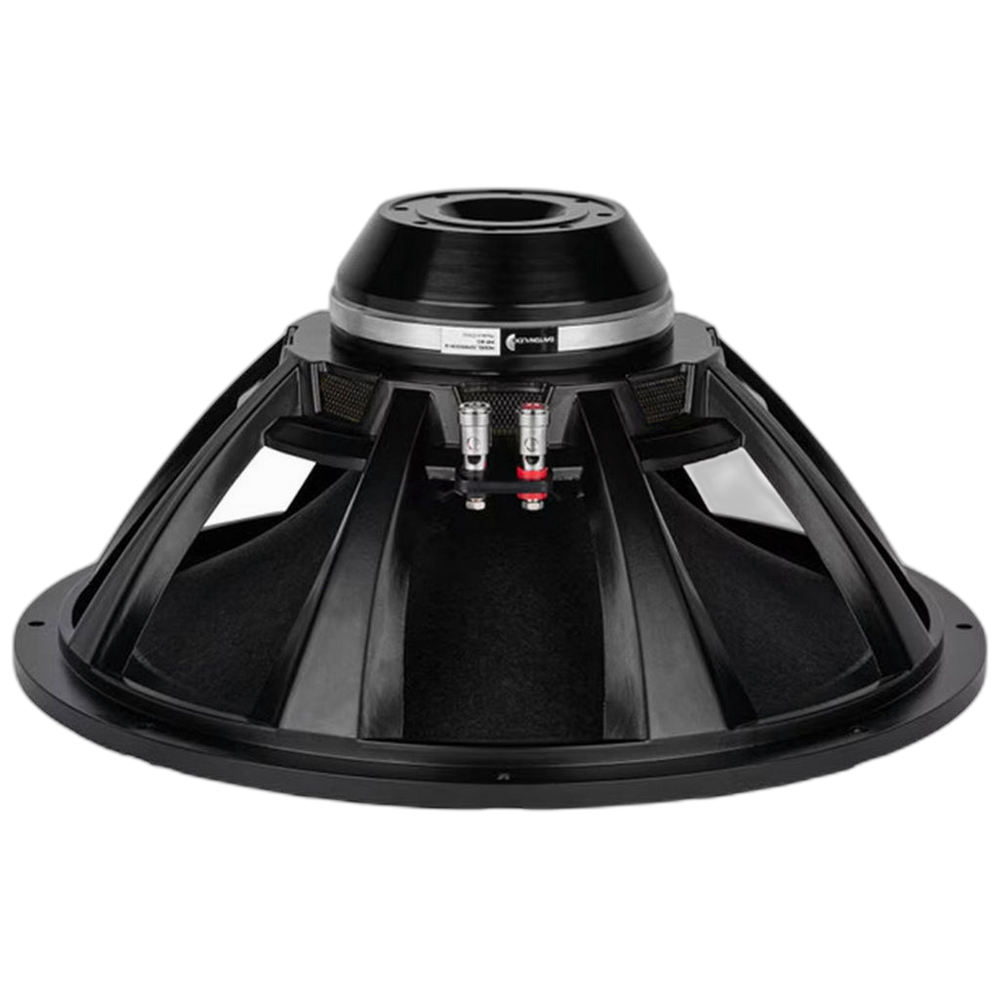

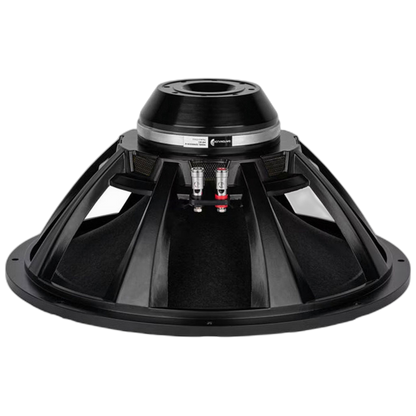

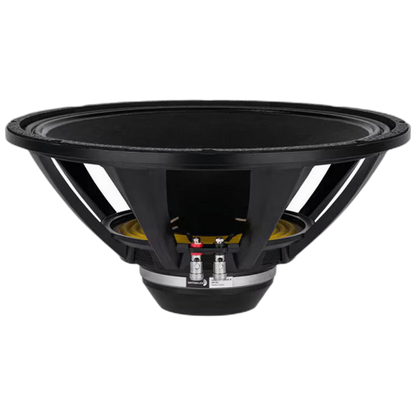

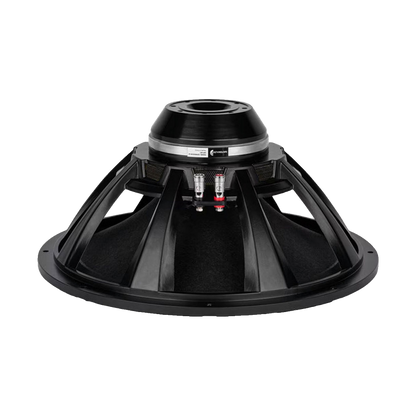

Dayton Audio - 15" Odeum Woofer Neo - 15MB500N-8
Dayton Audio - 15" Odeum Woofer Neo - 15MB500N-8
Regular price
$489.95 AUD
Regular price
Sale price
$489.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The Dayton Audio ODEUM series 15" mid-bass woofer outperforms stock woofers in PA systems. The powerful 500W Pro driver features a neodymium motor, a 3" voice coil with a fibreglass former, and a copper inductance cap to lower distortion. A paper cone with cloth M-roll surrounds provides a neutral tone that is easy to tune, and peripheral venting helps keep the whole system cool when playing.
Features
- Powerful neodymium motor for superior output.
- Copper inductance cap for low distortion.
- Paper cone and cloth m-roll surround for high clarity, smooth response, and linear excursion for pounds of punch.
- 3" inside/outside wound copper voice coil leads on fibreglass former lend solid power handling capability.
- Under spider and rear periphery venting allow for a cooler-running voice coil.
- Low Qts means high damping and smaller boxes.
Specifications
| Bl | 20.96Tm |
|---|---|
| Cms | 0.142mm/N |

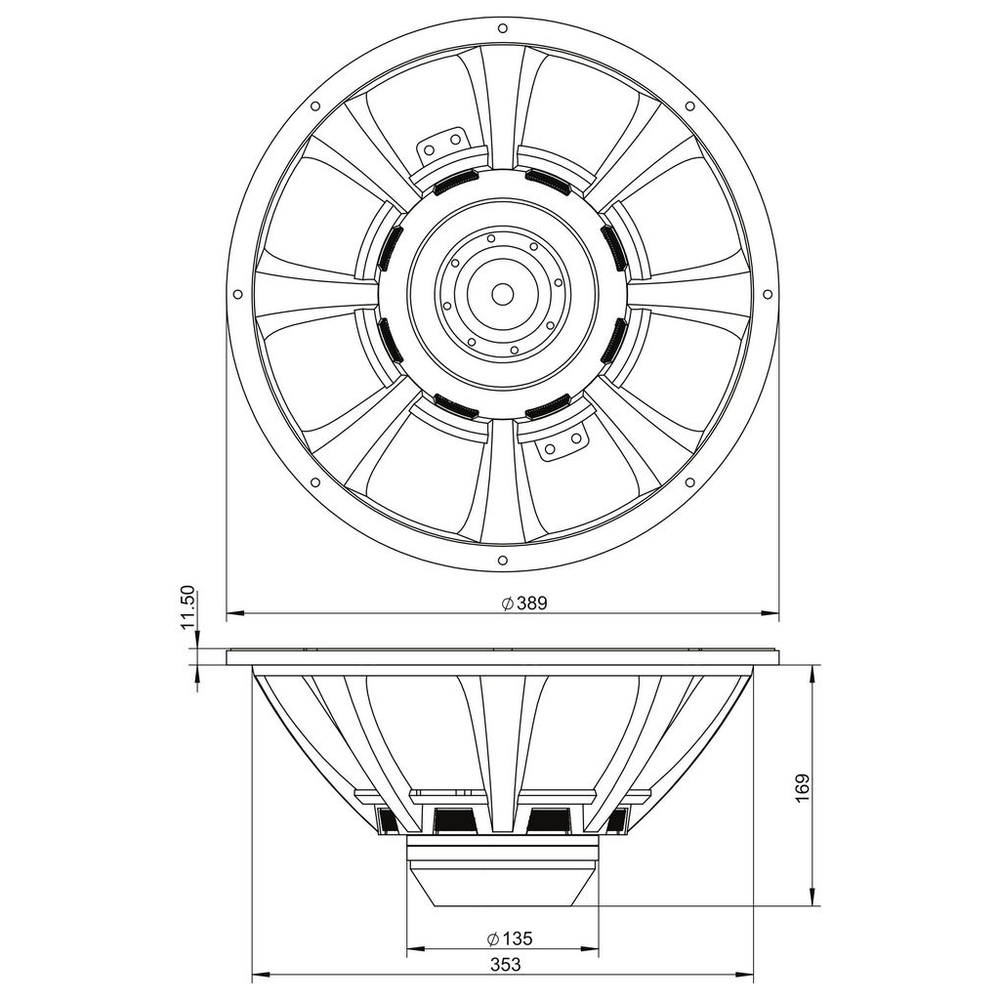

| Coil | 76.2mmØ |
| Diam. | 389mmØ |

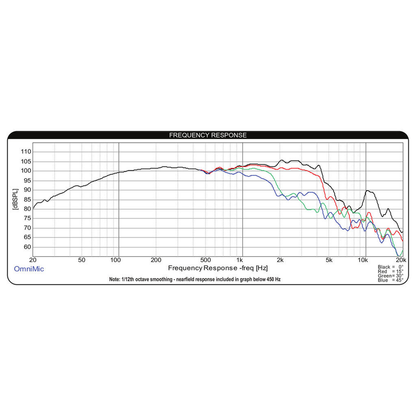

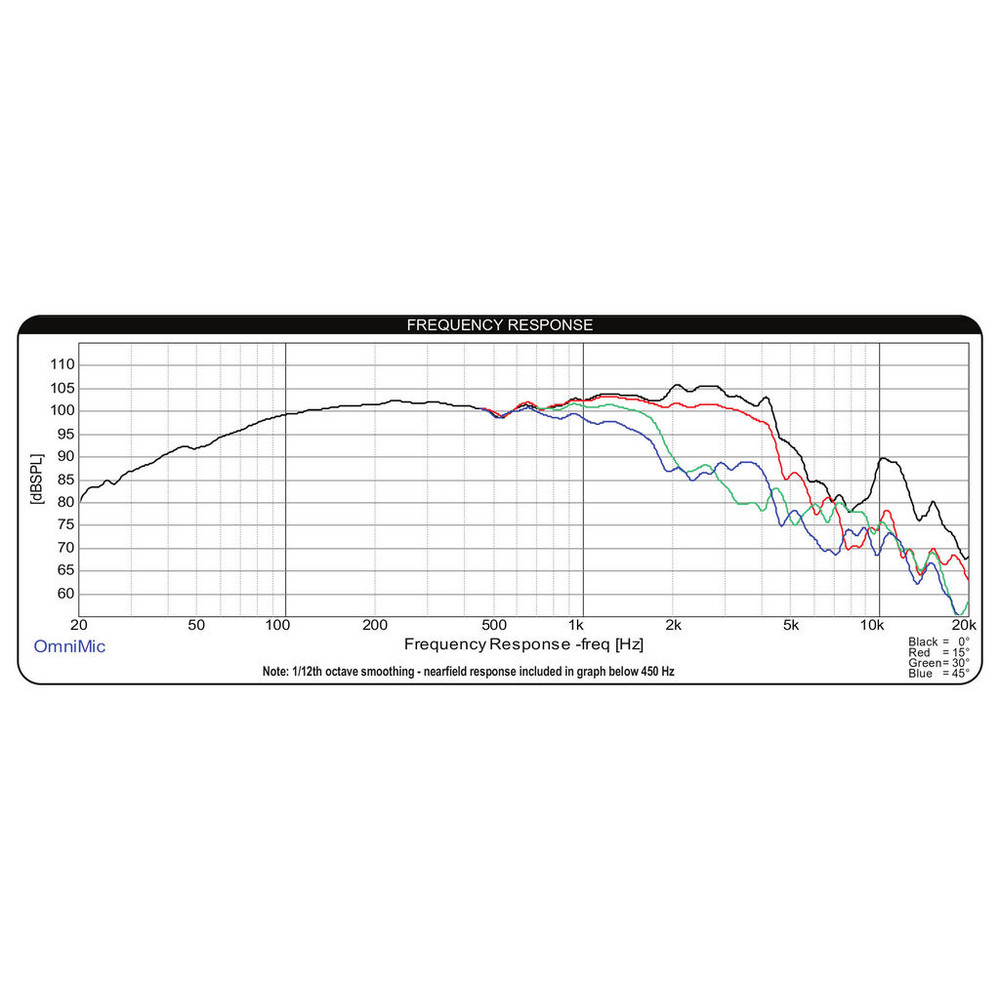

| Freq. | 40Hz-4.5kHz |
| Fs | 44Hz |
| Hole | 353mmØ |
| Impedance | 8Ω Re 5.8Ω |
| Le | 0.14mH |
| Mag. | Neodymium |
| Manufacturer | Dayton Audio |
| Material | Paper |
| Mms | 93.39g |
| Power | 500Wrms |
| Qes | 0.34 |
| Qms | 10.47 |
| Qts | 0.33 |
| Re | 5.8Ω |
| Sd | 844.53cm² |
| Sens. | 98.6dB |
| Series | Odeum |
| Size | 15' |
| SPL | 98.6dB |
| Type | Odeum |
| Vas | 154.7L |
| VC | 76.2mmØ |
| Vd | 548.4cm³ |
| Xmax | 6.55mm |
| Zn | 8Ω |
