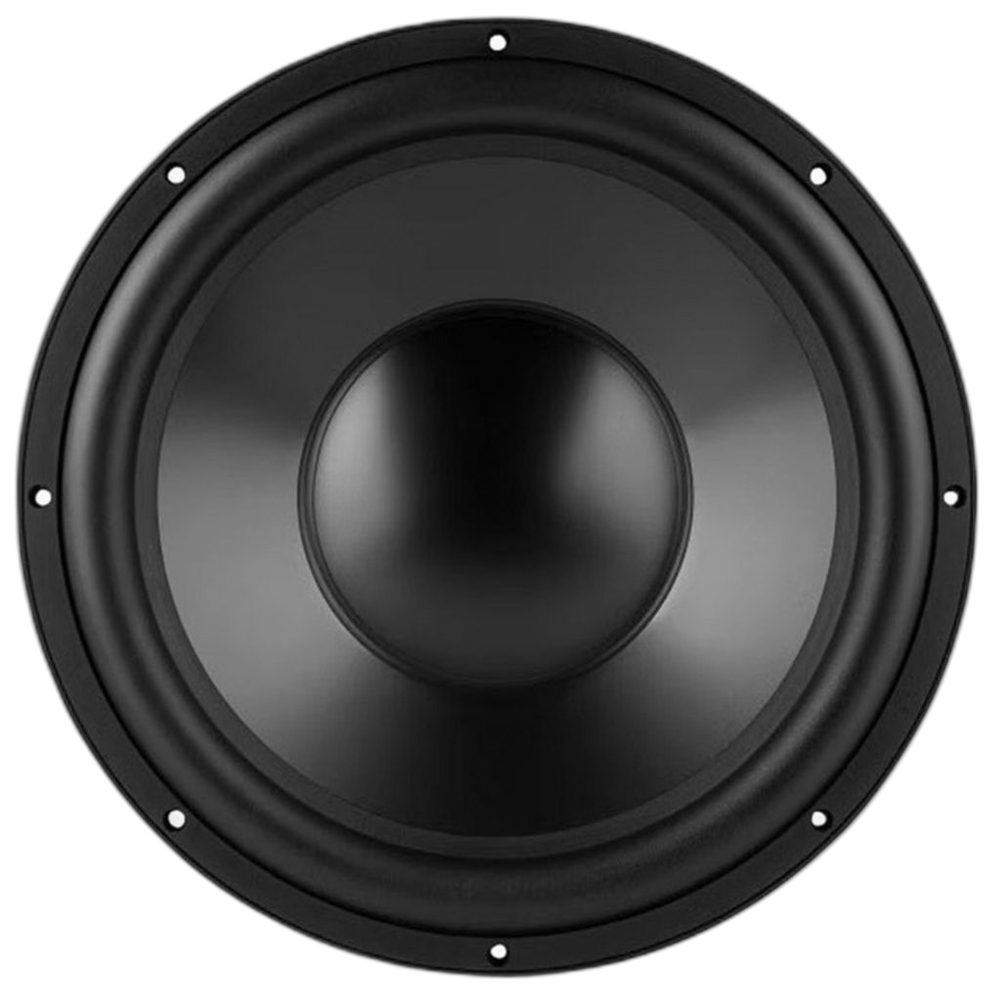

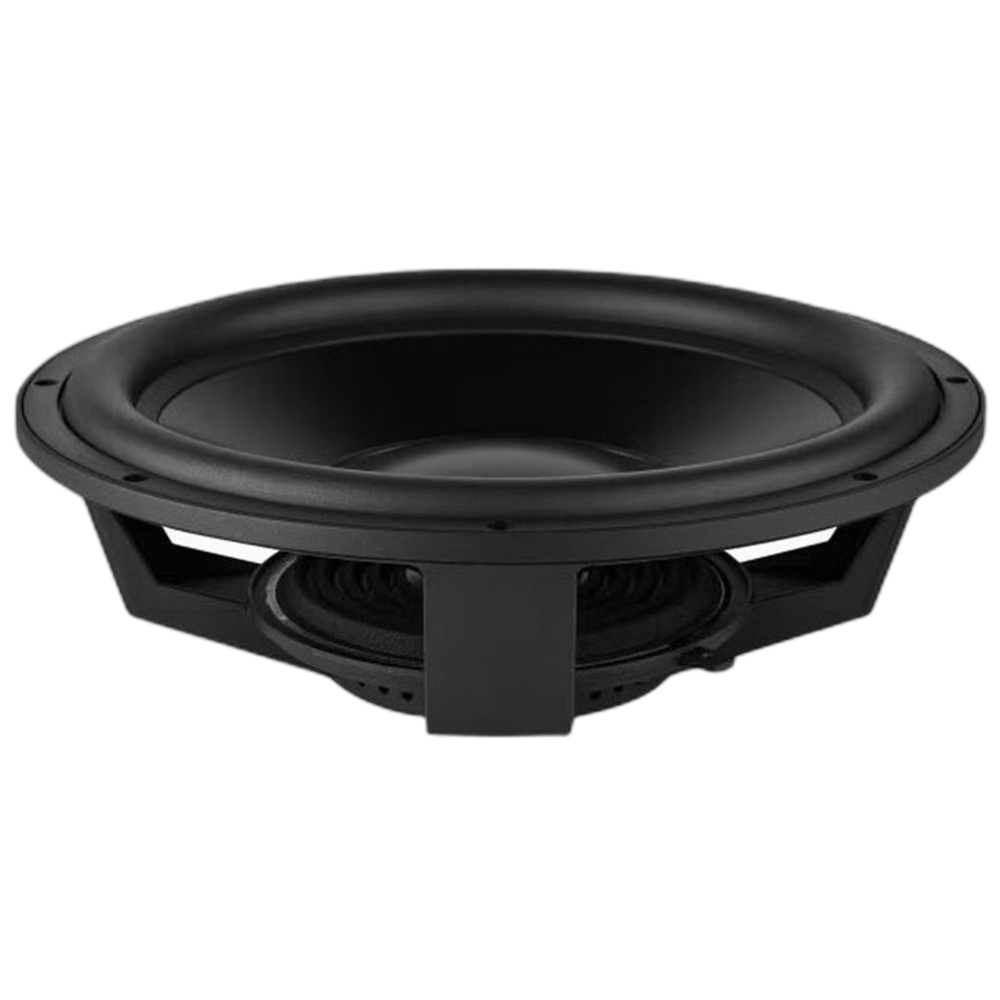

Dayton Audio's RSS390-PR 15" passive radiator is the ideal choice for tuning small enclosures lower than possible with a conventional port. With a thick aluminium cone, cast frame, rubber surround, and incredible excursion capabilities (60 mm peak to peak) this radiator is perfect for todays high excursion subwoofers.
Dayton Audio is proud to offer our customers a complete line of Reference Series Passive Radiators. These high quality, well-engineered passive radiators are carefully constructed using the same rigid anodised aluminium cone and cast frame as our world renowned Reference Series subwoofers, making them visually identical and a perfect match to the very popular line of drivers.

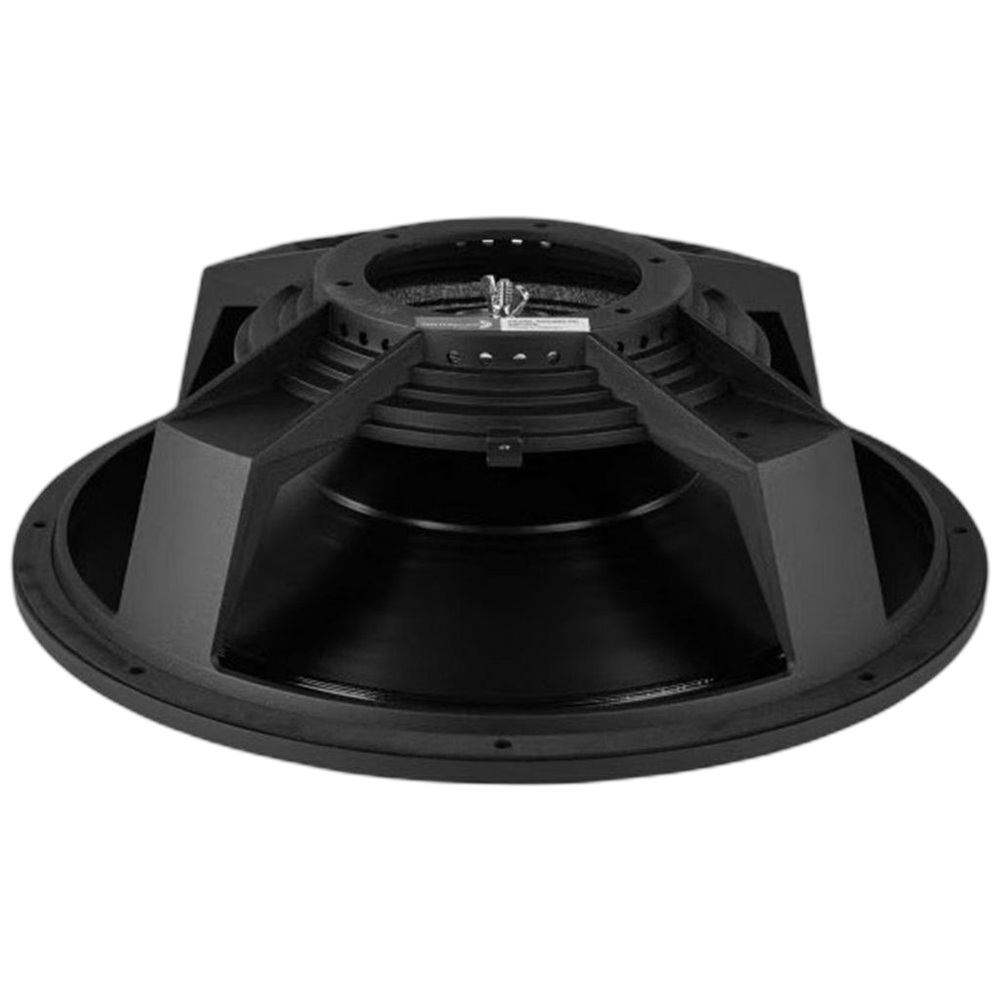

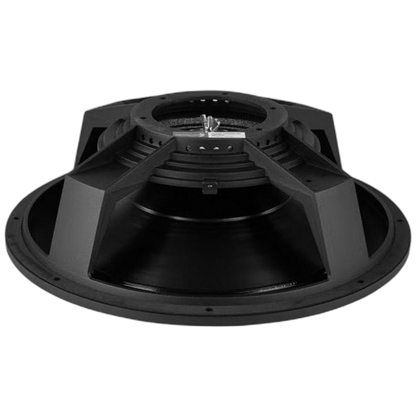

Each passive radiator employs the unique SMS (Sandwiched Mass Structure) design which keeps the majority of the mass centred between the surround and spider providing greater linearity by minimising angular torque. These passives are also tunable using the included weights with the bolt-on mass adjustment assembly making them easily integrated into virtually any subwoofer design.
The RSS390-PR 15" passive radiator includes: 1 – Passive radiator 7 – 75 gram disk weights 1 – wing nut (for tuning) 1 – lock nut (for final assembly)
Note: Parameters above are for the passive only with no additional mass added. Parameters with additional mass added are listed in the table below.
Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
Features
- SMS (Sandwich Mass System) permits greater linearity by minimising angular torque
- Durable yet compliant suspension provides substantial linear travel and mechanical stability
- Rigid cast aluminium frame with thick black anodised aluminium cone
- Threaded rod with lock nut for easy adjustment of tuning frequency
- Includes 7-75 gram weighted disks for simple tuning adjustment
- Cosmetically identical to our popular Reference Series Subwoofer lines
Specifications
Specifications
General
| Driver type | Passive Radiator |
|---|---|
| Nominal size | 15" |
| Series | Reference |
Thiele/Small parameters
| Resonant frequency (Fs) | 18.2 Hz |
|---|---|
| Mechanical Q (Qms) | 4.07 |
| Equivalent volume (Vas) | 212.8 L |
| Compliance (Cms) | 0.22 mm/N |
| Moving mass (Mms) | 400 g |
| Mechanical resistance (Rms) | 12.41 kg/s |
| Effective piston area (Sd) | 829.6 cm² |
| Linear excursion (Xmax, one-way) | 30 mm |
| Displacement volume (Vd) | 2,489 cm³ |
Mounting

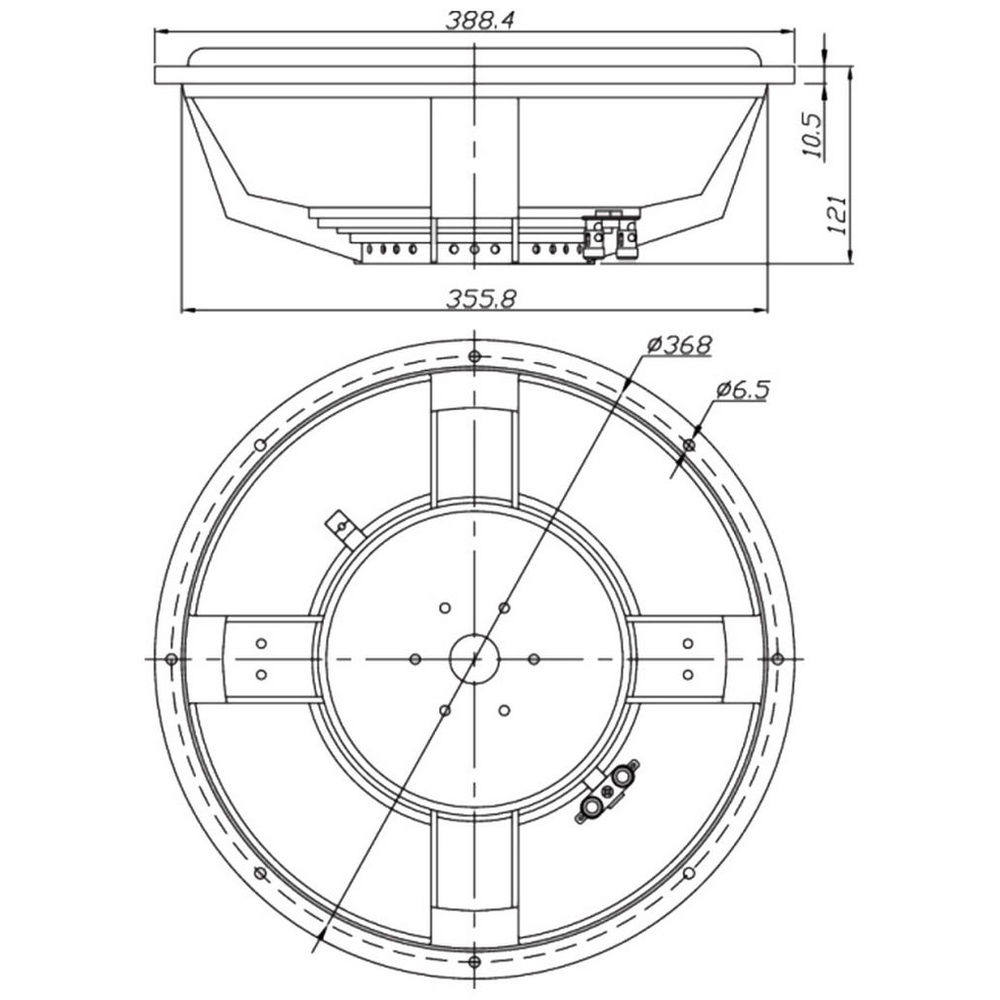

| Overall diameter | 388.4 mm |
|---|---|
| Cutout diameter | 355.8 mm |
| Mounting depth | 121 mm |
| Flange thickness | 10.5 mm |
| Bolt circle diameter | 368 mm |
| Mounting holes | 8 |
| Mounting hole diameter | 6.5 mm |
| Weight | 4.99 kg |
Materials
| Cone | Aluminium |
|---|---|
| Surround | Rubber |
| Basket | Cast Aluminium |
- Xmax is quoted one-way (peak), not peak-to-peak.
Downloads
- RSS390-PR Specification Sheet
- RSS390-PR Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Check it against your driver before you cut.
