Dayton Audio - 15" Reference Series HO Subwoofer - RSS390HO-4

Dayton Audio - 15" Reference Series HO Subwoofer - RSS390HO-4

$684.95 AUD
$684.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

The 15" High Output version of Dayton Audio's Reference Series subwoofer, built for ultra-low distortion: three short-circuit paths in the motor keep second, third and intermodulation distortion low. A durable aramid fibre spider and extensive venting give quiet, even excursion. The HO version is designed for car audio or equalised high-power home subwoofers.

Features

  • Extensively vented motor eliminates compression and allows quiet excursion
  • Extra-thick black anodised aluminium cone for maximum rigidity
  • Triple shorting ring motor for ultra-low distortion
  • 4-layer coil for high power handling
  • Optimised parameters for small enclosures
  • Highest quality materials throughout for long-lasting performance

Specifications

General

Driver type Subwoofer
Nominal size 15"
Nominal impedance 4Ω
Power handling (RMS) 800 W
Power handling (program) 1,600 W
Sensitivity 92.8 dB
Frequency range 21 – 600 Hz

Thiele/Small parameters

Resonant frequency (Fs) 21.5 Hz
DC resistance (Re) 3.2 Ω
Voice coil inductance (Le) 1.79 mH
Mechanical Q (Qms) 3.69
Electrical Q (Qes) 0.35
Total Q (Qts) 0.32
Equivalent volume (Vas) 168 L
Compliance (Cms) 0.17 mm/N
Moving mass (Mms) 319 g
Force factor (Bl) 19.8 T·m
Effective piston area (Sd) 829.6 cm²
Linear excursion (Xmax, one-way) 12 mm
Displacement volume (Vd) 995.5 cm³
Efficiency bandwidth product (EBP) 61.43

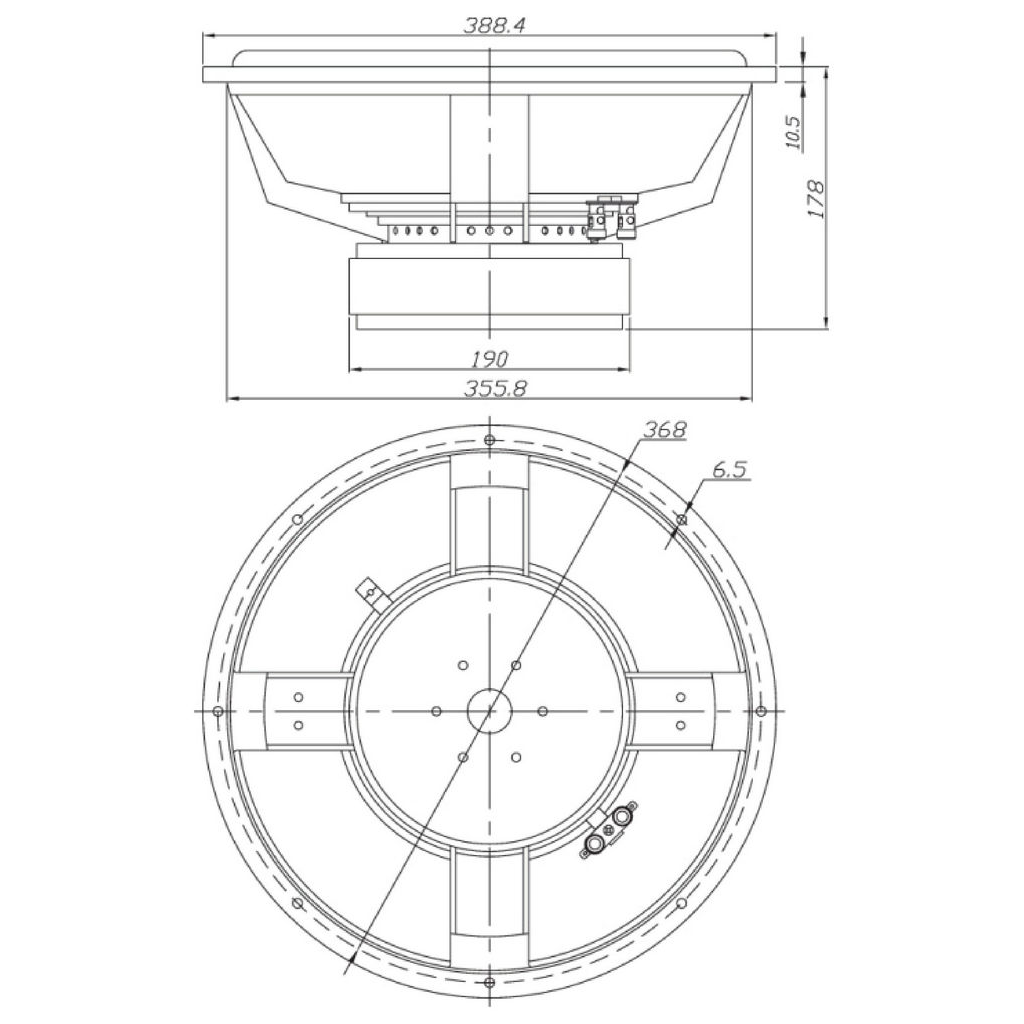

Mounting

Overall diameter 388.4 mm
Cutout diameter 355.8 mm
Mounting depth 178 mm
Flange thickness 10.5 mm
Bolt circle diameter 368 mm
Mounting holes 8
Mounting hole diameter 6.5 mm
Voice coil diameter 64 mm
Weight 13.61 kg
  • Xmax is quoted one-way (peak), not peak-to-peak.
  • Sensitivity measured at 2.83V/1m.
