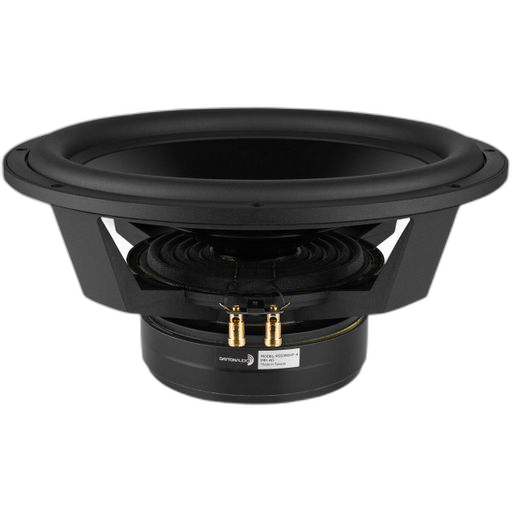

Dayton Audio - 15" Reference Series HF Subwoofer - RSS390HF-4
Dayton Audio - 15" Reference Series HF Subwoofer - RSS390HF-4
***CURRENTLY ON BACKORDER - WILL SHIP IN 7-14 DAYS***
Description:
Engineered to provide high-volume, low-distortion bass in larger rooms and other highly demanding applications, the Dayton Audio RSS390HF-4 15" Reference Series subwoofer speaker offers the perfect combination of high definition sound quality and low frequency impact.
As with the rest of the Reference Series, the main focus of the Dayton Audio RSS390HF-4 15" subwoofer is ultra-low distortion. Second, third, and intermodulation distortion are kept extremely low by utilising three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodised cone, rubber surround, and custom basket give this Dayton Audio driver a unique, high-end look. This High Fidelity (HF) version speaker for home system is designed for users who are looking for clean, low bass and are not restricted by cabinet size.
Features:
- Extensively vented motor eliminates compression and allows quiet excursion.
- Lightweight black anodized aluminium cone for rigidity and lower moving mass.
- Triple shorting ring motor for ultra-low distortion.
- 2-layer coil for reduced back EMF.
- Suitable for sealed or vented enclosures.
- Highest quality materials throughout for long-lasting performance.
Specifications:
Code | RSS390HF-4 |
Description | 15" Reference Series HF Subwoofer 4 Ohm |
Cms | 0.22mm/N |
Coil | 64mmØ |
Depth | 168mm |
Diam. | 388.4mmØ |
Fs | 19.5Hz |
Impedance | 4Ω (Re 3Ω) |
Impedance (Ohm) | 4 ohm |
Inch | 15 |
Le | 0.92mH |
Manufacturer | Dayton Audio |
Mms | 306g |
Prms | 500W |
Qes | 0.5 |
Qms | 3.02 |
Qts | 0.43 |
Re | 3Ω |
Sd | 829.6cm² |
Sens. | 91.2dB |
Series | Reference Series |
Type | Subwoofer |
Vas | 212L |
Zn | 4Ω |
