Dayton Audio

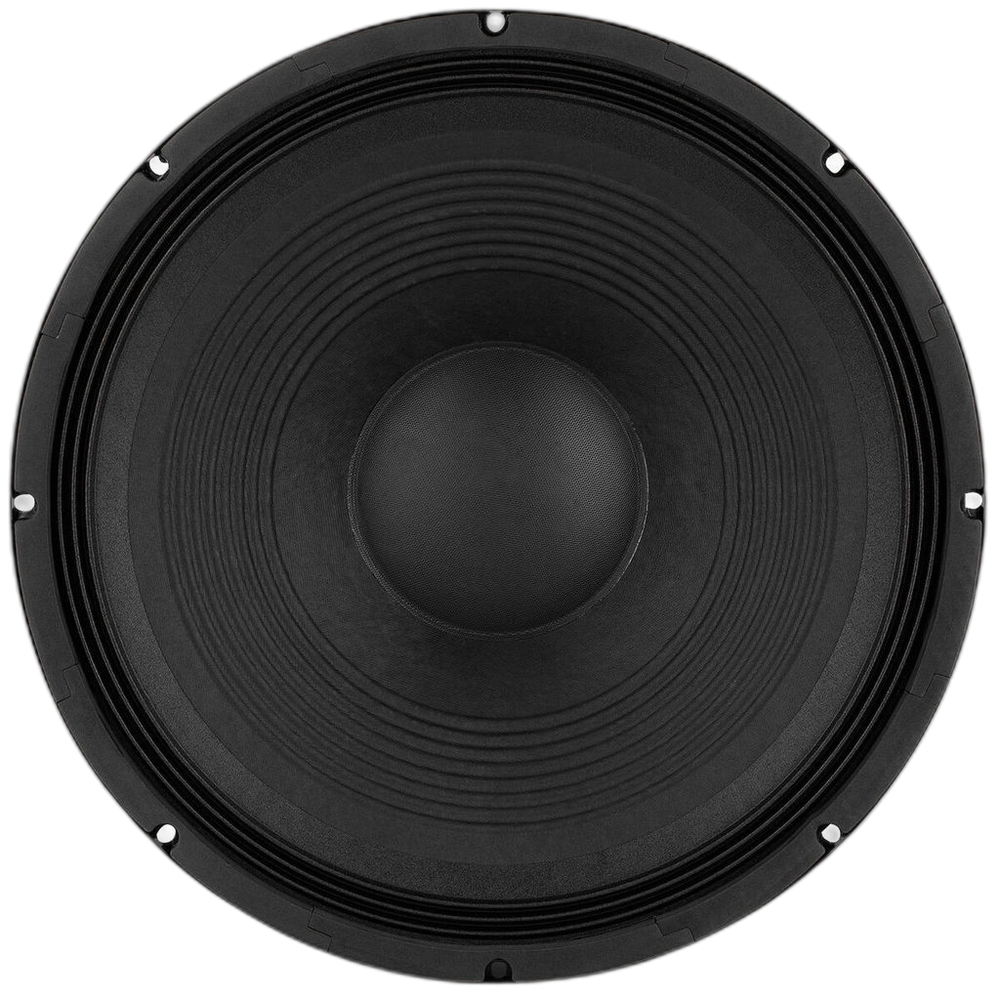

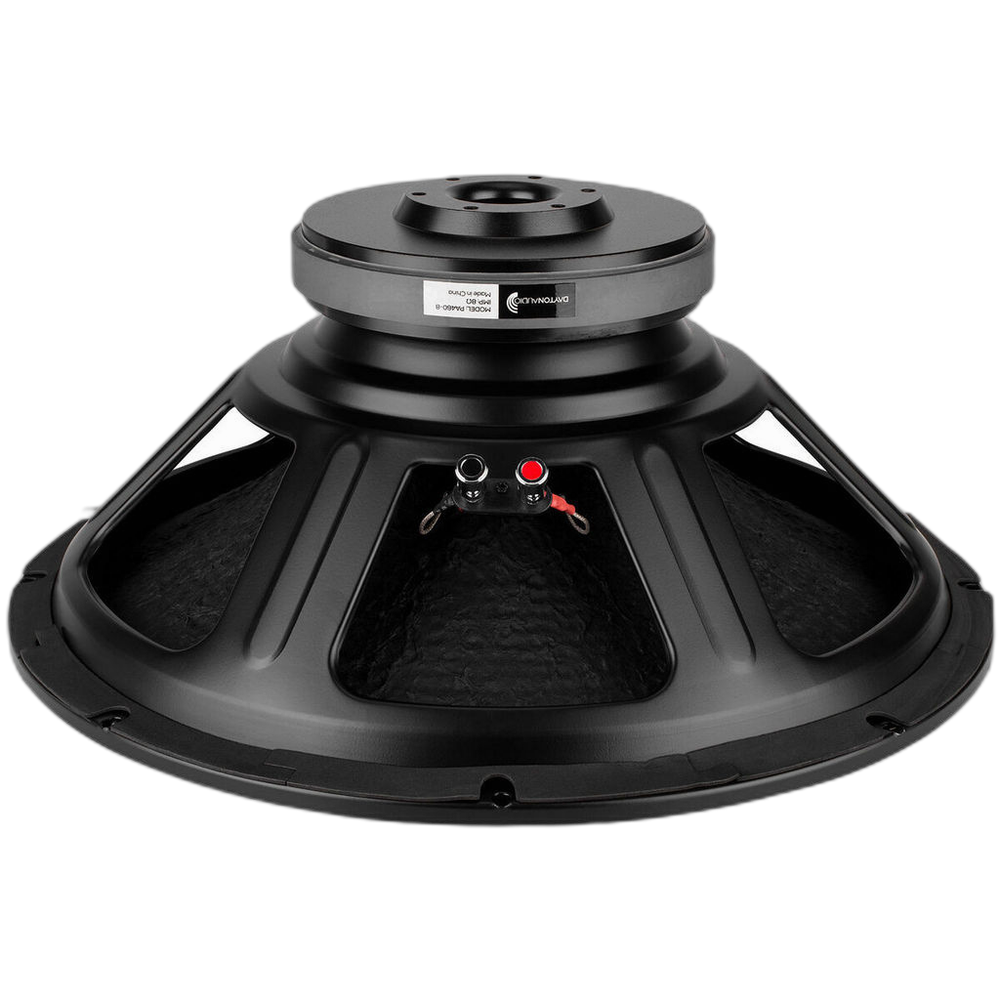

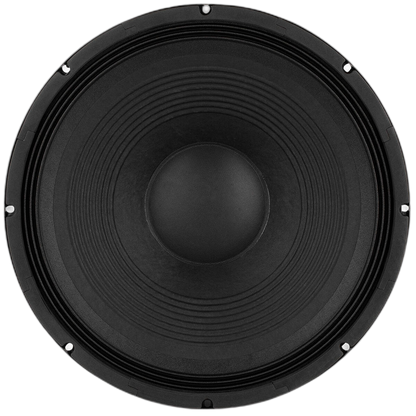

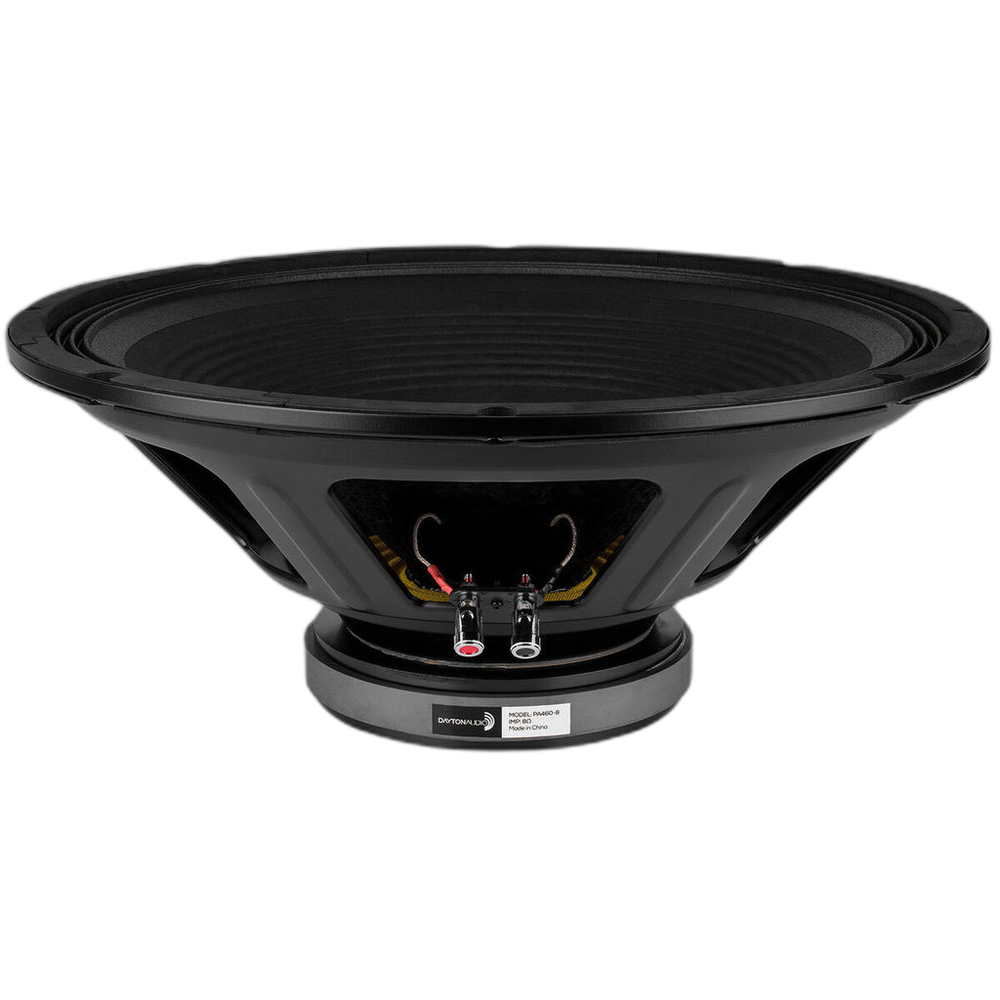

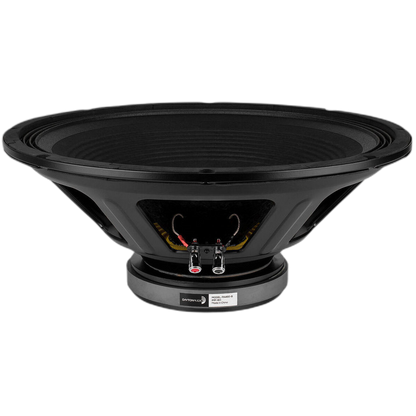

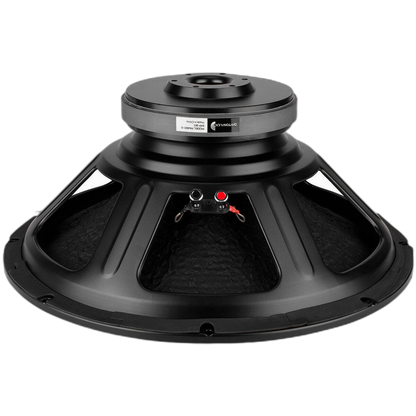

Dayton Audio - 18" PA Woofer Pro - PA460-8
Dayton Audio - 18" PA Woofer Pro - PA460-8
Regular price
$349.95 AUD
Regular price
Sale price
$349.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The 18" Dayton Audio PA Series Pro woofer is a great upgrade for musical instrument or sound reinforcement cabinets, and also excels in custom-built speaker systems. High power handling, smooth response, low distortion, deep punchy bass, and rugged reliability are the features that set PA Series woofers apart from other drivers - premium performance, but value priced.
Features
- Strong, low-mass, carbon fibre-impregnated paper cone.
- I-beam rolled edge 1.5 mm steel frame.
- Low distortion motor system with copper cap.
- Powerful 80 oz. ceramic ferrite magnet.
- Vented pole piece/vented voice coil gap improves thermal management.
- Black motor parts and black polyimide voice coil former dissipate heat.
- Bumped back plate for unrestricted excursion.
Specifications
| Cms | 0.19mm/N |
|---|---|
| Coil | 76mmØ |
| Fs | 28.3Hz |
| Hole | 425mmØ |
| Impedance | 8Ω Re 5.6Ω |
| Le | 3.9mH |
| Manufacturer | Dayton Audio |
| Mms | 171g |
| Power | 500Wrms |
| Qes | 0.34 |
| Qms | 11.2 |
| Qts | 0.33 |
| Re | 5.6Ω |
| Sd | 1241.1cm² |
| Sens. | 97.8dB |
| Series | PA Series |
| Size | 18' |
| Type | Woofer |
| Vas | 402L |
| Zn | 8Ω |
| Diam. | 460mmØ |
