Dayton Audio

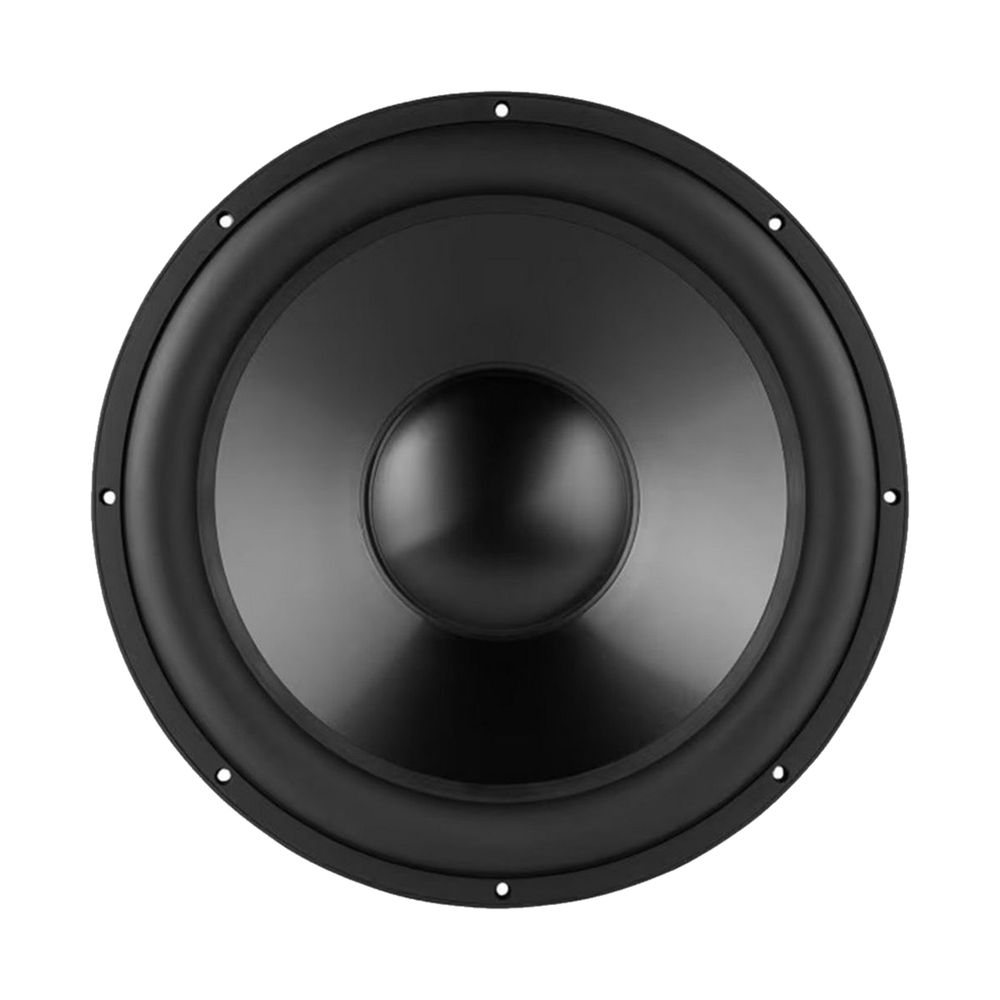

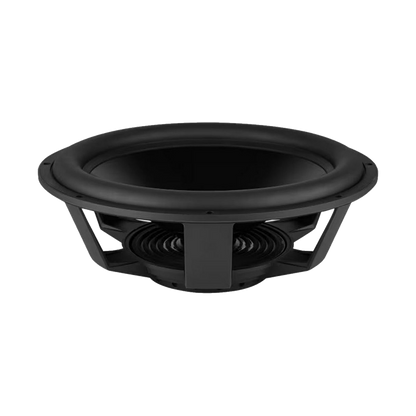

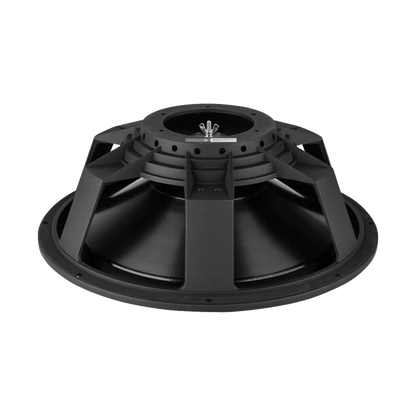

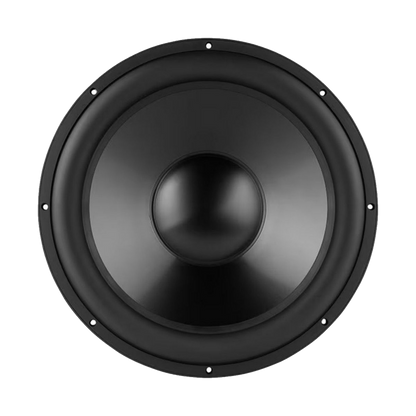

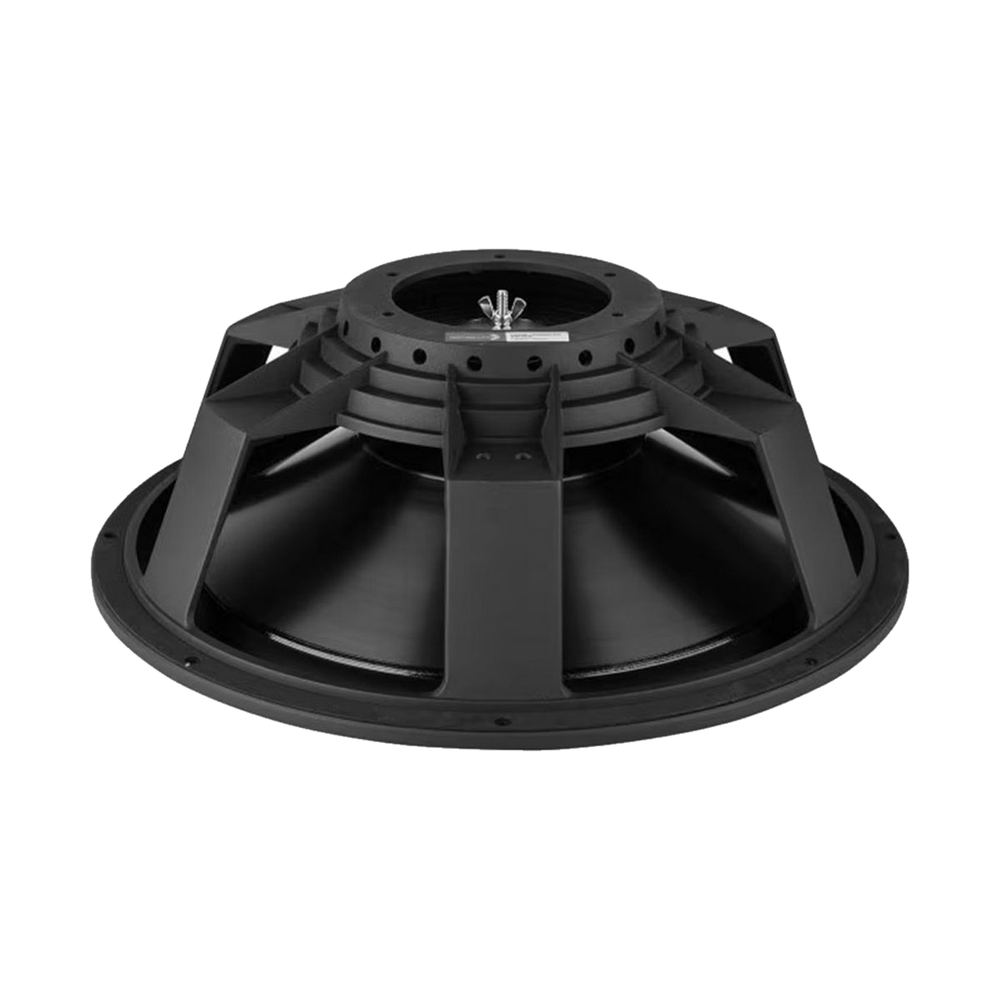

Dayton Audio - 18" Passive Radiator Aluminium - RSS460-PR
Dayton Audio - 18" Passive Radiator Aluminium - RSS460-PR
Regular price
$489.95 AUD
Regular price
Sale price
$489.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Dayton Audio's 18" Reference Series passive radiator, for tuning small enclosures lower than a conventional port allows. It has a thick black anodised aluminium cone, a cast aluminium frame and a rubber surround, and its long travel suits today's high-excursion subwoofers. Eight 75 g weight discs are included for tuning.
Features
- SMS (Sandwich Mass System) permits greater linearity by minimising angular torque
- Durable yet compliant suspension provides substantial linear travel and mechanical stability
- Rigid cast aluminium frame with thick black anodised aluminium cone
- Threaded rod with lock nut for easy adjustment of tuning frequency
- Includes eight 75 g weight discs for simple tuning adjustment
- Cosmetically identical to Dayton Audio's Reference Series subwoofers
Specifications
Specifications
General
| Driver type | Passive Radiator |
|---|---|
| Nominal size | 18" |
Thiele/Small parameters
| Resonant frequency (Fs) | 14.7 Hz |
|---|---|
| Mechanical Q (Qms) | 5.03 |
| Equivalent volume (Vas) | 449 L |
| Compliance (Cms) | 0.23 mm/N |
| Moving mass (Mms) | 500 g |
| Mechanical resistance (Rms) | 9.21 kg/s |
| Effective piston area (Sd) | 1,164 cm² |
| Linear excursion (Xmax, one-way) | 34 mm |
| Mechanical excursion (Xmech) | 34 mm |
| Displacement volume (Vd) | 3,958 cm³ |

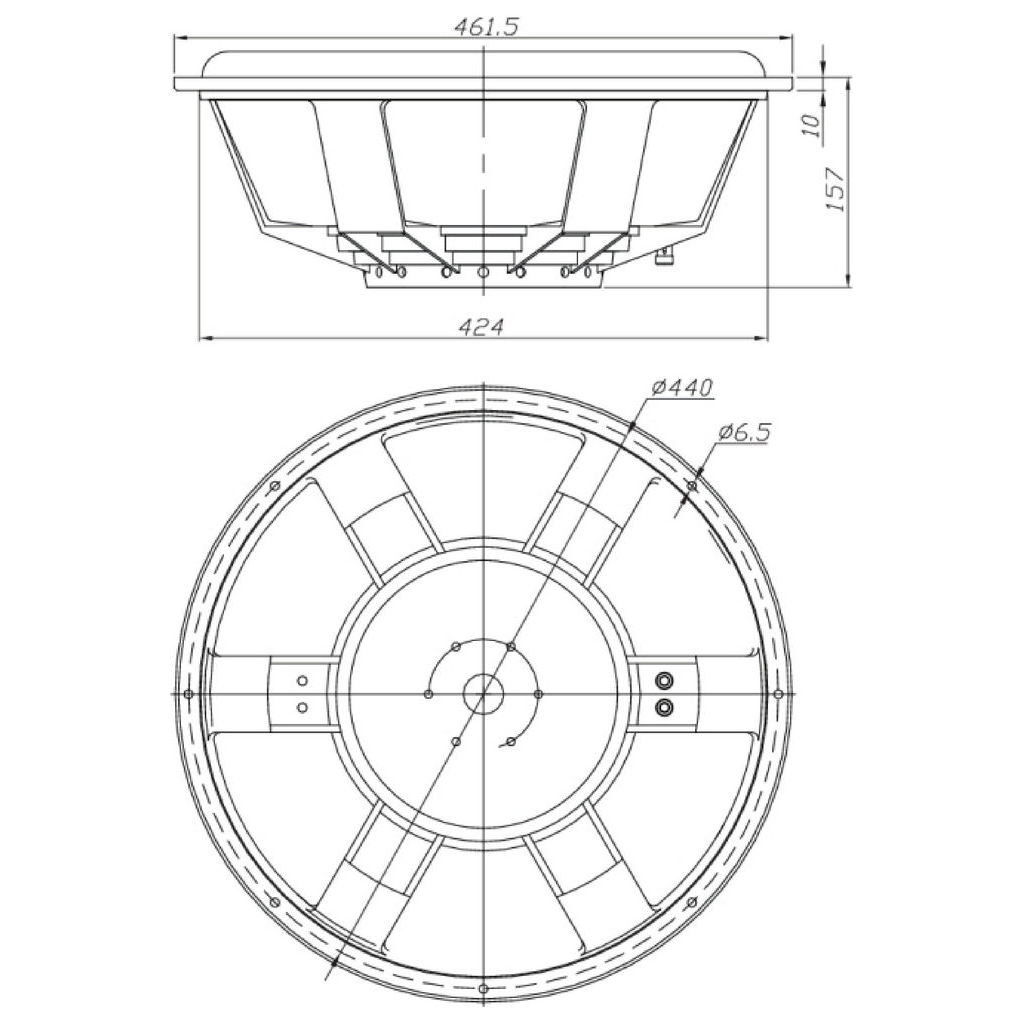

Mounting
| Overall diameter | 461.5 mm |
|---|---|
| Cutout diameter | 424 mm |
| Mounting depth | 157 mm |
| Flange thickness | 10 mm |
| Bolt circle diameter | 440 mm |
| Mounting holes | 8 |
| Mounting hole diameter | 6.3 mm |
| Weight | 8.62 kg |
- Xmax is quoted one-way (peak), not peak-to-peak.
