Dayton Audio

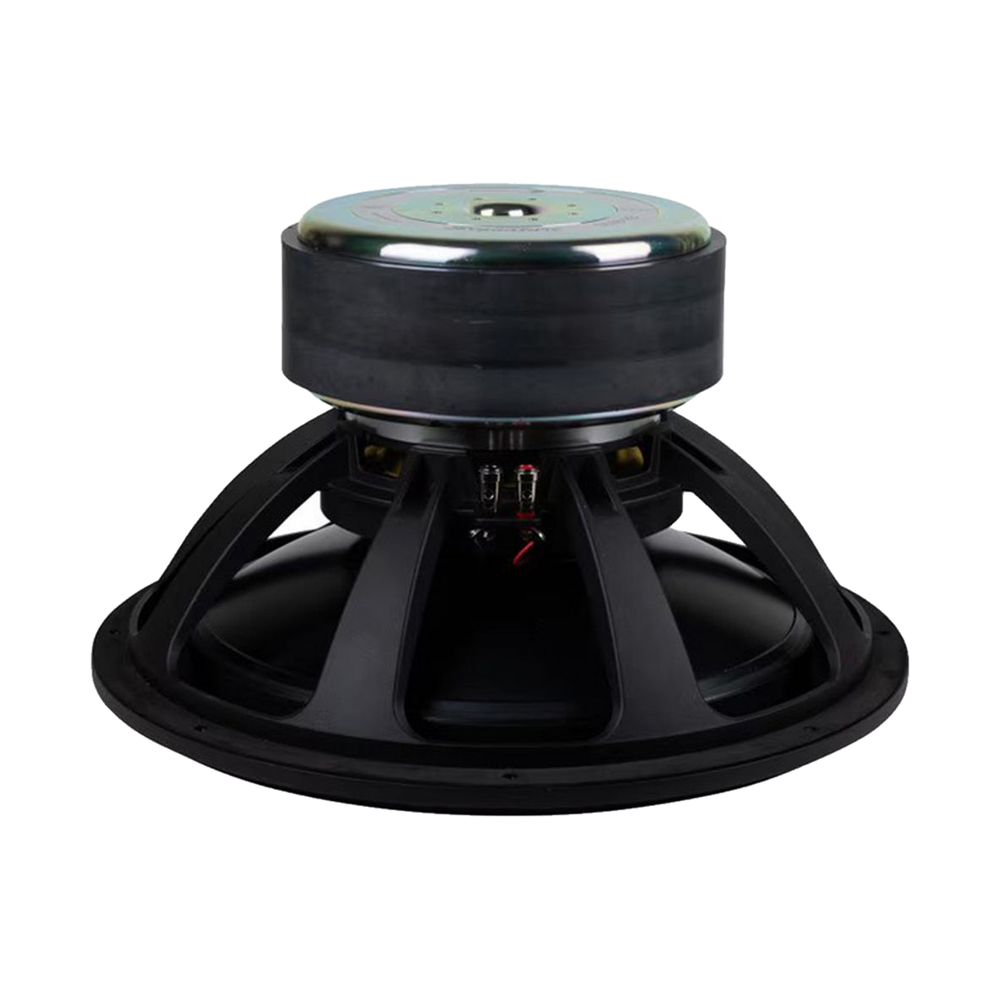

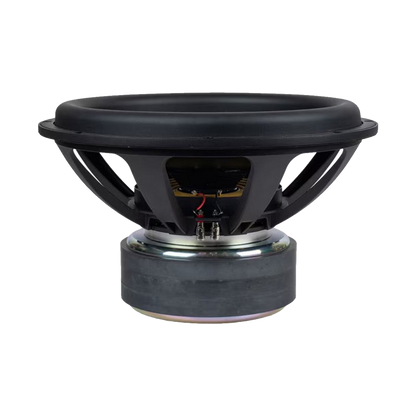

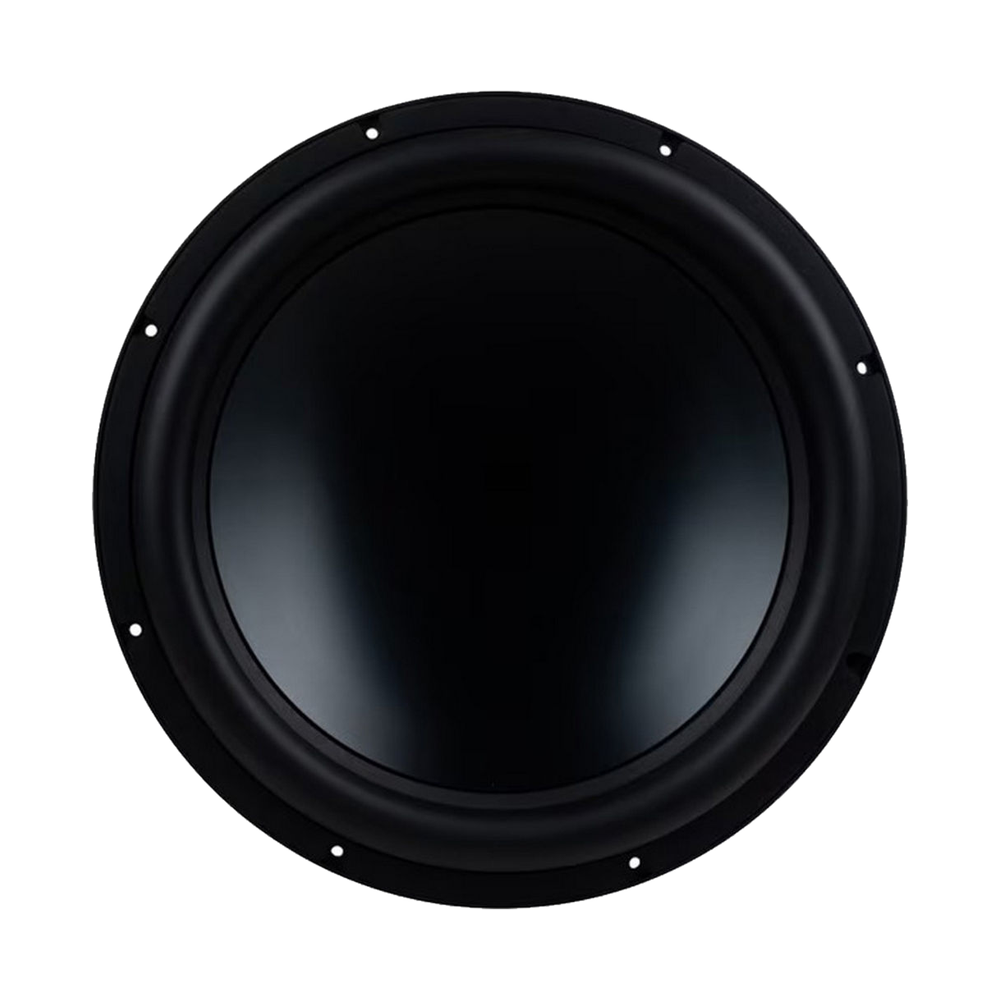

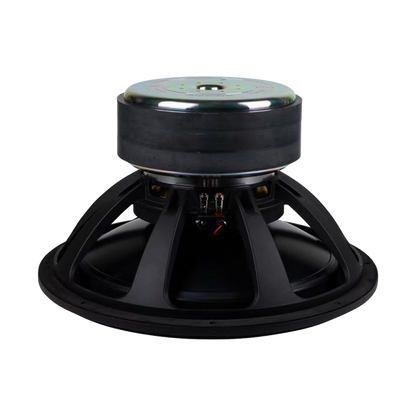

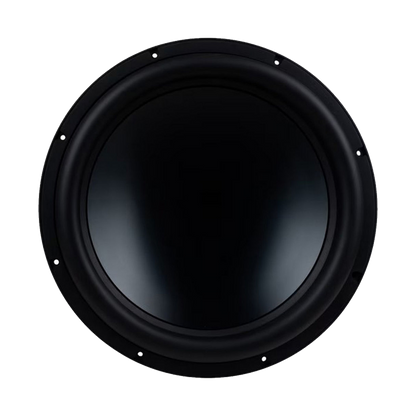

Dayton Audio - 18" Signature Subwoofer DVC - SS18-22
Dayton Audio - 18" Signature Subwoofer DVC - SS18-22
Regular price
$1,284.95 AUD
Regular price
Sale price
$1,284.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The 18" model in Dayton Audio's Signature Series subwoofers, designed for deep, accurate bass at high output. It has a rigid anodised aluminium cone, dual spider suspension, a triple-stacked magnet motor and a 3" 4-layer copper voice coil on a vented aluminium former, with extensive venting to limit power compression. Dayton aims it at high-performance home theatre and music systems.
Features
- Rigid anodised aluminium cone with indexed edge for pistonic accuracy and reduced resonance
- Aluminium shorting sleeve, ring and pole cap ensure linear inductance and ultra-low distortion
- FEA-optimised motor with triple-stacked magnets delivers exceptional strength and symmetry at high excursion
- 3" 4-layer copper voice coil on a vented aluminium former for superior power handling and cooling
- Extensive venting through cone, pole piece, spider and gap minimises compression during long sessions
- Dual spider suspension with stitched tinsel leads for precise pistonic motion and extreme durability
Specifications
Specifications
General
| Driver type | Subwoofer |
|---|---|
| Nominal size | 18" |
| Nominal impedance | 2+2Ω |
| Series | Signature |
| Power handling (RMS) | 1,300 W |
| Power handling (program) | 2,600 W |
| Sensitivity | 90.8 dB |
| Frequency range | 20 – 400 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 21 Hz |
|---|---|
| DC resistance (Re) | 5.4 Ω |
| Voice coil inductance (Le) | 2.1 mH |
| Mechanical Q (Qms) | 3.4 |
| Electrical Q (Qes) | 0.42 |
| Total Q (Qts) | 0.37 |
| Equivalent volume (Vas) | 224 L |
| Compliance (Cms) | 0.112 mm/N |
| Moving mass (Mms) | 497 g |
| Force factor (Bl) | 29.2 T·m |
| Effective piston area (Sd) | 1,188 cm² |
| Linear excursion (Xmax, one-way) | 26 mm |
| Displacement volume (Vd) | 3,089 cm³ |
| Efficiency bandwidth product (EBP) | 50 |
Motor
| Voice coil wire | CCA |
|---|

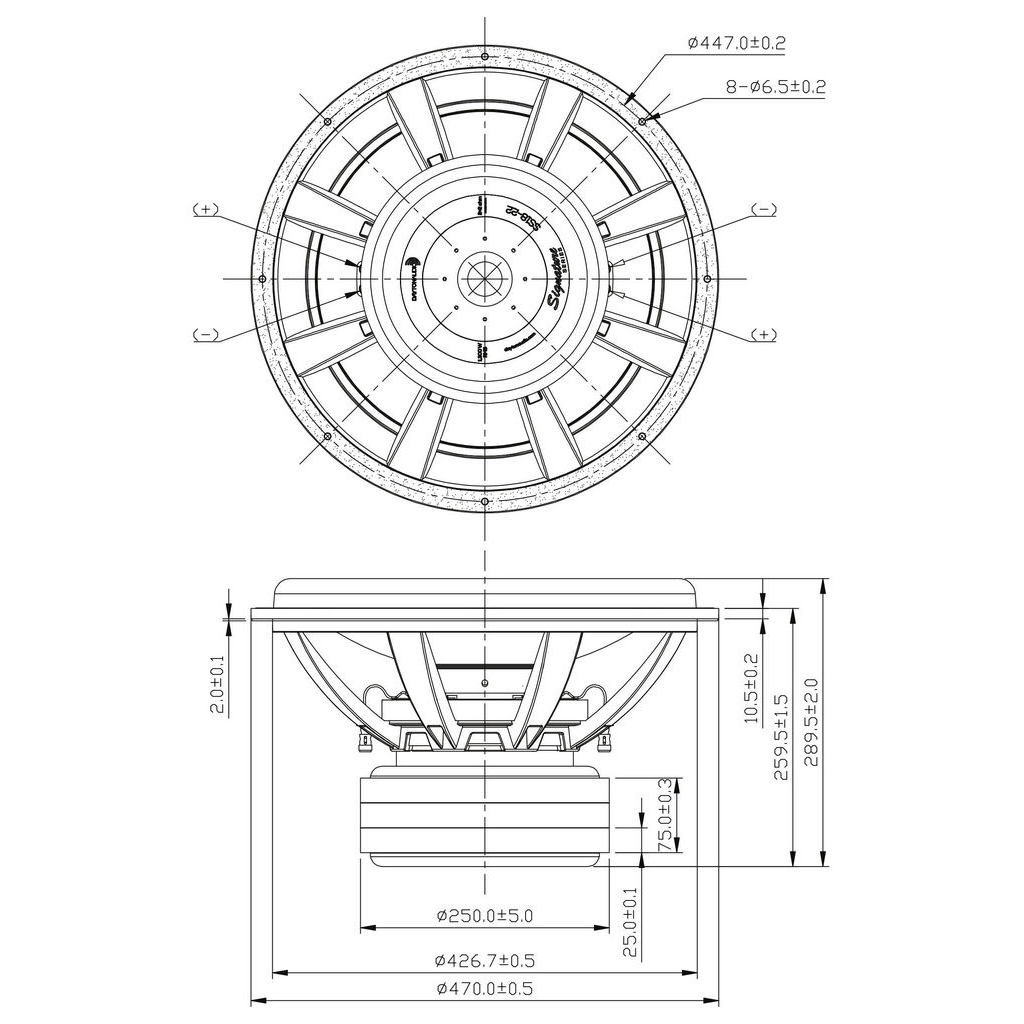

Mounting
| Overall diameter | 470 mm |
|---|---|
| Cutout diameter | 426.7 mm |
| Mounting depth | 259.5 mm |
| Bolt circle diameter | 447 mm |
| Mounting holes | 8 |
| Voice coil diameter | 77 mm |
| Weight | 20.41 kg |
Materials
| Cone | Aluminum |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminum |
| Basket | Cast Aluminum |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Re, Le, Bl and sensitivity are quoted with the two voice coils wired in series (4 Ω).
