Dayton Audio

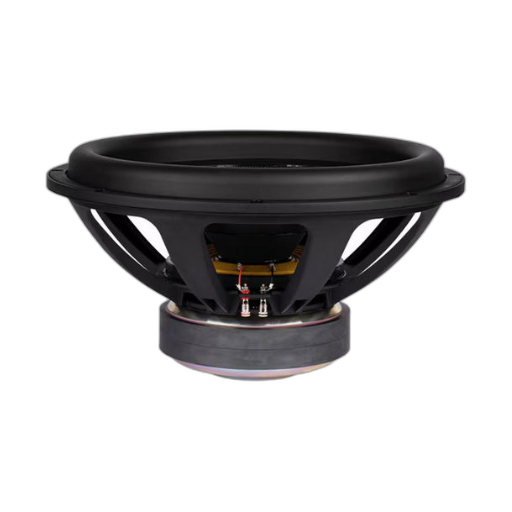

Dayton Audio - 18" Ultimax II Subwoofer - UMII18-22

Dayton Audio - 18" Ultimax II Subwoofer - UMII18-22

Regular price $779.95 AUD
Regular price Sale price $779.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

***CURRENTLY ON BACK ORDER. EXPECTED TO SHIP OUT WITHIN 2-3 WEEKS. EMAIL US FOR MORE ACCURATE LEAD TIMES***

Description:

Introducing the UMII18-22 Ultimax II 18" Carbon Fiber Cone subwoofer from Dayton Audio - the next evolution of low frequency excellence. Building upon the legendary reputation of its predecessor, this subwoofer has what it takes to deliver an exceptional listening experience. With improved excursion capability, lower distortion, higher power handling, better efficiency, and increased output, this driver was purposefully engineered to provide mind-blowing bass that will leave you breathless. Discover unparalleled bass immersion with the UMII18-22 subwoofer, delivering precision and power for those in pursuit of the ultimate sound.

Features:

  • A large aluminum shorting cap and sleeve help keep inductance linear to guarantee minimal distortion
  • The rigid yet lightweight woven carbon fiber cone delivers quick, detailed, and accurate response
  • With 28 mm xmax, you can expect powerful and deep bass response, taking your audio experience to the next level
  • Equipped with a 4-layer 3" flat wound voice coil that can handle a staggering 1,200 watts RMS, you can expand the boundaries of audio excellence
  • The frame and motor include extensive venting ensuring efficient heat dissipation for consistent and reliable operation, while minimizing power compression
  • Dual spiders maintain cone linearity even at extremely high excursion levels, providing peak audio performance at all times
  • Optimized for compact sealed enclosures, but capable of exceptional low frequency extension in vented designs - offering you the freedom to create the perfect audio setup

Specifications:

Code UMII18-22
Description Dayton Audio Ultimax II 18" DVC Subwoofer 2 Ohm Per Coil
Cms 0.124mm/N
Coil 76mmØ
Depth 229mm
Diam. 470mmØ
Fs 22Hz
Hole 427mmØ
Impedance 2x2Ω (Re 4.2Ω)
Impedance (Ohm) 2+2 ohm
Le 1.15mH
Mms 420g
Power 1200Wrms
Qes 0.67
Qms 2.53
Qts 0.53
Re 4.2Ω
Sd 1184cm²
Sens. 90.7dB
Series Ultimax Series
Size 18"
Type DVC subwoofer
Vas 248.2L
