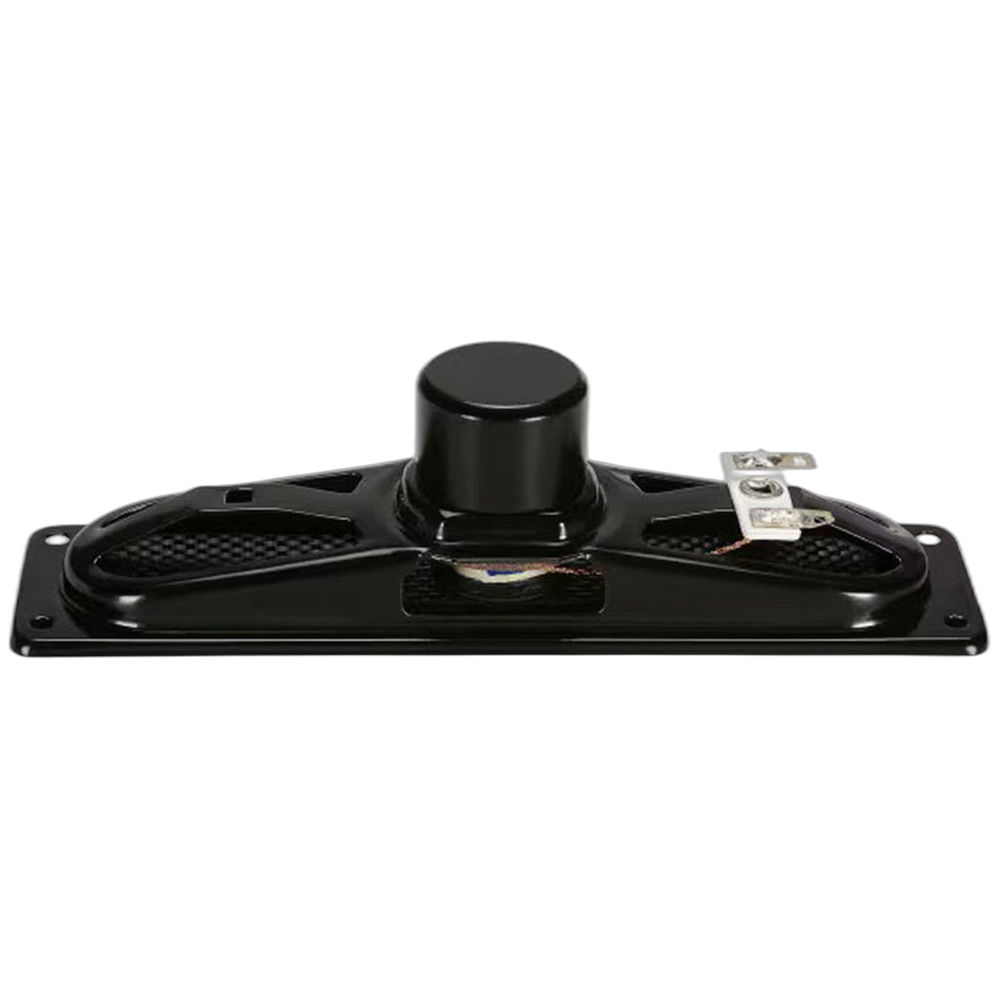

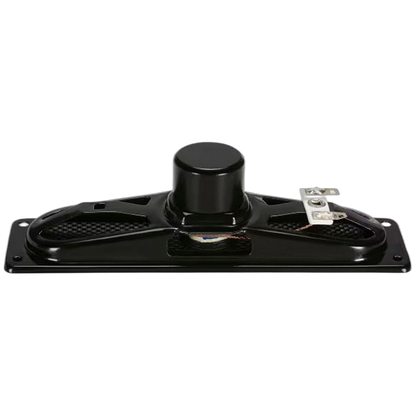

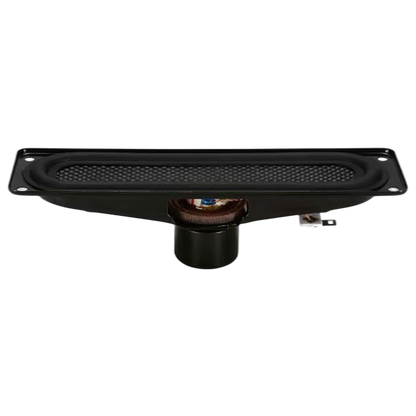

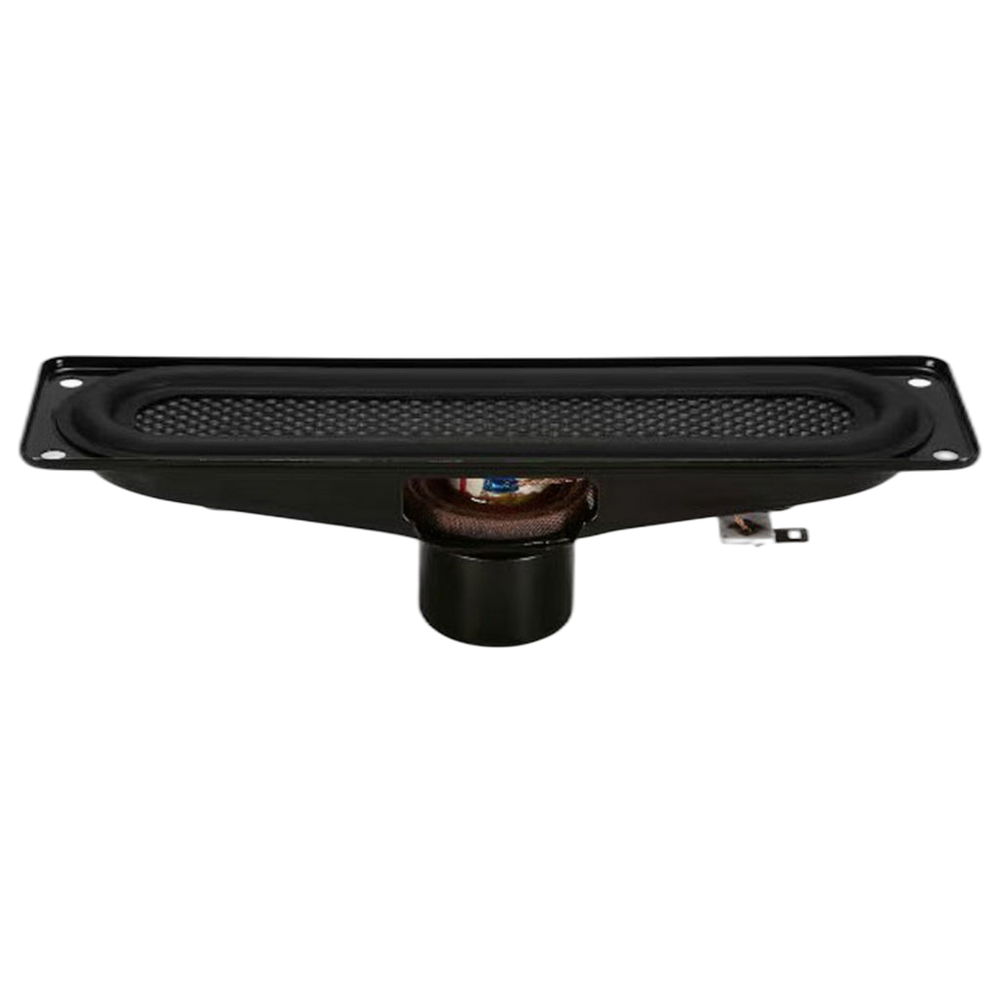

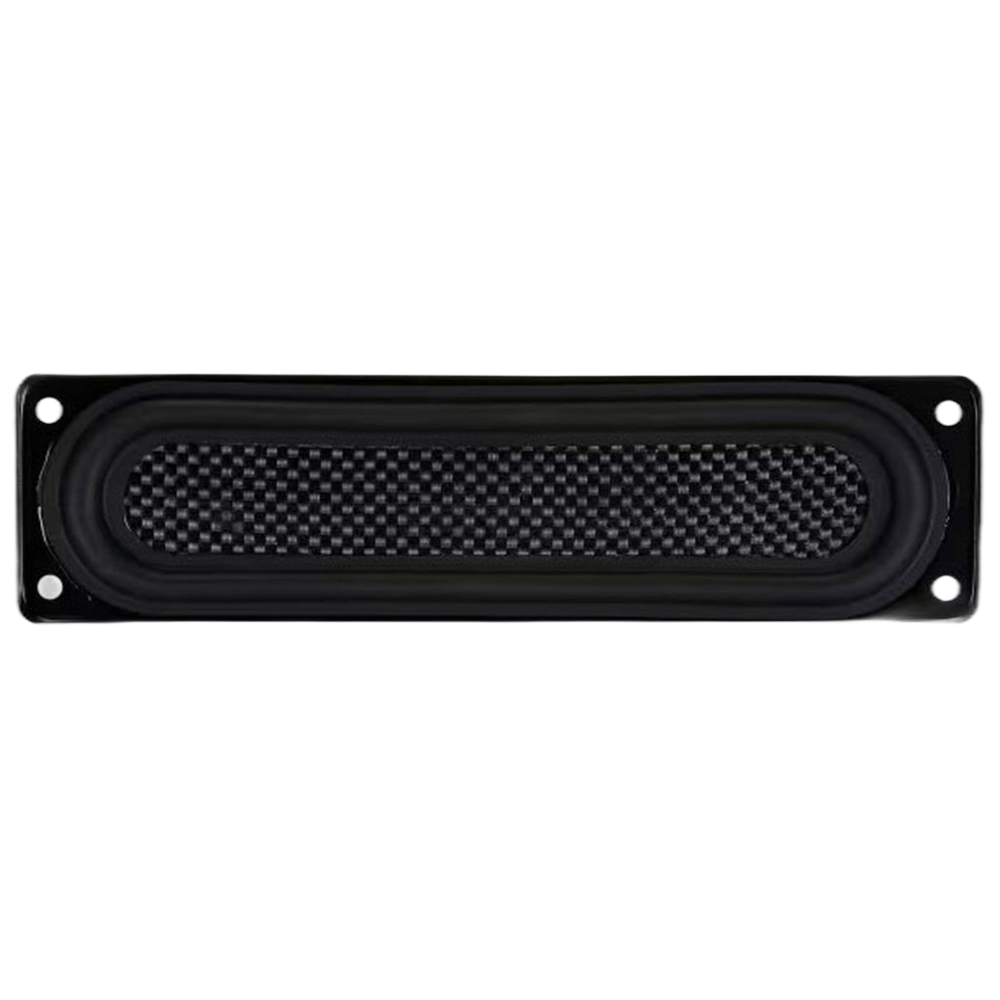

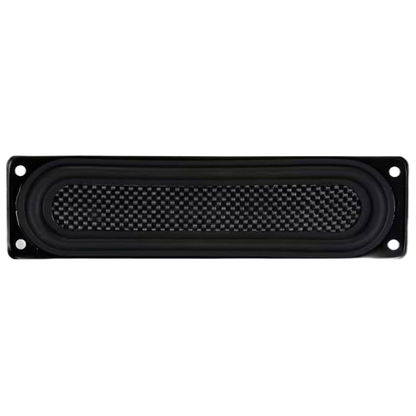

The CE140-30S-8 by Dayton Audio is a 1” x 5” tall-aspect-ratio extended range driver with a flat sandwich-construction diaphragm and a compact neodymium motor, for applications requiring a very narrow format yet wide-bandwidth driver.
The Commercial Engineering (CE) series of speaker drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.
The Dayton Audio CE140-30S-8 is a 1” x 5” driver for applications requiring a narrow format, yet wide bandwidth. The flat diaphragm uses a sandwich construction composed of woven glass fibre skins over a paper honeycomb core, for an excellent combination of stiffness and damping – often difficult to achieve in a flat diaphragm. The compact neodymium motor provides long-throw performance in a small form factor, enabling the driver frame to be only 1.4” wide. The rugged, low-profile stamped steel frame features screw mounting holes for simplified installation.
The rugged, low-profile stamped steel frame features screw mounting holes for simplified installation. Use the CE140-30S-8 as a wide-bandwidth driver, or as a narrow-format midwoofer driver for high-fidelity music.
Features
- Tall aspect ratio flat diaphragm for wide dispersion
- Compact neodymium magnet structure
- Low profile stamped steel frame
- Copper voice coil on vented Kapton former
- Suitable as a mid-woofer or extended range driver

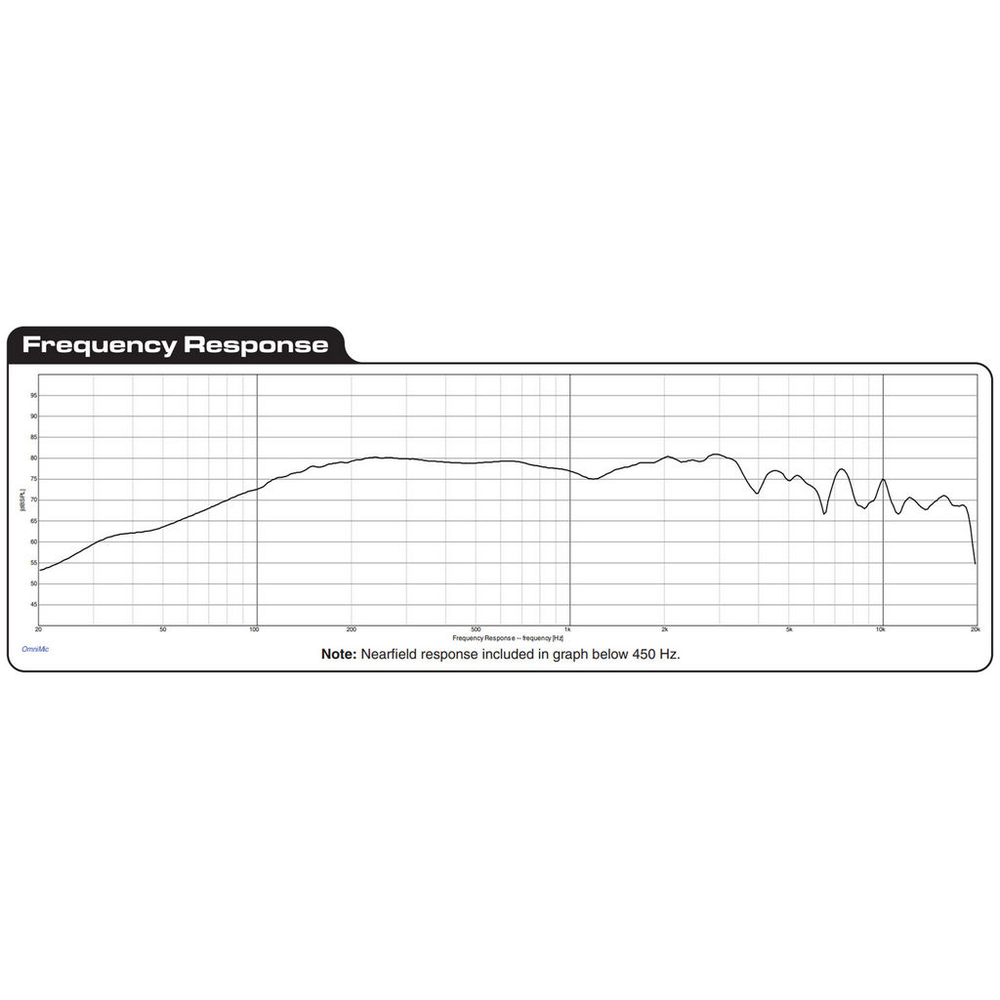

Specifications
Specifications
General
| Driver type | Full Range |
|---|---|
| Nominal size | 1x5" |
| Nominal impedance | 8Ω |
| Series | CE |
| Power handling (RMS) | 10 W |
| Power handling (program) | 20 W |
| Sensitivity | 76 dB |
| Frequency range | 100 – 8,000 Hz |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 105 Hz |
|---|---|
| DC resistance (Re) | 7.75 Ω |
| Voice coil inductance (Le) | 0.78 mH |
| Mechanical Q (Qms) | 4.64 |
| Electrical Q (Qes) | 1.35 |
| Total Q (Qts) | 1.04 |
| Equivalent volume (Vas) | 0.41 L |
| Compliance (Cms) | 0.47 mm/N |
| Moving mass (Mms) | 5.08 g |
| Mechanical resistance (Rms) | 0.7223 kg/s |
| Force factor (Bl) | 4.34 T·m |
| Effective piston area (Sd) | 25.1 cm² |
| Linear excursion (Xmax, one-way) | 2 mm |
| Displacement volume (Vd) | 5.02 cm³ |
| Efficiency bandwidth product (EBP) | 77.78 |
Mounting

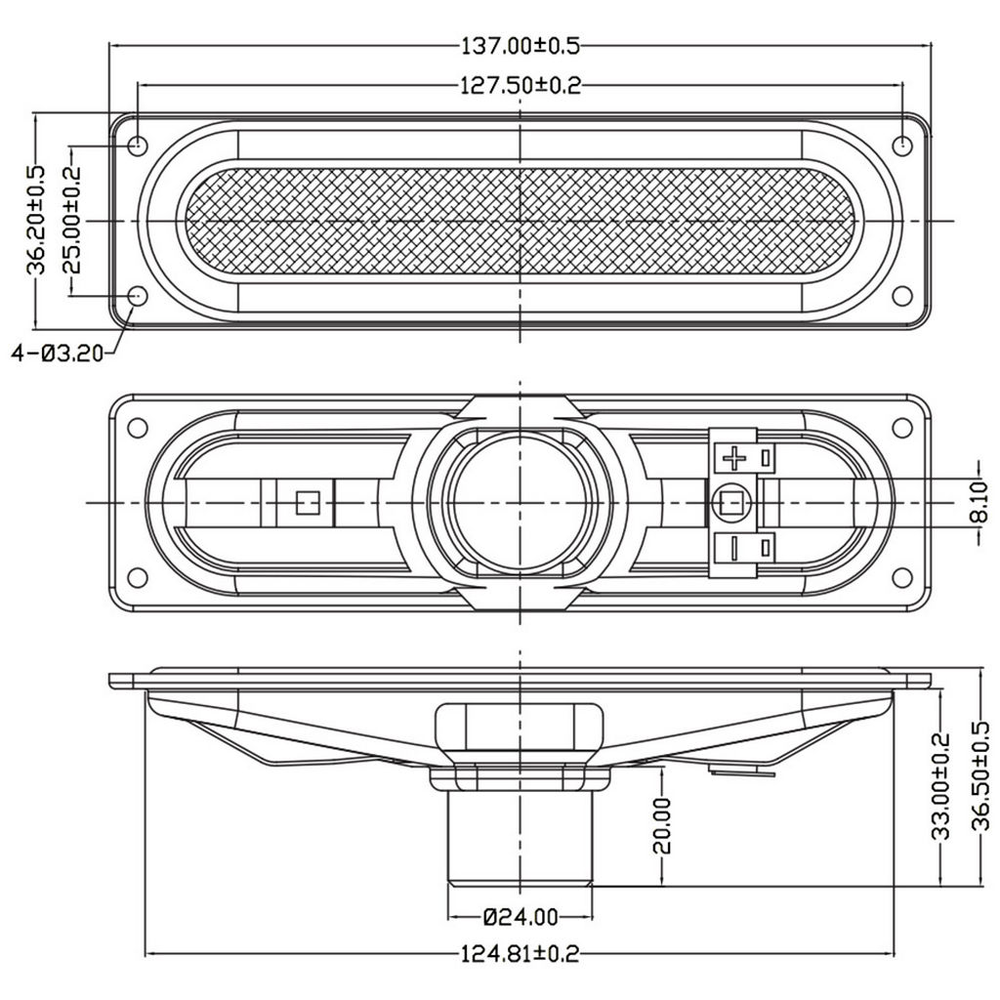

| Faceplate | Rectangle, 137 × 36.2 mm |
|---|---|
| Cutout | 124.8 × 33 mm |
| Mounting depth | 33 mm |
| Voice coil diameter | 20 mm |
| Weight | 0.08618 kg |
| Mounting holes | 4 |
| Dimensions | 137 × 36 × 37 mm |
Materials
| Cone | Fibreglass |
|---|---|
| Surround | Rubber |
| Voice coil former | Kapton® / Polyimide |
| Basket | Stamped Steel |
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
Downloads
- CE140-30S-8 Specification Sheet
- CE140-30S-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
