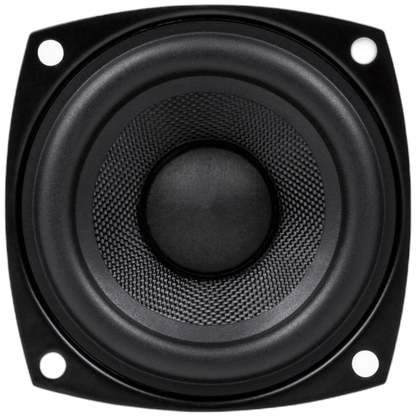

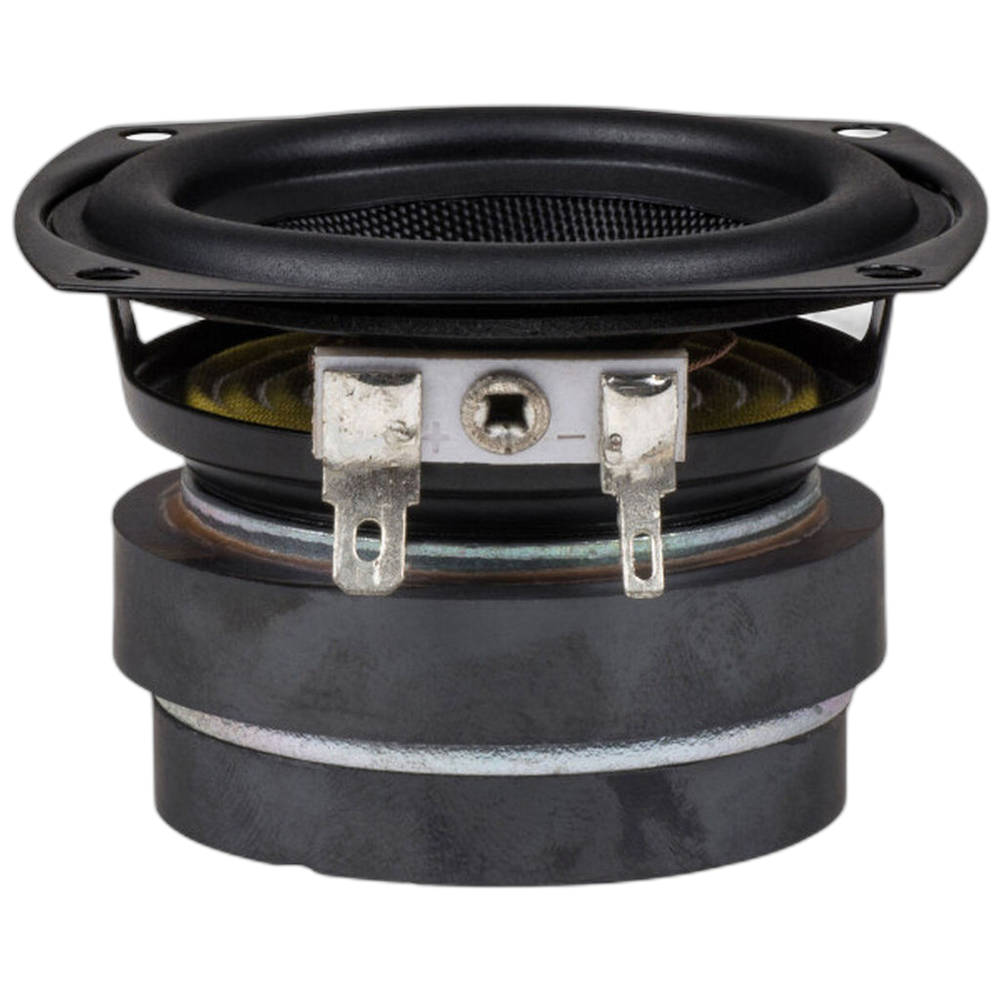

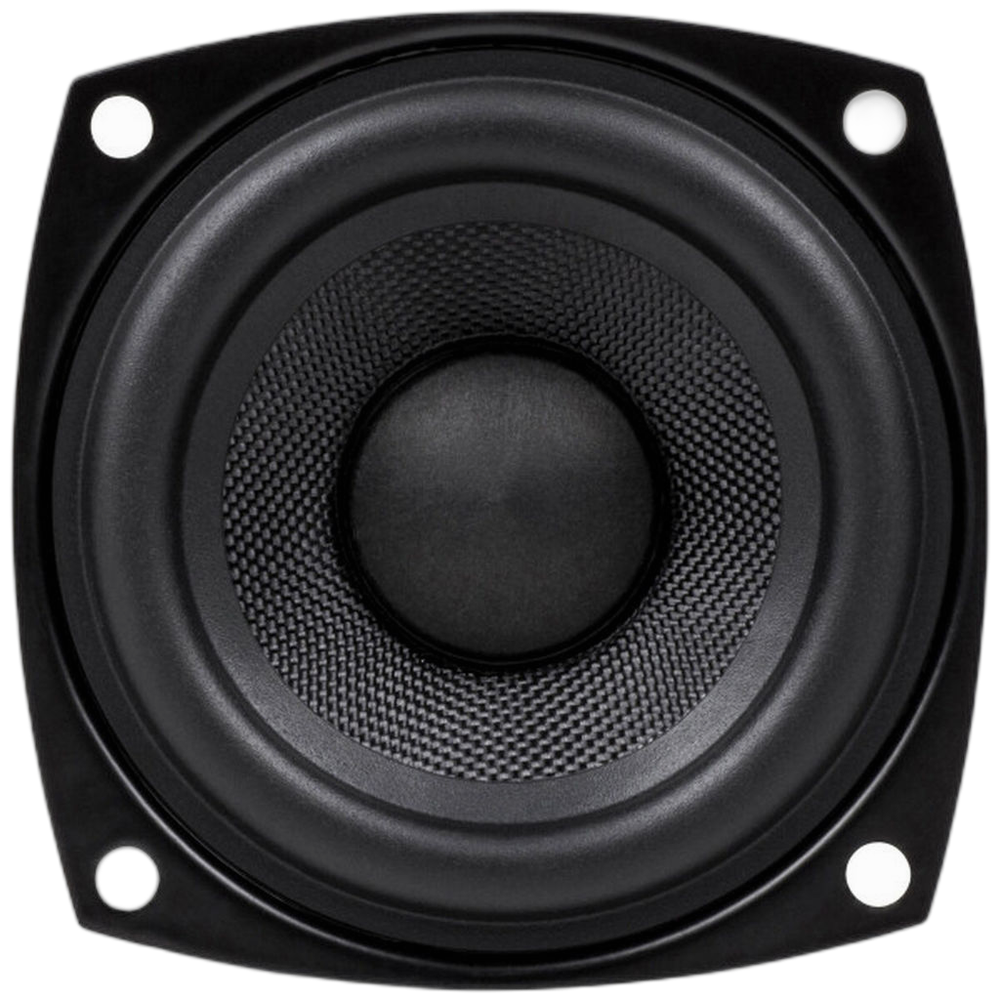

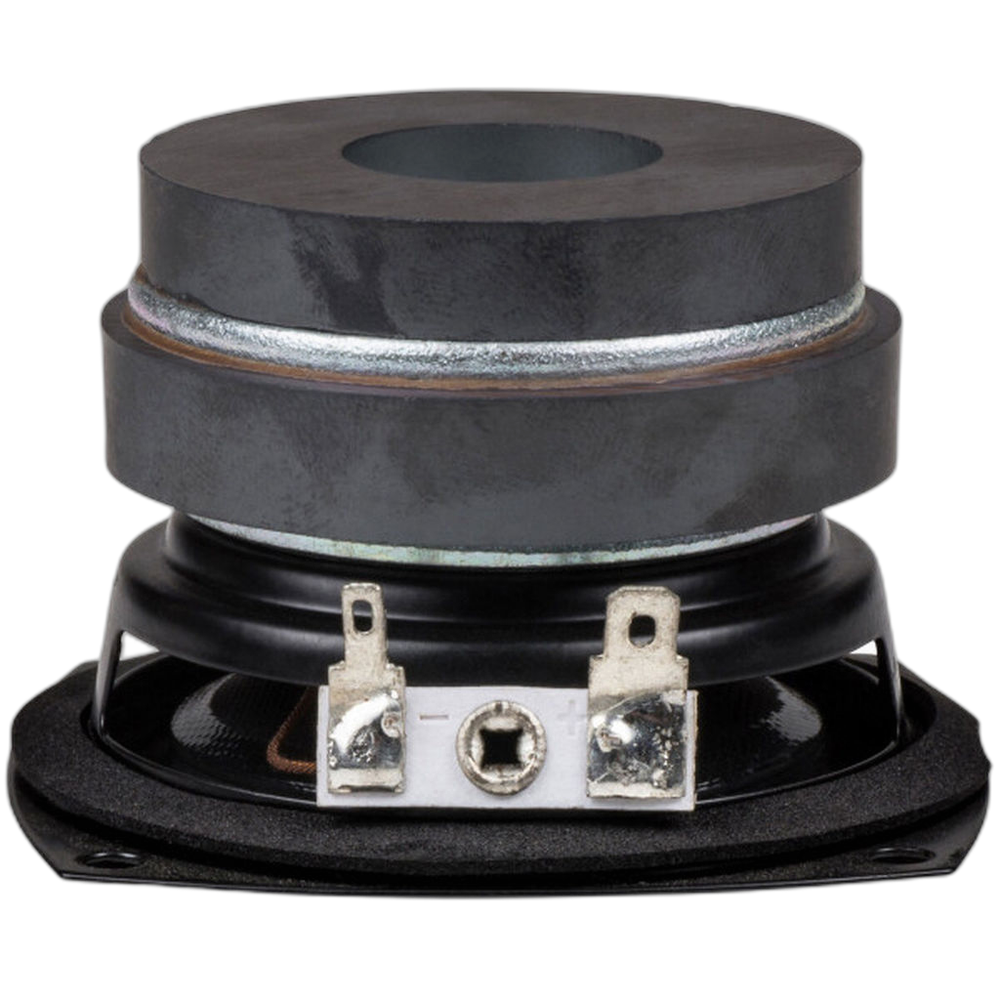

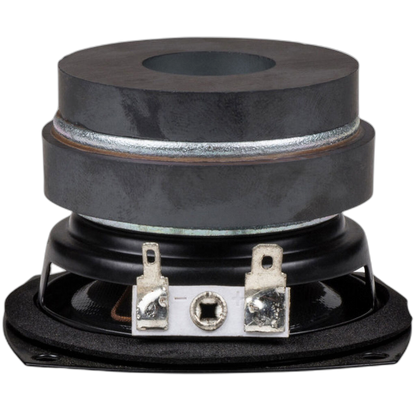

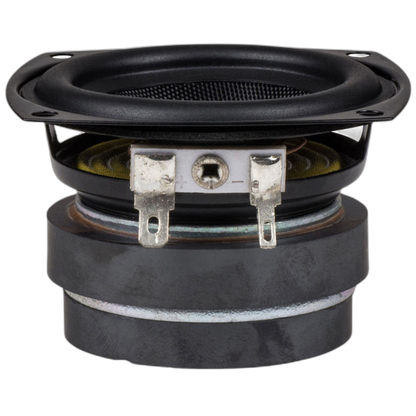

Dayton Audio - 2½" Extended Range Driver - CE65W-8
Dayton Audio - 2½" Extended Range Driver - CE65W-8
Out of stock
Couldn't load pickup availability
Description
The CE65W-8 from Dayton Audio is an economical compact extended-range woofer that excels in a variety of small music-oriented audio systems. It features an economical ferrite magnet motor assembly with shielding magnet, a woven glass fibre cone, and a rubber surround.
The Commercial Engineering (CE) Series drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects. Multiple types and styles are available within the CE Series family of drivers, to suit a wide spectrum of engineering requirements.
The CE65W-8 is a 2-1/2" shielded extended range driver that excels in wide-range speaker or "mini-woofer" applications. The woven fibreglass cone and rubber surround provide a wide operating frequency range, enabling this driver to be used either as a woofer or a full-range driver. Its bucking magnet provides video shielding for operation near legacy CRT monitors without magnetic interference, and the stamped frame and cotton spider ensure reliable, properly-aligned operation for years. It's the perfect choice for multimedia applications, line arrays, or compact hi-fi loudspeakers.
Features
- Robust, compact design
- Usable as a full-range driver or small woofer
- Woven glass fibre cone for excellent sonic detail
- Video-shielded for use near CRT displays
Specifications
Specifications
General
| Driver type | Full Range |
|---|---|
| Nominal size | 2.5" |
| Nominal impedance | 8Ω |
| Series | CE |
| Power handling (RMS) | 7 W |
| Power handling (program) | 15 W |
| Sensitivity | 82 dB |
| Frequency range | 80 – 17,000 Hz |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 112 Hz |
|---|---|
| DC resistance (Re) | 6.9 Ω |
| Voice coil inductance (Le) | 0.15 mH |
| Mechanical Q (Qms) | 4.27 |
| Electrical Q (Qes) | 0.95 |
| Total Q (Qts) | 0.7771 |
| Equivalent volume (Vas) | 0.58 L |
| Compliance (Cms) | 1.01 mm/N |
| Moving mass (Mms) | 2 g |
| Mechanical resistance (Rms) | 0.3296 kg/s |
| Force factor (Bl) | 3.2 T·m |
| Effective piston area (Sd) | 20.1 cm² |
| Linear excursion (Xmax, one-way) | 2 mm |
| Displacement volume (Vd) | 4.02 cm³ |
| Efficiency bandwidth product (EBP) | 117.9 |
Motor
| Voice coil wire | Copper |
|---|
Mounting
| Overall diameter | 83.3 mm |
|---|---|
| Faceplate | Not round (see the maker's drawing) |
| Cutout diameter | 58.93 mm |
| Mounting depth | 45.21 mm |
| Voice coil diameter | 19.1 mm |
| Weight | 0.2722 kg |
| Mounting holes | 4 |
| Dimensions | 45 × 83 mm Ø |
Materials
| Cone | Fibreglass |
|---|---|
| Surround | Rubber |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- CE65W-8 Specification Sheet
- CE65W-8 Graphs/FRD/ZMA Data File
- CE65W-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
Some figures here aren't checked against Dayton Audio's datasheet yet. See which
