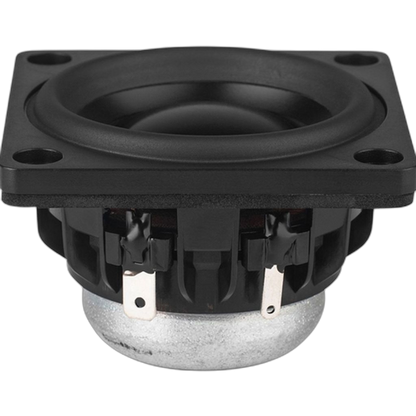

Dayton Audio - 2" Full Range Driver - DMA58-8
Dayton Audio - 2" Full Range Driver - DMA58-8
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Dayton Audio's DMA58-8 2" high performance full-range driver combines a rigid aluminium cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make the DMA58-8 the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design.
Providing high efficiency with low distortion, Dayton Audio's DMA58-8 2" aluminium cone full-range is an ideal driver for use in many of todays modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA58-8 is the perfect full-range for the job.

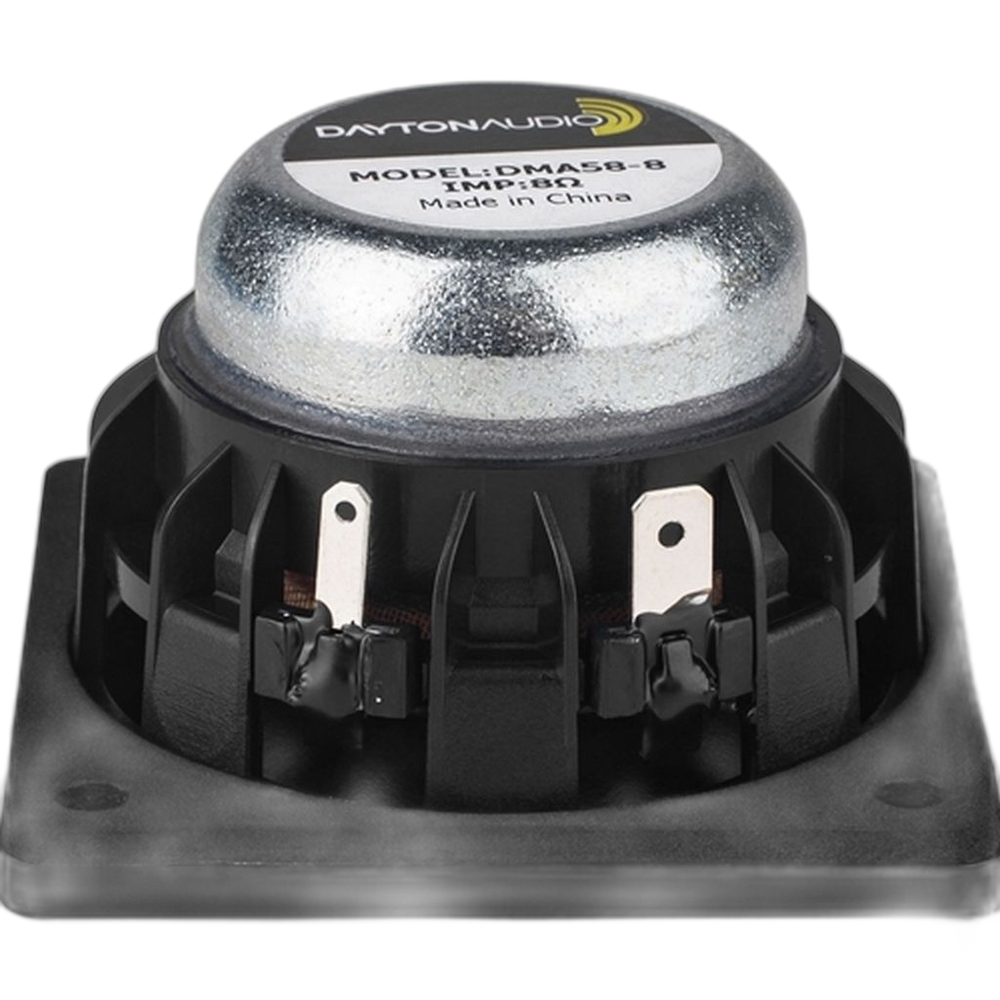

Designed for the highest performance while delivering maximum value, the no compromise design of the DMA58-8 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on an extensively vented aluminium former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminium cone linear with superb mechanical damping. In addition, the aluminium dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 8-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion.
Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.
Features
- Excellent high frequency response for true full-range applications
- Dual neodymium motor to create a symmetrical magnetic field for superb control
- Large copper cap lowers distortion while improving high frequency response
- Vented aluminium voice coil former with exceptional heat dissipation for high power handling

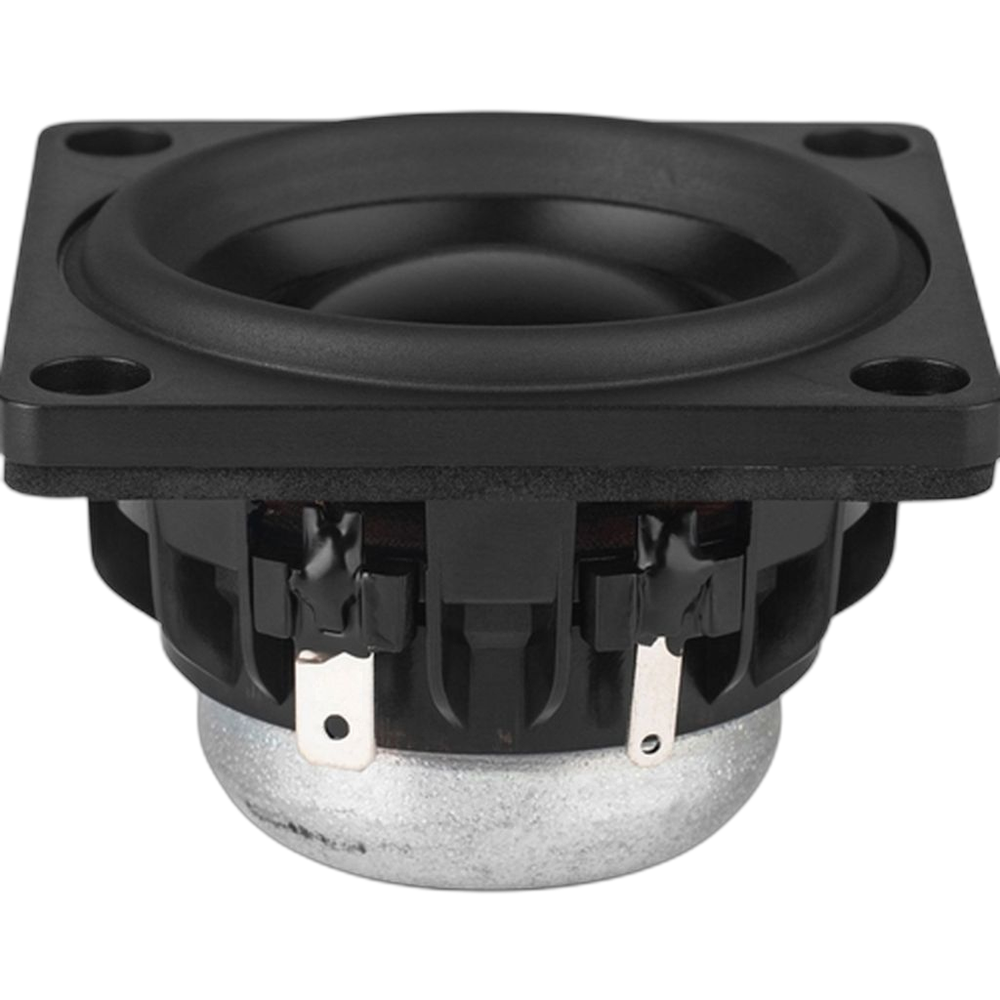

- Exclusive 8-spoke open frame design provides extensive venting and minimal reflection
- DIY friendly, oversized mounting flange makes installation simple
- Matching tunable passive radiators also available!
Specifications
Specifications
General
| Driver type | Full Range |
|---|---|
| Nominal size | 2" |
| Nominal impedance | 8Ω |
| Series | DMA |
| Power handling (RMS) | 15 W |
| Power handling (program) | 30 W |
| Sensitivity | 82.5 dB |
| Frequency range | 160 – 20,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 166.2 Hz |
|---|---|
| DC resistance (Re) | 7.1 Ω |
| Voice coil inductance (Le) | 0.4 mH |
| Mechanical Q (Qms) | 2.45 |
| Electrical Q (Qes) | 0.69 |
| Total Q (Qts) | 0.54 |
| Equivalent volume (Vas) | 0.1359 L |
| Compliance (Cms) | 0.46 mm/N |
| Moving mass (Mms) | 2 g |
| Mechanical resistance (Rms) | 0.8525 kg/s |
| Force factor (Bl) | 4.9 T·m |
| Effective piston area (Sd) | 14.5 cm² |
| Linear excursion (Xmax, one-way) | 2 mm |
| Displacement volume (Vd) | 2.9 cm³ |
| Efficiency bandwidth product (EBP) | 240.9 |
Mounting
| Faceplate | Square, 56 × 56 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 51.0 mm |
| Mounting depth | 31.8 mm |
| Voice coil diameter | 25.4 mm |
| Weight | 0.1361 kg |
Materials
| Cone | Aluminium |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- DMA58-8 Specification Sheet
- DMA58-8 Data Files
- DMA58-8 DMA58-4 and -8 3D Files
- DMA58-8 Cutout & Recess Template (NB Audio) Straight off Dayton Audio's spec sheet: flange outline, recess depth, bolt holes. Scaled from Dayton Audio's drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
